SK Shaft Support Seat

Model:

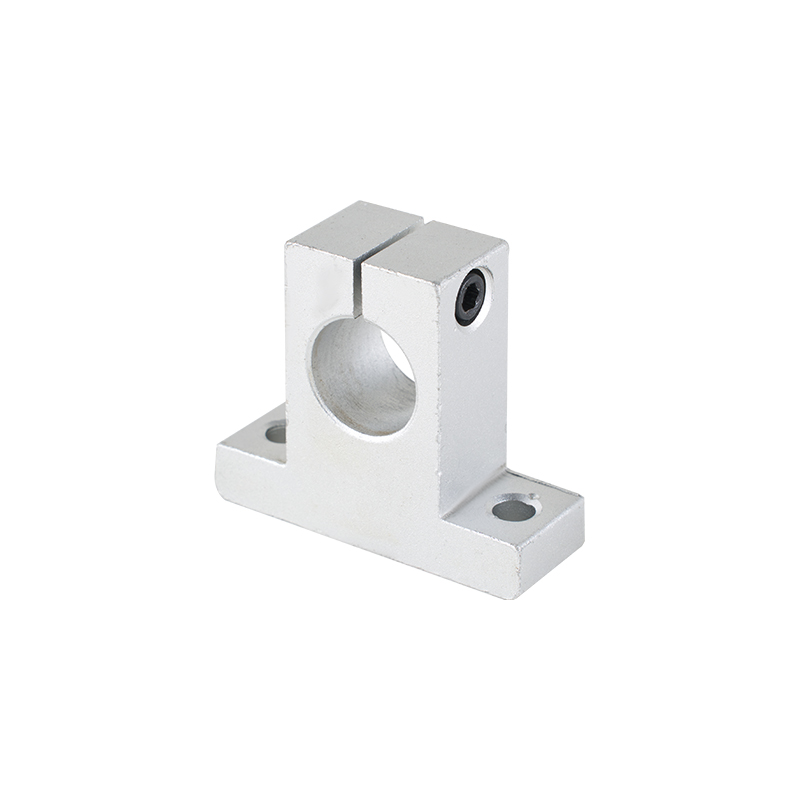

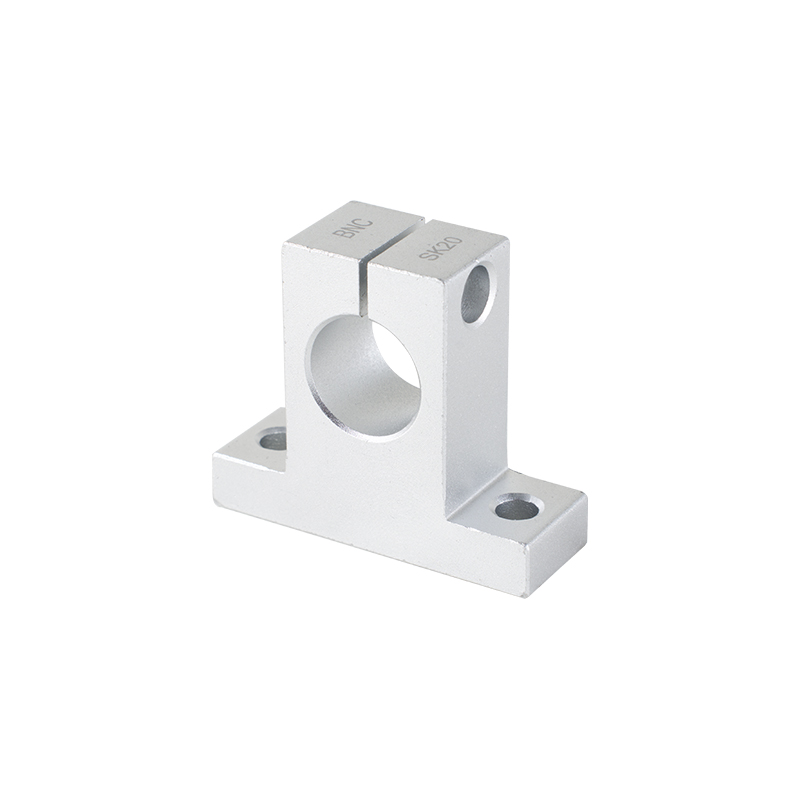

SK linear shaft vertical support seat:

This SK linear shaft vertical support seat is made of aluminum alloy. Aluminum alloy has many advantages. It is light but strong. This ensures that the support seat can stably support the linear shaft while not being too heavy, making it easy to install and carry. In addition, aluminum alloy has good corrosion resistance, which can effectively resist erosion from the external environment, extend the service life of the support seat, and ensure stable operation in various working environments. It is specially designed for linear shaft support and can accurately adapt to the SK linear shaft. With a vertical structure, it provides stable and reliable support in the vertical direction for the linear shaft, ensuring that the linear shaft maintains good straightness and precision during operation, thereby ensuring the efficient and stable operation of the entire equipment. Whether in automated production equipment, precision instruments or other fields with high requirements for linear shaft support, the SK linear shaft vertical support seat can play an reliable supporting role with its unique material and reasonable vertical structure, and is a high-quality choice for linear shaft support.

PREV: Linear Shaft Cross Clamp NEXT: Shaft Collar

+86 17398543323

[email protected]

Product description

Shaft Support Product Introduction

I. General Product Definition

Shaft supports—commonly known as shaft mounts or smooth shaft fixtures—are fundamental hardware components used in automation equipment. In simple terms, they serve as mounting bases for linear smooth shafts or rotary drive shafts; by securely anchoring suspended shafts to the machine frame, they prevent wobbling, sagging, or misalignment. As standard accessories for linear transmission systems, they feature a simple design without complex internal mechanisms, serving solely to position and support the shaft.

II. Detailed Applications

These products are designed exclusively for industrial OEM equipment manufacturers and overseas distributors, with no consumer-market applications. Specific use cases include: 1. Express delivery sorting conveyors: Providing segmented support for long-distance guide shafts (with a mount placed every 80 cm) to prevent sagging in shafts exceeding 2 meters in length; 2. 3C product dispensing machines: Securing vertical Z-axis shafts to prevent dispensing path deviations caused by high-frequency vibration; 3. Food packaging seal-and-cut machines: Utilizing stainless steel mounts in humid workshop environments to support cutting drive shafts; and 4. Automated storage and retrieval system (AS/RS) transfer robots: Anchoring the ends of horizontal travel shafts to ensure reliability during continuous 24-hour operation. Key overseas markets include automation equipment assembly plants in the European Union and Southeast Asia.

III. Customer Purchasing Motivations & Solutions for Overseas Markets

Private Label Strategy: Enables overseas SMEs trading in automation components to round out their linear component catalogs, reduce reliance on high-priced Japanese brands (like MISUMI), and establish a line of affordable, high-quality alternatives.
Bulk Retail Supply: Caters to Amazon industrial stores and local hardware wholesalers by stocking a wide range of SKUs in small batches, effectively meeting the replenishment needs of smaller-scale customers.
Cost Optimization: Original equipment manufacturers (OEMs) often charge a 40%–60% premium for genuine supports; our products match these tolerances while cutting procurement costs by 22%–28%, addressing the pain points of high raw material costs and a lack of price competitiveness in equipment quotes.

IV. OEM/ODM Specifications

OEM: Supports direct customer logo engraving and private-label packaging using existing molds; MOQ: 500 units. ODM: Supports modifications such as mounting hole spacing, anodized color finishes, and extended base lengths; requires simple tooling; MOQ: 3,000 units. Lead times: 7 days (OEM) and 18 days (ODM).

V. Addressing Customer Pain Points

Poor Compatibility (Originals: ±0.05mm tolerance): Our mass-produced parts maintain a stable tolerance of ±0.02mm and are compatible with global standard precision shafts.
Oxidation in Harsh Environments (Humidity/Dust): We offer three surface finishes—natural, hard-anodized, and stainless steel—to suit humid European climates and dusty Middle Eastern environments.
Long Lead Times (Originals: 4–6 weeks): We offer 3-day delivery for in-stock SKUs and as little as 12 days for custom orders, significantly shortening inventory lead times for overseas customers.

VI. Target Partners

This product is intended exclusively for B2B industrial partnerships; we do not accept individual or retail orders. Target partners include automation equipment assemblers, overseas industrial hardware distributors, and cross-border industrial private-label brands. We do not currently serve DIY enthusiasts, individual 3D printing hobbyists, or home renovation consumers. We verify only basic corporate procurement credentials prior to partnership, ensuring a streamlined process that minimizes communication overhead for the client.

VII. FAQ

Q: Is it compatible with the full range of MISUMI shaft diameters?

A: Standard sizes (10–50 mm) are 100% interchangeable; no modification to mounting holes is required.

Q: How is rust-prevention packaging handled for ocean shipping?

A: Standard packaging includes VCI (Volatile Corrosion Inhibitor) bags and individual cartons, meeting rust-prevention requirements for two months of ocean transit.

Q: What is the minimum order quantity (MOQ)?

A: The minimum is 100 pieces for in-stock items and 500 pieces for custom orders.
