Comprehensive Introduction to SBR UU Slide Block

Comprehensive Introduction to SBR UU Slide Block

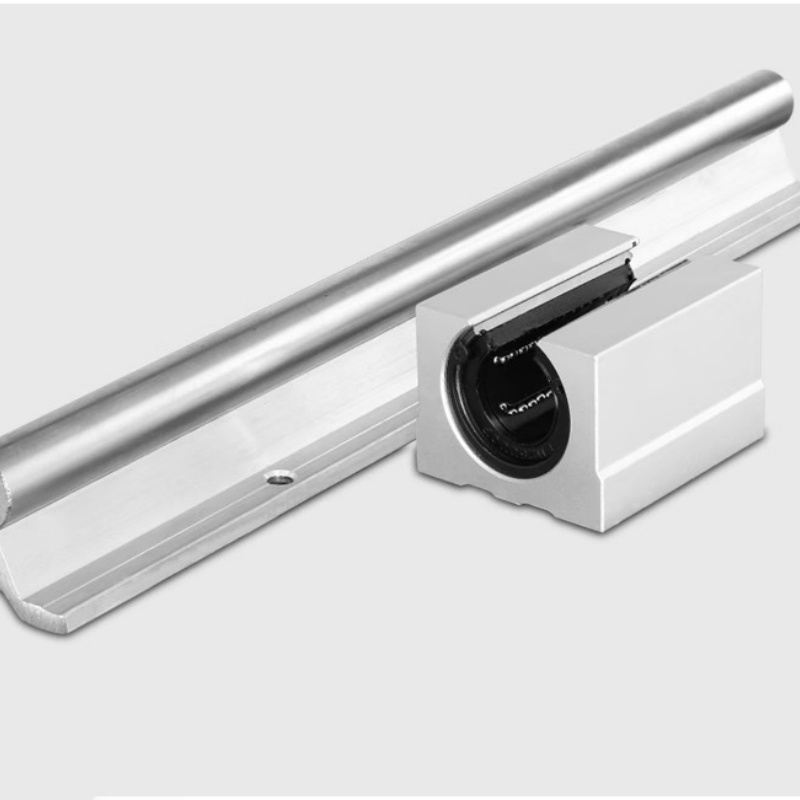

Product Overview

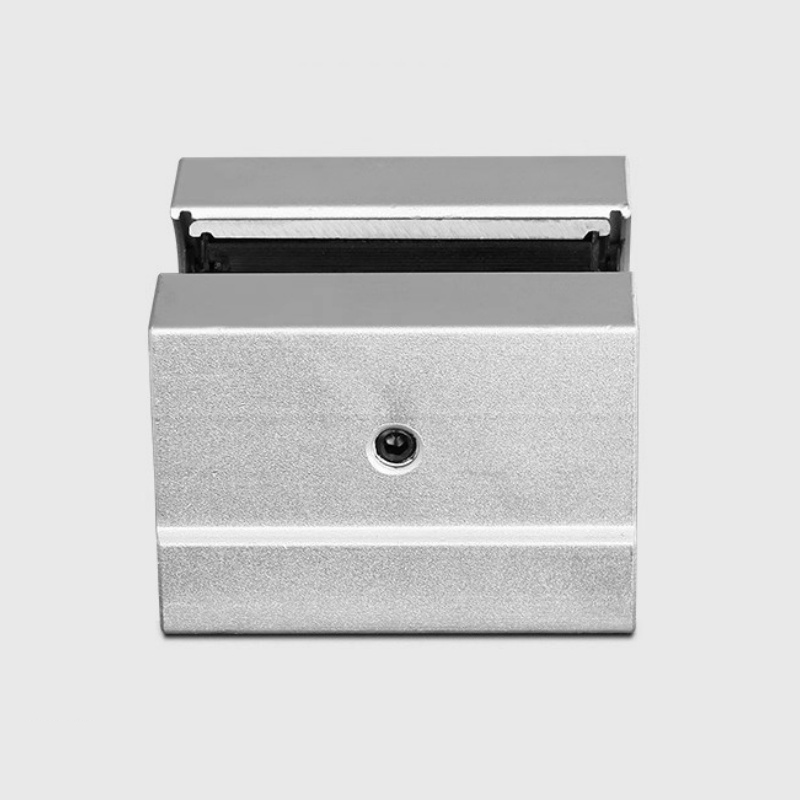

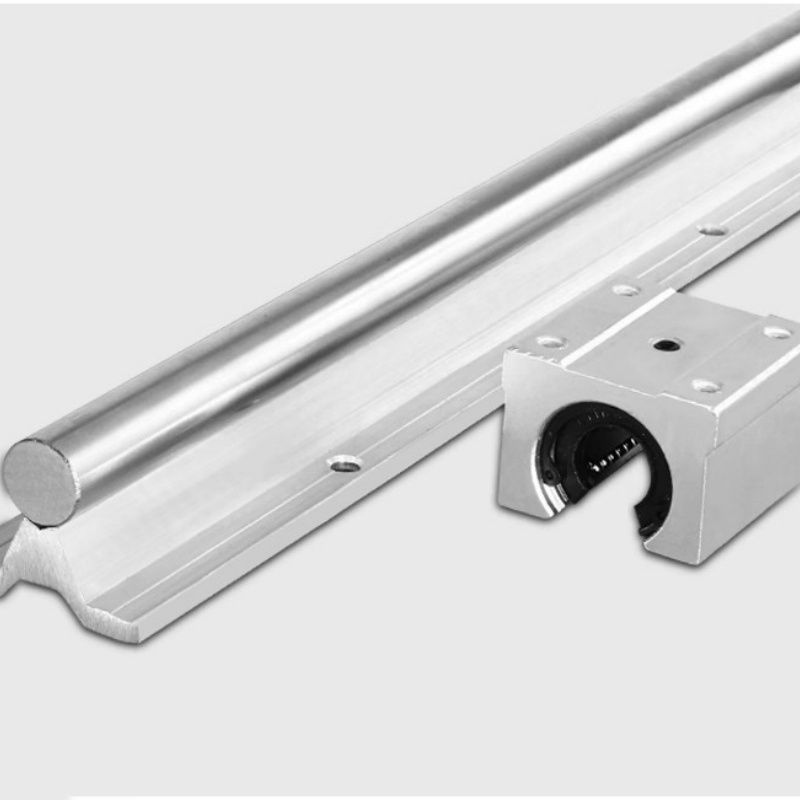

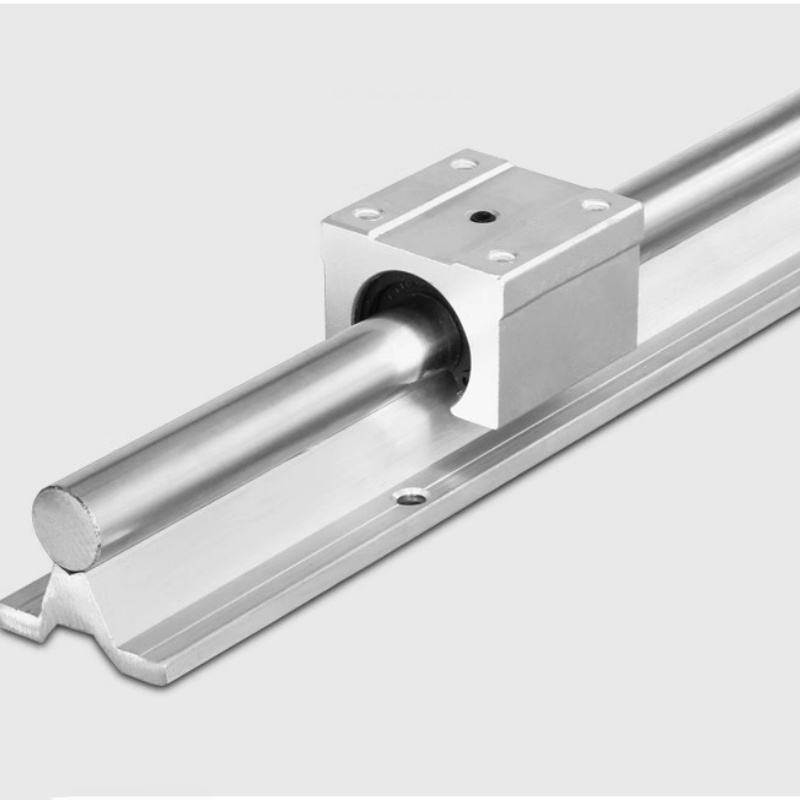

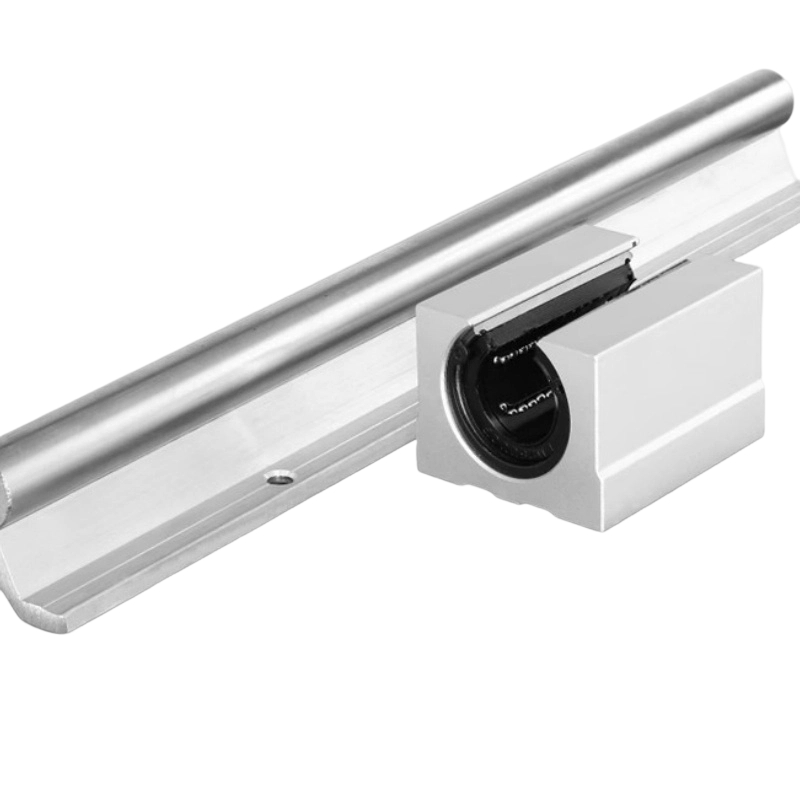

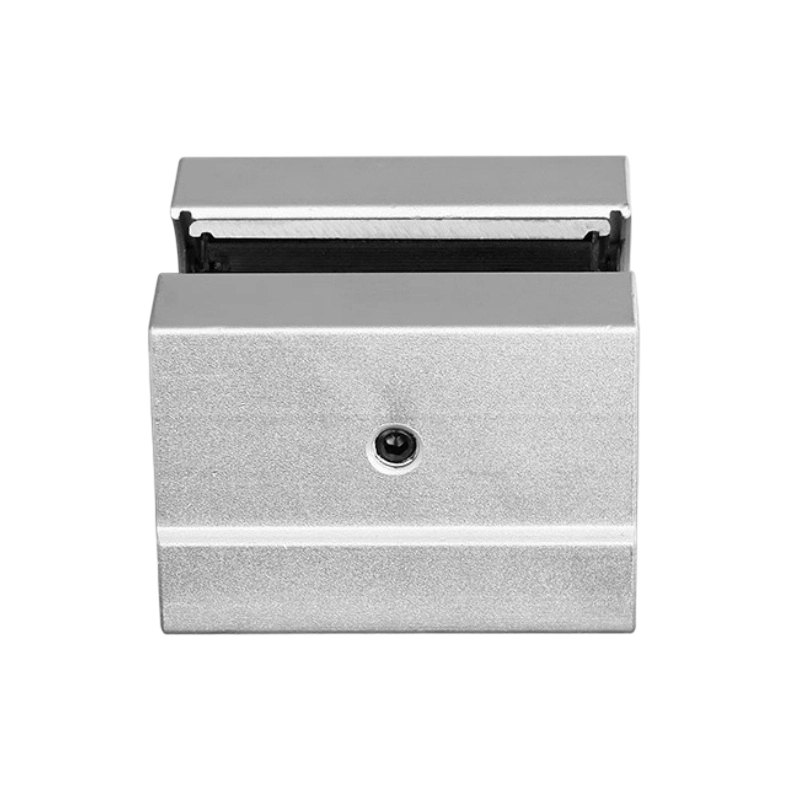

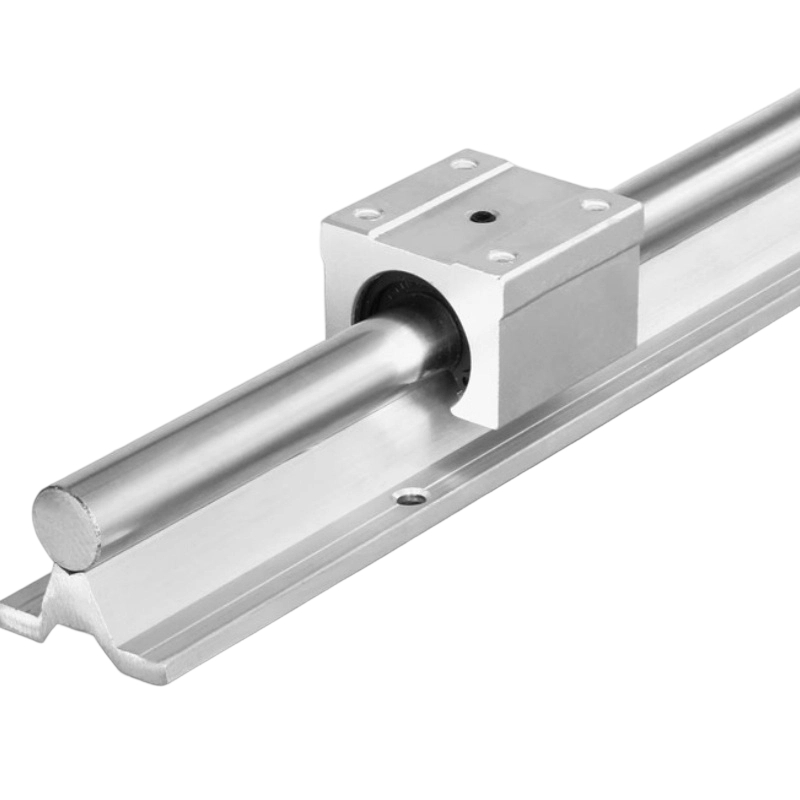

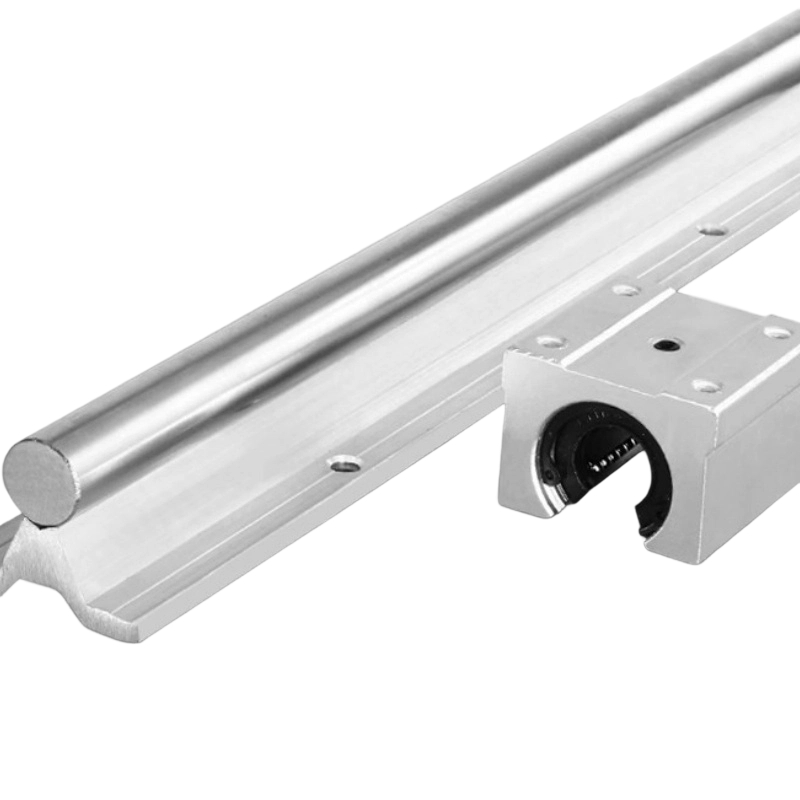

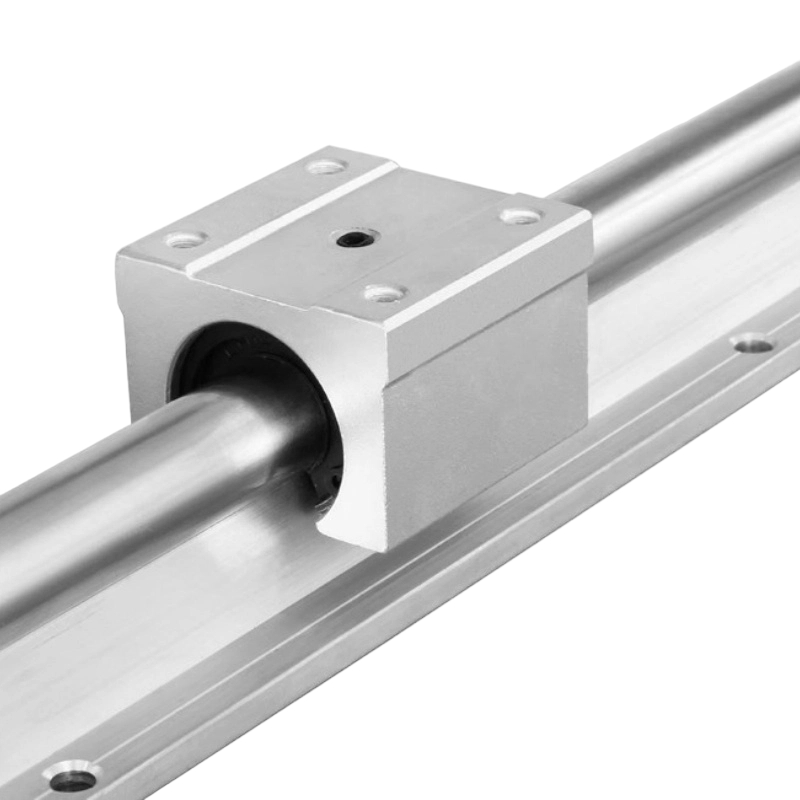

The SBR UU slide block is a standardized open-type box linear motion component, engineered for use with SBR series optical shafts and linear guides. It delivers smooth linear motion via built-in rolling elements, serving as a key component for positioning and feeding in mechanical transmission systems. Widely used in industrial automation, precision machinery, and DIY equipment, it strikes an optimal balance between cost-effectiveness and utility. The "UU" denotes a double-sided sealing design, which effectively blocks dust, retains lubricant, and is suitable for light-dust and low-pollution working environments. Its extended variant, the SBR LUU series, shares the same structure and materials as the standard model but features an elongated body, offering enhanced load-bearing capacity and operational stability. Ideal for long-stroke and high-rigidity applications, it covers the full specification range from SBR10LUU to SBR50LUU and is compatible with optical shafts of the same diameter as the standard type.

Core Structure and Material Characteristics

(I) Structural Composition

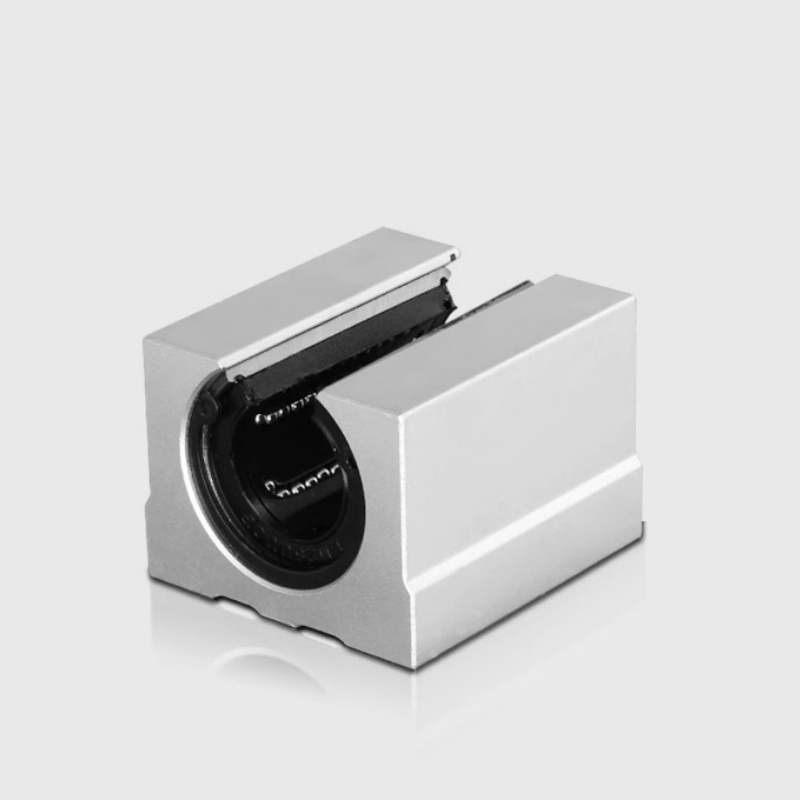

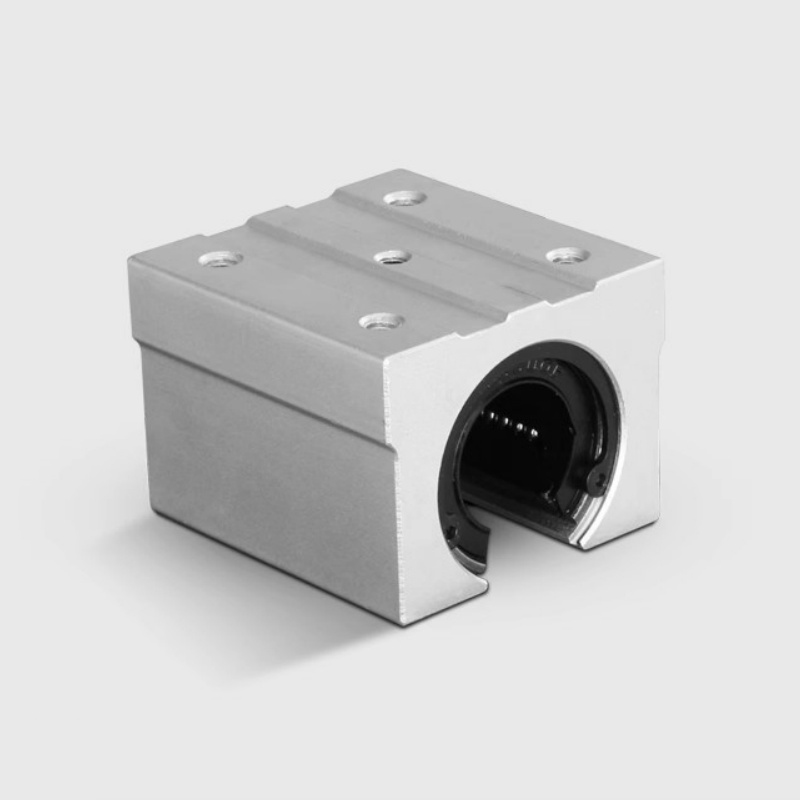

Adopting a modular design, it consists of a bearing housing, built-in rolling elements, double-sided rubber sealing end caps, and mounting holes. The open-type bearing housing enables quick assembly and disassembly, while the multi-row rolling elements distribute loads evenly to reduce wear. The double-sided rubber sealing end caps fit tightly against both ends of the slide block, balancing dust resistance, lubricant retention, and smooth operation to extend service life.

(II) Material Selection

1. Bearing Housing: Primarily constructed from aluminum alloy (lightweight, corrosion-resistant, suitable for medium and light loads) or steel plate (high-strength, high-load capacity, ideal for heavy-duty applications). Some units undergo surface treatment to enhance rust and scratch resistance.

2. Rolling Elements: Fabricated from bearing steel with quenching treatment, offering high hardness and wear resistance. They can withstand impact loads and ensure long-term stable operation.

3. Sealing Components: Made of elastic rubber, integrating sealing performance and wear resistance. They are adaptable to a wide temperature range and resistant to aging and deformation.

Key Performance Advantages

(I) Strong Load-Bearing Capacity and Wide Adaptability

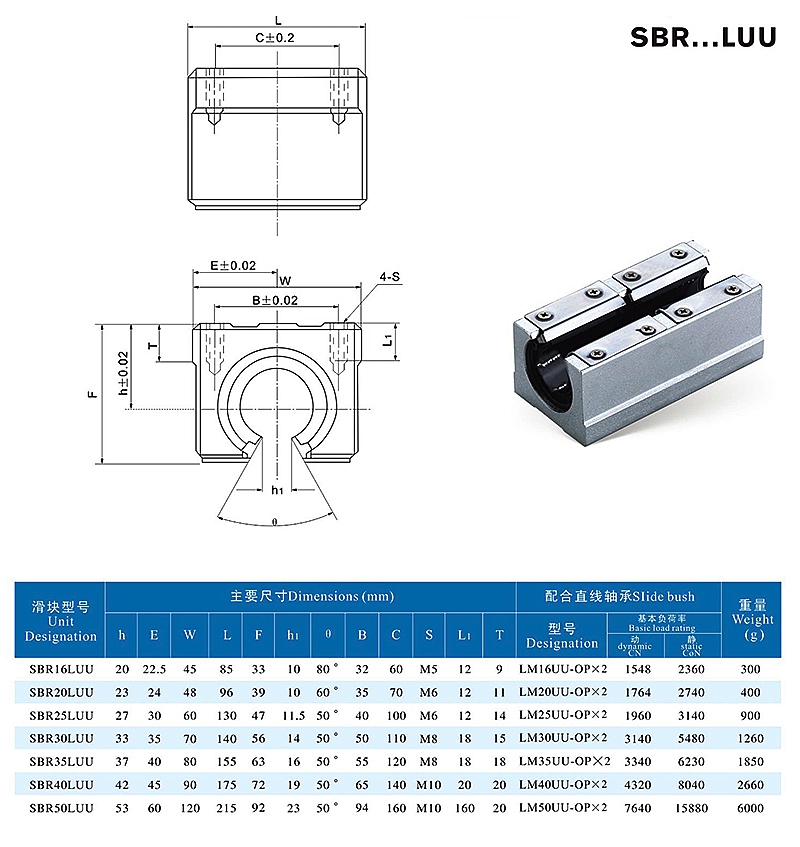

Leveraging multi-row rolling elements and a high-strength bearing housing, the standard SBR UU has a dynamic rated load ranging from 372N to 3820N and a static rated load from 549N to 7940N, covering the full specification range from SBR10UU to SBR50UU. It caters to diverse needs, from lightweight DIY equipment to heavy-duty industrial machinery. The extended SBR LUU series shares the same shaft diameter as the corresponding standard model; its elongated body and expanded load-bearing surface enhance load capacity by approximately 20%-30% compared to the standard version, complying with industrial standards. It is better suited for long-stroke and high-rigidity transmission scenarios, covering the full extended specification range with excellent parameter compatibility with the standard type.

(II) Smooth Motion and Reliable Precision

The precise fit between the rolling elements and optical shaft minimizes friction, ensuring jam-free and low-noise operation. Strict dimensional accuracy control guarantees superior straightness and positioning repeatability, meeting the precision transmission requirements of most equipment.

(III) Easy Installation and Maintenance, High Versatility

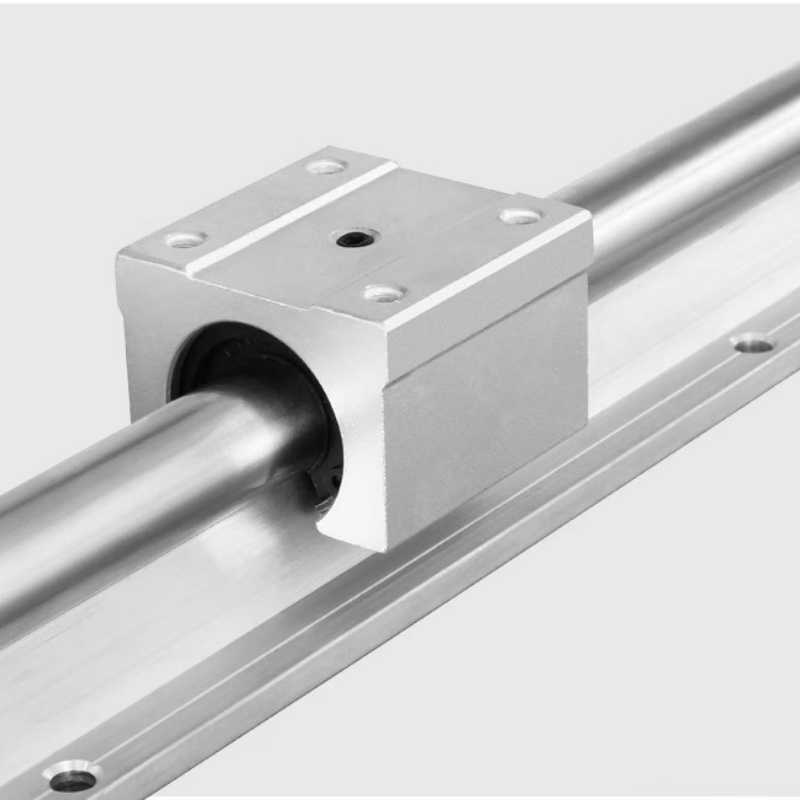

Its standardized design and precision mounting holes ensure compatibility with corresponding SBR optical shafts and guides, eliminating the need for custom components. Daily maintenance only involves regular lubrication and debris cleaning, making it simple and convenient. It also boasts high versatility, facilitating the maintenance and replacement of existing equipment.

(IV) Corrosion and Wear Resistance, Long Service Life

Dual protection from surface treatment and double-sided sealing allows it to adapt to humid and dusty working conditions. The use of high-quality materials reduces wear, ensuring long-term stable operation under proper maintenance and lowering downtime and replacement costs.

(V) Self-Lubrication Available for Some Models, Energy-Saving and Efficient

Some models are upgraded with solid polymer materials, featuring self-lubricating properties that eliminate the need for frequent lubricant addition. This saves maintenance costs, prevents contamination, reduces friction, and improves transmission efficiency, making them suitable for high-speed operation.

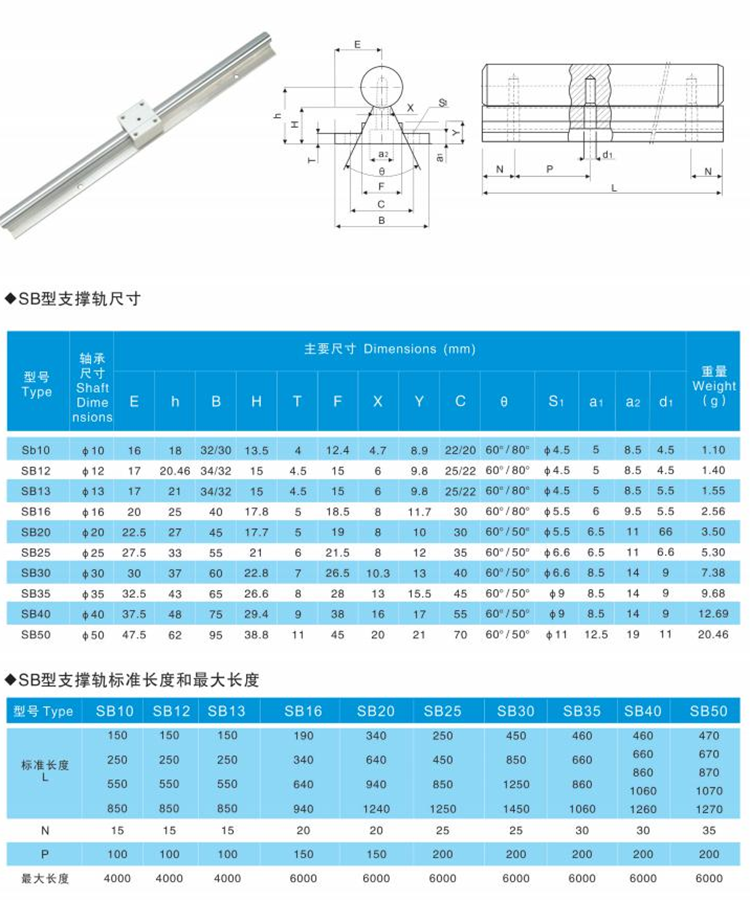

Main Specifications and Parameters

Shaft diameters range from 10mm to 50mm, including two series: the standard SBR UU and the extended SBR LUU. Key specifications and parameters are listed below (refer to the actual product for precise values):

Note: Custom sizes are available for non-standard equipment. The extended SBR LUU shares the same mounting hole specifications as the standard SBR UU, enabling direct replacement. Its load-bearing parameters meet industrial standards, and it is compatible with optical shafts of the same diameter, requiring no adjustments to the equipment structure after replacement.

Application Scenarios

It is suitable for linear transmission needs across various fields, with core application scenarios including:

1. Industrial Automation: CNC machine tools, laser engravers, automated production lines, etc., for precise feeding and positioning.

2. Precision Machinery: 3D printers, small milling machines, etc., to ensure processing accuracy.

3. General Machinery: Conveyors, textile/printing machinery, etc., to enhance operational stability.

4. DIY Projects: Handmade machinery, small experimental equipment, etc., suitable for lightweight applications.

5. Others: Construction machinery, auto parts processing equipment, and more, suitable for medium-heavy load and dusty environments. The extended SBR LUU is particularly suited for long-stroke, high-rigidity heavy-duty transmission, addressing the standard model’s limitations in high-rigidity scenarios and complementing it for diverse applications.

Installation and Maintenance Points

(I) Installation Points

1. Clean debris and oil from the mounting surface to avoid affecting precision;
2. Ensure the slide block is parallel to the optical shaft to prevent uneven stress caused by tilting;
3. Tighten bolts evenly to avoid deformation of the slide block.

(II) Maintenance Points

1. Regular Lubrication: Apply waterproof lubricant every 1-3 months;
2. Cleaning and Maintenance: Remove surface debris and replace damaged sealing end caps promptly;
3. Regular Inspection: Check for abnormal noise, jamming, and other issues, and replace worn parts in a timely manner;
4. Avoid high-temperature and highly corrosive environments, and add protective measures if necessary.

Summary of Product Advantages

The SBR UU slide block is defined by its high load-bearing capacity, smooth operation, easy maintenance, and broad adaptability, offering excellent cost-effectiveness across all load scenarios. Its double-sided sealing design is suitable for complex working environments, and its standardized construction facilitates easy installation and replacement, making it the preferred component for various mechanical transmission systems. It effectively enhances equipment stability and reduces maintenance costs. The extended SBR LUU series features an elongated body based on the standard model, with load-bearing capacity improved by 20%-30% in line with industrial standards. Specifically designed for long-stroke and high-rigidity transmission needs, the two series complement each other to fully cover a wide range of industrial and DIY linear transmission applications.
