Flange Type Durable High Precision Guide Rails

Introduction to HGW Model Linear Guide (Directly Replaceable with Taiwan HIWIN Products)

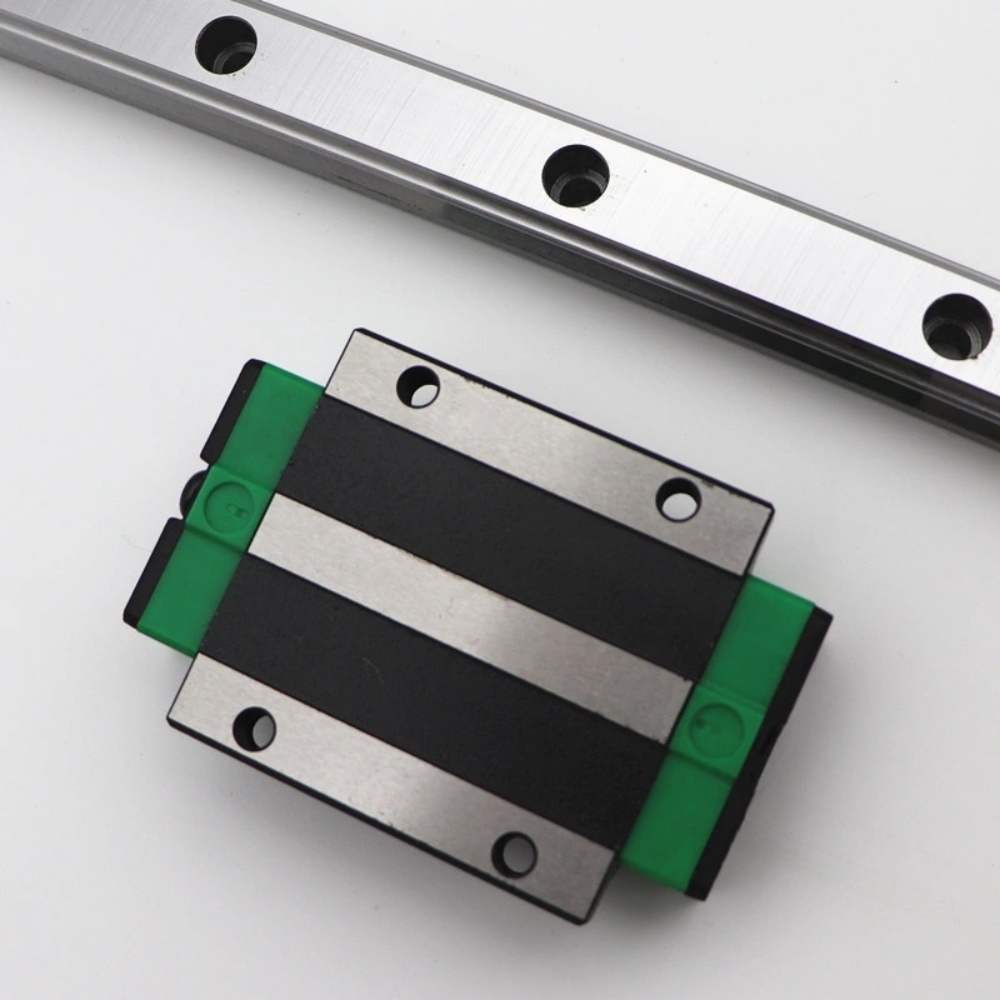

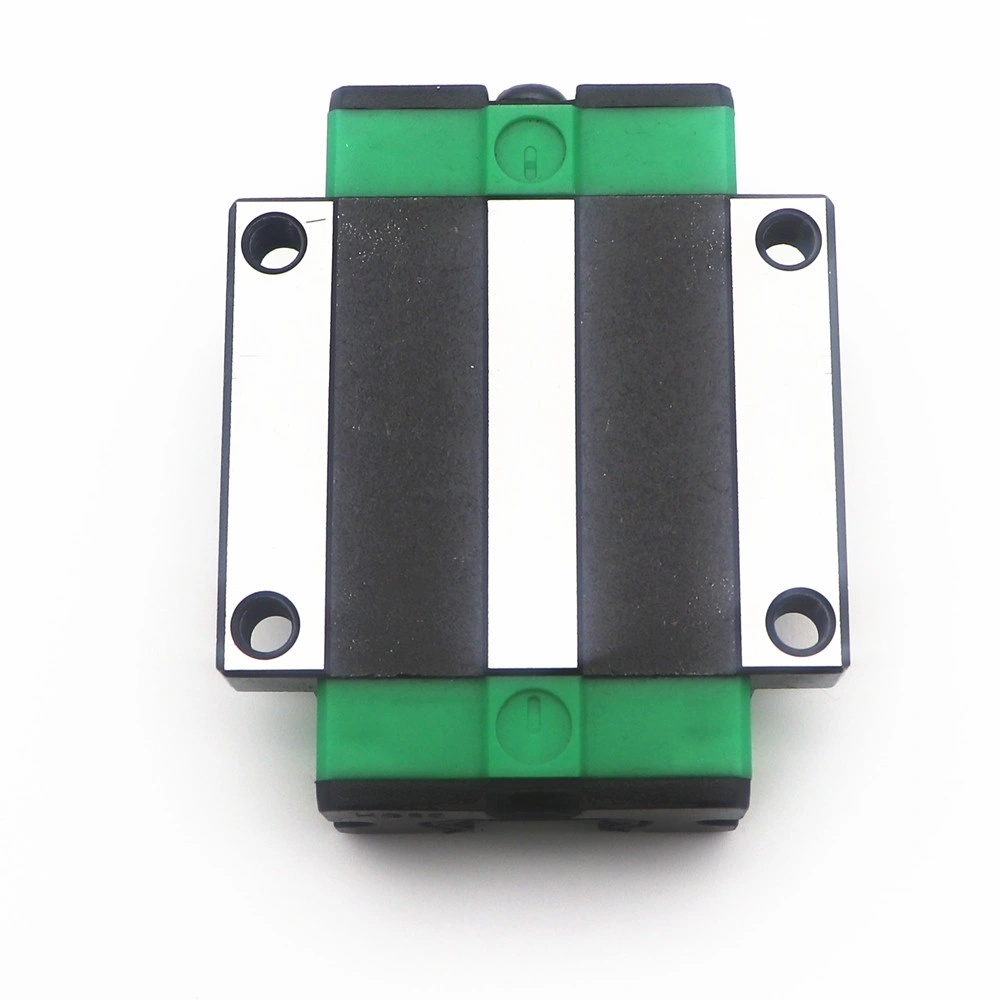

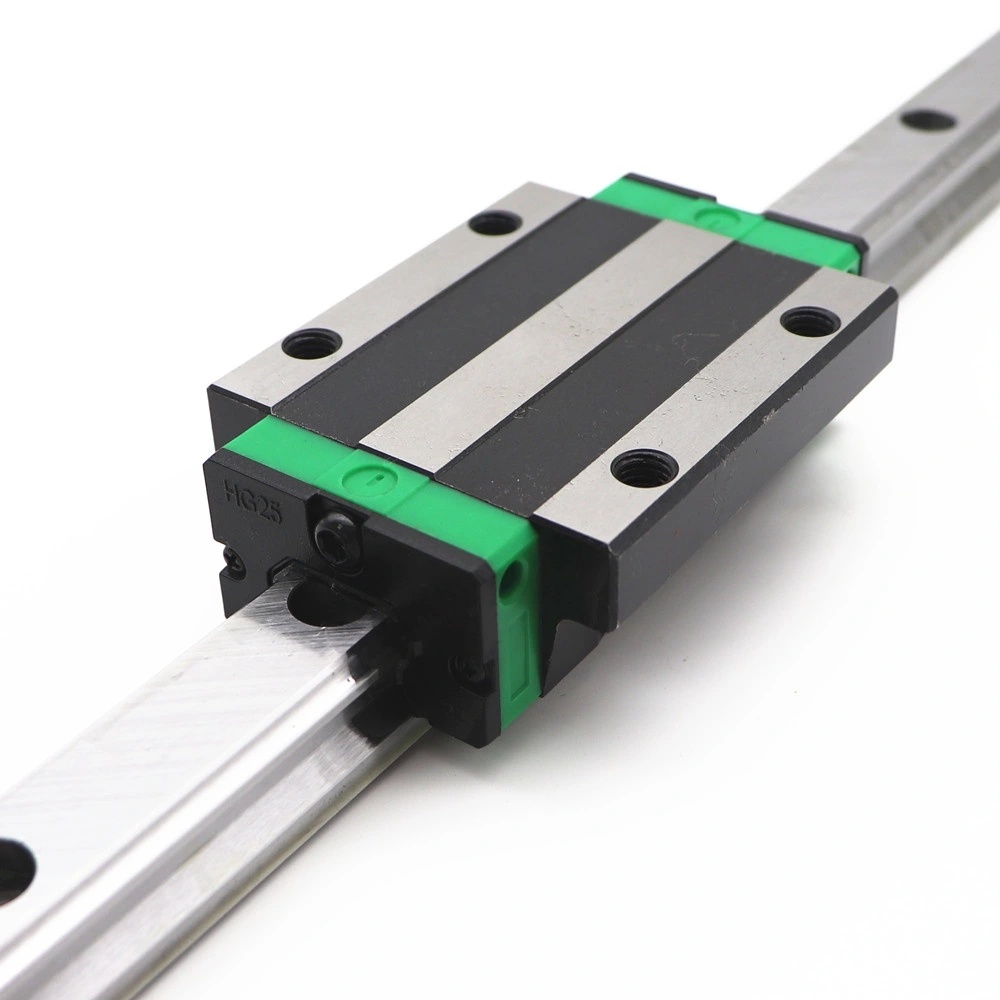

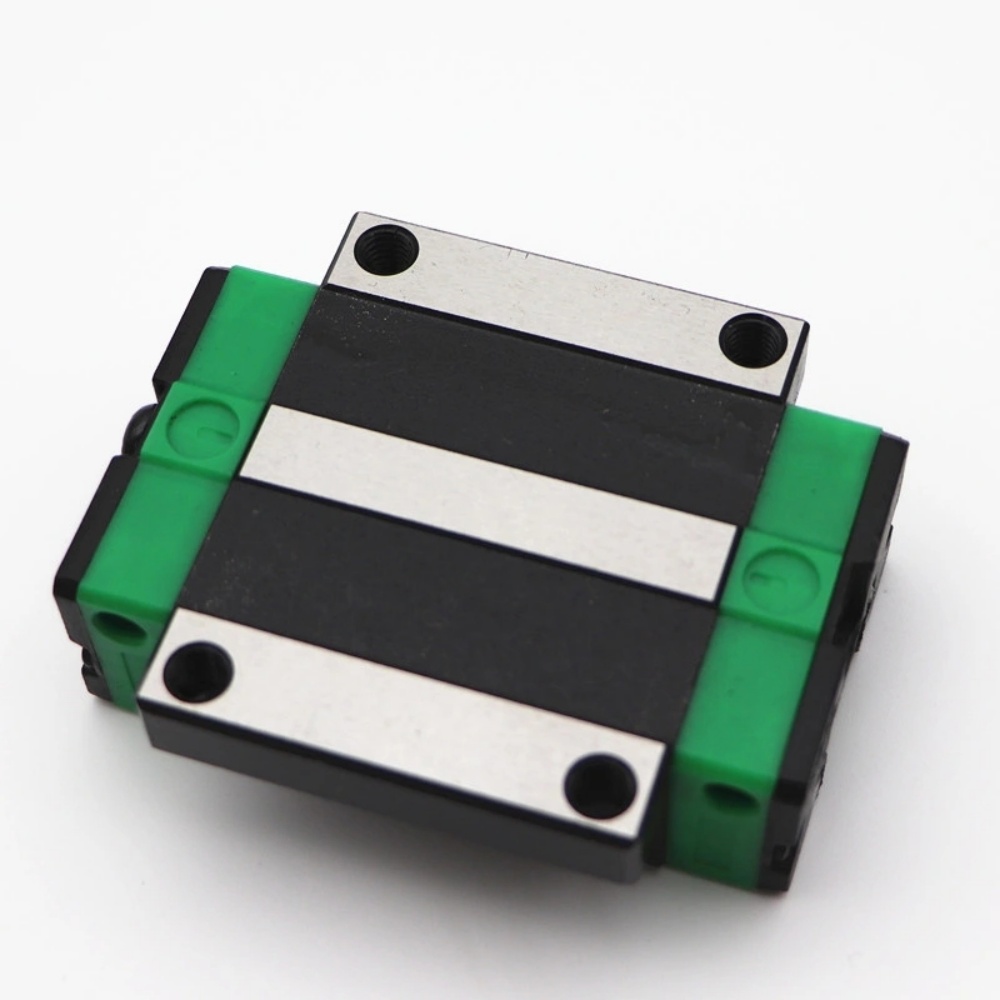

The HGW model linear guide is a high-profile flange-type ball linear guide. Its core design, dimensional specifications and performance parameters are fully benchmarked against Taiwan HIWIN HGW series. It is a heavy-load precision transmission component, featuring high rigidity, high precision, high load capacity and easy installation. It can directly and seamlessly replace all specifications of Taiwan HIWIN HGW series guides and sliders without modifying the equipment installation structure and assembly process, greatly reducing the cost of equipment procurement, maintenance and upgrading. It is widely suitable for medium-heavy load and high-precision industrial transmission scenarios, and is a cost-effective preferred solution to replace Taiwan HIWIN HGW series.

Core Product Positioning

The HGW model linear guide belongs to a high-profile flange-type ball guide. It inherits the core design concept of "heavy load + high precision" of Taiwan HIWIN HGW series, adopts a four-row single arc tooth contact structure, and integrates and optimizes the structural design. Compared with ordinary linear guides, it greatly improves the load capacity and rigidity performance. At the same time, it has the characteristics of four-direction equal load and self-aligning function, which can absorb the assembly error of the mounting surface and accurately meet the high-precision transmission requirements. Its high-profile structural design balances installation stability and space adaptability. The flange-type slider is convenient for quick fixing and assembly, and can directly replace all specifications of Taiwan HIWIN HGW15, HGW20, HGW25, HGW30, HGW35, HGW45, HGW55 and other series products. It is suitable for various medium-heavy load and high-precision industrial automation equipment and precision machine tool scenarios, without adjusting the equipment installation dimensions.

Core Advantages (Benchmarked against HIWIN HGW, More Cost-Effective)

1. Seamless Replacement, No Modification Required, Strong Adaptability

It fully adopts the structural design and dimensional standards of Taiwan HIWIN HGW series. From the guide rail cross-sectional size, slider specification, mounting hole position to load capacity and precision grade, it is precisely matched with HIWIN similar products. It can directly replace all specifications of HIWIN HGW series guides and sliders without modifying the equipment mounting base or adjusting the assembly process, greatly shortening the replacement cycle, reducing equipment downtime losses, and adapting to all installation scenarios of existing HIWIN HGW guides. At the same time, it can be used as a compatible alternative to similar replacement products such as Taiwan Hi-Tech.

2. High Rigidity + High Load Capacity, More Stable Transmission

Adopting a four-row ball 45° Gothic contact angle design and optimized single arc groove structure, it enables balanced radial, anti-radial and lateral load bearing with four-direction equal load. The rigidity performance is equal to or even better than that of HIWIN HGW series, which can effectively resist vibration, impact and cutting reaction force during equipment operation, ensure transmission stability, and avoid deformation or jamming. Compared with ordinary linear guides, its load capacity is greatly improved, which can adapt to medium-heavy load scenarios. The static and dynamic rated loads are fully benchmarked against HIWIN HGW series, meeting the high-load transmission needs of heavy-duty cutting machine tools, automated conveying equipment, etc. At the same time, it can bear a certain static torque, with stronger operation stability.

3. High-Precision Positioning, Suitable for Precision Scenarios

The precision grade covers Class C, Class H and Class P, with positioning accuracy up to μm level, fully following the precision standard of HIWIN HGW series. It can meet the high positioning accuracy requirements of precision processing machines, measuring instruments, semiconductor equipment and other scenarios. It has excellent feed accuracy and repeat positioning accuracy, effectively reducing invalid movement and improving the overall operation efficiency of the equipment. When used with ball screws, it can further improve the equipment precision and mechanical efficiency. At the same time, it has a self-aligning function, which can absorb the parallelism error within 0.1mm/m of the mounting surface, reduce the difficulty of installation and commissioning, and ensure the realization of high-precision transmission requirements.

4. Wear-Resistant and Durable, Longer Service Life, Convenient Maintenance

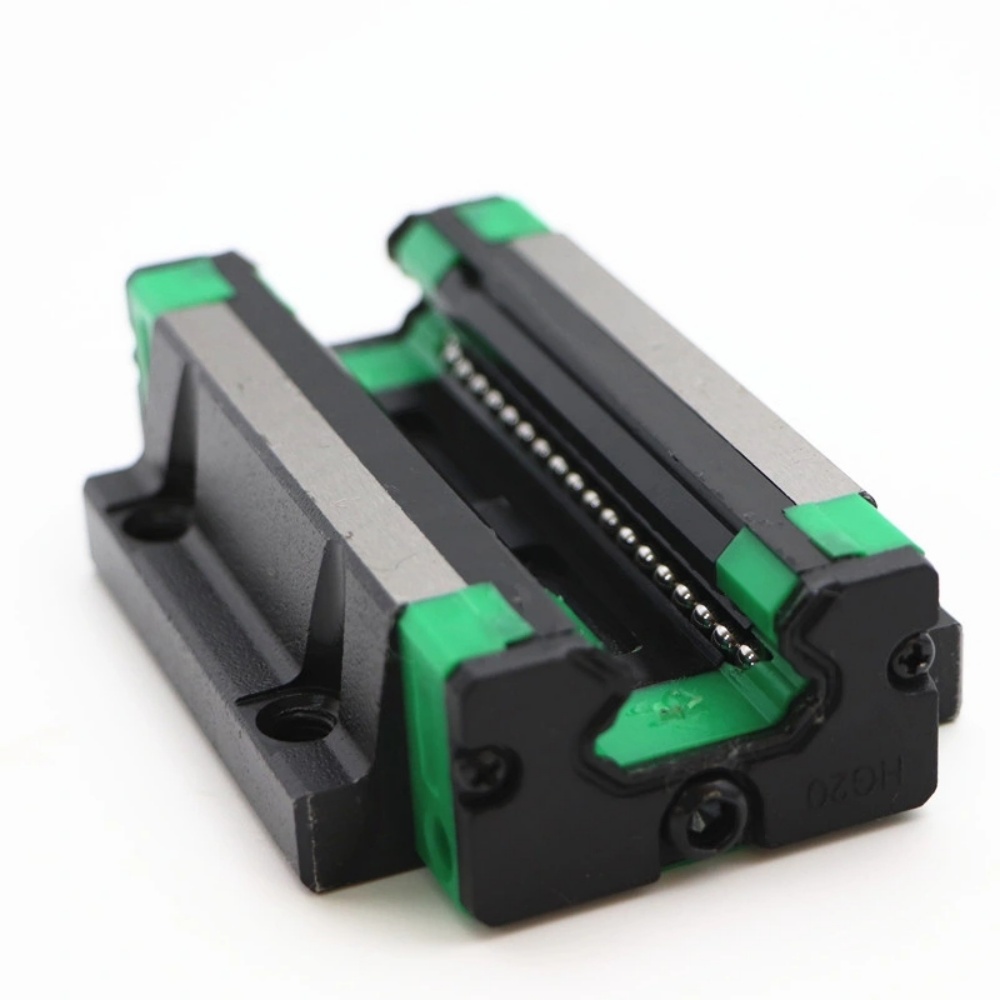

Both the guide rail and slider are integrally formed of high-carbon chromium bearing steel (S55C steel), precision grinding and quenching treatment. The surface can be optionally treated with galvanizing or chrome coating for rust and wear resistance, with high hardness and strong wear resistance, which can withstand complex industrial environments such as humidity, slight dust and cutting fluid. The trouble-free operation life can reach more than 50,000 hours, which is not less than that of Taiwan HIWIN HGW similar products. It has a built-in high-quality ball retainer, optimizes the ball circulation loop design to prevent balls from falling off, reduces ball wear and extends service life. The slider is equipped with a lubrication oil filling port, which can be grease-lubricated or externally connected with an oil pipe for automatic oil supply, with simple maintenance and long lubrication life, greatly reducing equipment operation and maintenance costs. Some models can support self-lubricating design to further improve maintenance convenience.

5. High Cost-Effectiveness, Flexible Customization, Efficient Service

On the premise of maintaining the same performance and adaptability as Taiwan HIWIN HGW series, it has more competitive prices, which can greatly reduce the procurement cost of equipment manufacturers and the spare part replacement cost of end users, especially suitable for batch purchase scenarios. At the same time, it supports batch purchase and non-standard customization. The guide rail length, precision grade, preload grade, surface coating and dust-proof structure can be adjusted according to customer specific needs to meet the personalized needs of different scenarios, adapting to special industrial environments such as dust-free, high and low temperature, explosion-proof. The service response speed is faster, which can quickly respond to customer needs for selection, customization and replacement.

Application Scenarios (Completely Consistent with HIWIN HGW Series)

The HGW model linear guide can directly replace Taiwan HIWIN HGW series. With its characteristics of high rigidity, high load capacity and high precision, it is widely used in various medium-heavy load and high-precision industrial scenarios, covering machinery processing, automation, precision instruments and other fields, including but not limited to:

● Machine tool equipment: CNC lathes, milling machines, grinding machines, machining centers, comprehensive processing machines, electrical discharge machines, boring machines, wire cutting machines, punch presses, laser cutting machines, etc.;

● Automated equipment: Cartesian robots, truss robots, automated assembly lines, heavy-duty conveying equipment, logistics cross-belt sorters, packaging machinery, filling machines, etc.;

● Precision instruments: coordinate measuring machines, image measuring instruments, laser diameter gauges, precision measuring instruments, semiconductor equipment, etc.;

● New energy equipment: lithium battery module PACK line positioning sliding tables, photovoltaic silicon wafer cutting machine sliding tables, photovoltaic glass cleaning machine stages, etc.;

● Other scenarios: marble cutting machines, woodworking machines, handling machines, conveying devices, medical equipment, electronic equipment and other medium-heavy load, high-precision transmission scenarios.

Summary of Replacement Advantages

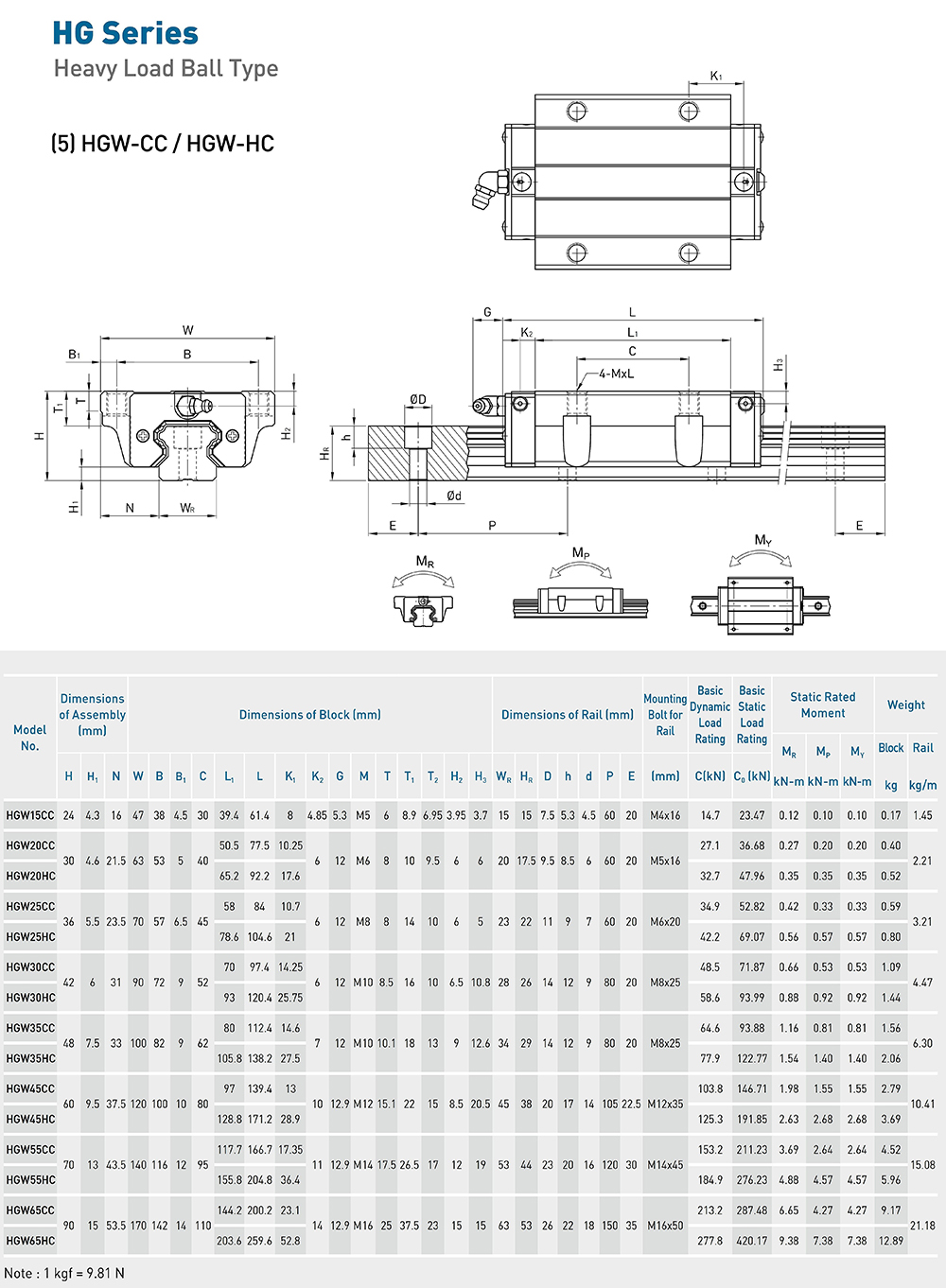

With "seamless replacement, equal performance and higher cost-effectiveness" as the core, the HGW model linear guide is fully benchmarked against Taiwan HIWIN HGW series. It achieves precise matching in key indicators such as dimensions, precision, rigidity, load capacity and service life, and can be directly replaced without modifying the equipment structure. It not only solves the pain points of high procurement cost and long delivery cycle of HIWIN products, but also ensures the stable operation and high-precision transmission needs of the equipment. Combined with the detailed model replacement comparison table, it can quickly complete selection and replacement. At the same time, it has the advantages of flexible customization, convenient maintenance and efficient service, adapting to various medium-heavy load industrial scenarios. It is the preferred solution to replace Taiwan HIWIN HGW series linear guides, providing a more economical and efficient choice for the maintenance and upgrading of industrial equipment.
