Straight Line Long-Lasting Low Noise Guide Rails

Introduction to Bottom Group EGH Linear Guide Slider (Directly Replaceable with Taiwan HIWIN Products)

The bottom group EGH linear guide slider is a high-adaptability transmission component specially developed for the industrial automation and precision equipment fields. Its core design is fully benchmarked against Taiwan HIWIN EGH series, with precise matching in dimensions, mounting hole positions, and performance parameters. It can directly and non-destructively replace Taiwan HIWIN EGH similar products without modifying the equipment installation structure, greatly reducing the cost and cycle of equipment maintenance, upgrading, and spare part replacement. At the same time, it achieves the same level or even better performance in rigidity, precision, and durability, suitable for various light to medium load precision transmission scenarios.

Core Product Positioning

The bottom group EGH linear guide slider belongs to a low-profile square ball linear guide slider. It inherits the core advantages of "compact design + high rigidity" of Taiwan HIWIN EGH series. Adopting a low-profile structure design, it greatly reduces the combined height and slider length, saving equipment installation space. At the same time, relying on the four-row ball bearing structure, it achieves four-direction equal load characteristics, perfectly suitable for high-speed automated industrial machinery, small precision equipment and other application scenarios with limited space and high precision requirements. It can directly replace all specifications of Taiwan HIWIN EGH15, EGH20, EGH25, EGH30 series sliders without adjusting the equipment installation dimensions and assembly process.

Key Specifications and Performance Parameters (Benchmarked against HIWIN EGH Series, Directly Replaceable)

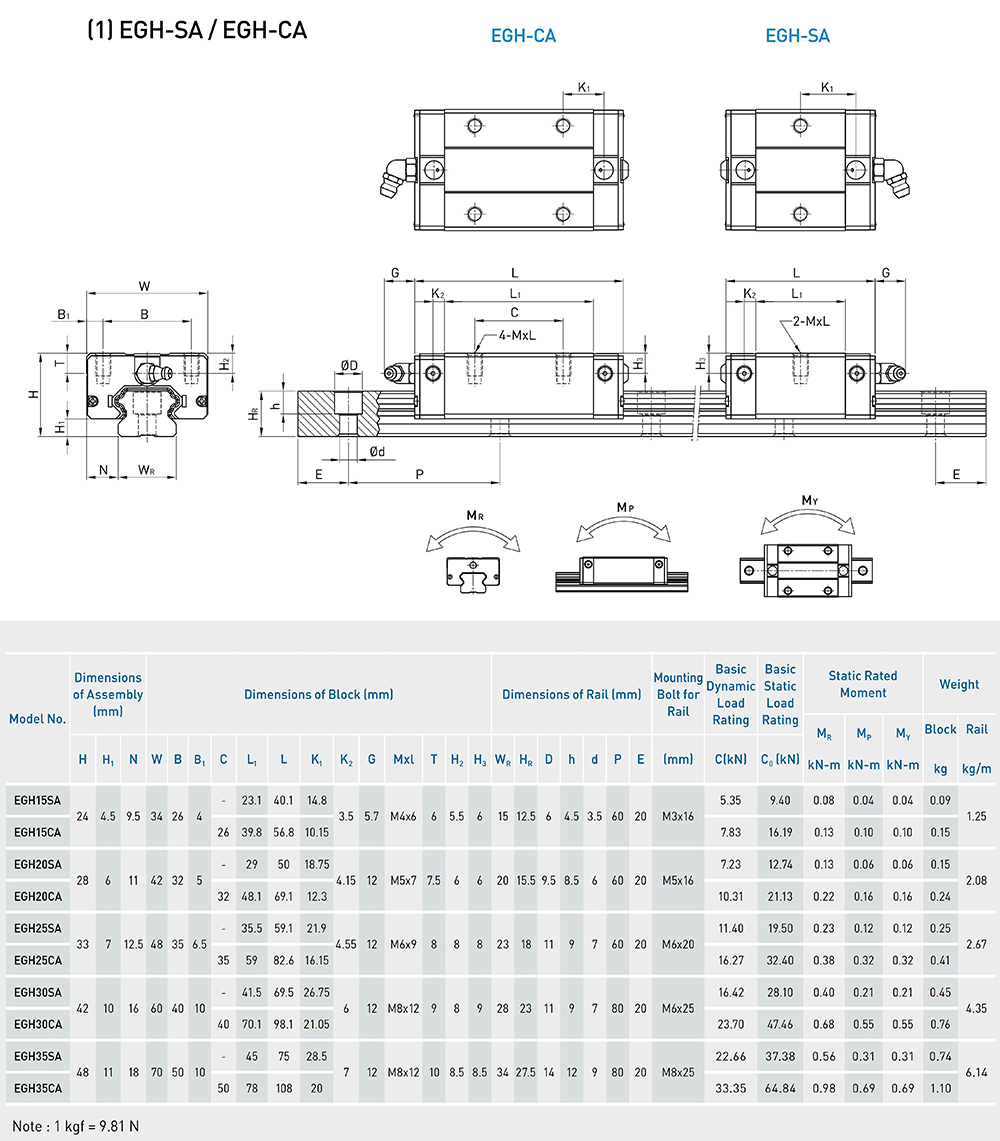

The product strictly follows the dimensional standards and performance specifications of Taiwan HIWIN EGH series, with precise matching of core parameters to ensure that the transmission accuracy and load capacity of the equipment are not affected after replacement. To facilitate selection and replacement, the following provides a detailed replacement comparison table and core specification parameters between the bottom group EGH series and Taiwan HIWIN EGH series. All specifications can be customized on demand, corresponding one-to-one with all HIWIN EGH models.

Note: 1. The mounting hole pitch, hole type, and guide rail adaptation dimensions of all models are completely consistent with the corresponding Taiwan HIWIN EGH series models. No balls will fall off when the slider is removed, which has good interchangeability. No need to re-adjust the equipment precision after replacement; 2. The preload grade can be adjusted according to actual needs, which is fully compatible with the preload standard of HIWIN EGH series; 3. If other specifications (such as extended type, special coating) are needed, they can be customized on demand to ensure seamless replacement with the corresponding non-standard models of HIWIN.

Core Advantages (Benchmarked against HIWIN, More Cost-Effective)

1. Seamless Replacement, No Modification Required

It fully adopts the structural design and dimensional standards of Taiwan HIWIN EGH series. From the slider length, width, combined height to the mounting hole position and hole diameter, it is precisely matched with HIWIN similar products. It can directly replace HIWIN EGH series sliders without modifying the equipment mounting base or adjusting the assembly process, greatly shortening the replacement cycle, reducing equipment downtime losses, and adapting to all installation scenarios of existing HIWIN EGH guide rails.

2. High Rigidity + High Precision, More Stable Transmission

Adopting a four-row ball 45° contact angle design, the single arc groove structure enables balanced radial, anti-radial, and lateral load bearing, with four-direction equal load. The rigidity performance is equal to or even better than that of HIWIN EGH series, which can effectively resist vibration and impact during equipment operation and ensure transmission stability. The precision grade covers Class C and P, and the positioning accuracy can reach μm level, meeting the high-frequency reciprocating motion and precise positioning needs of precision instruments and automated equipment, which is completely consistent with the precision standard of HIWIN EGH series.

3. Wear-Resistant and Durable, Longer Service Life

The slider is integrally formed of high-carbon chromium bearing steel,经过 precision grinding and quenching treatment. The surface can be optionally treated with galvanizing or chrome coating for rust and wear resistance, with high hardness and strong wear resistance, which can withstand humid and slightly dusty industrial environments. The trouble-free operation life can reach more than 50,000 hours. It has a built-in high-quality ball retainer to prevent balls from falling off, and optimizes the ball circulation loop design to reduce ball wear and extend service life, which is not less than that of Taiwan HIWIN EGH similar products.

4. Self-Aligning, Easy Installation

It has a self-aligning function, which can absorb the parallelism error within 0.1mm/m of the mounting surface, reduce the difficulty of installation and commissioning, and reduce installation man-hours, especially suitable for batch assembly scenarios of automated production lines, which is consistent with the installation convenience of HIWIN EGH series. The slider is equipped with a lubrication oil filling port, which can be grease-lubricated or externally connected with an oil pipe for automatic oil supply, with simple maintenance and long lubrication life, greatly reducing equipment operation and maintenance costs.

5. High Cost-Effectiveness, More Advantages in Cost

On the premise of maintaining the same performance and adaptability as Taiwan HIWIN EGH series, it has more competitive prices, which can greatly reduce the procurement cost of equipment manufacturers and the spare part replacement cost of end users. At the same time, it supports batch purchase and non-standard customization. The preload grade, precision grade, and surface coating can be adjusted according to customer specific needs to meet the personalized needs of different scenarios, with faster service response speed.

6. Application Scenarios (Completely Consistent with HIWIN EGH Series)

The bottom group EGH linear guide slider can directly replace Taiwan HIWIN EGH series, and is widely used in various industrial scenarios requiring space, precision and rigidity, including but not limited to:

● Automated equipment: small belt conveyors, automated assembly lines, manipulators, linear modules, etc.;

● Precision instruments: laser engraving machines, dispensing machines, testing equipment, semiconductor equipment, etc.;

● Machine tool equipment: small CNC machine tools, milling machines, grinding machines, etc.;

● Other scenarios: packaging machinery, medical equipment, electronic equipment, new energy equipment and other transmission scenarios with limited space and light to medium load.

Summary of Replacement Advantages

With "seamless replacement, equal performance and higher cost-effectiveness" as the core, the bottom group EGH linear guide slider is fully benchmarked against Taiwan HIWIN EGH series. It achieves precise matching in key indicators such as dimensions, precision, rigidity and service life, and can be directly replaced without modifying the equipment structure. It not only solves the pain points of high procurement cost and long delivery cycle of HIWIN products, but also ensures the stable operation of the equipment. Combined with the detailed model replacement comparison table, it can quickly complete selection and replacement. It is the preferred solution to replace Taiwan HIWIN EGH series linear guide sliders, providing a more economical and efficient choice for the maintenance and upgrading of industrial equipment.
