MGN/MGW Miniature Linear Guides: The "Invisible Motion Core" of Precision Equipment

In the current era of industrial automation moving towards miniaturization and high precision, the smooth operation of every precision device is inseparable from the support of core transmission components. The MGN and MGW series miniature linear guides, with their compact structure, excellent precision and flexible adaptability, have become the "invisible motion core" enabling precision devices to achieve accurate motion. They are widely used in many high-end fields such as semiconductors, medical devices and optics, embodying the core value of precision transmission through details.

Both the MGN and MGW series belong to the family of miniature linear guides, with the core mission of providing low-friction, high-precision linear motion guidance for precision equipment with limited space. However, based on different design orientations, the two series have formed a complementary and adaptable product system to accurately meet the needs of different scenarios, detailed as follows:

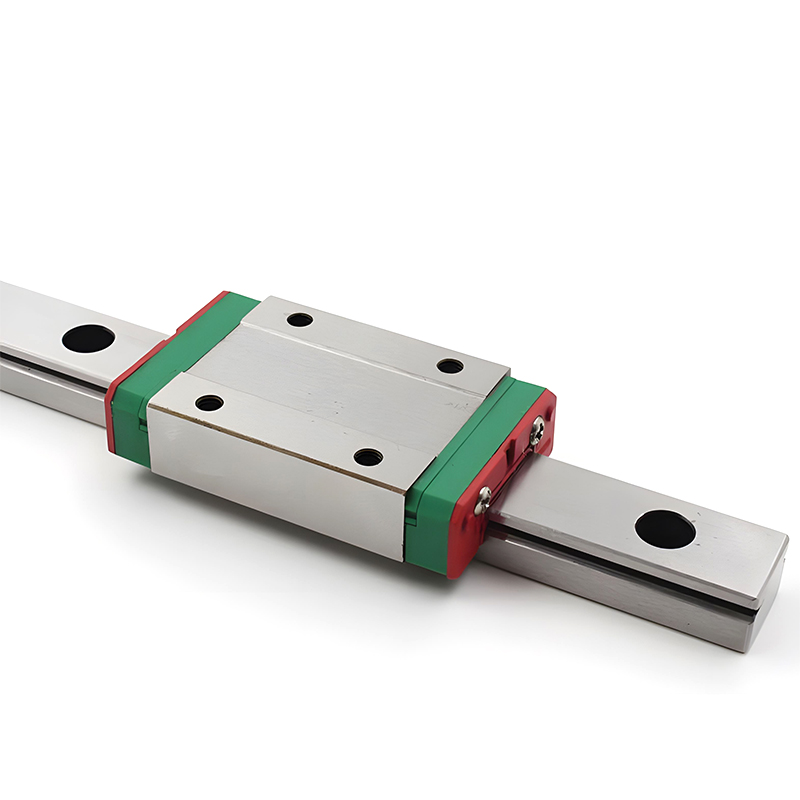

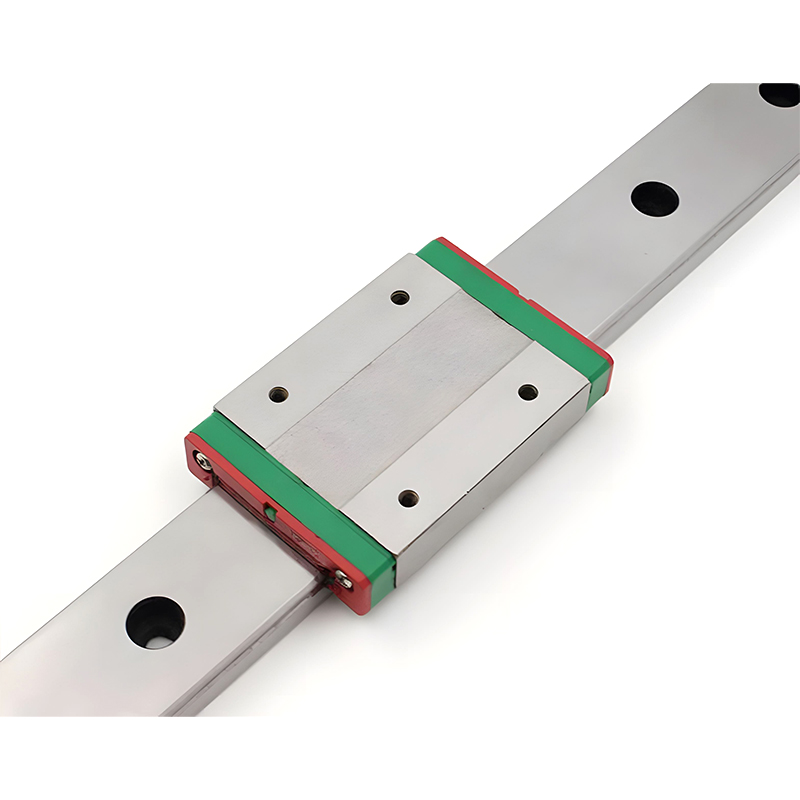

MGN Series: Standard Narrow Width, Suitable for Space-Constrained Scenarios

As a standard narrow-width miniature linear guide, the MGN series is positioned around "ultra-compact and lightweight", making it the first choice for scenarios with extremely limited space. Its optimized structure features small size and light weight; some models adopt resin carriages, which are approximately 20% lighter than traditional metal carriages. This not only effectively saves the internal installation space of the equipment, but also reduces the inertia of moving components and improves the dynamic response speed of the equipment.

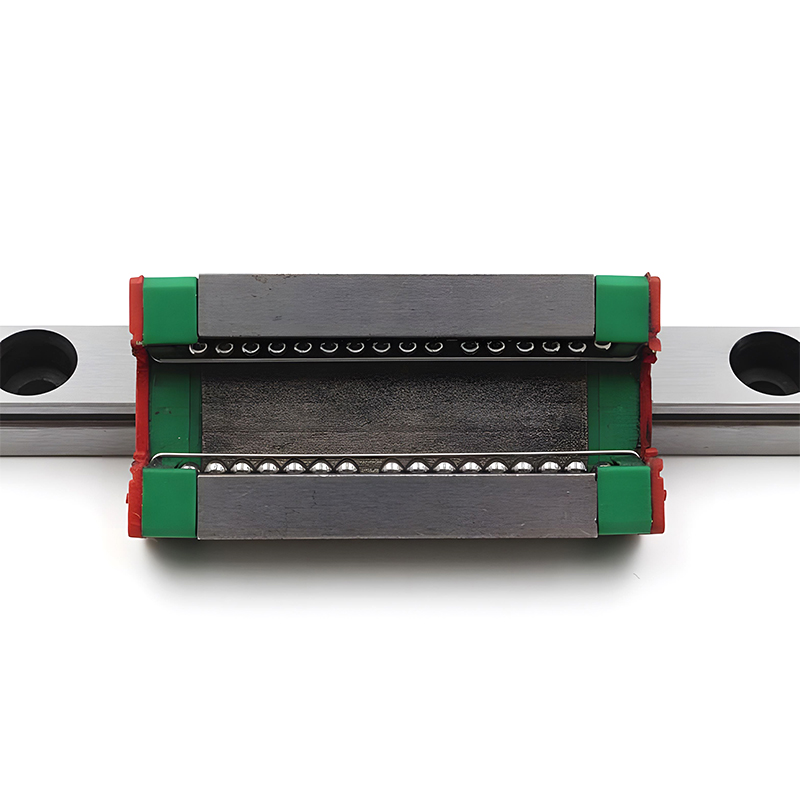

In terms of structural design, the MGN series adopts the mature Gothic arch four-point contact design, which can evenly bear loads in all directions, combining high rigidity and high precision with a running accuracy of micron level. Additionally, it is equipped with a ball retainer, which offers good interchangeability within the allowable precision range, greatly simplifying the later maintenance and replacement process.

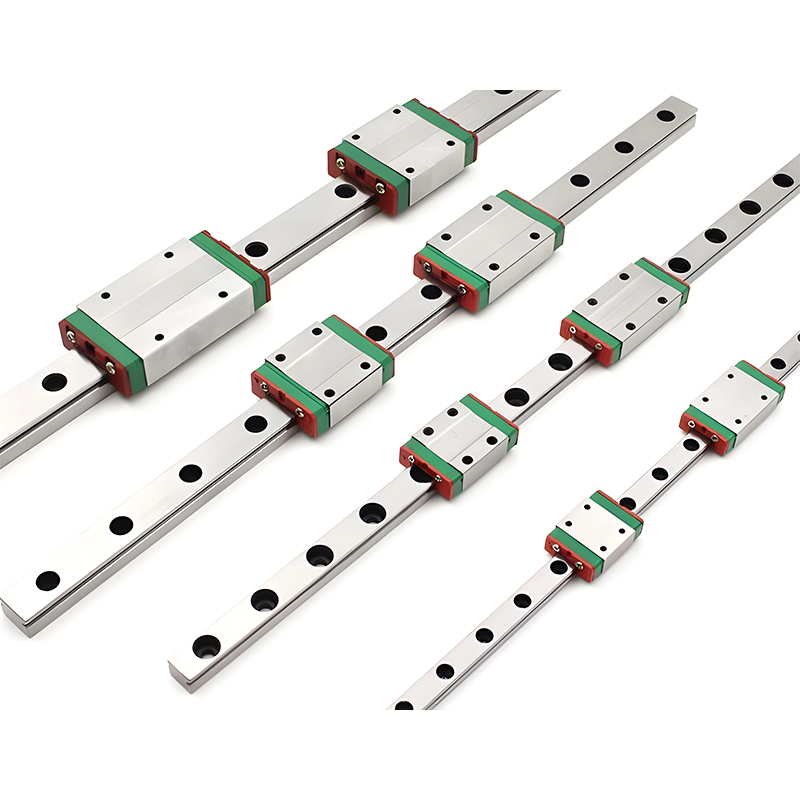

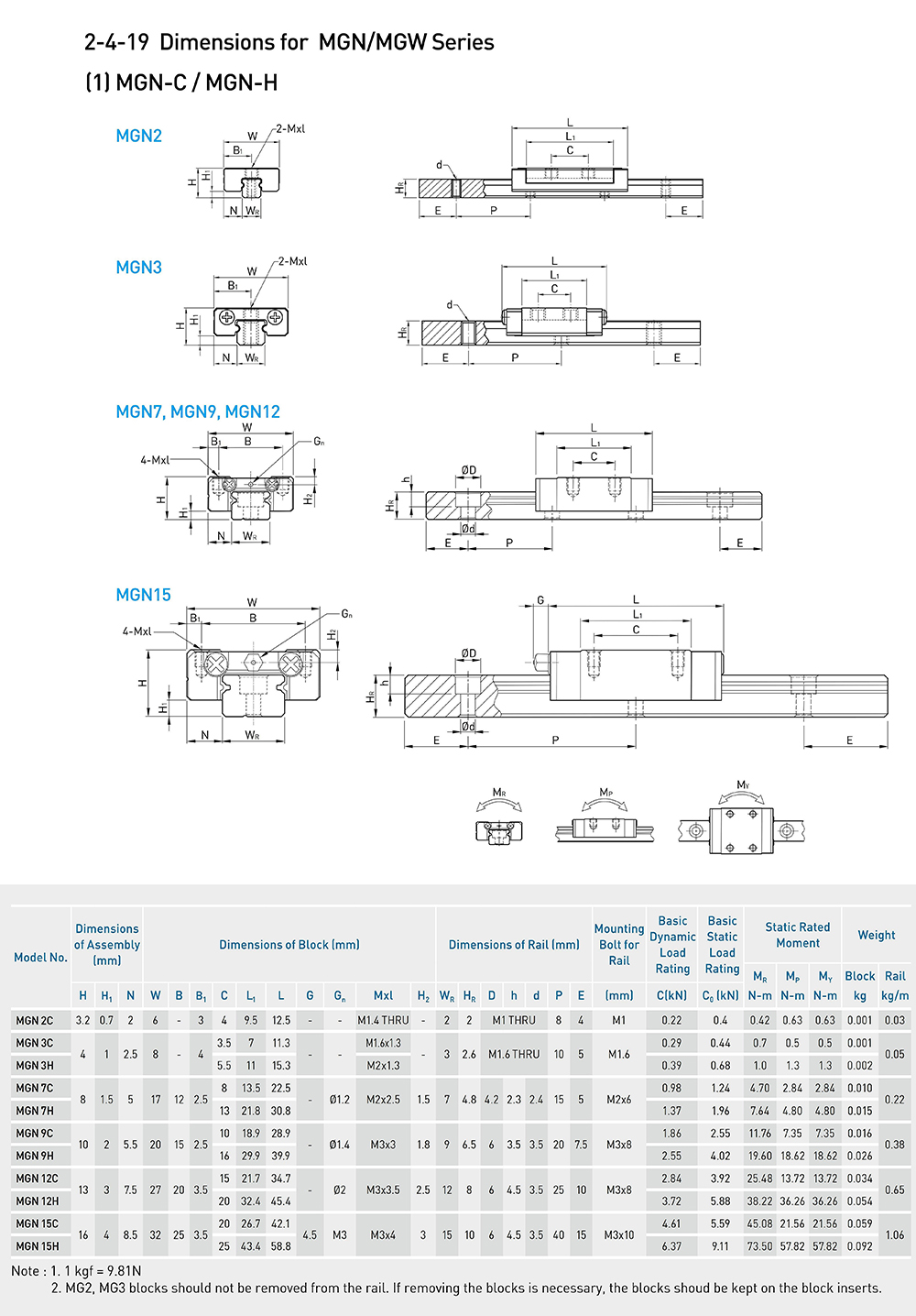

In terms of models and applications, the MGN series covers mainstream specifications such as MGN7C, MGN9C, MGN12C/H and MGN15C/H. The carriages are available in standard (C) and long (H) types, with the long-type carriage further enhancing load-bearing capacity and motion stability. Its applicable scenarios are mainly concentrated in precision equipment with multi-axis arrangement and light load, such as the motion platform of 3D printers, the feeding mechanism of small labeling machines, the adjustment components of optical microscopes, and the precision sliding components in office automation equipment, all achieving efficient transmission with a compact size.

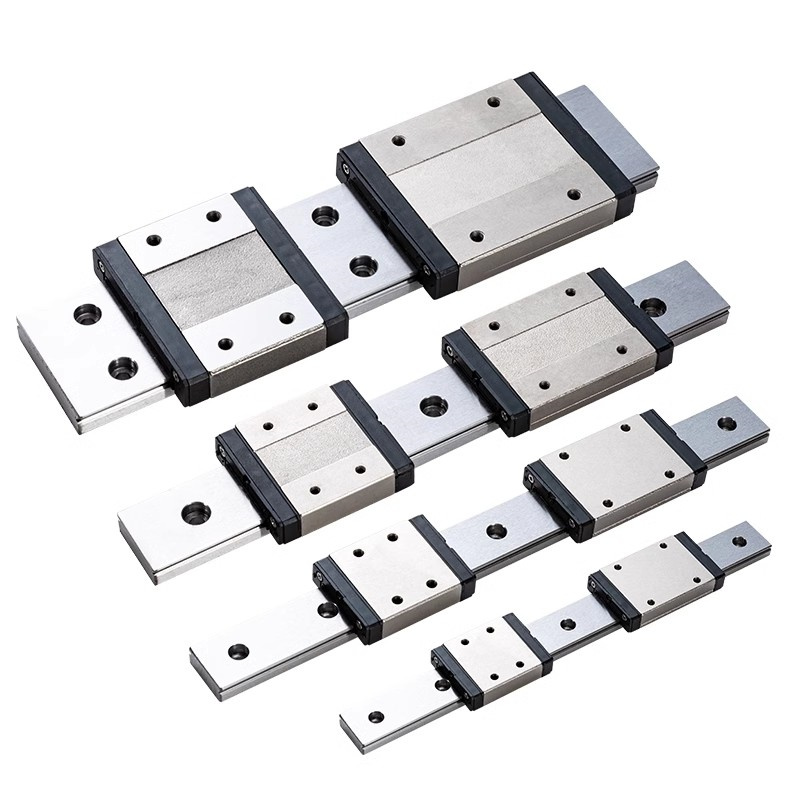

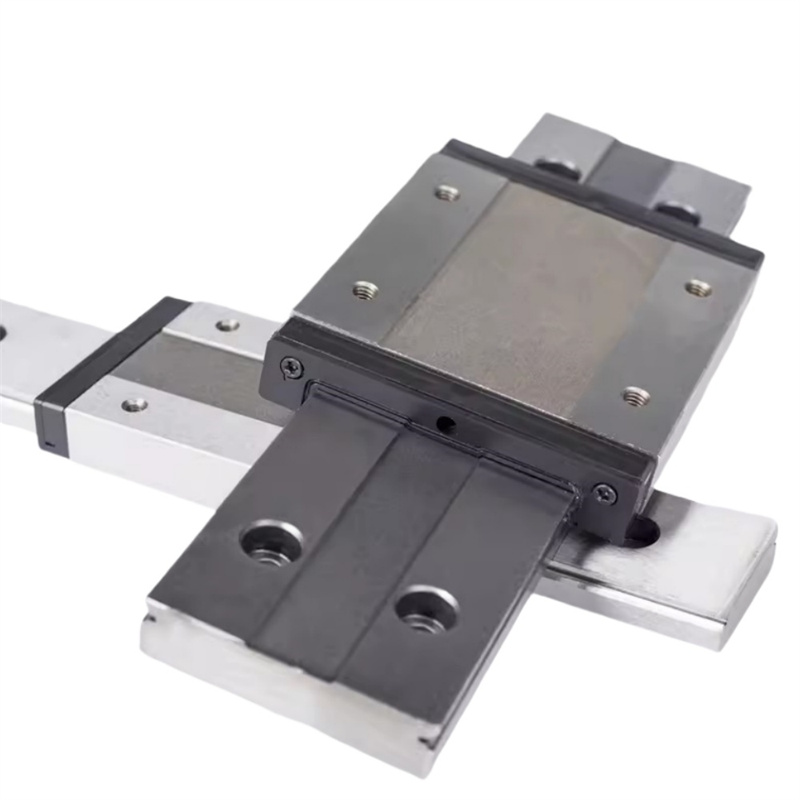

MGW Series: Wide Width Enhanced, Superior Load-Bearing Performance

Compared with the "compact and lightweight" positioning of the MGN series, the MGW series, as a wide-width enhanced miniature linear guide, takes "high rigidity and strong load-bearing" as its core advantages and is specially designed for scenarios requiring moment load bearing. Its most prominent feature is the widened guide rail structure, which greatly improves the moment load capacity and anti-overturning capability of the guide rail, eliminating the need for paired installation. A single axis can meet the requirements of complex motion, effectively simplifying the equipment structure and reducing assembly difficulty and costs.

The MGW series is also equipped with the Gothic arch four-point contact design, ensuring high-precision operation even under high-load working conditions. The carriage is equipped with a built-in micro retainer wire, so the balls will not fall off when the carriage is removed, greatly facilitating installation, commissioning and maintenance.

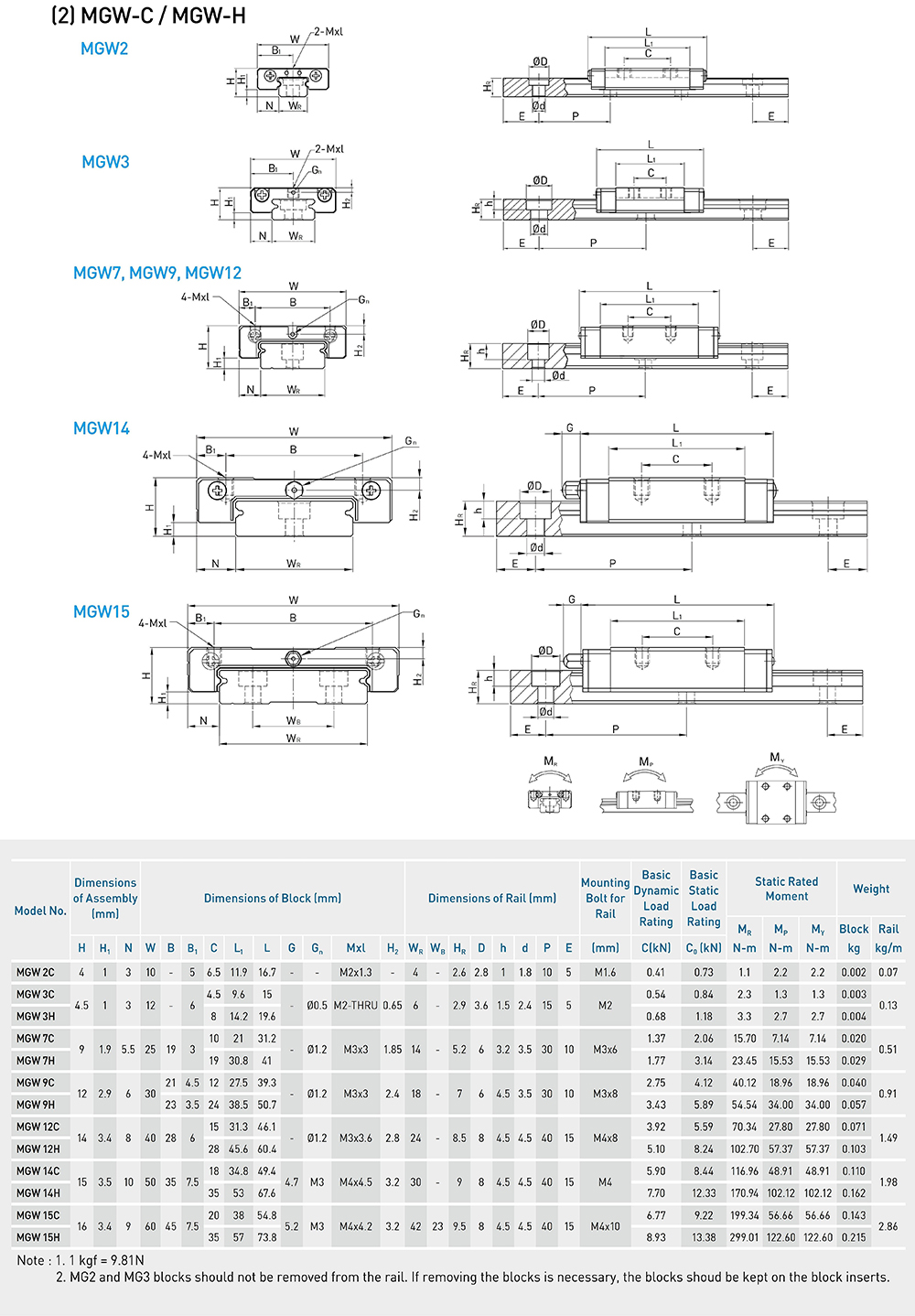

The mainstream models of the MGW series include MGW7C, MGW9C, MGW12C/H and MGW15C/H, which correspond to the specifications of the MGN series, allowing users to flexibly switch models according to load requirements. Its application scenarios are more inclined to equipment with high rigidity and high precision requirements, such as the joint transmission of precision manipulators, semiconductor wafer transfer equipment, the precise operation mechanism of medical surgical instruments, and the measurement platform of precision testing instruments, realizing stable and precise heavy-load transmission in a small space and ensuring the core performance of the equipment.

Shared Core Technologies, Consolidating Precision Advantages

Although the MGN and MGW series have different positioning and focuses, they share a number of core technologies, which is the key to their firm position in the micro-transmission field and their status as the mainstream choice. This is specifically reflected in materials, precision and other aspects:

In terms of precision and performance, both adopt an integrated recirculation system, which reduces the number of accessories by approximately 75% compared with traditional miniature linear guides, achieving stable and low-noise operation and a longer service life. The preload can be selected as light, medium or heavy as needed, accurately matching different precision and rigidity requirements. Among them, the repeat positioning accuracy of the P-level precision version can reach about 0.003mm, which can meet the extreme precision requirements of semiconductor lithography equipment, precision measuring instruments and other equipment.

In addition, both series achieve 1:1 dimensional interchangeability with TBI and HIWIN MGN/MGW models of the same specification, allowing direct replacement without modifying the equipment installation size, reducing equipment upgrading and maintenance costs, and improving versatility and adaptability.

Widely Used, Empowering Precision Manufacturing

Relying on core advantages such as compact structure, high precision and high rigidity, MGN and MGW miniature linear guides have been widely used in many high-end fields, becoming an indispensable core transmission component of precision equipment and supporting the upgrading of precision manufacturing in various industries:

From the delicate molding of 3D printers to the precise transmission of semiconductor wafers; from the precise operation of medical instruments to the fine adjustment of optical equipment, the MGN/MGW miniature linear guides have always played a core role in a small space with their "small but precise" characteristics, becoming an invisible force driving the high-quality development of the precision manufacturing industry.
