Dual-Axis Core High Precision Guide Rails

Exclusive Introduction to LGD Series Dual-Axis Linear Guides

The LGD series dual-axis linear guides are cost-effective external (clamp-on) roller-type linear motion components, specifically designed for light-load and general-purpose automation scenarios. With core advantages of easy installation, wear resistance, durability, and controllable cost, they have become the preferred transmission accessories in fields such as industrial automation, furniture hardware, and precision instruments. As a classic model of external dual-axis linear guides, the LGD series includes multiple specifications such as LGD6, LGD8, LGD12, and LGD16, which can flexibly meet the installation and load requirements of different equipment, balance practicality and economy, and fully comply with the standardization design requirements of high-quality domestic transmission components.

Core Product Positioning and Structural Features

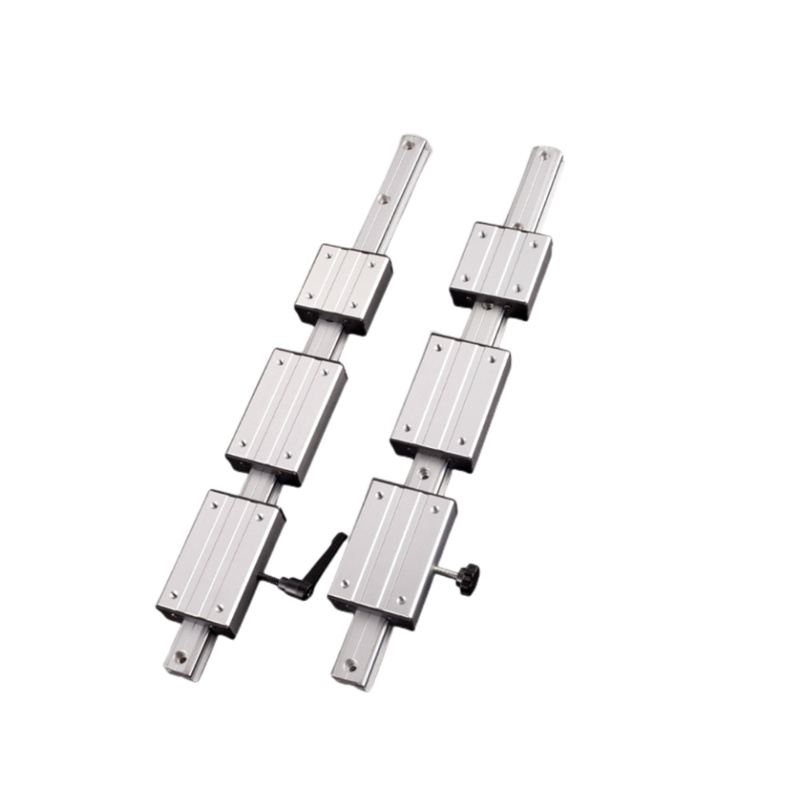

The LGD series belongs to external dual-axis linear guides, with a core positioning of "general-purpose light-load transmission solution". Different from built-in guides, its slider adopts a cladding design, wrapping around the outside of the guide rail profile, eliminating the need for complex processing of the mounting surface and greatly improving the convenience of assembly and disassembly. At the same time, the standardized structural design enables complete interchangeability between the slider and the guide rail, making later maintenance and replacement more efficient.

Its core structure inherits the classic configuration of dual-axis linear guides, and is optimized for general scenarios, with strict control over the selection and craftsmanship of key components:

● Guide Rail Body: Made of 6063-T5 high-strength aluminum alloy profile, treated with natural anodization (black electroplating is optional for some models). It not only has a significant lightweight effect, but also excellent acid and alkali resistance and corrosion resistance, with an attractive appearance. It can adapt to complex working conditions such as mild dust and humidity. The length of the guide rail can be customized according to requirements, with a maximum length of 6000mm.

● Guide Axis: Selected SUJ2 high-carbon chromium bearing steel, processed by high-frequency quenching, precision grinding and surface chrome plating, with a hardness of HRC62±2, a smooth and burr-free surface, and outstanding rust resistance to ensure no rust during long-term operation. The parallelism and straightness of the axis meet the precision level standards, ensuring transmission accuracy.

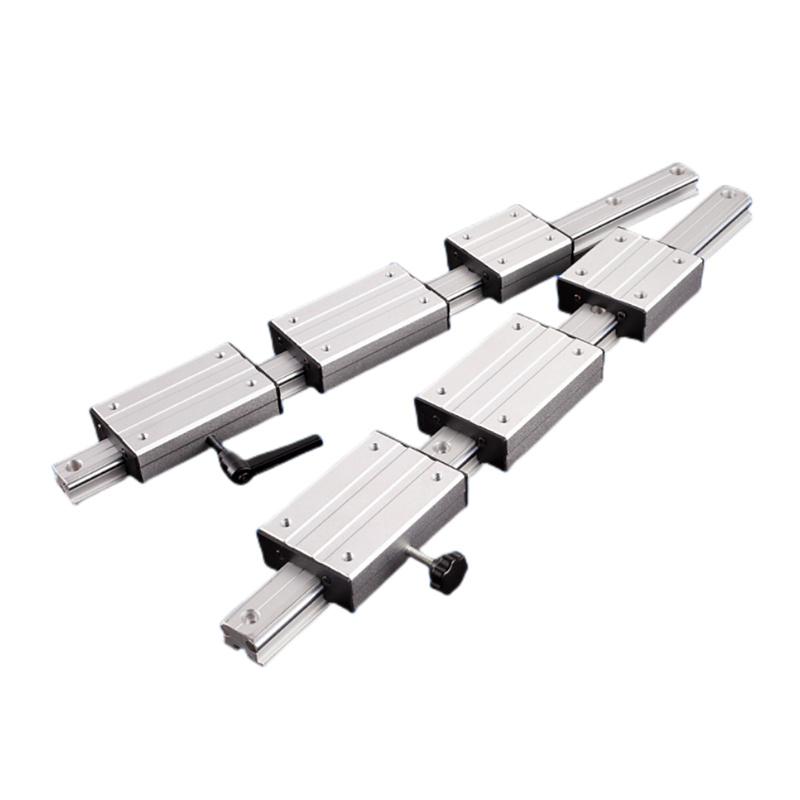

● Slider Assembly: Equipped with LGB series special sliders, adopting 4-wheel, 6-wheel or 8-wheel design (depending on specifications), with built-in sealed precision roller bearings, ensuring stable operation without jamming and excellent noise control. The slider has an automatic centering function, which can compensate for slight installation deviations, and adopts factory pre-lubrication design to achieve lifelong maintenance-free operation, greatly reducing equipment downtime and maintenance costs.

● Adjustment Structure: Adopting an eccentric wheel adjustment design, the gap between the roller and the axis can be flexibly fine-tuned without disassembling the slider, enabling zero clearance or light clearance operation, adapting to scenarios with different precision requirements, and balancing transmission accuracy and operation smoothness.

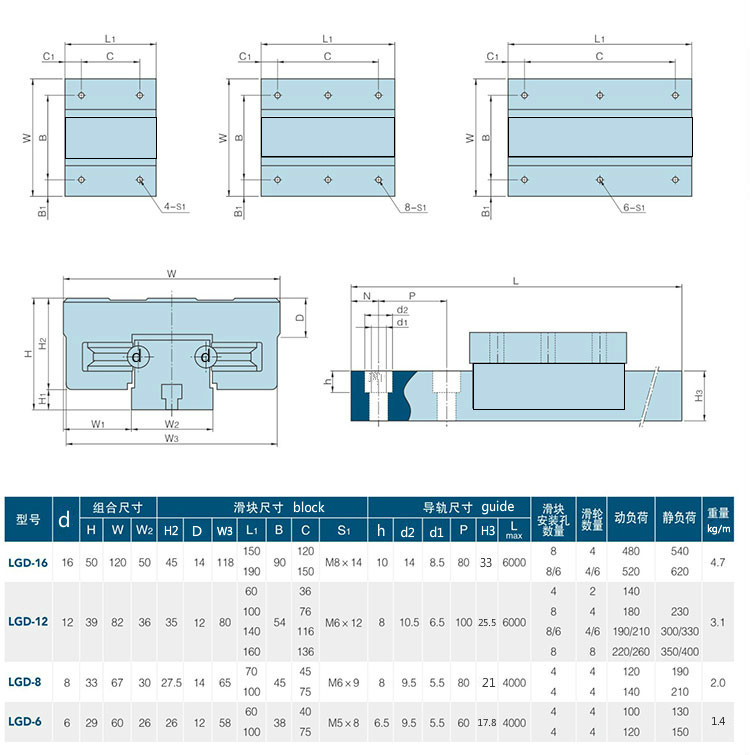

Core Specifications and Parameters (General Standards for LGD Series)

The LGD series covers multiple sub-specifications, with core parameters designed differently according to models. The following are the general core parameters, which accurately match actual application needs and can be customized and adjusted according to equipment working conditions:

● Specifications and Models: LGD6, LGD8, LGD12, LGD16 (distinguished by axis diameter), corresponding to axis diameters of 6mm, 8mm, 12mm, and 16mm respectively. The guide rail width ranges from 26mm to 50mm, and the slider width ranges from 60mm to 190mm, adapting to the installation space requirements of different equipment.

● Precision Parameters: Repeat positioning accuracy ±0.003mm, parallelism and straightness of the guide axis are both ≤0.01mm/m, meeting the precision transmission requirements of general light-load scenarios and adapting to the positioning requirements of most automation equipment.

● Operation Parameters: Running speed 0-8m/s, friction coefficient as low as 0.001-0.003, running noise ≤55dB, stable and no abnormal noise, suitable for high-frequency reciprocating motion scenarios such as conveyor lines and cutting equipment.

● Load and Service Life: Radial load 50N-450N, axial load 30N-280N, with different load capacities for different specifications; service life ≥18000 hours under normal working conditions. The sealed design effectively extends the wear cycle of components and improves the stability of equipment operation.

● Environmental Adaptation: Operating temperature -10℃～80℃, protection level IP54, can work normally in environments with humidity ≤90% (no condensation) and mild dust, without additional protection, adapting to most industrial and civil scenarios.

Exclusive Advantages of LGD Series

Compared with other models of dual-axis linear guides, the LGD series takes "universality, high efficiency, and low cost" as its core competitiveness, accurately adapting to small and medium-batch automation equipment and civil scenarios, with prominent exclusive advantages:

● Easy Installation and Strong Universality: External cladding design, no need for complex mounting surface processing, can be installed horizontally, vertically or obliquely. Standardized hole positions are compatible with conventional screw fixation, greatly improving installation efficiency. Sliders and guide rails can be supplied separately, with strong interchangeability. Only the slider needs to be replaced after later wear, with low maintenance cost, suitable for supporting batch equipment.

● High Cost-Effectiveness and Controllable Cost: High-quality domestic manufacturing and standardized mass production, with obvious cost advantages compared with imported similar products. Simple structure and convenient assembly can effectively reduce the overall procurement and maintenance costs of equipment. At the same time, it has stable performance, meeting the needs of general scenarios, and its cost-effectiveness is far superior to traditional sliding guides and some ball guides.

● Wear Resistance, Rust Resistance and Wide Adaptability: Double protection of anodized aluminum alloy guide rail and chrome-plated axis, excellent corrosion resistance and rust resistance, can adapt to harsh working conditions such as humidity and mild dust. Multiple specifications are available, which can be adapted from photography slides to industrial automation equipment, with flexible and diverse application scenarios. Customized thickness and installation methods can also be provided to meet personalized needs.

● Maintenance-Free and Stable Operation: The slider has built-in long-acting grease, combined with a sealed roller design to isolate dust and impurities, achieving lifelong maintenance-free operation and reducing equipment downtime. High-rigidity chrome-plated axis combined with multi-wheel slider design ensures stable operation, which can maintain smooth operation even with preload, no obvious heating, and ensure long-term stable transmission of equipment.

Typical Application Scenarios

With its general-purpose design and high cost-effectiveness, the LGD series is widely applicable to light-load and general-purpose scenarios. The key application fields are as follows, which accurately match its core advantages of external type, low cost and maintenance-free:

● Industrial Automation Field: Linear transmission mechanisms of automation equipment racks, conveyor lines, sorting equipment, cutting equipment and welding equipment, especially suitable for small and medium batch automation equipment, balancing transmission accuracy and cost control, and can greatly improve equipment operation efficiency and stability.

● Furniture and Building Materials Field: Linear transmission mechanisms of high-grade sliding doors, drawers, display cabinet push-pull mechanisms and automatic door and window guide mechanisms. The lightweight design is convenient for installation, silent operation improves user experience, corrosion resistance adapts to different environments such as homes and shopping malls, and cost is controllable, suitable for mass furniture production.

● Photography and Precision Instrument Field: Guide mechanisms of photography slides and small testing instruments. The stable operation and precise positioning characteristics of the LGD series can ensure the movement accuracy of photography equipment and testing instruments. At the same time, the lightweight design is convenient for equipment handling and debugging, and multiple specifications are available to adapt to different equipment needs.

● Light Industry and Civil Field: Paper feeding and guide mechanisms of packaging machinery, woodworking sliding table saws and cutting machines, as well as general conveying mechanisms in the medical and food industries. The maintenance-free feature reduces later operation costs, and the corrosion-resistant and low-noise design adapts to clean and general working conditions, meeting special industry needs.

Selection Suggestions and Summary

Selection Suggestions: The LGD series is suitable for light-load (load ≤450N) and general-purpose transmission scenarios. Priority scenarios include: equipment that does not require ultra-high precision, focuses on installation convenience and cost control, and needs maintenance-free and low-noise operation; if the equipment is heavy-load (load ＞450N), subject to strong impact, or requires extremely high precision (repeat positioning accuracy ＜±0.003mm), it is recommended to choose built-in dual-axis linear guides or ball guides, which can better meet the application needs.

Summary: As an external general-purpose product, the LGD series dual-axis linear guides take "easy installation, high cost-effectiveness, maintenance-free and wide adaptability" as their core highlights. Through standardized design, high-quality material selection and precision craftsmanship, they balance practicality and economy, and perfectly adapt to the light-load transmission needs of various fields such as industrial automation, furniture and photography. Its characteristics of multiple specifications, strong interchangeability and low maintenance cost can not only improve the stability and efficiency of equipment operation, but also help enterprises control procurement and maintenance costs. It is an ideal choice for general-purpose light-load linear transmission scenarios, and also conforms to the development trend of high-quality domestic transmission components, with cost-effectiveness and practicality far superior to similar general models.
