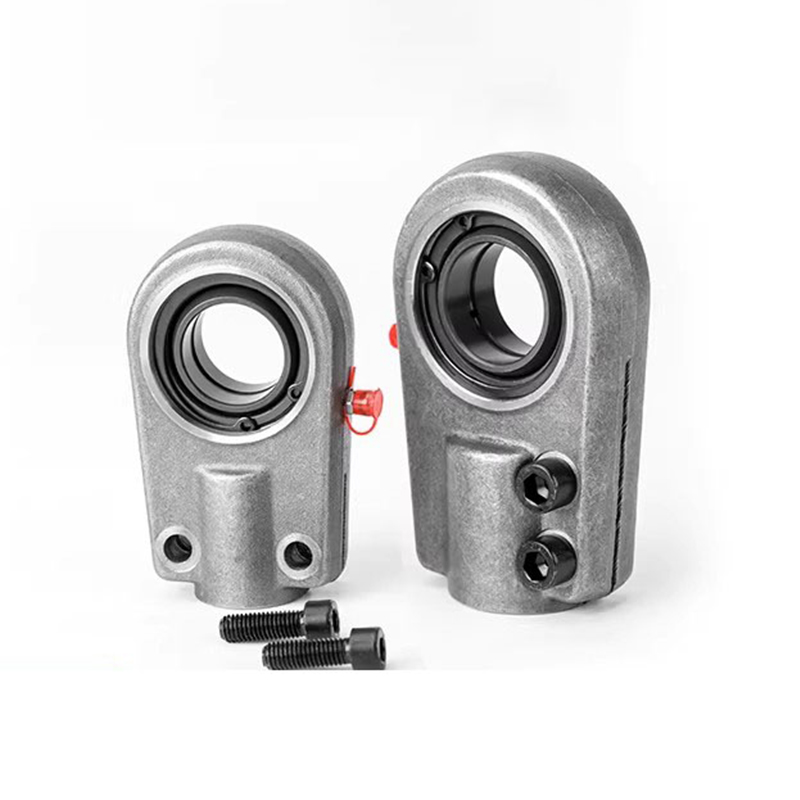

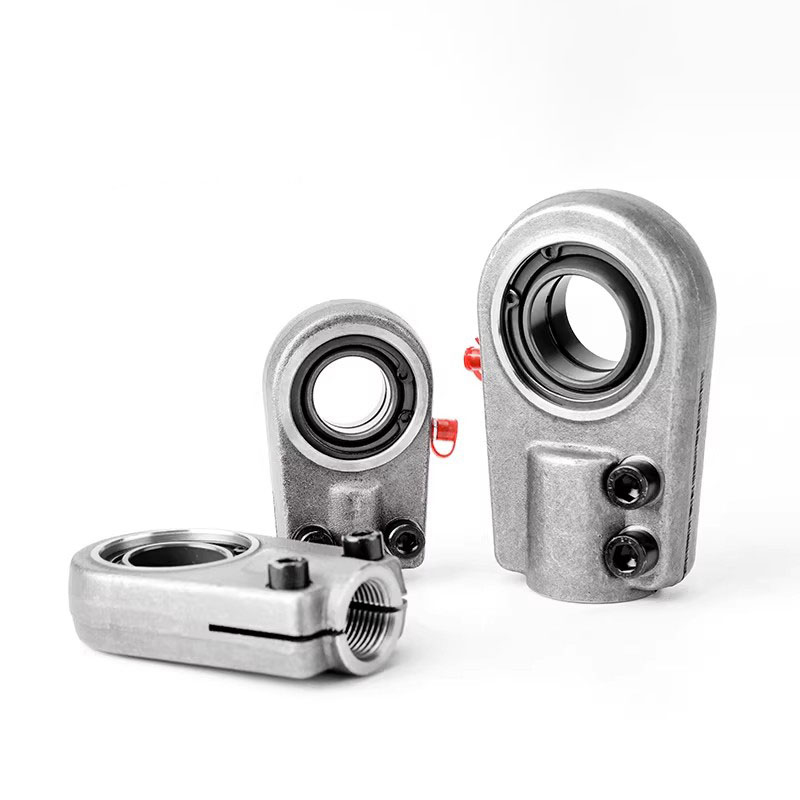

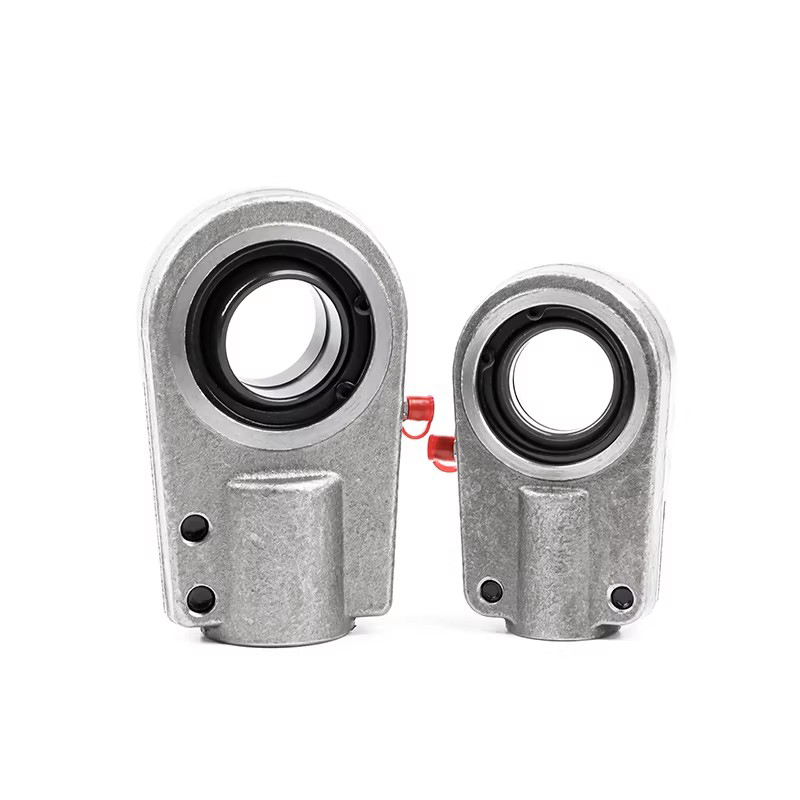

Carbon Steel Housing Cylinder Earring Bearing

GK…SK Series Cylinder Earrings: Product Overview

As a type of locking spherical hinge connector, the GK…SK series cylinder earrings (also known as rod end spherical plain bearings) are core components specially developed and designed for heavy-duty working conditions of hydraulic systems. With mature structural design and reliable performance, they have become indispensable key connecting parts in various heavy-duty hydraulic equipment. This series of products deeply integrates four core advantages: self-alignment, high load-bearing capacity, anti-loosening, and easy lubrication. They are accurately adapted to various hydraulic cylinders in multiple industries such as engineering, metallurgy, hoisting, mining, and ports. They can not only meet the stable transmission needs under complex working conditions but also effectively protect the key components of the hydraulic system, reduce equipment failure rates, and serve as stable, reliable, and cost-effective standard connectors in hydraulic transmission systems. Compared with ordinary cylinder earrings, their unique locking structure design and material selection make them more adaptable to harsh working conditions such as heavy loads, high-frequency vibration, and high and low temperatures, and their service life is more than 30% longer than that of conventional products.

Core Product Positioning

The GK…SK series cylinder earrings are positioned around "heavy-load adaptation, safety and reliability, and convenient installation". They adopt an integrated design of internal thread + locking structure, equipped with embedded radial spherical plain bearings, featuring a compact overall structure and strong rigidity, which can be directly and accurately connected to the hydraulic cylinder piston rod and the executive mechanism. Through the double fixing method of retaining rings and locking screws, it effectively eliminates the pain point that traditional earrings are prone to loosening and displacement under long-term vibration conditions, realizing flexible articulation between the hydraulic cylinder piston rod and the executive mechanism. It can not only flexibly compensate for the coaxiality deviation and angle deviation generated during installation but also effectively reduce the lateral stress of the piston rod, avoid problems such as bending and wear of the piston rod caused by stress concentration, and greatly improve the service life and stability of the entire hydraulic system. It is suitable for the transmission needs of various medium and heavy-duty hydraulic equipment and is widely used in the articulated connection scenarios of heavy-duty hydraulic circuits.

Key Structural and Performance Highlights

● Self-locking and Anti-loosening Mechanism: Equipped with slotted internal threads and supporting high-strength locking screws, the design strictly complies with ISO international standards, with a thread accuracy of 6H grade. The slot angle is precisely calculated to perfectly fit the locking screws. Even under harsh working conditions such as long-term high-frequency vibration and heavy-load impact, it can ensure that the connection part does not loosen or displace, greatly improving the safety of equipment operation. At the same time, the thread surface is phosphated to enhance wear resistance and corrosion resistance, avoiding connection failure caused by thread wear, and is suitable for high-vibration and high-load operation scenarios such as mining and metallurgy.

● Self-aligning Radial Spherical Plain Bearing: Embedded with high-quality GE…ES series radial spherical plain bearings, adopting high-precision spherical processing technology, the spherical finish reaches Ra0.8μm, and the maximum allowable deflection angle can reach ±5°. It can automatically compensate for the coaxiality error and angle deviation generated during installation, avoid rigid friction between the hydraulic cylinder piston rod and the executive mechanism, effectively protect the piston rod, earring body and executive mechanism, reduce component wear, and lower equipment maintenance costs. It is especially suitable for complex working conditions with limited installation space and inability to align accurately.

● Heavy-duty and Durable Material Selection: According to different aperture specifications, differentiated high-quality materials are adopted to ensure that the load-bearing performance is accurately matched with the use scenario. Among them, the specifications with aperture d < 60mm adopt 45# forged carbon steel, which has undergone quenching and tempering heat treatment, with a hardness of HRC28-32, featuring high strength, high toughness, and impact resistance, suitable for medium and light load working conditions; the specifications with aperture 60–90mm can choose carbon steel or ductile iron materials according to user needs, balancing load-bearing performance and economy; the specifications with aperture d > 90mm adopt ductile iron materials, which have undergone aging treatment, with excellent fatigue resistance and impact resistance, capable of withstanding long-term heavy-load impact, suitable for heavy equipment scenarios such as mining and hoisting. The surface of all materials is treated with anti-rust, which can effectively resist the erosion of harsh environments such as humidity and oil pollution, and extend the service life of the product.

● Convenient Lubrication and Maintenance Design: Equipped with a dedicated grease cup lubrication channel as standard, the lubrication channel is accurately connected to the inside of the bearing. Lubricating grease can be regularly added through the grease cup to continuously provide lubrication for the bearing spherical surface, reduce the friction coefficient, reduce component wear, and further extend the service life of the product; at the same time, maintenance-free spherical plain bearings can be selected according to user needs, eliminating the need for regular lubricating grease addition, greatly reducing the equipment maintenance workload, adapting to unattended and inconvenient maintenance operation scenarios, and improving equipment operation efficiency.

● Standard Universal Interchangeability: The product dimensions strictly follow national GB/T standards and international general specifications, and are completely interchangeable with the same model products of mainstream domestic and foreign brands. No modification of installation dimensions is required, and direct replacement can be realized, which greatly facilitates user selection, stock preparation and equipment maintenance, and reduces user procurement costs and inventory pressure. At the same time, the product has high processing accuracy and good installation fit, no additional debugging is required, and installation can be completed quickly, improving equipment assembly and maintenance efficiency.

Complete Model Coverage and Specification Description

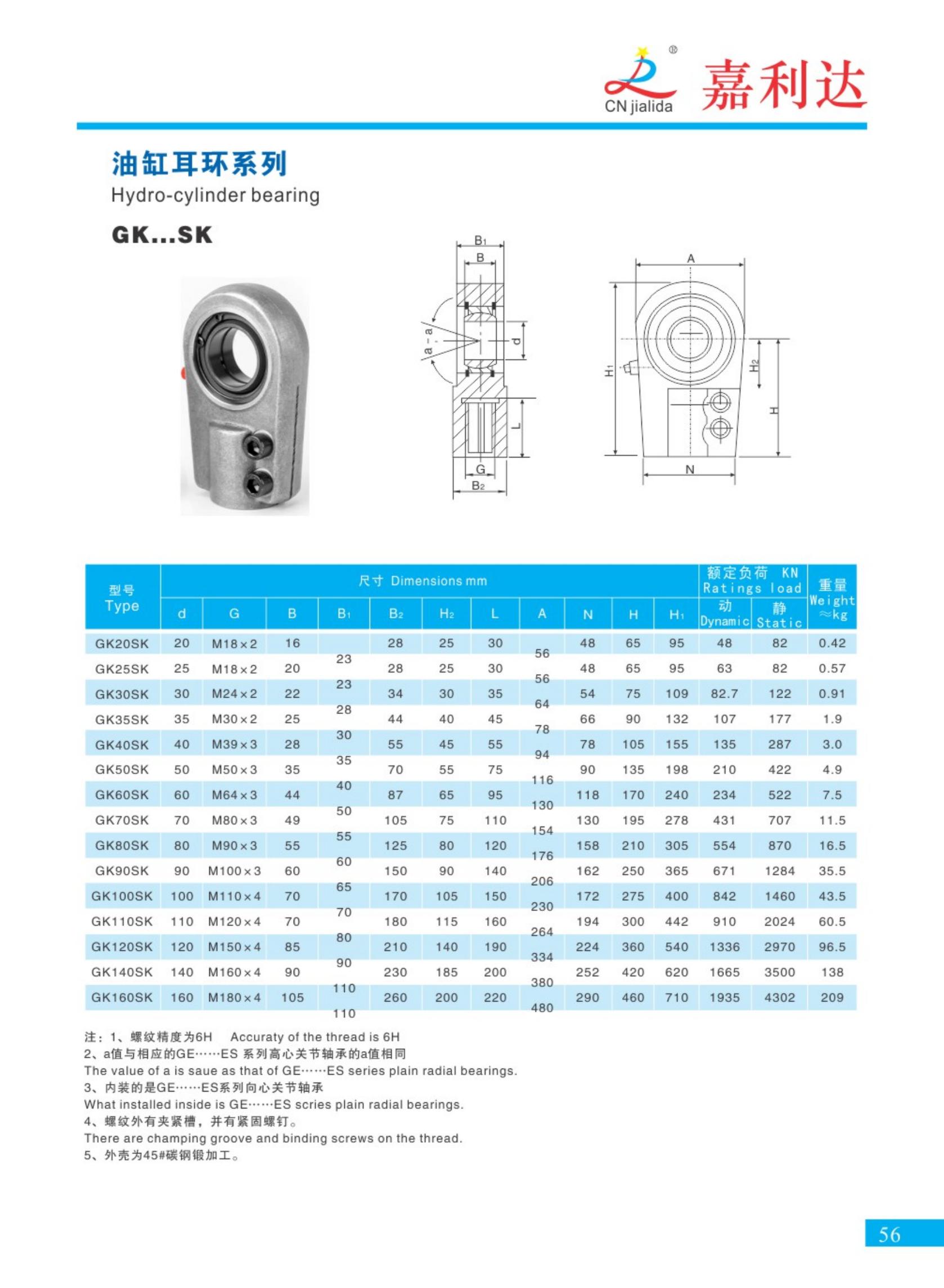

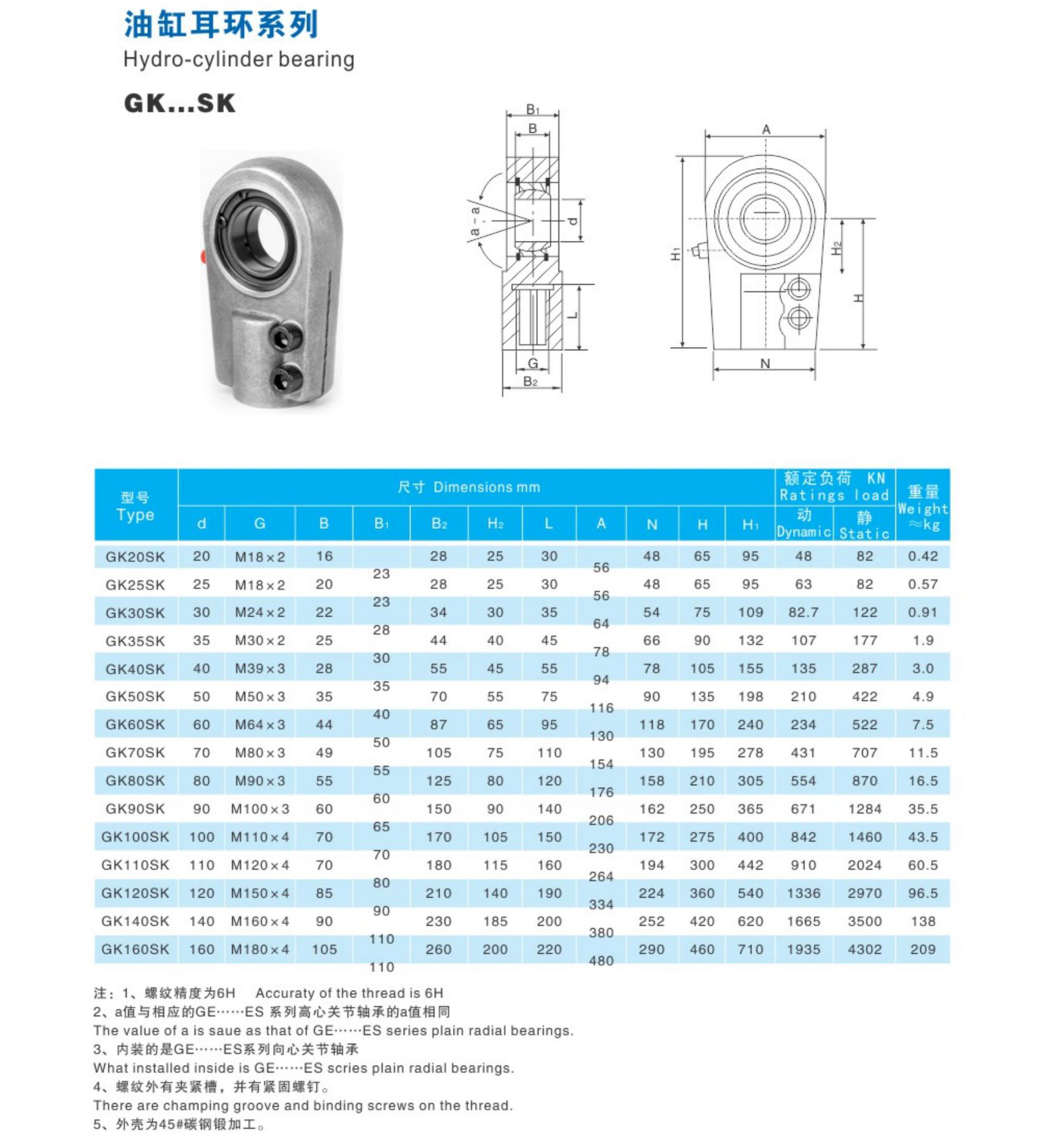

The GK…SK series cylinder earrings have a complete range of models, covering various aperture specifications, which can be accurately adapted to hydraulic cylinders and executive mechanisms of different sizes. The commonly used complete models include: GK20SK, GK25SK, GK30SK, GK35SK, GK40SK, GK50SK, GK60SK, GK70SK, GK80SK, GK90SK, GK100SK, GK110SK, GK120SK, GK140SK, GK160SK. All models adopt a unified structural design, with only differences in aperture and thread specifications. Users can flexibly select models according to parameters such as the diameter of the hydraulic cylinder piston rod, load-bearing requirements, and installation space; at the same time, non-standard specifications can be customized according to user special needs to meet personalized application scenarios.

Typical Application Scenarios and Adaptable Industries

With the advantages of heavy-load durability, safety and reliability, and universal interchangeability, the GK…SK series cylinder earrings are widely used in the hydraulic transmission systems of various medium and heavy-duty equipment. Typical application scenarios include: the hydraulic cylinder articulation of equipment such as excavators, loaders, road rollers, and pavers in the construction machinery field; the hydraulic linkage parts of equipment such as rolling mills, continuous casting machines, and lifting platforms in the metallurgical equipment field; the cylinder connection of equipment such as forklifts, cranes, and port machinery in the hoisting and transportation field; the articulated transmission of equipment such as crushers, scraper conveyors, and hydraulic supports in the mining machinery field; the hydraulic transmission mechanisms of equipment such as machine tools, rubber and plastic machinery, and agricultural and forestry machinery in the general equipment field, fully meeting the heavy-load articulation needs of different industries.

Product Usage Notes

To ensure the product exerts its best performance and extends its service life, the following points should be noted during use: ensure the thread is clean and free of debris during installation, and the locking screws are tightened in place to avoid loosening caused by improper installation; regularly check the lubrication status, add lubricating grease regularly according to the operating conditions, and regularly check the bearing operation status for maintenance-free models; avoid overloading and over-angle use to prevent component damage; when used in humid and corrosive environments, regularly perform anti-rust treatment on the product surface to avoid material corrosion; avoid violent operation during disassembly and maintenance to prevent damage to the thread and bearing spherical surface.

Summary of Product Value

With high-strength structure, self-locking safety, self-aligning compensation, and universal interchangeability as its core advantages, the GK…SK series cylinder earrings balance convenient maintenance and durability. They can maintain stable operation under harsh working conditions such as heavy loads, high frequencies, and vibrations, effectively reducing equipment shutdown maintenance time, lowering maintenance costs, and improving the overall operational reliability of equipment. As the preferred standard component for hydraulic system connection, this series of products can not only meet the transmission needs of various medium and heavy-duty equipment but also adapt to personalized application scenarios in multiple industries, providing users with efficient, reliable, and economical articulated connection solutions.
