Centripetal Joint Cylinder Earring Bearing

GK..DO Welded Rod-End Bearings | High-Strength, Versatile & Cost-Effective

Product Positioning: Classic General-Purpose Welded Bearing, A Stable, Reliable and Cost-Effective Choice

The GK..DO series is the most widely used standard cylinder earring rod-end spherical plain bearing in the industry. Adopting a welded structure, it is specially designed for the articulation parts of hydraulic cylinders, construction machinery, automation equipment and other devices. With a mature structure, high strength and firm installation, it focuses on heavy-load working conditions that can be regularly maintained. Relying on stable performance, high versatility and high cost-effectiveness, it has become one of the most commonly used connecting components in the hydraulic and construction machinery fields, perfectly adapting to various general industrial and engineering equipment, balancing practicality and economy, and helping users control costs and ensure stable equipment operation.

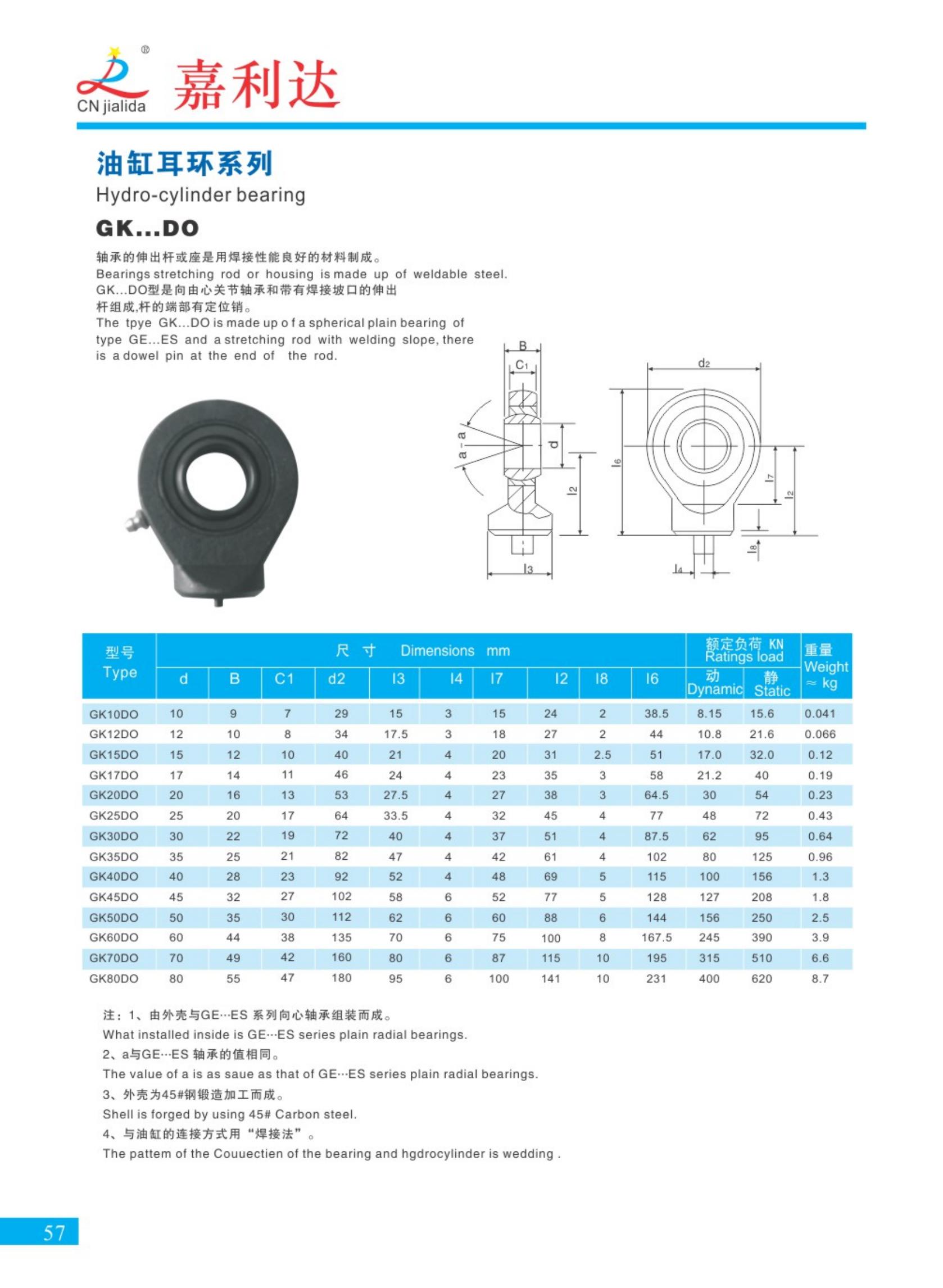

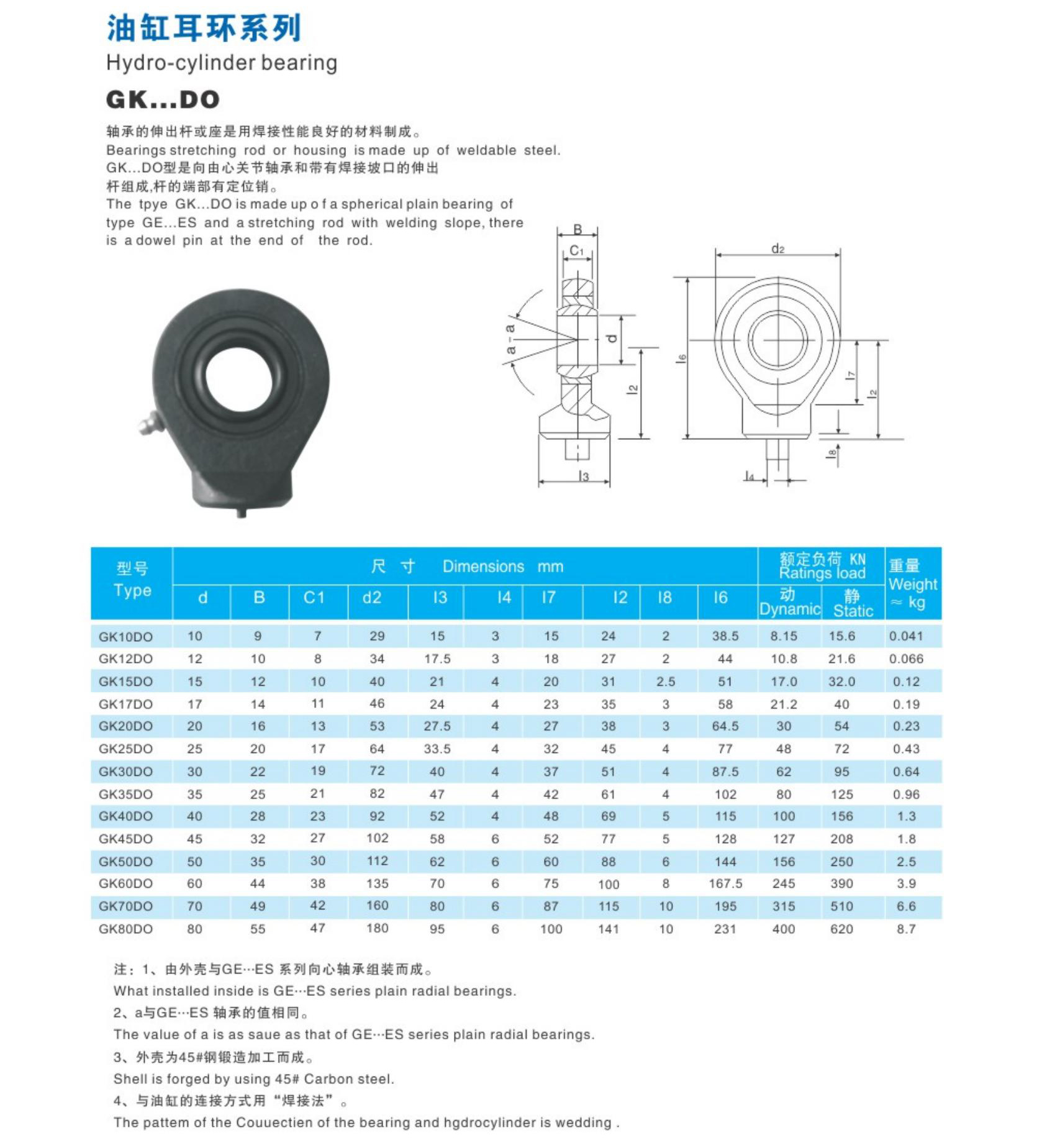

Model Interpretation: Clear Codes, Simple and Intuitive Selection, Full Specification Coverage

The model naming of the GK..DO series follows industry general standards, with clear and easy-to-understand meanings, allowing quick selection without professional knowledge, and it covers a complete range of specifications to meet the needs of various cylinders. "GK" is the general code of the series, clearly identifying it as a rod-end spherical plain bearing dedicated to cylinder earrings. As an industry standard series, it has strong interchangeability, adapting to most domestic and imported hydraulic cylinders, and its versatility is far superior to that of special models. "DO" is the structural feature code, exclusively identifying the "welded (threadless)" core structure. Adopting an integrated welding base design, it has no thread troubles, requires no additional connectors, and can be directly welded and fixed to the cylinder earring. With a large welding area and precise positioning, its connection strength is far higher than that of ordinary threaded connections, effectively avoiding the hidden dangers of loosening and falling off under heavy-load and high-frequency vibration working conditions. The series has a wide range of models, covering GK12DO to GK300DO, with inner diameters ranging from 12mm to 300mm. Common models include GK12DO, GK16DO, GK20DO, GK25DO, etc., which can accurately match hydraulic cylinders of different tonnages and specifications. Whether it is a small industrial cylinder or a large engineering cylinder, a suitable model can be found.

Structure & Material: Exquisite Craftsmanship for Quality, Heavy-Load Durable, Laying a Solid Foundation for Operation

Adhering to the original intention of quality, the GK..DO series rod-end spherical plain bearings build core heavy-load durability with mature structures and high-quality materials, adapting to various general working conditions. Structurally, it adopts modular precision assembly, seamlessly connecting two core components: the rod end body and the radial spherical plain bearing. It inherits the classic structural advantages of cylinder earring spherical plain bearings, balancing strength and smooth operation, and has been verified by the market for many years, with a stable structure and low failure rate. The rod end body is made of high-quality 45# carbon steel or Q345 high-strength carbon steel, which is processed through multiple professional heat treatment processes such as normalizing and quenching-tempering, greatly improving the hardness, toughness and corrosion resistance of the material. It can easily bear large radial loads, axial loads and composite alternating loads, adapting to heavy-load impact working conditions such as construction machinery and mining machinery, and is not prone to deformation, fracture and other problems. The radial spherical plain bearing is made of GCr15 high-carbon chromium bearing steel, which undergoes precision heat treatment of quenching and tempering, with a hardness of HRC60-64, and has extremely high wear resistance, fatigue resistance and impact resistance. The spherical contact design ensures smooth operation and avoids jamming. In addition, the outer ring of the bearing adopts a locking notch fixing process to closely fit the radial spherical plain bearing with the rod end body, further improving the overall structural stability, eliminating the hidden dangers of component displacement and falling off during operation, and adapting to general working conditions of high-frequency swing and heavy-load impact.

Core Advantages: Six Hardcore Highlights, Stable and Universal, Outstanding Cost-Effectiveness

With six core highlights, the GK..DO series meets the needs of general working conditions, has been verified by long-term market use, balances stability, versatility and economy, and becomes the preferred choice for general scenarios. First, high-strength welded connection: without thread design, the welding fixation is closely combined with the cylinder earring, with strong anti-vibration and anti-impact capabilities, not easy to loosen and fall off, adapting to high-strength fixation needs. Second, excellent heavy-load bearing performance: the scientific combination of high-quality carbon steel rod end body and high-hardness bearing steel, combined with the spherical uniform force design, can effectively disperse loads, bear large radial, axial and composite loads, adapt to various heavy-load general working conditions, and is not easy to deform or wear. Third, excellent self-aligning ability: relying on the spherical contact structure of the radial spherical plain bearing, it can flexibly swing and automatically align within the range of ±3°-±5°, effectively compensating for cylinder installation errors, axial offset and angular deviation during work, avoiding additional stress, protecting the cylinder and the bearing itself, and reducing the failure rate. Fourth, mature and reliable structure: after years of industry application verification, it has a reasonable structural design and low failure rate, adapting to various general equipment, no need for complex debugging, and can run stably after installation. Fifth, complete specifications and extremely strong versatility: the inner diameter covers 12mm to 300mm, adapting to hydraulic cylinders of different tonnages and types, compatible with multiple fields such as construction machinery, automation equipment and metallurgical equipment, with good interchangeability, convenient for batch matching and later replacement. Sixth, cost-effective choice: it has a simple structure, moderate manufacturing cost, strong durability, no need to invest additional high maintenance costs, suitable for batch matching use, and helps users control procurement and operation and maintenance costs.

Application Scenarios: Universal in Multiple Fields, Adapting to Various Maintainable Working Conditions

With stable performance and wide adaptability, the GK..DO series rod-end spherical plain bearings are widely used in various equipment scenarios that require articulation connection, heavy-load bearing and regular maintenance, deeply cultivating the fields of general industry and construction machinery, and empowering the efficient operation of various equipment. In the field of hydraulic cylinders, it is widely used in the earring connection of engineering hydraulic cylinders and industrial hydraulic cylinders that can be regularly maintained, such as ordinary hydraulic lifting platform cylinders, machine tool cylinders, agricultural machinery cylinders, etc., ensuring the smooth reciprocation and stable connection of the cylinder. In the field of construction machinery, it is suitable for the articulation parts of equipment such as excavators, loaders, cranes and forklifts, such as the steering cylinder earring of loaders and the telescopic cylinder earring of cranes, which can bear the impact and alternating loads during equipment operation and run stably for a long time. In the field of automation and general machinery, it is used for the articulation connection of hydraulic executive components, printing machinery, large forging machines and other equipment in automatic production lines, adapting to maintainable scenarios, reducing the failure rate and improving production efficiency. In addition, it can also be applied to hydraulic mechanisms such as agricultural machinery, sanitation vehicles and special vehicles, as well as general heavy-load scenarios such as metallurgy and mining, showing extremely strong versatility and adaptability.

Conclusion: Preferred for General Heavy-Load, Cost-Effective, Stable and Worry-Free

The GK..DO welded rod-end spherical plain bearings, with "high-strength welding, high stability, wide adaptability and high cost-effectiveness" as the core selling points, meet the needs of general working conditions. With a mature structure, high-quality materials, complete specifications and stable performance, it becomes the preferred product for maintainable heavy-load scenarios. Whether it is the conventional articulation of general industrial equipment or the heavy-load operation of construction machinery, this series of bearings can stably exert the advantages of strong load-bearing, firm connection and smooth operation, without complex maintenance, balancing practicality and economy. It not only provides solid support for the efficient and stable operation of various equipment, but also is the preferred choice for users to control procurement and operation and maintenance costs and achieve batch matching.
