Cylinder Earrings|High Precision Connecting Components for Hydraulic Cylinder Articulation
Overview: The Core Articulation Component of Hydraulic Cylinders
Cylinder earrings are integrated connecting components specially designed for hydraulic cylinder systems, serving as the key interface between hydraulic cylinders and mechanical linkages (such as connecting rods, brackets, actuators, etc.), and playing an indispensable connecting role. Unlike ordinary connecting components, cylinder earrings are specially designed to withstand dynamic loads, pressure fluctuations and angular displacements generated during the operation of hydraulic cylinders, ensuring seamless power transmission and flexible articulation. As a core component of the hydraulic system, its quality and performance directly affect the overall efficiency, stability and service life of construction machinery, industrial equipment and hydraulic devices.
Core Design Concepts and Key Advantages
Cylinder earrings take the integration of "load-bearing capacity, structural stability and installation flexibility" as the core of design, and have unique advantages different from conventional connecting components:
● High-Precision Machined Articulation Interface: The inner hole and connecting surface of the cylinder earring are processed by high-precision CNC equipment to ensure close fit with bearings (such as rod-end spherical plain bearings) and hydraulic cylinder rods; the smooth surface roughness can reduce friction during movement, avoid jamming, and ensure the accurate transmission of hydraulic force.
● Strong Load-Bearing and Impact Resistance: Adopting integral forging or precision casting technology, it is made of high-strength alloy steel or carbon steel, which can bear large radial and axial loads, as well as sudden impact loads generated during equipment operation; the optimized structural design disperses stress evenly, so it is not easy to deform or fracture even under long-term heavy-load work.
● Flexible Articulation and Error Compensation: Adopting spherical or cylindrical articulation design, it can flexibly adjust the angle within a certain range, effectively compensate for the installation deviation and axial displacement of the hydraulic cylinder, reduce the additional stress on the cylinder body and bearings, and extend the service life of the entire hydraulic system.
● Corrosion and Wear Resistance: The surface is treated with anti-corrosion processes such as galvanizing, chrome plating and powder coating, which can resist corrosion from moisture, oil pollution and harsh industrial environments; the wear-resistant surface treatment also reduces wear caused by long-term movement and contact, ensuring long-term stable operation.
● Customizable to Adapt to Diverse Needs: According to the specific requirements of hydraulic cylinders (such as tonnage, installation space, working conditions), it can be customized in terms of size, structure (welded type, threaded type, flanged type) and material, perfectly matching various hydraulic systems and equipment.
Structural Types and Application Adaptation
Cylinder earrings have a variety of structural types to adapt to different installation methods and working scenarios, and each type has unique characteristics and application scope:

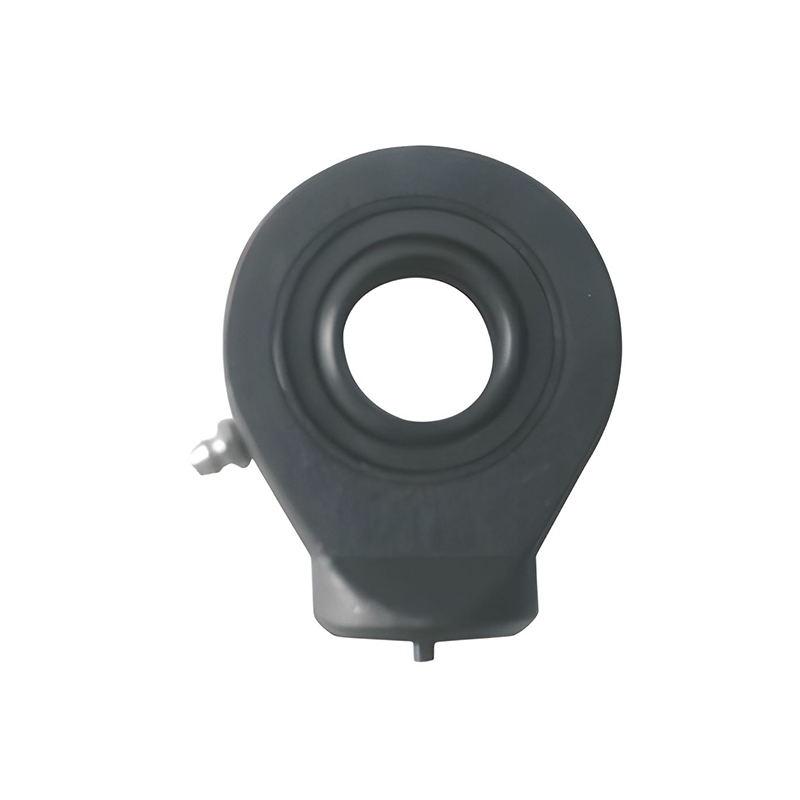

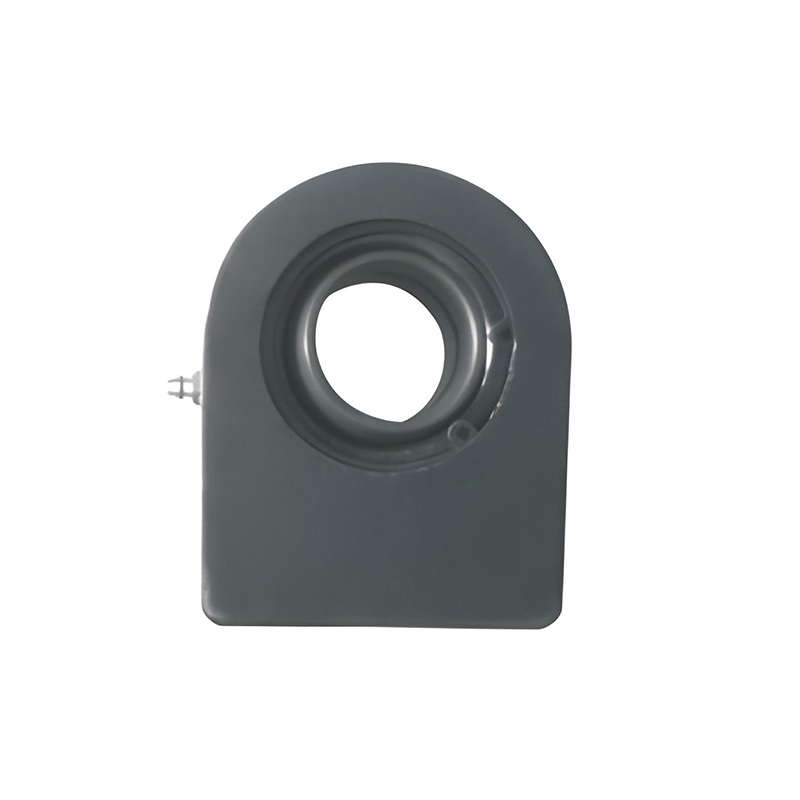

1. Welded Cylinder Earrings
Welded cylinder earrings are the most widely used type, adopting an integrated welding structure, which can be directly welded to the end of the hydraulic cylinder. Without thread connection, they have high connection strength and stability, and are suitable for heavy-load and high-vibration scenarios such as construction machinery (excavators, loaders) and mining equipment; the integrated design can avoid the hidden danger of loosening caused by vibration and ensure long-term reliable operation.

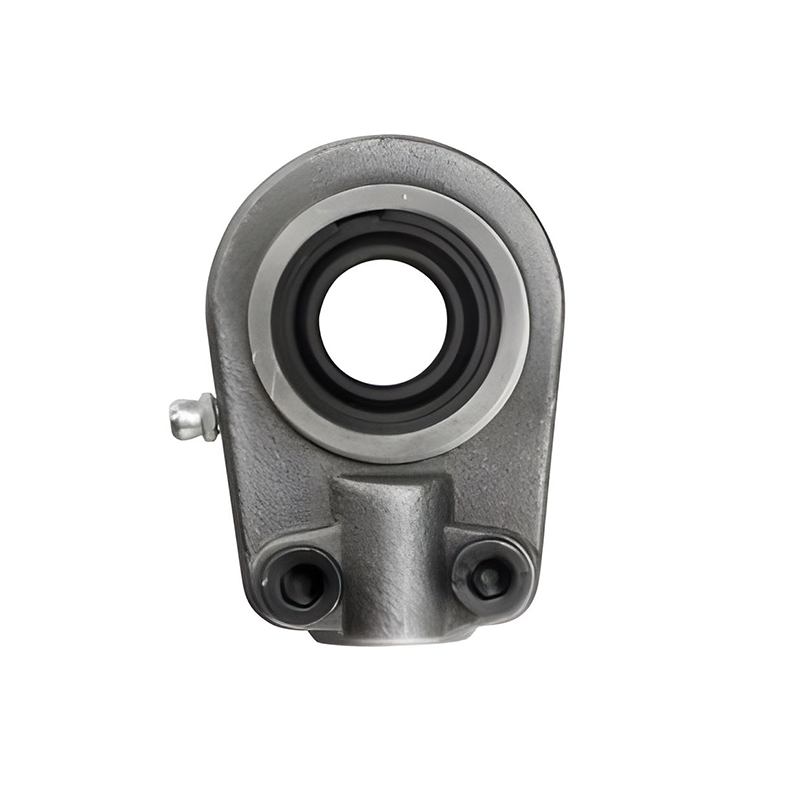

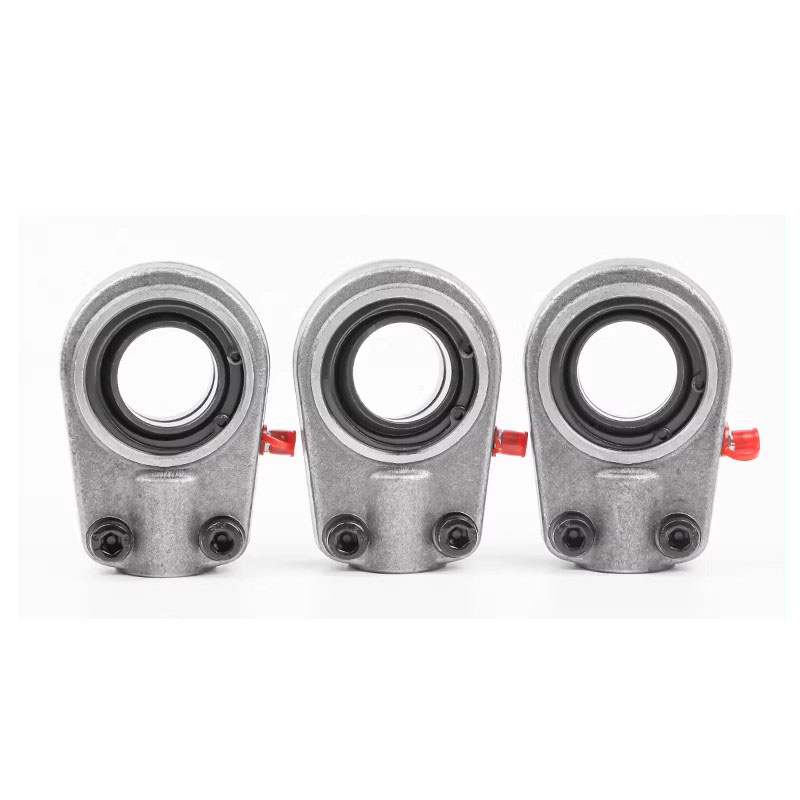

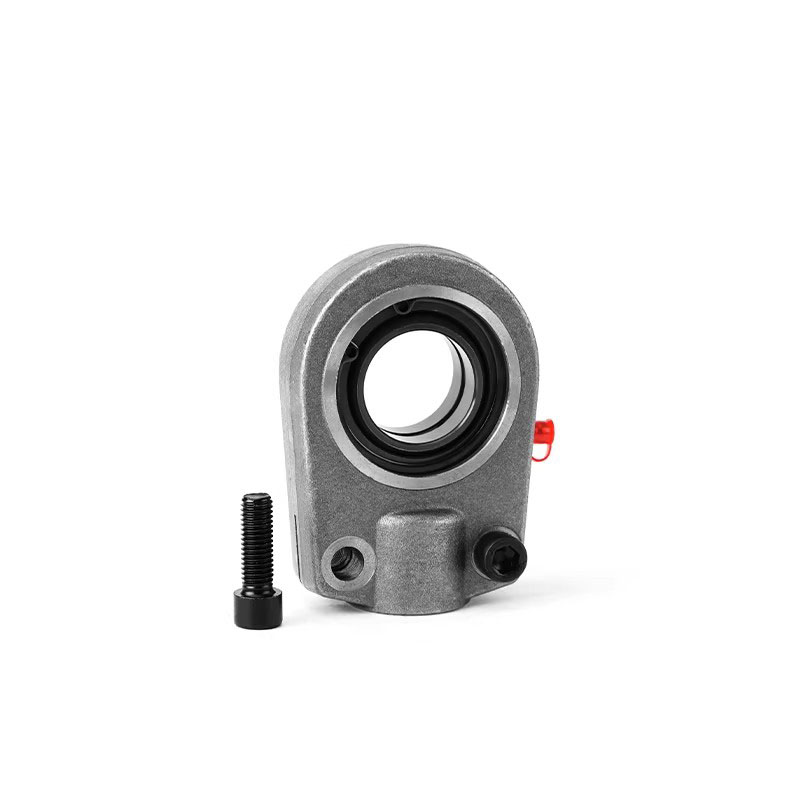

2. Threaded Cylinder Earrings
Threaded cylinder earrings are equipped with internal or external threads, which can be quickly installed and disassembled by screwing on the hydraulic cylinder rod. They are suitable for scenarios that require regular maintenance or replacement, such as industrial hydraulic equipment, machine tools and light-duty construction machinery; the threaded connection is convenient for adjustment and positioning, improving maintenance efficiency.
3. Flanged Cylinder Earrings
Flanged cylinder earrings adopt a flange structure design, which is fixed on the hydraulic cylinder or equipment by bolts. They have a large contact area and strong connection stability, and are suitable for large-tonnage hydraulic cylinders and high-pressure working environments, such as hydraulic presses, large cranes, marine hydraulic systems, etc.
Material Selection and Processing Technology
The performance of cylinder earrings depends largely on material selection and processing technology. High-quality cylinder earrings adopt strict material screening and precision processing to ensure reliability and durability:
● Material Selection: Common materials include 45# carbon steel, Q345 high-strength steel and 40Cr alloy steel; for harsh environments such as marine, chemical and high corrosion, stainless steel or special alloy materials are selected to improve corrosion resistance and service life.
● Processing Technology: The production process includes forging, annealing, CNC turning, milling, grinding and surface treatment; forging and annealing processes improve the toughness and strength of the material, high-precision CNC processing ensures dimensional accuracy, surface treatment (galvanizing, chrome plating, etc.) enhances corrosion and wear resistance, and each process is strictly inspected to ensure that the product meets industry standards.
Typical Application Fields
Cylinder earrings are widely used in various fields relying on hydraulic systems, playing an irreplaceable role in ensuring equipment operation. Typical application fields include:
● Construction Machinery Field: Applied to the hydraulic cylinders of excavators, loaders, cranes, bulldozers and aerial work platforms, it is responsible for connecting the cylinder and the working mechanism, ensuring flexible movement and stable load-bearing during equipment operation.
● Industrial Hydraulics Field: Adapted to the hydraulic cylinders of machine tools, hydraulic presses, injection molding machines and automatic production lines, ensuring accurate transmission of hydraulic force and stable operation of equipment.
● Agricultural Machinery Field: Used in the hydraulic systems of tractors, harvesters and agricultural irrigation equipment, it is adapted to harsh outdoor working environments and ensures the reliable operation of agricultural machinery.
● Special Equipment Field: Applied to the hydraulic cylinders of marine equipment, aerospace equipment and military equipment, it is required to have high precision, corrosion resistance and strong load-bearing capacity to meet the strict requirements of special working conditions.
Installation and Maintenance Notes
1. Installation Notes
When installing cylinder earrings, it is necessary to ensure that the installation surface is clean and free of debris to avoid affecting the fit accuracy; for welded earrings, it is necessary to ensure that the welding is firm and free of defects (such as cracks, pores) to prevent connection failure; for threaded earrings, apply an appropriate amount of lubricating grease to the threads to avoid damaging the threads during installation and disassembly; for flanged earrings, tighten the bolts evenly to prevent uneven stress.
2. Maintenance Notes
Regularly check whether the surface of the cylinder earring is corroded, worn or deformed; check the connection status (welding joint, thread, bolt) to ensure no loosening or damage; for earrings used in harsh environments, regularly clean the surface and reapply anti-corrosion coating; timely replace worn or damaged cylinder earrings to avoid affecting the operation of the hydraulic system.
Conclusion
As the core connecting component of hydraulic cylinders, cylinder earrings play a crucial role in power transmission and articulation movement. With the characteristics of precision design, strong load-bearing capacity, flexible articulation and customization, they are widely used in various industrial and engineering fields. High-quality cylinder earrings can not only ensure the stable and efficient operation of the hydraulic system, but also reduce maintenance costs and extend the service life of equipment. Whether it is heavy-duty construction machinery or precision industrial equipment, cylinder earrings are indispensable key components, providing solid support for the development of the hydraulic industry.
