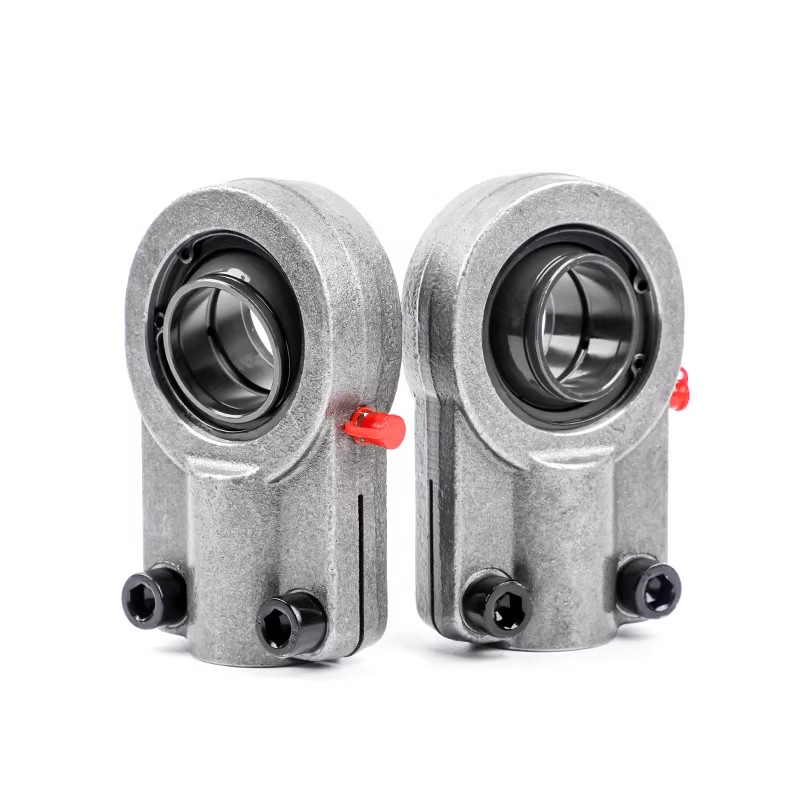

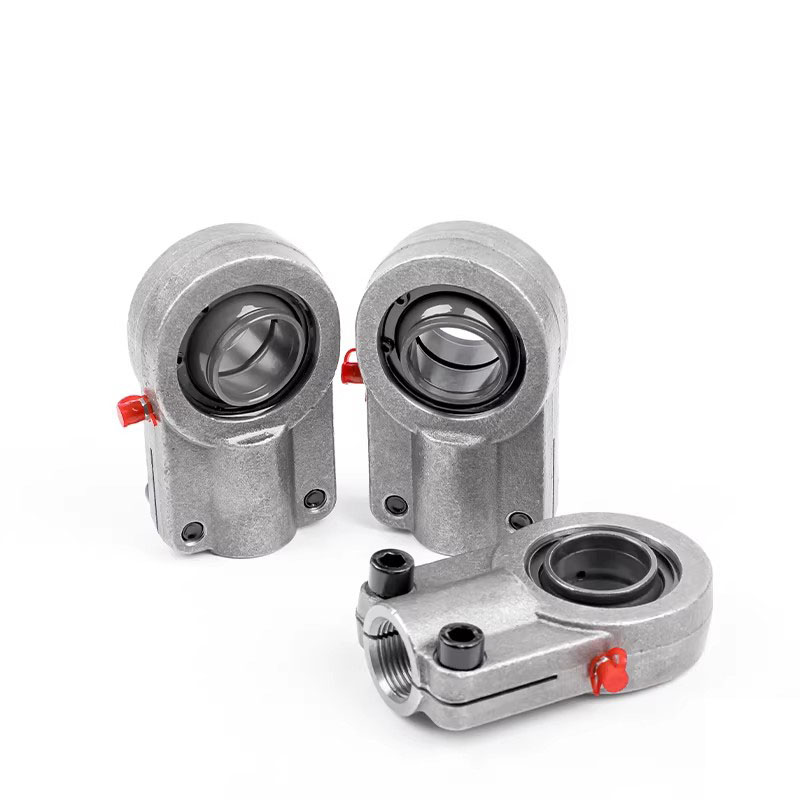

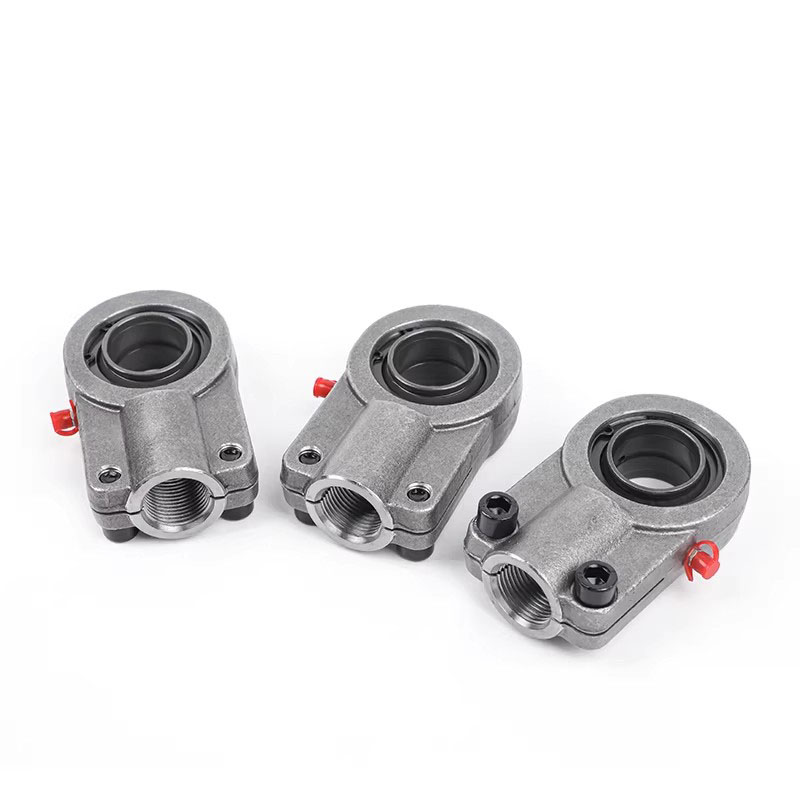

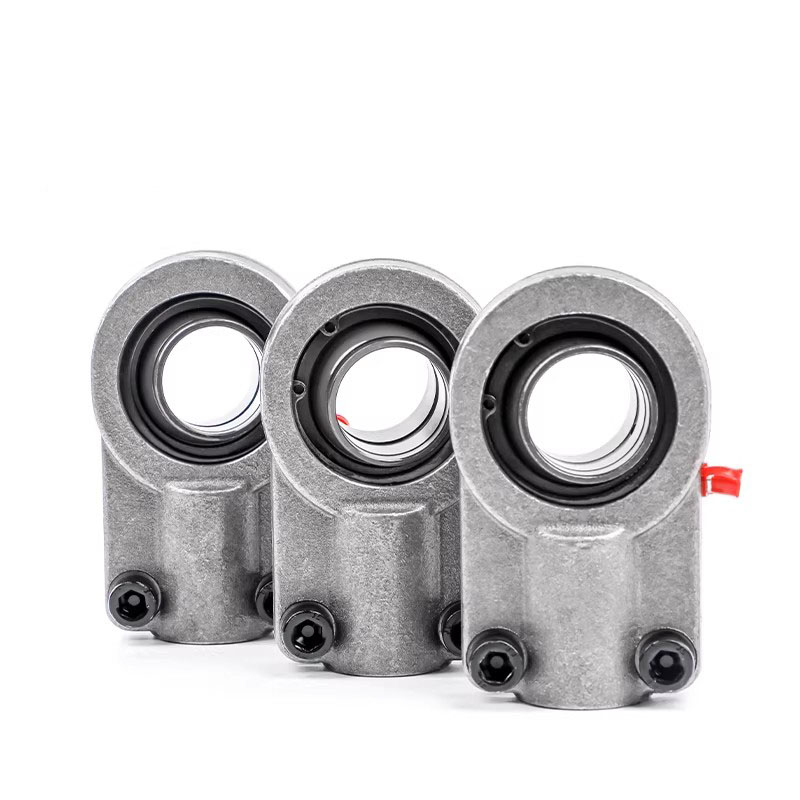

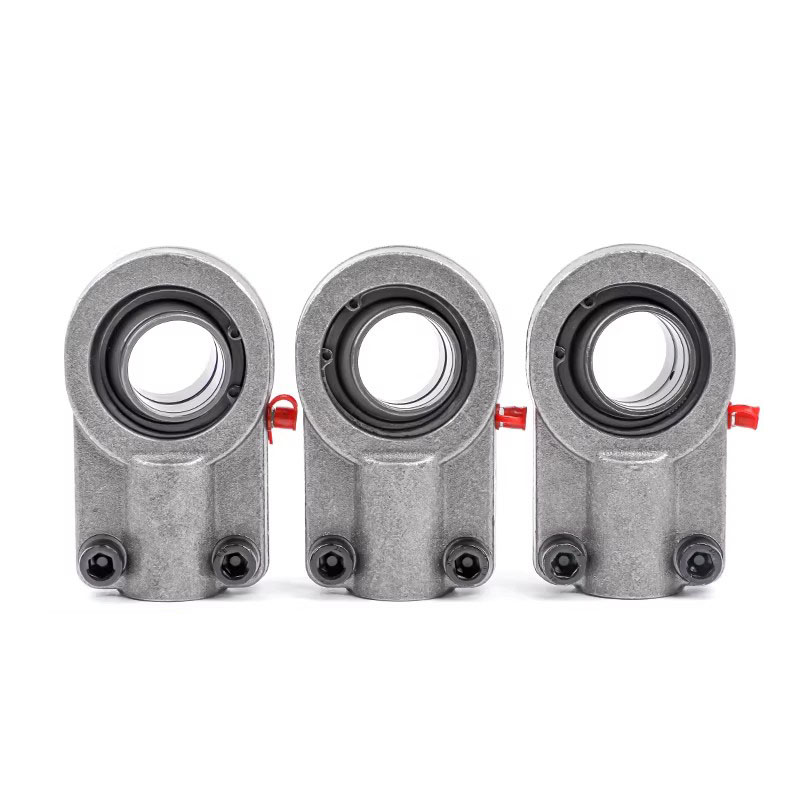

Vertical Internal Thread Cylinder Earring Bearing

Cylinder Earring Bearings | Core Components for Stable Operation of Hydraulic and Engineering Equipment

Overview: What is a Cylinder Earring Bearing?

Cylinder earring bearings, also known as rod-end spherical plain bearings dedicated to cylinder earrings, are core connecting components specially designed for the articulation parts of hydraulic cylinders, construction machinery, and automation equipment. As a key connecting link between hydraulic cylinders and other mechanical components, they can bear radial loads, axial loads, and composite alternating loads, while achieving flexible swing and automatic self-aligning functions. With the characteristics of high strength, stable operation, and strong adaptability, they are widely used in various industrial and engineering fields to ensure the smooth operation of hydraulic systems and mechanical equipment.

Core Functions and Key Characteristics

As an indispensable core component in hydraulic and mechanical systems, cylinder earring bearings integrate connection, load-bearing, and swing functions, with the following key characteristics:

● Strong Load-Bearing Capacity: Adopting high-quality materials and precision processing technology, it can stably bear large radial, axial, and composite alternating loads, suitable for heavy-load working conditions such as construction machinery and mining equipment.

● Excellent Self-Aligning Performance: Relying on the spherical contact structure, it can flexibly swing and automatically align within a certain angle range (usually ±3°-±5°), effectively compensating for installation errors, axial offsets, and angular deviations, avoiding additional stress on equipment and extending service life.

● Stable and Reliable Operation: Mature structural design and strict quality control ensure low failure rate, smooth operation without jamming, and long-term stable service in harsh working conditions such as high vibration, heavy dust, and high humidity.

● Wide Adaptability: It has various structural types (such as welded type and threaded type) and specification ranges, which can realize customized matching according to different cylinder tonnages, installation spaces, and working condition requirements.

● Convenient Installation and Maintenance: The structural design is reasonable, and the installation process is simple and efficient; regular lubrication (such as adding lubricating grease) of conventional models can ensure long-term stable operation, and some self-lubricating models can even achieve maintenance-free operation, reducing labor and time costs.

Common Structural Types and Model Specifications

Cylinder earring bearings are mainly divided into two types according to the connection method: welded type and threaded type. Among them, the welded type is widely used in heavy-load and high-vibration scenarios. Taking the GK..DO series (a classic welded cylinder earring bearing) as an example, its model and specification characteristics are as follows:

1. Structural Type: Welded (Threadless)

Welded cylinder earring bearings (such as the GK..DO series) adopt an integrated welding base design, free from thread troubles, and can be directly welded and fixed to the cylinder earring. With a large welding area and precise positioning, its connection strength is far higher than that of ordinary threaded connections, effectively avoiding the hidden dangers of loosening and falling off under heavy-load and high-frequency vibration conditions.

2. Model Naming and Specification Coverage

The model naming of cylinder earring bearings follows industry general standards, with clear and easy-to-understand meanings. Taking the GK..DO series as an example: "GK" is the general code of the series, identifying it as a rod-end spherical plain bearing dedicated to cylinder earrings; "DO" is the structural feature code, representing the core structure of the welded (threadless) type. The series covers a comprehensive range of specifications, with inner diameters ranging from 12mm to 300mm. Common models include GK12DO, GK16DO, GK20DO, GK25DO, etc., which can accurately match hydraulic cylinders of different tonnages and specifications.

3. Material Selection and Process Guarantee

The quality of cylinder earring bearings directly determines the stability and service life of equipment. High-quality cylinder earring bearings (such as the GK..DO series) adopt strict material selection and precision processing:

● Rod End Body: Selected high-quality 45# carbon steel or Q345 high-strength carbon steel, processed through multiple professional heat treatment processes such as normalizing and quenching-tempering, which greatly improves the hardness, toughness, and corrosion resistance of the material, and is not easy to deform or break under heavy-load impact.

● Radial Spherical Plain Bearing: Made of GCr15 high-carbon chromium bearing steel, through precision quenching and tempering heat treatment, the hardness reaches HRC60-64, with extremely high wear resistance, fatigue resistance, and impact resistance, ensuring smooth operation and long service life.

● Processing Technology: Adopting modular precision assembly and locking notch fixing technology, the rod end body and radial spherical plain bearing are closely fitted, further improving the overall structural stability and eliminating hidden dangers such as component displacement and falling off during operation.

Application Scenarios

Cylinder earring bearings are widely used in various scenarios that require articulation connection, heavy-load bearing, and regular maintenance, covering multiple industries such as hydraulic systems, construction machinery, and automation equipment:

● Hydraulic Cylinder Field: Widely used in the earring connection of maintainable engineering hydraulic cylinders and industrial hydraulic cylinders, such as hydraulic lifting platform cylinders, machine tool cylinders, agricultural machinery cylinders, etc., ensuring the smooth reciprocating movement and stable connection of the cylinder.

● Construction Machinery Field: Suitable for the articulation parts of equipment such as excavators, loaders, cranes, and forklifts, such as loader steering cylinder earrings and crane telescopic cylinder earrings, which can bear the impact and alternating loads during equipment operation and run stably for a long time.

● Automation and General Machinery Field: Used for the articulation connection of hydraulic executive components, printing machinery, large forging machines, and other equipment in automatic production lines, suitable for maintainable scenarios, reducing failure rates and improving production efficiency.

● Other Fields: It can also be applied to hydraulic mechanisms such as agricultural machinery, sanitation vehicles, and special vehicles, as well as general heavy-load scenarios such as metallurgy and mining, showing extremely strong versatility and adaptability.

Selection Skills and Maintenance Suggestions

1. Selection Skills

When selecting cylinder earring bearings, the following factors should be comprehensively considered: ① Working load (radial, axial, composite load); ② Working environment (vibration intensity, dust, humidity); ③ Installation space (determine the structural type: welded or threaded); ④ Maintenance conditions (select conventional lubrication or self-lubrication type according to maintenance convenience); ⑤ Cylinder specifications (match the inner diameter and model of the bearing).

2. Maintenance Suggestions

Conventional cylinder earring bearings need regular lubrication (adding lubricating grease) to reduce friction loss and extend service life; self-lubricating models need to regularly check the wear of the self-lubricating bushing and replace it in time when abnormal wear occurs. At the same time, regularly check the connection status between the bearing and the cylinder earring to avoid loosening and falling off.

Conclusion

Cylinder earring bearings are the core connecting components of hydraulic and mechanical equipment, which play a crucial role in ensuring the efficient, stable, and safe operation of equipment. With the advantages of strong load-bearing capacity, excellent self-aligning performance, wide adaptability, and convenient installation and maintenance, they are widely used in various industrial and engineering fields. As a classic product in the industry, the GK..DO series welded cylinder earring bearings have become the preferred choice for general heavy-load and maintainable scenarios with mature structure, high-quality materials, and complete specifications, providing solid support for the efficient operation of various equipment.
