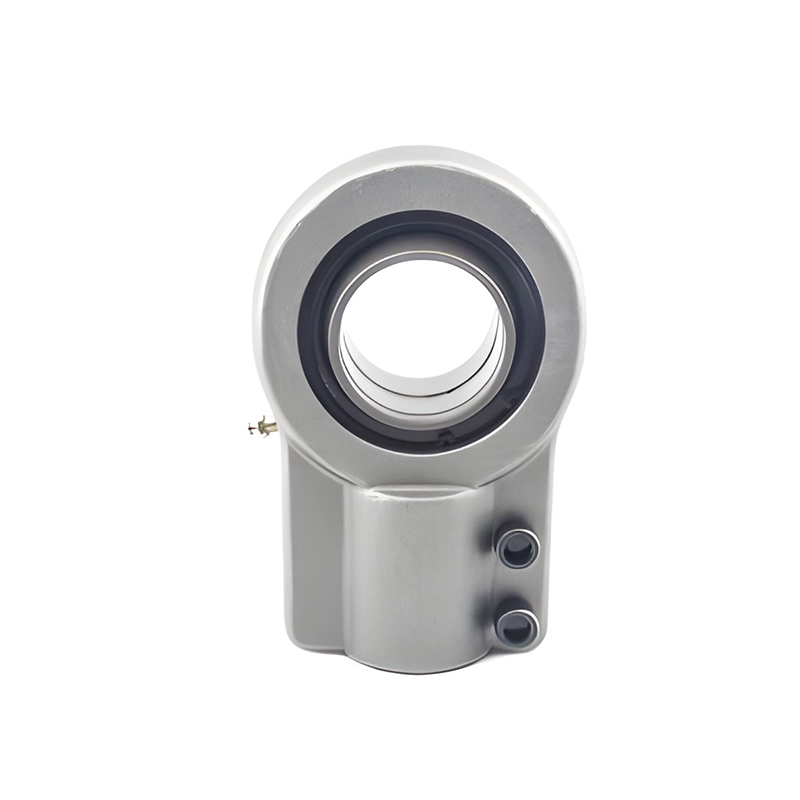

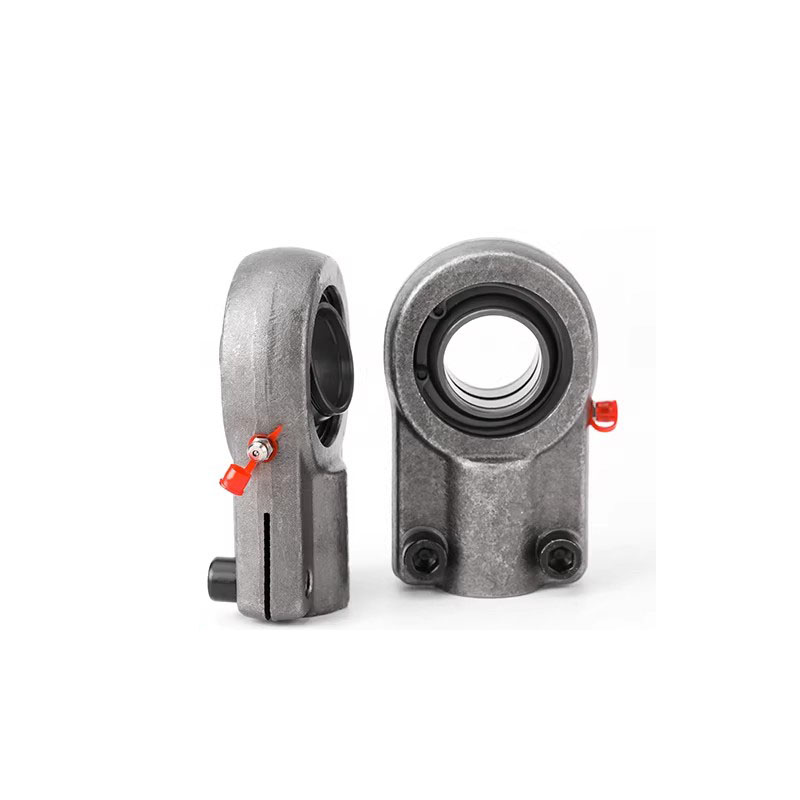

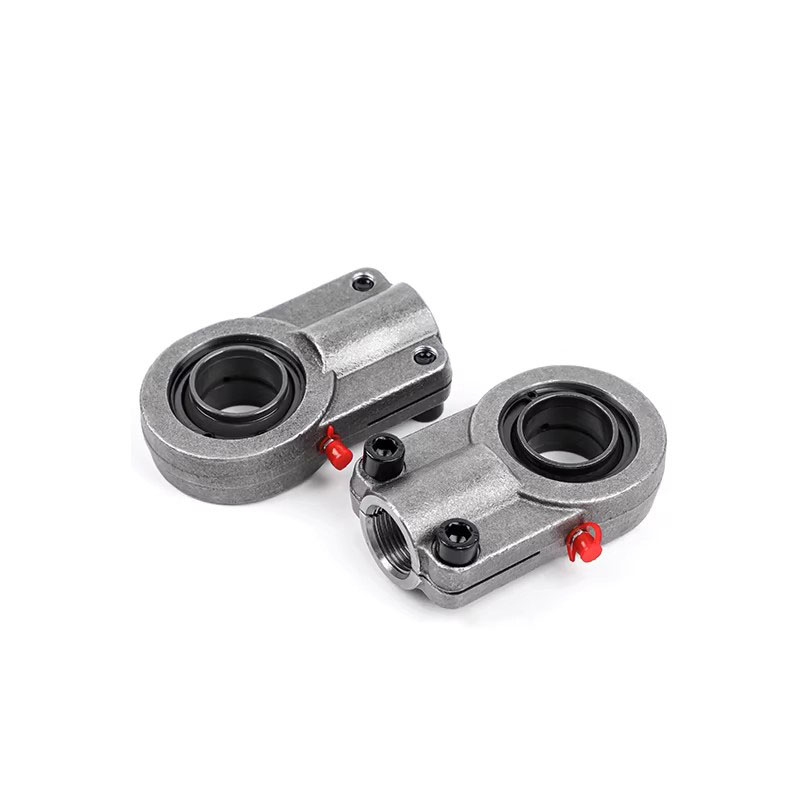

High Precision Cylinder Earring Bearing With Clamping Slot

GK..CK Series Cylinder Earring Spherical Plain Bearings: A Reliable Connection Choice for Heavy-Duty Working Conditions

At the core connection parts of hydraulic systems and construction machinery, a spherical plain bearing with excellent load-carrying capacity, anti-loosening performance and self-aligning advantages is the key to ensuring stable equipment operation. As a special bearing designed specifically for cylinder earring connection, the GK..CK series cylinder earring spherical plain bearings have become the preferred component in fields such as hydraulic cylinders, forging machines and construction machinery, relying on precise structural design, high-quality material matching and wide specification coverage. They perfectly adapt to various complex working conditions of heavy load and high-frequency swing, providing solid support for the efficient operation of equipment.

Model Interpretation: Understand the Core Markings of GK..CK

The model naming of GK..CK series cylinder earring spherical plain bearings follows clear industry standards, and each group of letters corresponds to its core structure and function, facilitating selection and identification:

● GK: As the general series code, it represents that the bearing is a rod-end spherical plain bearing dedicated to cylinder earrings. Its core design positioning is to adapt to the earring connection scenario of hydraulic cylinders. Different from other general-purpose spherical plain bearings, its structure is more in line with the movement trajectory requirements of cylinders.

● CK: As the structural feature code, it clearly indicates that the bearing adopts a combined structure of "internal thread + locking screw". This design is the core feature that distinguishes it from other models in the same series (such as SK with oil nozzle and NK without locking), which can effectively prevent connection loosening caused by vibration and impact during equipment operation and improve operational safety.

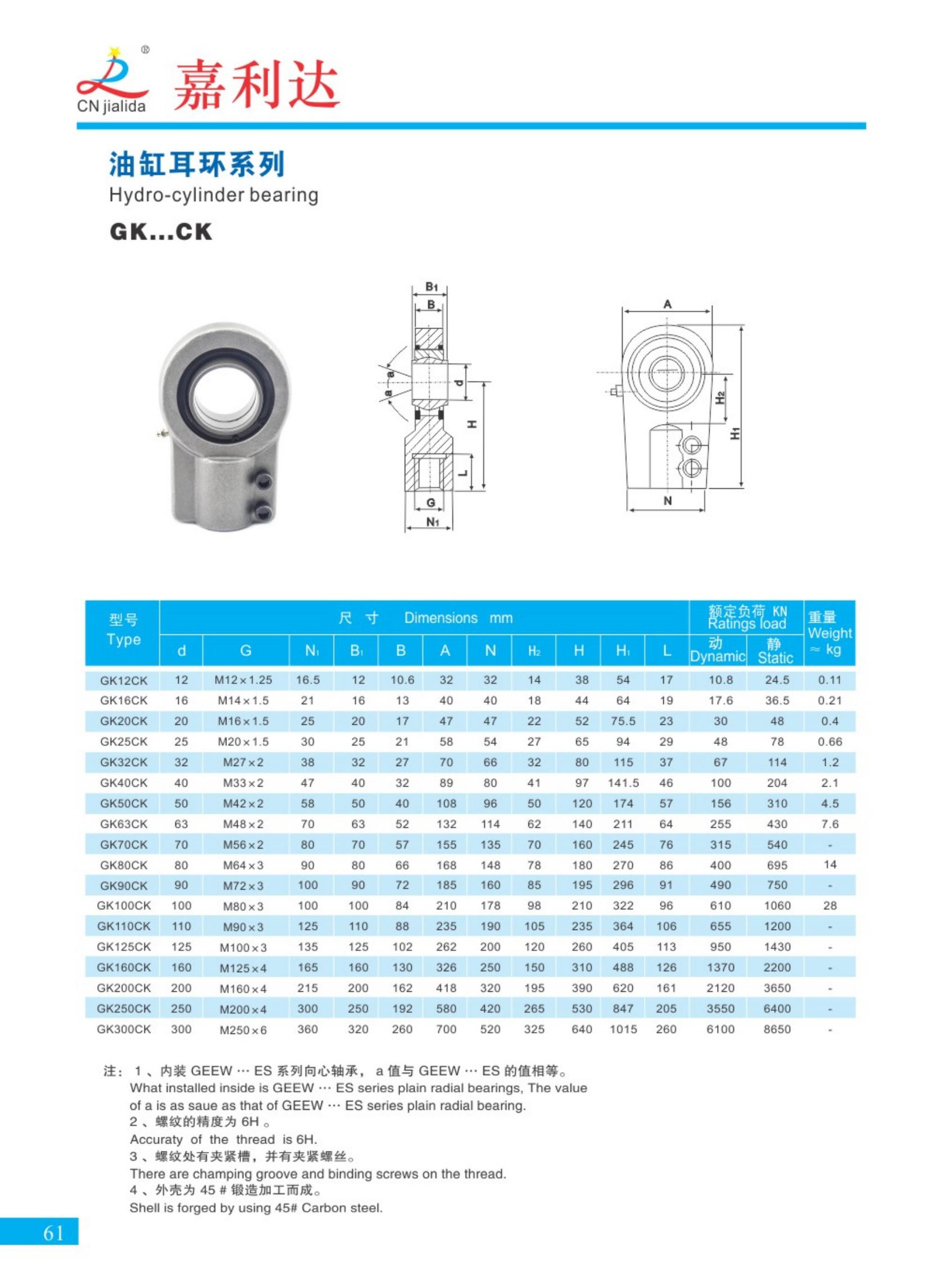

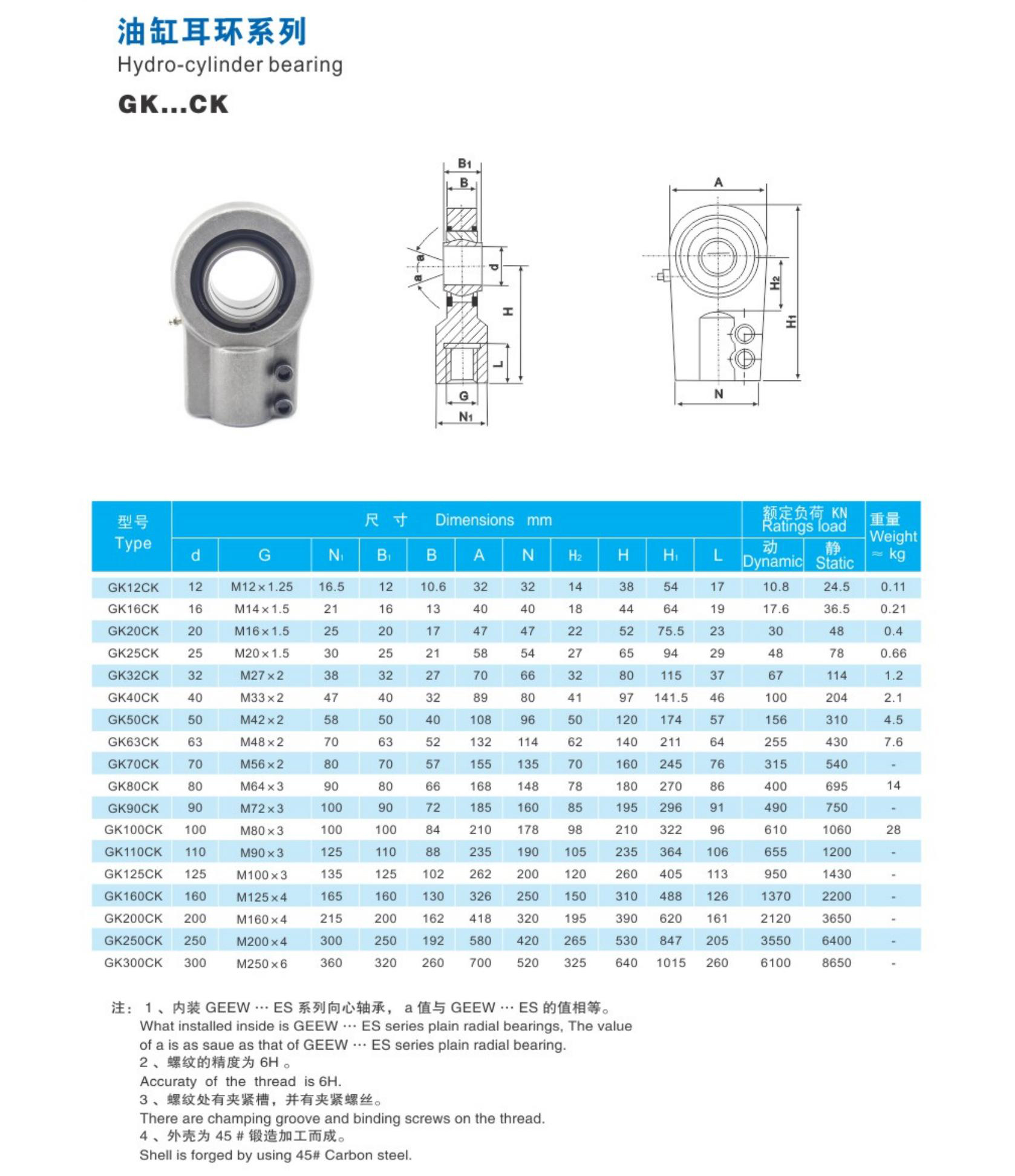

● Complete model examples: GK20CK, GK25CK, GK32CK, GK40CK, GK50CK, GK63CK, etc. The number in the middle of the model represents the bearing inner diameter specification, covering the full size range from 12mm to 300mm, which can meet the adaptation needs of different tonnages and specifications of cylinders.

Structure and Material: Lay the Foundation for Heavy-Duty Operation

The GK..CK series cylinder earring spherical plain bearings adopt a modular assembly structure, consisting of two core components: rod end body and radial spherical plain bearing. The scientific matching of materials enables it to balance strength and wear resistance, adapting to long-term operation under harsh working conditions:

(I) Core Structure

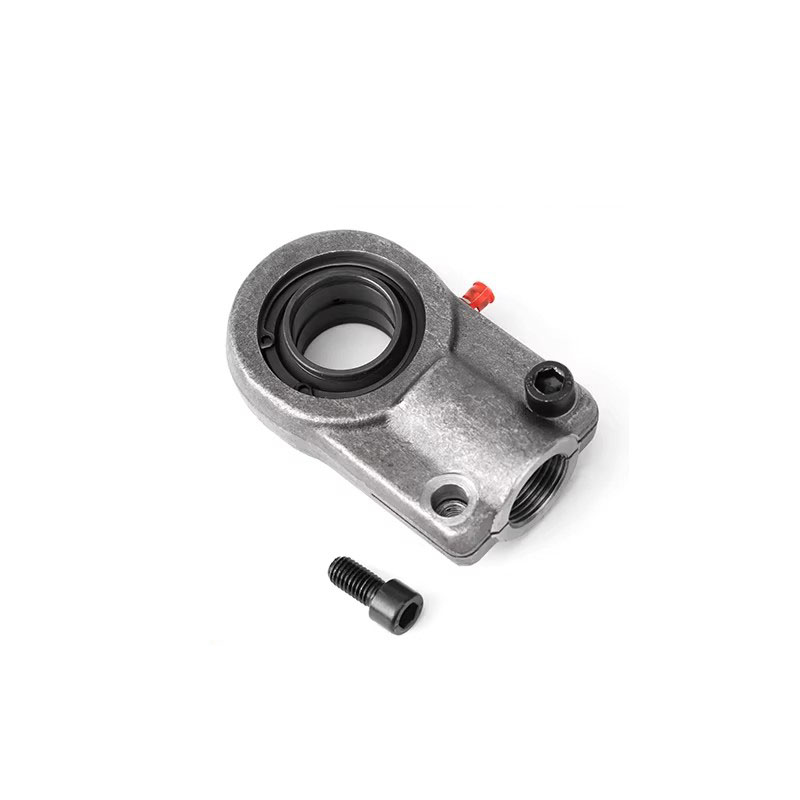

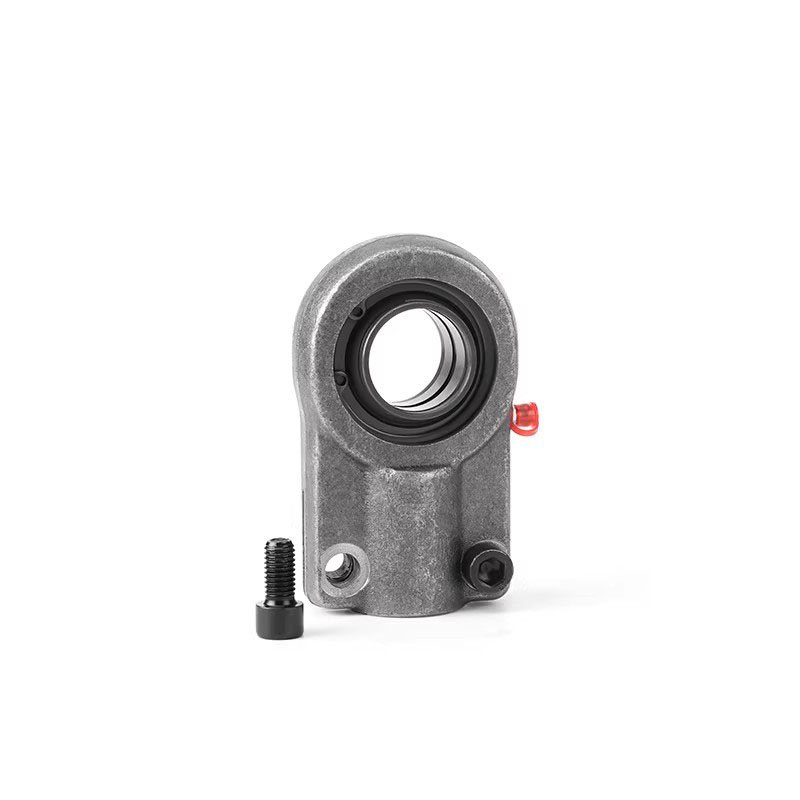

The bearing adopts an assembly form of "rod end body + radial spherical plain bearing" as a whole. The rod end body is designed with internal threads, which can be directly and accurately connected to the cylinder earring without additional adaptive connectors; the built-in locking screw can further reinforce the connection, avoiding thread loosening caused by high-frequency vibration and heavy load impact of the equipment, and ensuring the stability of the connection structurally. At the same time, the outer ring adopts a locking notch fixing process to ensure the close fit between the radial spherical plain bearing and the rod end body, preventing component falling off and displacement during operation.

(II) Material Selection

1. Rod end body: Made of 45# carbon steel or Q345 carbon steel. This material has high strength, good toughness and machinability, which can bear large radial, axial loads and meet the force requirements under heavy-duty working conditions. At the same time, it can be treated by surface galvanizing, chrome plating, etc., to improve rust and corrosion resistance and extend service life.

2. Radial spherical plain bearing: Made of GCr15 bearing steel. After professional heat treatment, this material has extremely high hardness, wear resistance and fatigue resistance. Its spherical contact design can realize flexible swing and self-alignment, which can effectively compensate for installation errors and angular deviation during work, avoid bearing jamming, and ensure the smooth movement of the cylinder.

Core Features: Core Advantages Adapting to Complex Working Conditions

The reason why the GK..CK series cylinder earring spherical plain bearings can become the preferred choice for heavy-duty scenarios is due to their core features that meet the actual application needs, balancing stability, durability and convenience:

● Heavy load and impact resistance, excellent load-carrying performance: The spherical contact structure makes the load distribution uniform, which can effectively bear large radial loads, axial loads and combined loads. It can adapt to the heavy load and alternating load working conditions of construction machinery, forging machines and other equipment, and is not easy to deform or damage, ensuring long-term stable operation of the equipment.

● Strong self-aligning ability, more flexible deviation compensation: Relying on the spherical matching structure of the radial spherical plain bearing, this series of bearings can realize flexible swing and automatic alignment within a certain angle range, which can effectively compensate for installation errors of the cylinder, axial deviation and angular deviation during work, avoid additional stress caused by deviation, protect the cylinder and the bearing itself, and reduce the failure rate.

● Anti-loosening design, safer operation: The exclusive CK structure is equipped with a locking screw, which can effectively prevent thread connection loosening, especially suitable for working conditions with high-frequency vibration and frequent start-stop, such as the reciprocating movement of hydraulic cylinders and the bumpy operation of construction machinery, fundamentally eliminating equipment failures caused by connection loosening and improving operational safety.

● Compact structure, convenient installation: The overall design is compact and small in size, which can adapt to the limited installation space of the cylinder earring. It does not require complex installation procedures, and can be directly and accurately connected to the cylinder with the internal thread design, greatly improving installation efficiency and reducing maintenance costs.

● Complete specifications, wide adaptability: The specifications cover inner diameters from 12mm to 300mm, including various models such as GK12CK, GK16CK, GK20CK to GK300CK. It can adapt to different tonnages and types of hydraulic cylinders, and is compatible with the application needs of construction machinery, automation equipment, automobile shock absorbers and other fields.

Application Scenarios: Deeply Cultivate Heavy-Duty Fields and Empower Diversified Equipment

As a core component designed specifically for cylinder connection, the GK..CK series cylinder earring spherical plain bearings are widely used in various equipment scenarios that require articulated connection, bearing heavy load and vibration, relying on their advantages of heavy load resistance, impact resistance and anti-loosening stability, and have become an indispensable key component in hydraulic systems and construction machinery:

● Hydraulic cylinder field: As the core connector of cylinder earrings, it is widely used in the earring connection at both ends of engineering hydraulic cylinders and industrial hydraulic cylinders, such as the stick cylinder and steering cylinder of excavators and loaders, and the push cylinder of hydraulic presses, ensuring the smoothness and stability of the reciprocating movement of the cylinder.

● Construction machinery field: It is suitable for the articulated parts of heavy-duty equipment such as forging machines, mining machinery and hoisting machinery, and can bear severe impact and alternating loads during equipment operation, such as the connecting rod articulation of forging machines and the hydraulic actuator connection of mining machinery.

● Automation and general machinery field: It is used for the articulated connection of hydraulic executive components, automobile shock absorbers, printing machinery and other equipment in automatic production lines. Relying on its self-aligning and anti-loosening advantages, it adapts to the high-frequency movement and precision requirements of the equipment and reduces the maintenance frequency.

Comparison with the Same Series: Precise Selection to Adapt to Different Needs

The GK series cylinder earring spherical plain bearings include multiple sub-models. The structural differences of different models make them adapt to different working conditions. The core differences between GK..CK and other models in the same series are as follows, facilitating users to select models precisely:

● CK: Internal thread + with locking screw, the core advantage is anti-loosening and stability, suitable for working conditions with high-frequency vibration and heavy load impact, and is the preferred choice for heavy-duty scenarios.

● SK: Internal thread + with oil nozzle for lubrication, suitable for working conditions that require regular lubrication and long-term continuous operation. Lubricating grease can be supplemented through the oil nozzle to extend the service life of the bearing.

● NK: Internal thread + without locking structure, it is a general type, suitable for light load and less vibration working conditions, with high cost performance, suitable for scenarios with low requirements on anti-loosening.

● DO: Welded type (without thread), suitable for cylinder earring connection that needs to be fixed by welding, adapting to special installation space and connection needs.

Conclusion: The GK..CK series cylinder earring spherical plain bearings, with scientific structural design, high-quality material matching, complete specification coverage and reliable operating performance, have become the ideal choice for cylinder connection under heavy-duty working conditions. Whether it is the harsh operating environment of construction machinery or the precise operation needs of automation equipment, this series of bearings can rely on its core advantages of anti-loosening, heavy load and self-alignment to provide solid support for the efficient and stable operation of equipment, and is an indispensable core component in hydraulic systems and articulated mechanisms.
