SIQG Cylinder Clevis - High-Strength, Wear-Resistant Articulated Connector for Hydraulic Cylinders
Product Introduction

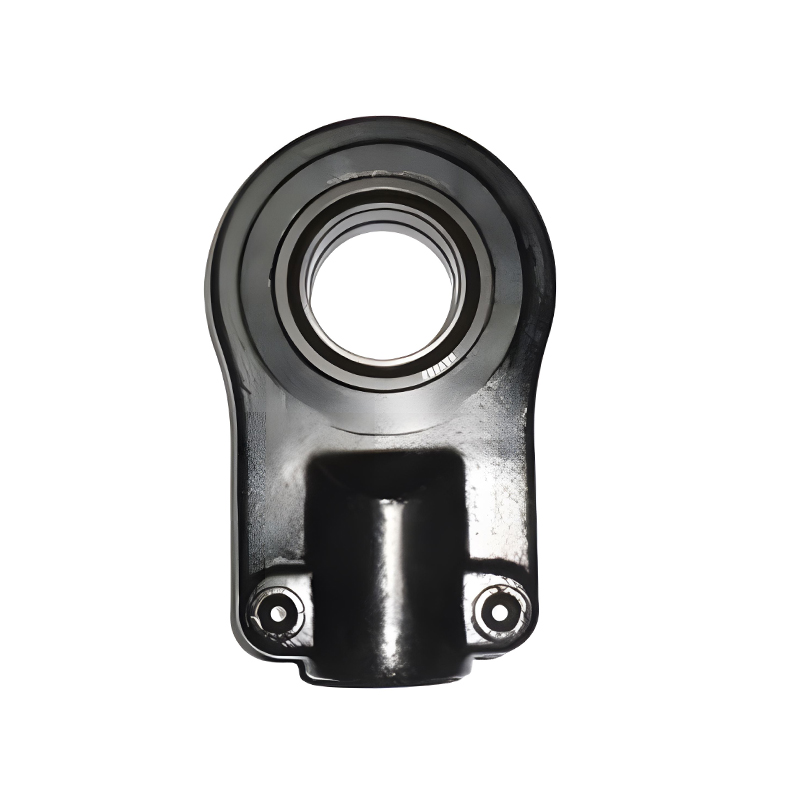

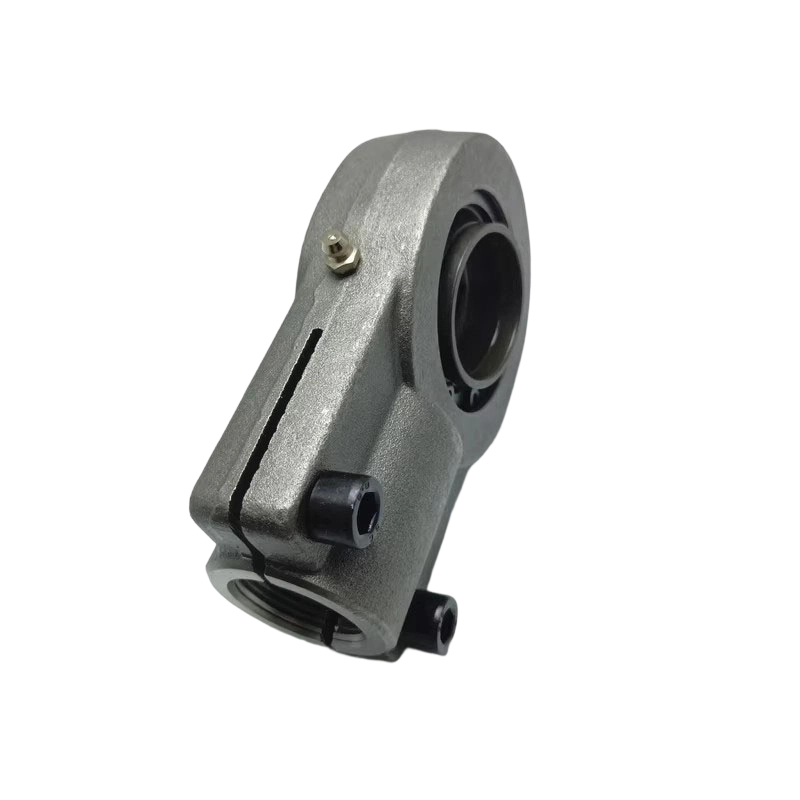

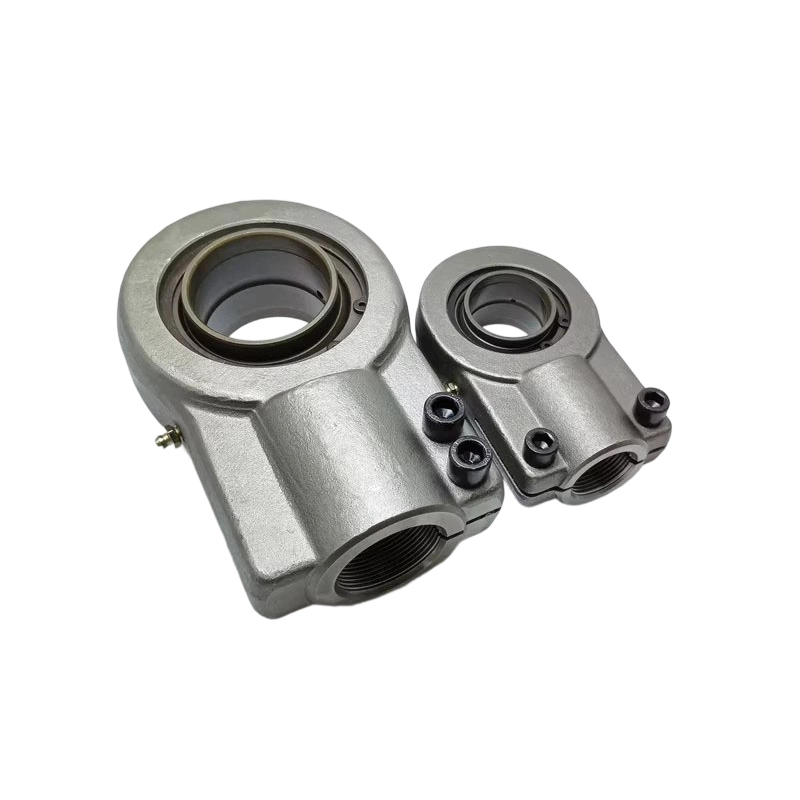

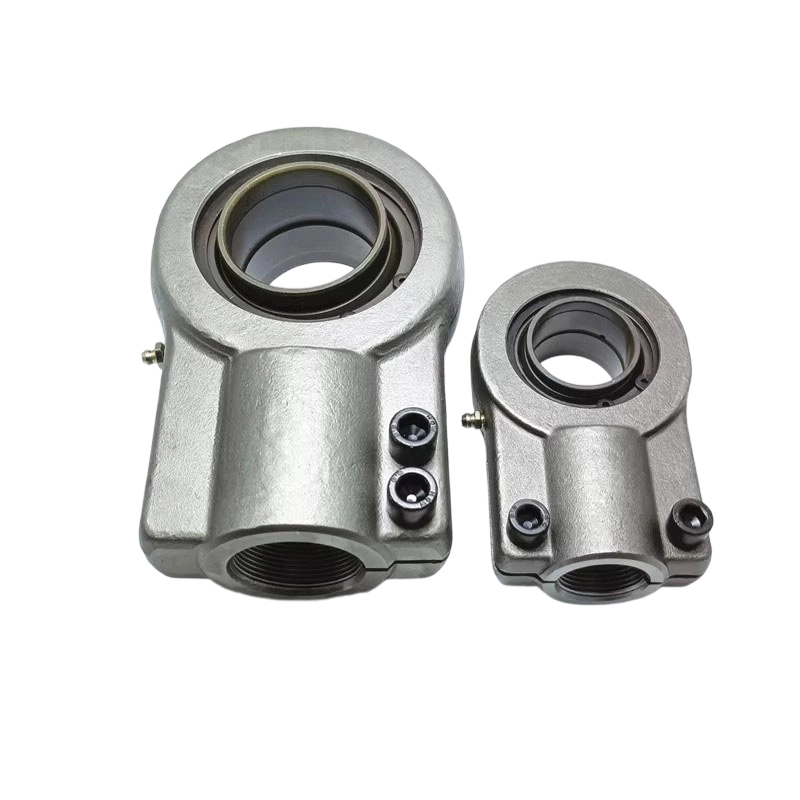

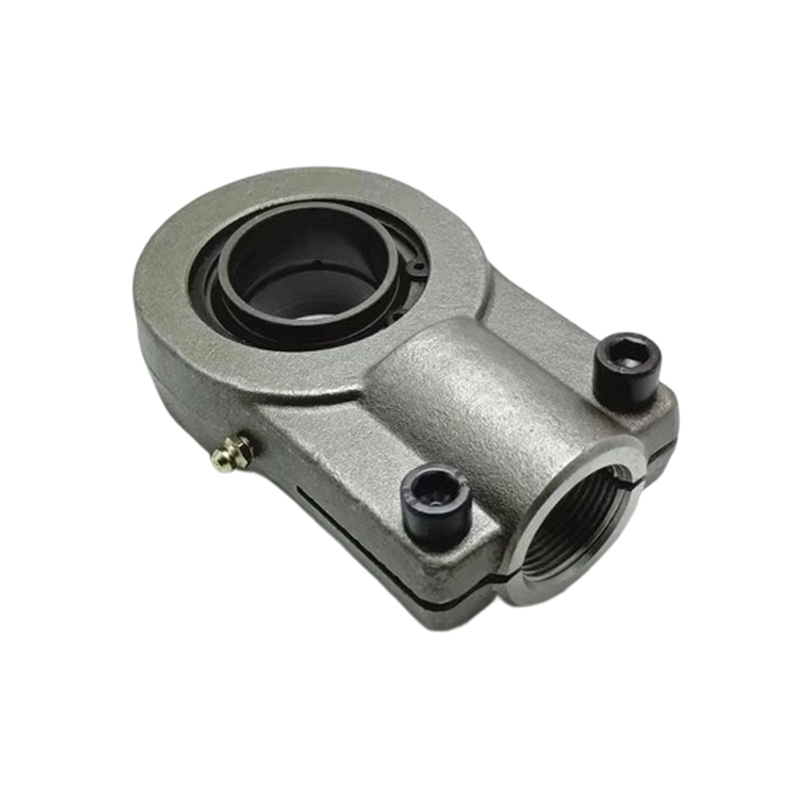

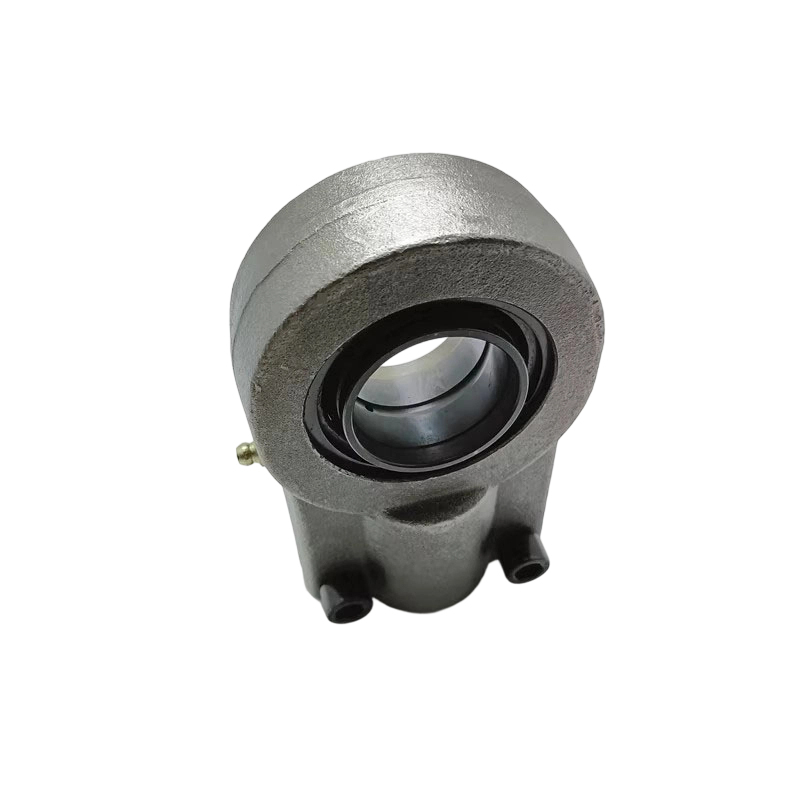

SIQG cylinder clevis is a standardized articulated connecting accessory specially designed for hydraulic cylinders. As a core connecting component between the hydraulic cylinder and the equipment mechanism, it realizes flexible articulation between the cylinder and the driven parts, ensuring free swinging during the reciprocating movement of the cylinder. It compensates for installation deviations and working deformation, transmits hydraulic driving force, protects the cylinder piston rod and connecting parts, and extends the service life of the entire hydraulic system.
Core Product Features
● High-strength structure with excellent load-bearing performance: Forged from high-quality carbon steel or alloy steel with precise heat treatment, the product greatly improves material toughness, tensile strength and shear strength. It can withstand instantaneous impact and long-term rated load during cylinder operation, eliminating potential safety hazards such as fracture and deformation, and is suitable for medium and high-pressure hydraulic systems.
● Flexible articulation with extremely low loss: The inner bore of the clevis is processed by precision grinding with qualified surface roughness. It has a uniform fitting clearance with pins and bushings, realizing flexible rotation without jamming. It effectively reduces friction loss at the articulated part, lowers equipment operation noise, ensures smooth cylinder movement, and improves the response efficiency of the hydraulic system.
● Rust-proof and wear-resistant for complex working conditions: Adopting professional surface treatment such as galvanizing, chrome plating or phosphating, the uniform and dense coating provides excellent rust prevention, corrosion resistance and wear resistance. It can adapt to harsh working environments such as engineering machinery, metallurgy, mining with high dust, humidity, high and low temperature, and is not prone to rust or aging.
● Standardized design for easy installation: Manufactured in strict accordance with industrial standards, it features compact structure and accurate dimensions, perfectly matching the rear interfaces of various standard hydraulic cylinders. No additional processing or modification is required; it can be directly installed and fixed via pins and bolts, greatly improving installation efficiency and reducing maintenance costs.
● Strong versatility and wide application range: With a complete range of specifications, it can be flexibly selected according to cylinder bore, rated pressure, installation space and other requirements. It is compatible with different types of hydraulic cylinders and widely used in various hydraulic equipment.
Structural Advantages
SIQG cylinder clevis adopts an integrated forging structure without welded joints, avoiding stress concentration at welding parts and improving the stability and reliability of the overall structure. The inner bore can be equipped with wear-resistant bushings such as copper bushings or nylon bushings as required, further enhancing the wear resistance and service life of the articulated part, while providing cushioning and shock absorption to reduce vibration transmission during cylinder operation.
The product design takes into account practicality and economy. On the premise of ensuring structural strength, the overall dimensions are optimized to reduce its own weight and lower the overall load of the equipment. Meanwhile, the processing technology is simplified to control production costs, providing customers with a cost-effective connection solution.
Application Fields
As a key articulated accessory in hydraulic systems, SIQG cylinder clevis is widely used in various equipment driven by hydraulic cylinders:
● Construction Machinery: Excavators, loaders, cranes, road rollers, bulldozers, etc., used for the articulation between hydraulic cylinders and booms, arms, frames and other components.
● Agricultural Machinery: Tractors, harvesters, transplanters, etc., adapting to the flexible connection
