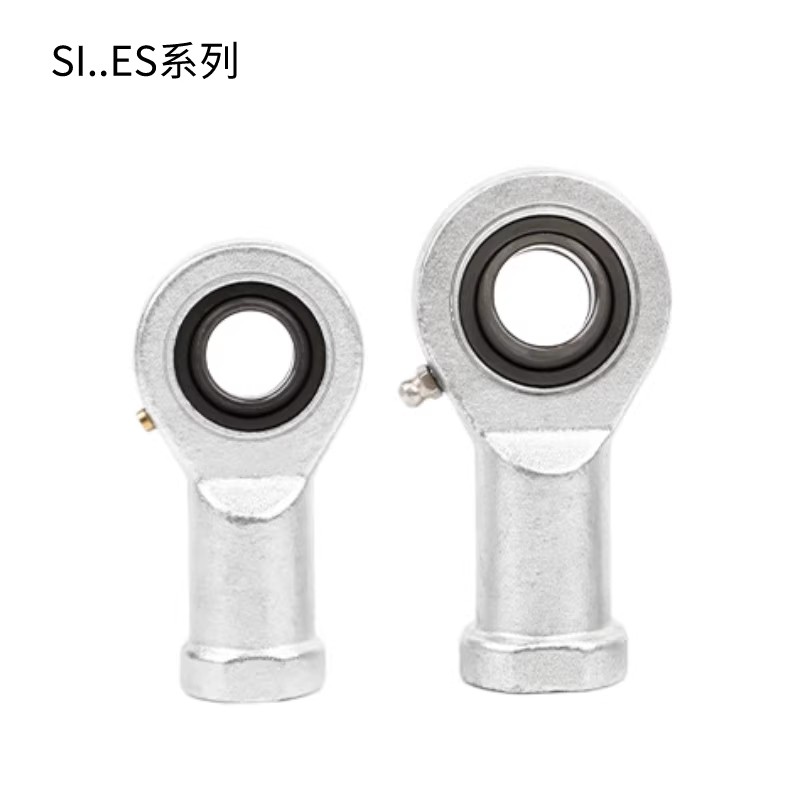

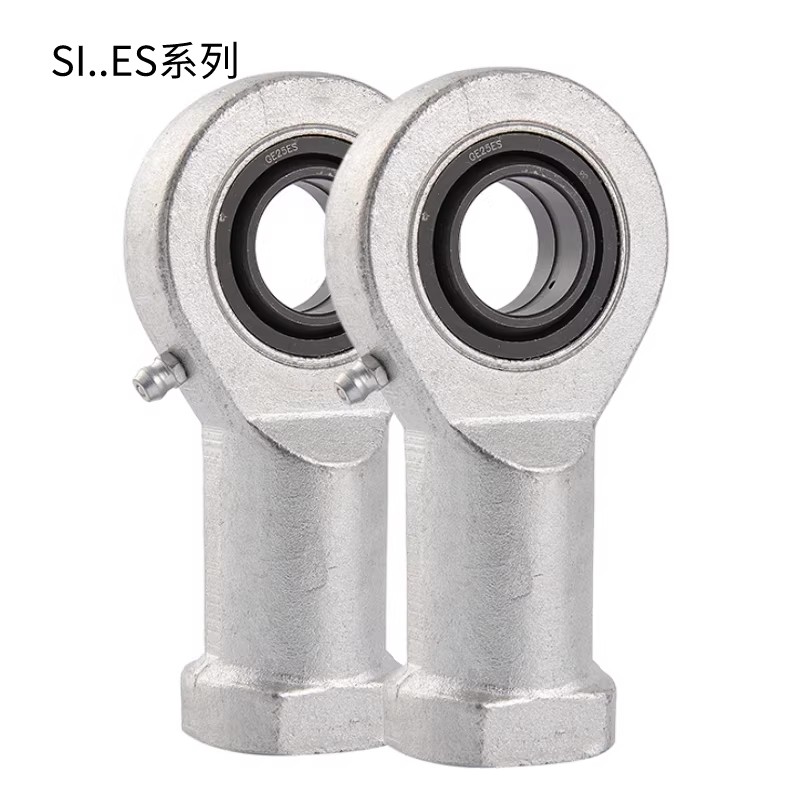

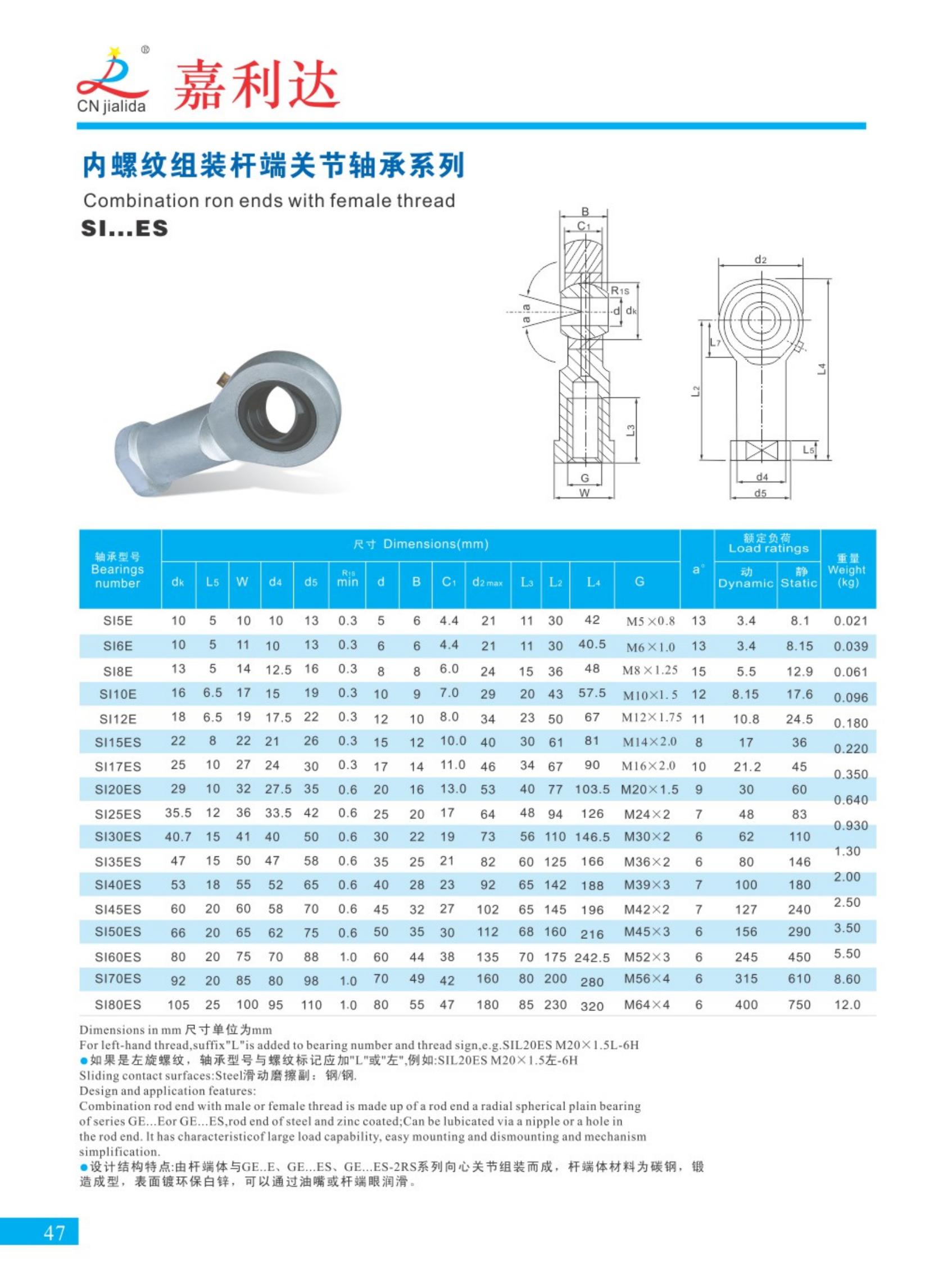

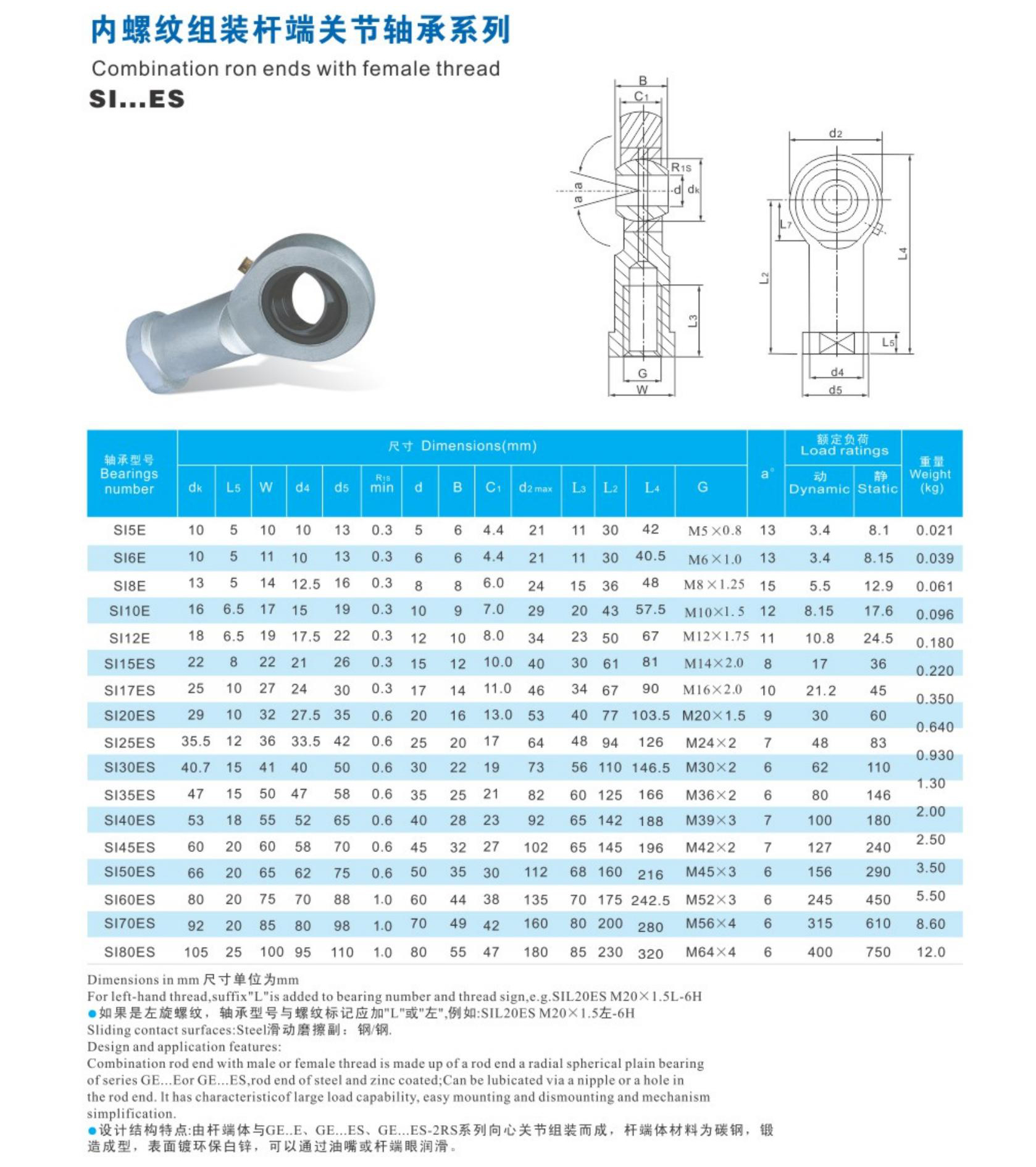

Internal Thread Assembly Spherical Plain Bearing Rod

Detailed Explanation of Rod End Bearings (Version 2 · Condensed Edition)

Overview

Rod end bearings (commonly called ball joints or rod eyes) integrate rod end structures and spherical sliding functions. They enable multi-angle swinging, tilting and low-speed rotation of mechanical components, transmit radial, axial or combined loads, and compensate for assembly deviations. Their compact, spherical contact design ensures stability in low-concentricity, high-load-fluctuation scenarios, serving as key connectors for mechanical transmission and executive mechanisms across industries.

Structural Composition and Classification

(1) Core Structure

Rod end bearings comprise a bearing core, rod end base and protective components. The core adopts an "outer spherical inner ring + inner spherical outer ring" design, with self-lubricating liners (e.g., PTFE) for high-end models. The rod end base offers threaded, welded and other installation options, while protective components (mostly labyrinth or contact seals) block impurities and retain lubricant. Made of bearing steel or chromium-molybdenum alloy with surface strengthening for corrosion and wear resistance, they can also use 316L stainless steel for special working conditions.

(2) Classification Standards

Classified by lubrication, thread, structure and load, rod end bearings fit diverse scenarios:

● By Lubrication: Maintenance-required (regular grease, for heavy loads/high temps) or self-lubricating (solid lubricants, for inaccessible/high-cleanliness use).

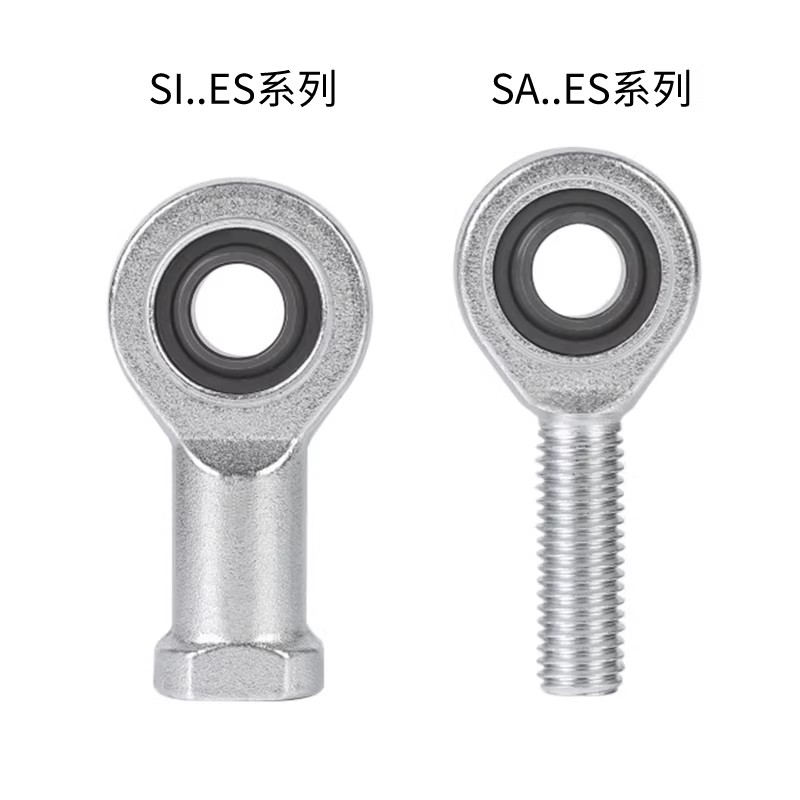

● By Thread: Internal (prefix I) or external (prefix A), left/right rotation, metric/imperial, adjustable length.

● By Structure: Per GB/T9161, options include straight rod, bent rod (SQ series), welded (SK/SF series) and slotted shank, tailored to different installation needs.

● By Load: Standard or enhanced (EH/EG series, integrally forged for higher load/impact resistance); imperial Z/JK series for imported equipment.

Core Performance and Advantages

Key performance advantages of rod end bearings:

● Strong Load Capacity: Uniform spherical stress distribution; enhanced models withstand 4500 N/mm² impact loads for heavy-duty long-term use.

● Flexible Movement: ±25° swing (max 120 cycles/min), absorbs ±1.5° axial misalignment, reducing assembly stress.

● Wide Adaptability: Operating temperature ranges from -30℃ to 150℃ (up to 260℃ for high-temp models), and corrosion-resistant types pass 1000+ hours of salt spray tests.

● Easy Installation/Maintenance: Compact; adjustable threads or direct welding; 8000-hour maintenance cycle for maintenance-free models.

● Reliable Protection: IP67-rated sealed models block impurities, extending service life.

Main Application Fields

Core applications across industries:

● Construction Machinery: Excavator/crane connecting rods/steering, boosting operational stability.

● Automation/Robotics: Robot arms/production line joints, ensuring precision and reducing noise.

● Transportation: Auto shock absorbers/rail transit components, ensuring driving safety.

● High-End Equipment: Aerospace/ships/agricultural machinery, withstanding extreme conditions.

● General Machinery: Injection molding/machine tools, solving concentricity issues and boosting efficiency.

Installation Specifications, Maintenance and Fault Handling

(1) Key Installation Specifications

Key installation rules for longer service life:

● Use a special sleeve for press-fitting/even hammering on ferrules; never strike the outer ring or spherical surface directly.

● Hot-fit (80-100℃) for large interference; push tightly and rotate slightly during cooling.

● Heat housing/bearing for tight fits; reserve 0.1-0.3mm axial clearance for threads and lock securely.

(2) Daily Maintenance Strategies

Daily maintenance tips for extended service life:

● Replenish VG220 extreme pressure grease (≤30% of cavity) for maintenance-required types; check radial clearance quarterly (≤0.15mm).

● Stop and inspect immediately for abnormalities; replace damaged parts promptly.

● Check seals regularly; add anti-rust treatment for outdoor/corrosive conditions.

(3) Common Faults and Handling Methods

Handling methods for common faults:

● Excessive Wear: Replace bearing; optimize lubrication and sealing.

● Rust Damage: Replace with 316L bearings; replace seals and add anti-rust treatment.

● Cracks/Spalling: Replace bearing immediately; inspect installation and working conditions.

● Bearing Seizure: Disassemble and clean; adjust clearance; replace bearing/grease if needed.

Summary

In summary, rod end bearings are core connectors across industries, featuring compactness, flexibility, high load capacity and wide adaptability. Following standard installation and scientific maintenance reduces faults, extends service life and cuts costs. As industrial equipment upgrades, material and structural optimizations will enable them to adapt to more extreme conditions, supporting efficient and stable equipment operation.
