GE…UK Series Self-Lubricating Spherical Plain Bearings | Maintenance-Free, Full-Spec, Preferred Solution for Industrial Transmission

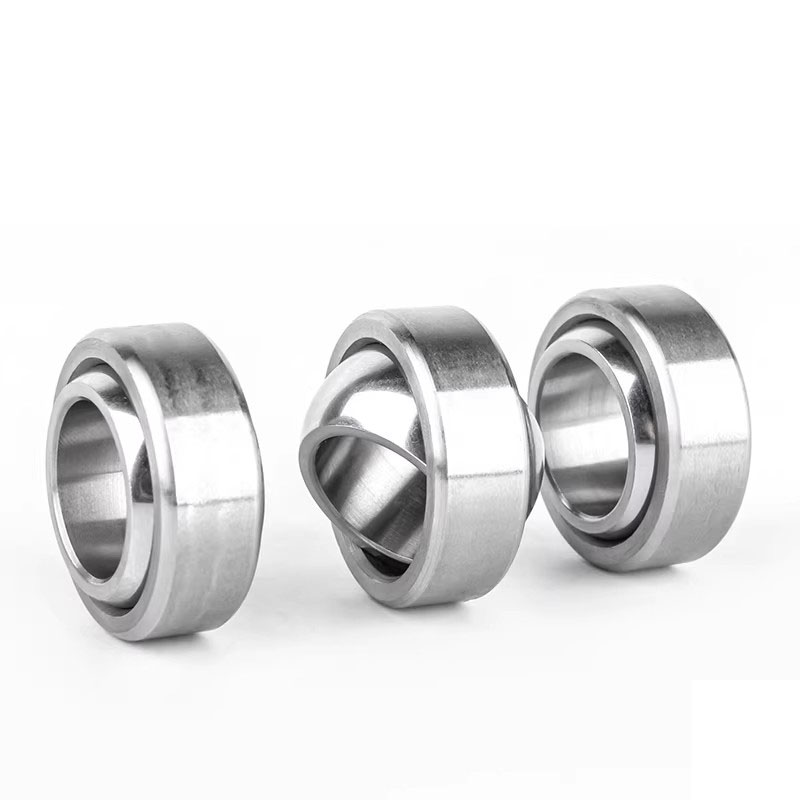

Spherical plain bearings, also known as rod ends, are mechanical transmission components capable of multi-angle rotation and bearing combined radial and axial loads. Their core structure consists of an inner ring (ball head) and an outer ring, which achieves flexible rotation through spherical contact. They are widely used in various industrial equipment, construction machinery, automation equipment and other fields. Among them, the GE…UK series, as a classic representative of self-lubricating and maintenance-free spherical plain bearings, has become one of the most commonly used specifications in industrial scenarios due to its convenience, durability and adaptability. The following is a comprehensive and detailed introduction from the aspects of model, characteristics, parameters, applications and so on.
Core Definition and Model Interpretation of GE…UK Series Spherical Plain Bearings
The GE…UK series spherical plain bearings are essentially radial spherical plain bearings, with the core positioning of "self-lubricating and maintenance-free". Their model naming follows general industrial standards, and each group of characters corresponds to clear product specifications, which is convenient for users to quickly identify and select models, and completely solves the pain point that traditional spherical plain bearings require frequent lubrication and high maintenance costs.
1. Model Naming Rules
The model of the GE…UK series is composed of "prefix + inner diameter parameter + function suffix", with a clear and easy-to-understand structure. The specific interpretation is as follows:
● GE: Prefix identifier, representing that the series is radial spherical plain bearings (i.e., spherical plain bearings), which is a general model prefix in the industry and used to distinguish from other types such as thrust spherical plain bearings;
● Digital part: Core parameter, representing the inner diameter of the bearing (unit: mm). The number directly corresponds to the inner diameter size. For example, the inner diameter of GE10UK is 10mm, and the inner diameter of GE100UK is 100mm, which is intuitive and easy to remember;
● UK: Function suffix, indicating that the spherical plain bearing adopts a self-lubricating and maintenance-free structure, with a built-in PTFE (polytetrafluoroethylene) or fabric lining. It requires no additional lubricants and can operate stably for a long time;
● Optional suffix -2RS: Some models will add the "-2RS" suffix, which refers to a double-sided lip seal structure. This structure can effectively prevent dust, water and impurities from entering, thereby extending the service life of the bearing in harsh environments, such as GE30UK-2RS.
Complete Model List
The GE…UK series covers micro, small, medium and large sizes, adapting to the needs of different loads and installation spaces. The following are the commonly used complete models, arranged by inner diameter from small to large, including basic models (UK) and sealed models (UK-2RS):
1. Micro/Small Size (Inner Diameter 4–30mm)
GE4UK, GE4UK-2RS; GE5UK, GE5UK-2RS; GE6UK, GE6UK-2RS; GE8UK, GE8UK-2RS; GE10UK, GE10UK-2RS; GE12UK, GE12UK-2RS; GE15UK, GE15UK-2RS; GE17UK, GE17UK-2RS; GE20UK, GE20UK-2RS; GE25UK, GE25UK-2RS; GE30UK, GE30UK-2RS.
2. Medium Size (Inner Diameter 35–100mm)
GE35UK, GE35UK-2RS; GE40UK, GE40UK-2RS; GE45UK, GE45UK-2RS; GE50UK, GE50UK-2RS; GE55UK, GE55UK-2RS; GE60UK, GE60UK-2RS; GE70UK, GE70UK-2RS; GE80UK, GE80UK-2RS; GE90UK, GE90UK-2RS; GE100UK, GE100UK-2RS.
3. Large Size (Inner Diameter 110–260mm)
GE110UK, GE110UK-2RS; GE120UK, GE120UK-2RS; GE140UK, GE140UK-2RS; GE160UK, GE160UK-2RS; GE180UK, GE180UK-2RS; GE200UK, GE200UK-2RS; GE220UK, GE220UK-2RS; GE240UK, GE240UK-2RS; GE260UK, GE260UK-2RS.

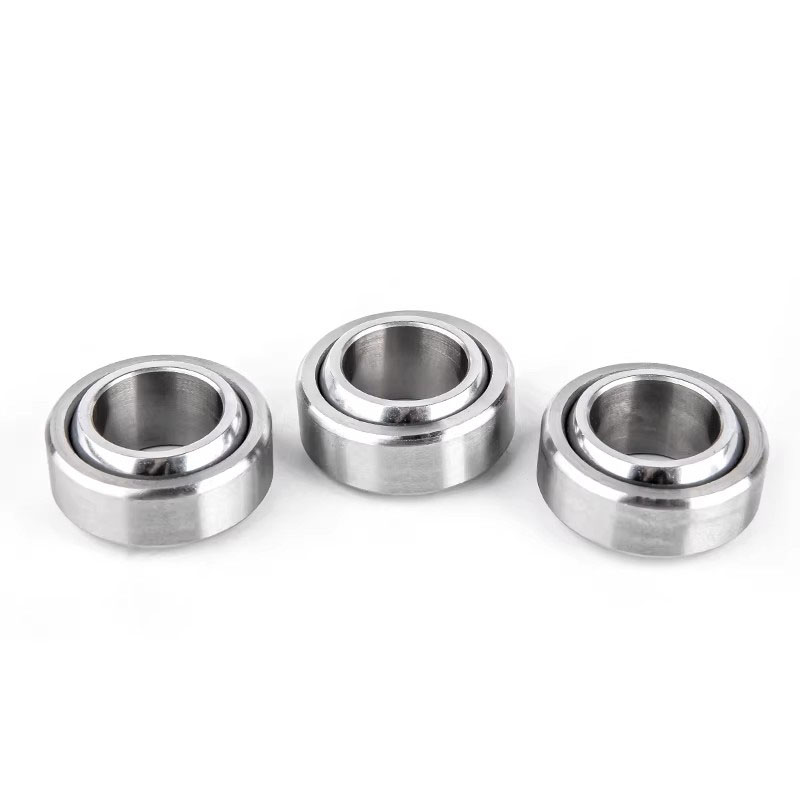

Core Characteristics of GE…UK Series Spherical Plain Bearings
The GE…UK series has become the mainstream choice in the industrial field because it combines flexibility, durability and convenience, and has significant advantages over traditional spherical plain bearings that require lubrication. The specific characteristics are as follows:
1. Self-Lubricating and Maintenance-Free, Reducing Operating Costs
Equipped with a built-in PTFE fabric lining, the lining has excellent self-lubricating performance and a low friction coefficient, eliminating the need for regular lubricating oil or grease addition. It not only reduces maintenance workload but also avoids bearing wear, jamming and other problems caused by untimely lubrication, greatly reducing equipment maintenance costs and downtime. It is especially suitable for installation scenarios that are difficult to disassemble and maintain.

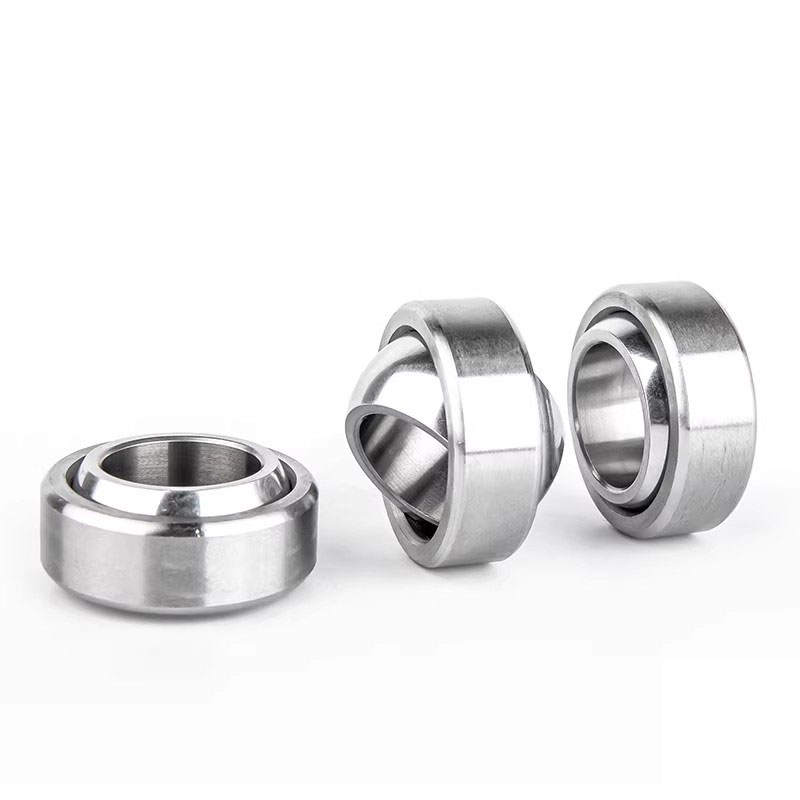

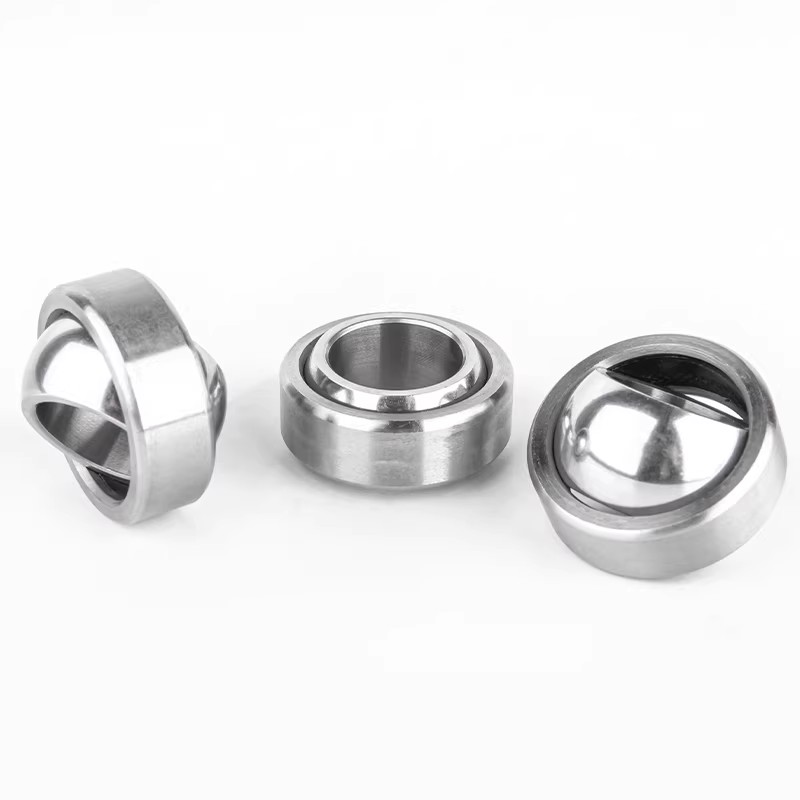

2. Multi-Angle Flexible Rotation, Adapting to Complex Transmission Needs
Adopting a spherical contact structure, the inner ring (ball head) can swing and rotate at multiple angles relative to the outer ring, allowing a certain angular deviation (usually ±3°–±10°, depending on the model size). It can compensate for coaxiality errors during equipment installation, adapt to various complex mechanical transmission scenarios (such as connecting rod connections and articulated arm transmission), and ensure stable, jam-free transmission.
3. Strong Load-Bearing Capacity, Wide Application Range
The entire bearing is made of high-strength bearing steel and undergoes precision processing technologies such as quenching and tempering, resulting in excellent compression and wear resistance. It can bear both radial and a certain amount of axial loads. The load-bearing capacity of different size models covers a wide range — micro models can bear several kN of load, while large models can bear hundreds of kN of load, making them suitable for various needs from light-load precision equipment to heavy-load construction machinery.
4. Optional Sealing, Adapting to Harsh Environments
Models with the "-2RS" suffix are equipped with double-sided lip seals, which can effectively block dust, sediment, water and other impurities from entering the bearing, avoid lining wear and steel corrosion, extend the bearing's service life in harsh environments (such as outdoors, mines and metallurgy), and expand the product's application scenarios.
5. Compact Structure, Easy Installation
Adopting an integrated structure design, it is small in size and light in weight, with flexible installation methods (such as press-fitting and bolt fixing). It requires no complex installation accessories, adapts to narrow installation spaces, and facilitates equipment assembly and disassembly, improving construction efficiency.

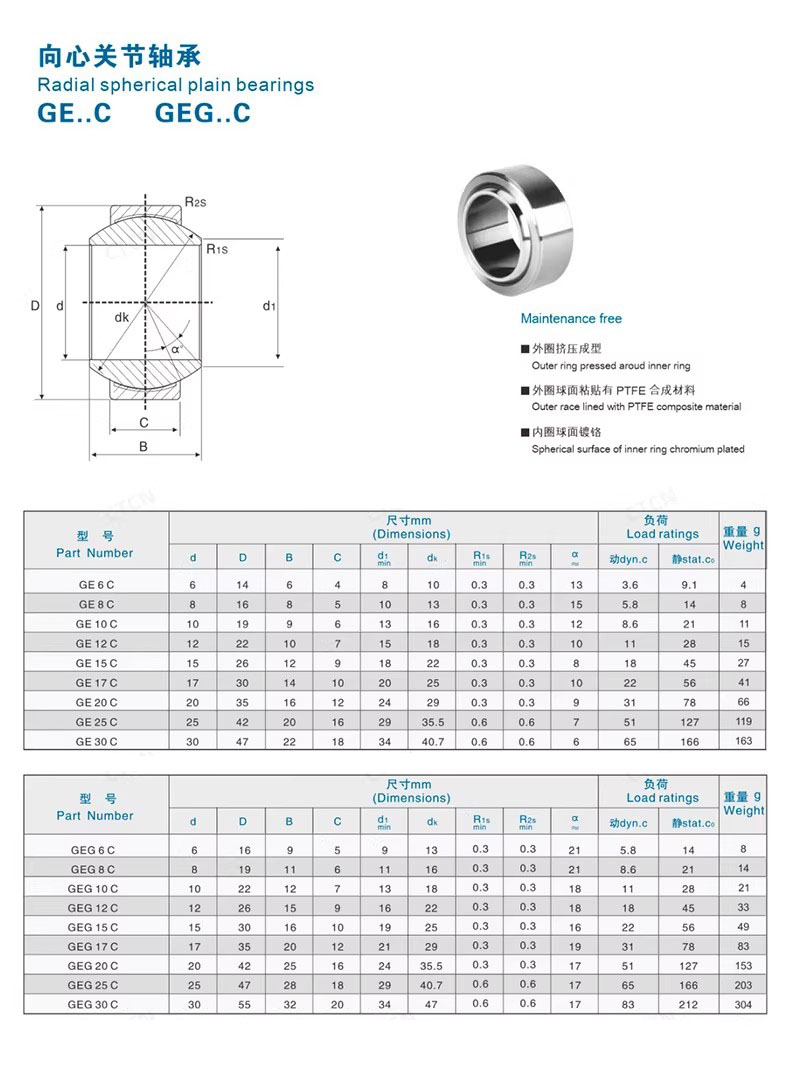

Core Technical Parameters (General Standards)
The technical parameters of the GE…UK series spherical plain bearings comply with international general standards (such as ISO 12240), and the parameters of different size models vary slightly. The following are the general core parameters for selection reference:
● Material: Outer ring/inner ring is bearing steel (GCr15), lining is PTFE fabric;
● Operating temperature: -40℃–+120℃ (conventional working conditions), high-temperature models can be customized for special working conditions;
● Friction coefficient: Static friction coefficient ≤0.15, dynamic friction coefficient ≤0.10;
● Angular deviation: Maximum allowable angular deviation ±3°–±10° (the smaller the inner diameter, the larger the angular deviation);
● Sealing form: No seal (UK), double-sided lip seal (UK-2RS);
● Accuracy grade: P0 (ordinary accuracy), P6 (high accuracy, can be customized).
Note: For detailed parameters of specific models (such as outer diameter, width, rated load, limit speed, etc.), refer to the corresponding specification sheet based on the inner diameter size.
Detailed Application Scenarios
With the characteristics of maintenance-free operation, high load-bearing capacity and flexible rotation, the GE…UK series self-lubricating spherical plain bearings are widely used in many industrial fields, covering various scenarios from light-load precision equipment to heavy-load construction machinery. The details are as follows:
1. Construction Machinery Field
This is the most important application field of the GE…UK series, which is suitable for the joint connection parts of various construction machinery, such as the connecting rods, rockers and steering mechanisms of excavators, loaders, cranes, bulldozers, etc. The working conditions in this field are complex, with heavy dust, large vibration and inconvenient maintenance. The self-lubricating and maintenance-free characteristics can greatly improve equipment reliability, reduce maintenance downtime, and the high-strength material can bear heavy loads and impact loads.
2. Automation and Robotics Field
It is suitable for the articulated arms, manipulators, transmission connecting rods and other parts of industrial robots and automatic production lines, which require flexible rotation, high precision and convenient maintenance. The low friction coefficient and small volume design of the GE…UK series can meet the needs of high-speed operation and precise positioning of automatic equipment, and the maintenance-free characteristics can reduce the operation and maintenance costs of automatic production lines.
3. Automobile and Rail Transit Field
It is used for the joint connection of automobile suspension systems and steering systems, as well as the braking mechanisms and connecting rods of rail transit vehicles. This series of products can adapt to the vibration, impact and angular deviation during vehicle operation, and the maintenance-free characteristics can improve vehicle reliability and service life, reducing long-term maintenance costs.
4. Metallurgy and Mining Field
It is suitable for the transmission parts of metallurgical equipment (such as rolling mills and steelmaking furnaces) and mining equipment (such as crushers and conveyors). The working conditions in this field are harsh, with high temperatures, heavy dust and heavy loads. The high-temperature resistance, wear resistance and optional sealing characteristics of the GE…UK series can adapt to complex working conditions and ensure stable equipment operation.
5. Other General Industrial Fields
This includes agricultural machinery, textile machinery, printing machinery, medical equipment, marine equipment, etc. Any scenario that requires multi-angle rotation, bears combined loads, and aims to reduce maintenance costs can adopt the GE…UK series spherical plain bearings, such as the connecting rods of agricultural machinery seeders and the transmission joints of textile machinery.
Selection Suggestions and Usage Notes
Selection Suggestions
1. Select the corresponding size model according to the actual load (radial load, axial load) of the equipment, ensure that the rated load of the bearing is greater than the actual working load of the equipment, and avoid bearing damage caused by overload;
2. Select the size according to the installation space. Micro and small size models are suitable for narrow spaces, while large size models are suitable for heavy-load and large-space scenarios;
3. Select the sealing form according to the working conditions: UK basic models can be selected for conventional clean working conditions, while UK-2RS sealed models are recommended for outdoor, dusty and wet working conditions;
4. Select according to the working temperature: standard models are suitable for conventional working conditions (-40℃–+120℃), while high-temperature lining models need to be customized for high-temperature working conditions.
Usage Notes
1. Ensure that the inner ring and outer ring are installed in place during installation to avoid deflection, which would otherwise lead to increased bearing wear and inflexible rotation;
2. Avoid severe impact and overload on the bearing to prevent steel deformation and lining damage;
3. UK basic model bearings should not be used in dusty and wet environments. If they need to be used in harsh environments, additional protective measures should be added;
4. Regularly check the rotation flexibility and appearance of the bearing. If jamming, abnormal noise, rust or other issues occur, replace it in a timely manner to avoid affecting the normal operation of the equipment.
Summary
The GE…UK series self-lubricating spherical plain bearings (radial spherical plain bearings) take "self-lubricating and maintenance-free" as their core advantage, combining the characteristics of flexible rotation, high load-bearing capacity and compact structure. Covering micro to large sizes, they are suitable for many fields such as construction machinery, automation, automobiles and metallurgy, completely solving the pain points of traditional spherical plain bearings, such as cumbersome maintenance and short service life. Its clear model naming rules, rich specification options and stable performance make it an indispensable core transmission component in industrial equipment. Whether in heavy-load harsh working conditions or precision automation scenarios, it can provide a reliable transmission solution, helping equipment improve operational efficiency and reduce maintenance costs.
