Low Noise Cam Follower Cam Follower Bearings

Introduction to Roller Needle Bearings

Roller needle bearings are compact in structure, small in radial cross-section, and strong in load-bearing capacity precision rolling components. With slender needle rollers as rolling elements, combined with thickened outer rings and integrated roller structures, they can roll directly on rails, serving as key basic components in automation, machine tools, transportation, and heavy machinery.

They combine the high rigidity of needle bearings with the follow-up convenience of rollers, enabling stable transmission under heavy load, low speed, and impact working conditions in limited installation space. They are widely used in cam followers, guide rail guiding, curved motion, rocker arms, and connecting rod mechanisms.

Core Structure and Advantages

● Ultra-thin cross-section and high space utilization: The radial height is much lower than that of ball bearings and roller bearings of the same size, suitable for lightweight and miniaturized equipment design.

● Line contact and stronger load-bearing capacity: The needle rollers are in line contact with the raceway, with uniform stress distribution. The radial load capacity is 30%–60% higher than that of ball bearings with the same outer diameter, featuring excellent impact resistance and offset load resistance.

● Thickened outer ring, wear-resistant and durable: The outer ring is quenched and precision ground, which can roll directly in contact with the guide rail without additional inner rings or bushings, reducing assembly costs.

● Stable operation and low friction: The needle rollers are modified with logarithmic curves to reduce edge stress concentration, ensuring smooth operation, low temperature rise, and longer service life.

● Ready-to-install and easy to maintain: Most are sealed integrated units pre-filled with grease, which can be put into use immediately after installation, suitable for harsh working conditions and continuous production.

Typical Classifications

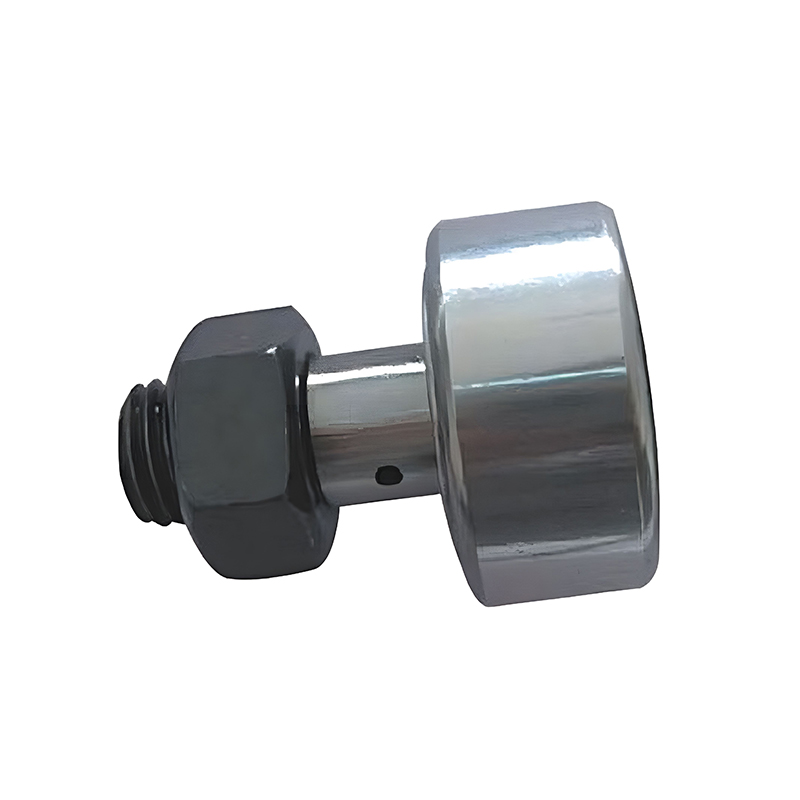

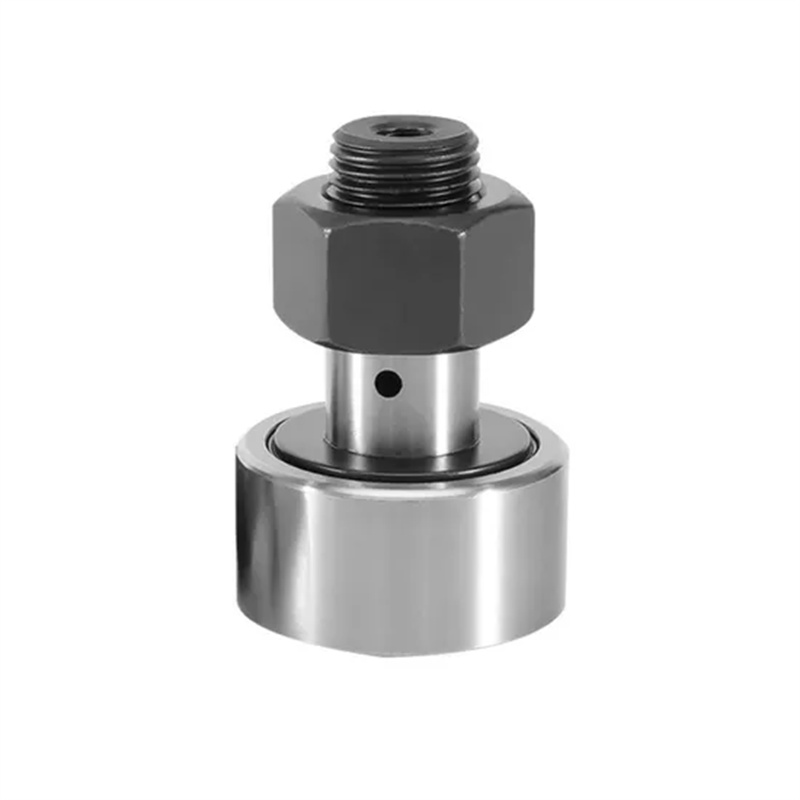

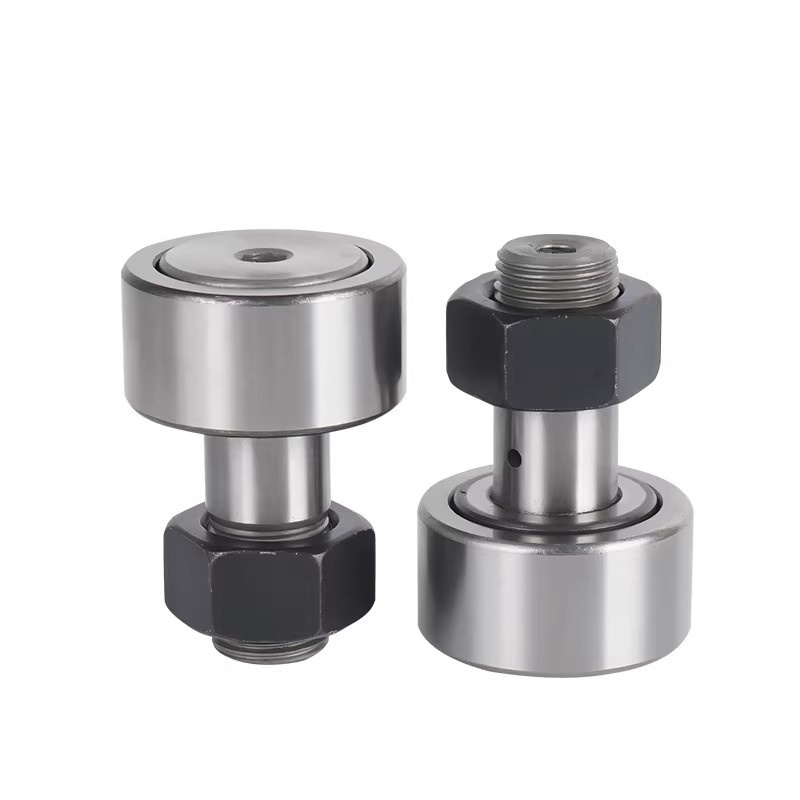

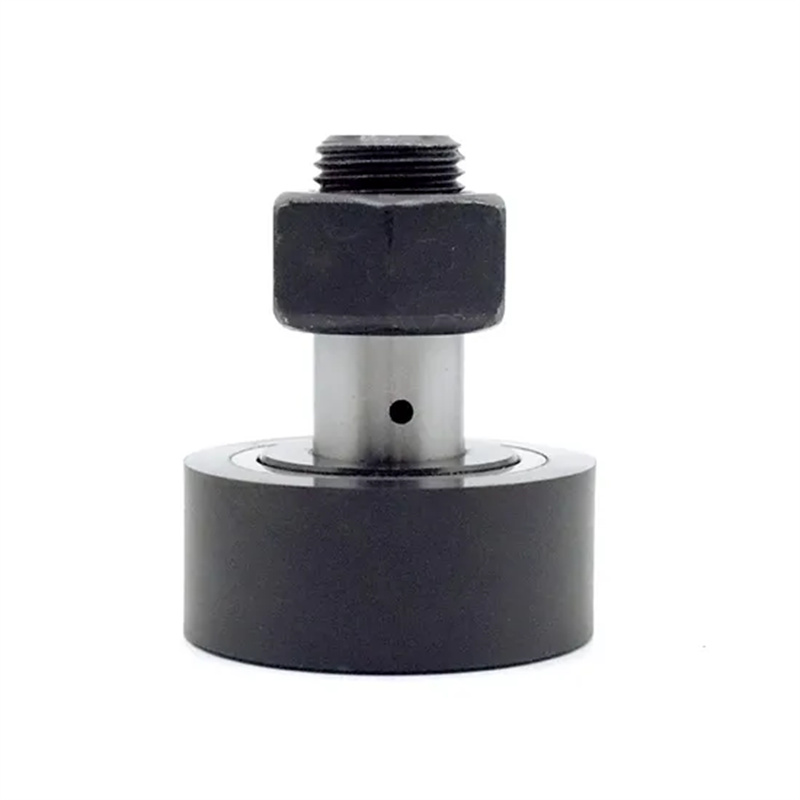

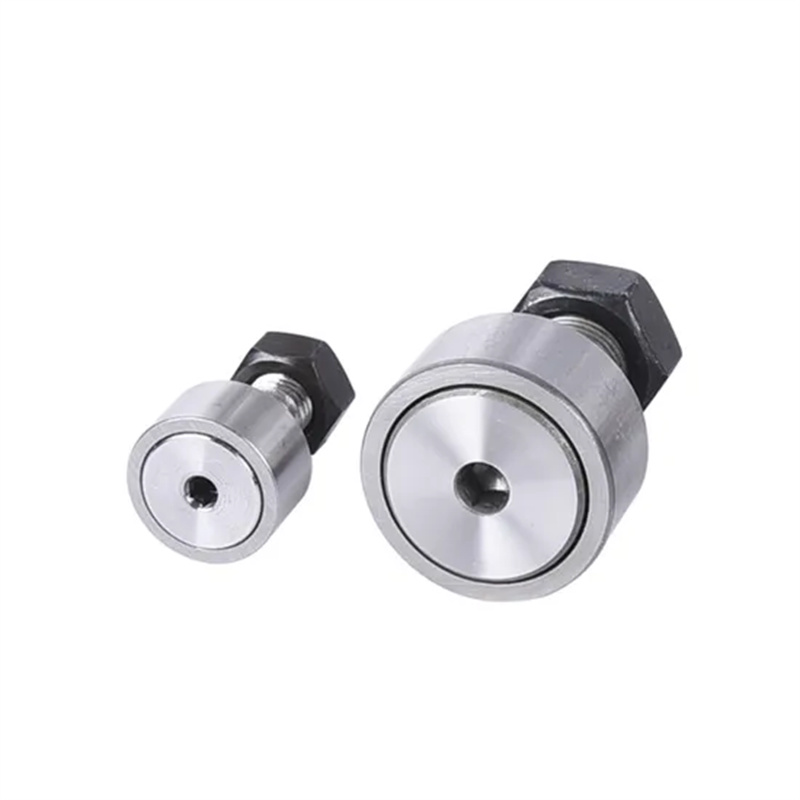

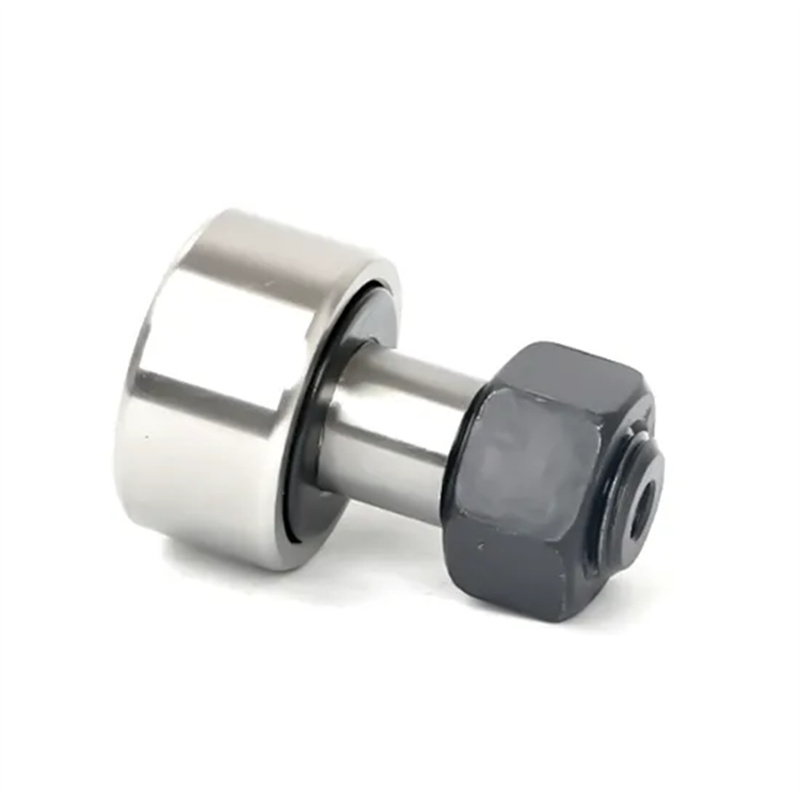

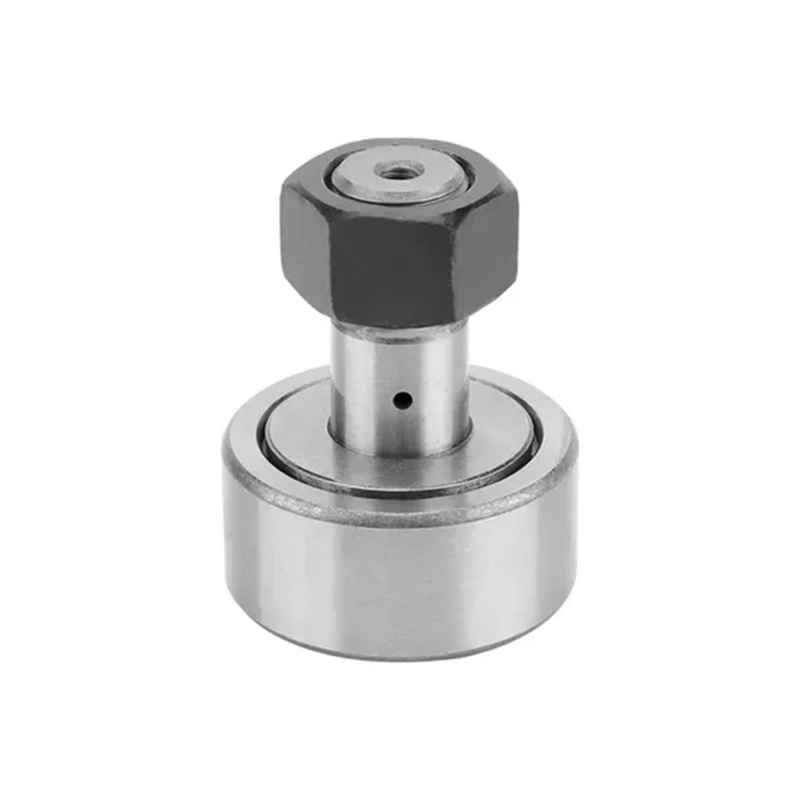

1. Bolt-type roller needle bearings: Equipped with a screw journal, easy to install, mostly used in cam followers, guide rail guiding, and automated manipulators.

2. Support-type roller needle bearings: Double-row needle roller and full complement structure, with larger load-bearing capacity, suitable for hoisting, metallurgy, rolling mills, and heavy-duty transportation.

3. Retaining ring/sealed roller needle bearings: With dust-proof seal, suitable for dusty and cutting fluid environments, such as machine tools, textiles, and printing machinery.

Main Application Scenarios

● Machine tools: Guide rail guiding, tool turrets, and feed mechanisms

● Automation: Assembly line rollers, curved rails, and cam mechanisms

● Automotive and construction machinery: Rocker arms, connecting rods, tension pulleys, and lifting outriggers

● Textile/printing/packaging: Conveyor rollers, tension wheels, and positioning followers

● Metallurgy and mining: Heavy-duty transportation and auxiliary transmission of rolling mills

Material Selection and Precision Highlights

● Adopting high-carbon chromium-bearing steel, vacuum-refined with high purity

● Heat treatment hardness HRC 60–64, balanced wear resistance and toughness

● Needle rollers and outer rings are precision-ground, with high rotation accuracy and low vibration

● Supports customization of stainless steel/corrosion resistance/high-temperature lubrication to meet special working conditions

Summary

With small volume, large load-bearing capacity, easy installation, and long service life as its core values, roller needle bearings are the preferred components for modern equipment to achieve efficient and reliable transmission in compact spaces. In industrial scenarios pursuing equipment precision, load, and service life, they can significantly improve operational stability, reduce failure rates, and provide solid support for the overall performance of equipment.
