PHS Rod End Bearings: Features, Specifications and Applications

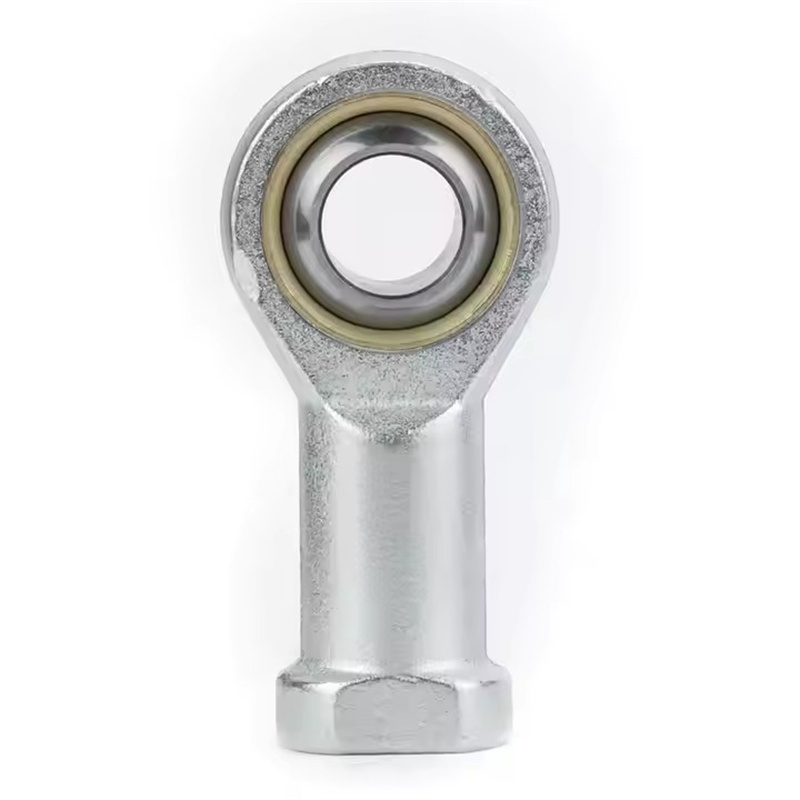

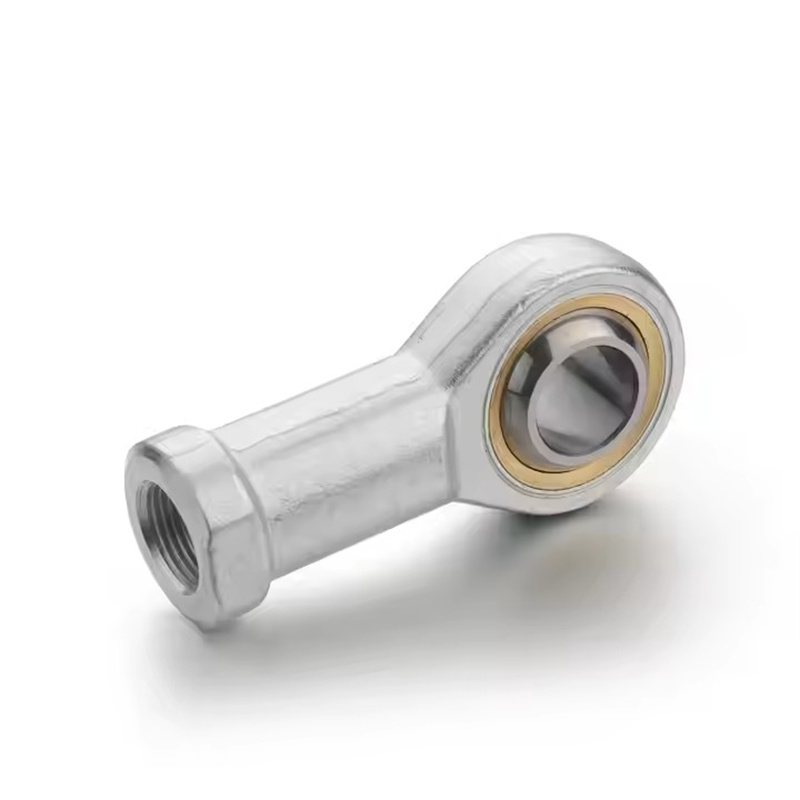

Overview of PHS Rod End Bearings

PHS rod end bearings are precision spherical plain bearings with internal threads, mainly used to connect rotating and oscillating components in industrial machinery. With reliable performance, compact structure and strong adaptability, they play an irreplaceable role in ensuring the smooth operation of mechanical transmission systems, especially suitable for scenarios that require frequent angle adjustment and have requirements for load-bearing capacity.

Compared with ordinary bearings, the PHS series adopts a bushed design, which can effectively reduce friction loss and extend service life. Therefore, it is widely used in the fields of automation, precision machinery and construction machinery, and is well-received by the market.

Key Technical Characteristics

● Self-Aligning Performance: The spherical contact design enables the bearing to achieve an angular deflection of ±13°~±16°, which can effectively compensate for the misalignment caused by installation errors or mechanical deformation, avoid jamming, and ensure the stable operation of the mechanism.

● Load-Bearing Capacity: Made of high-quality materials, PHS bearings can bear both radial load and bidirectional axial load at the same time, with excellent impact resistance and vibration resistance, suitable for low-speed, heavy-load and intermittent operation conditions.

● Wear Resistance and Durability: The rod end is made of forged carbon steel, with high rigidity and corrosion resistance; the spherical inner ring is made of high-hardness bearing steel, and the inner bushing is made of copper alloy, forming a highly wear-resistant friction pair, which greatly reduces the friction coefficient and extends the service life of the bearing.

● Easy Installation and Maintenance: Equipped with standard metric internal threads, it can be directly connected to lead screws, connecting rods and joints, enabling efficient and convenient installation; some models are equipped with grease nipples, which can supplement lubricating grease online, reduce maintenance costs, and further improve the stability of use.

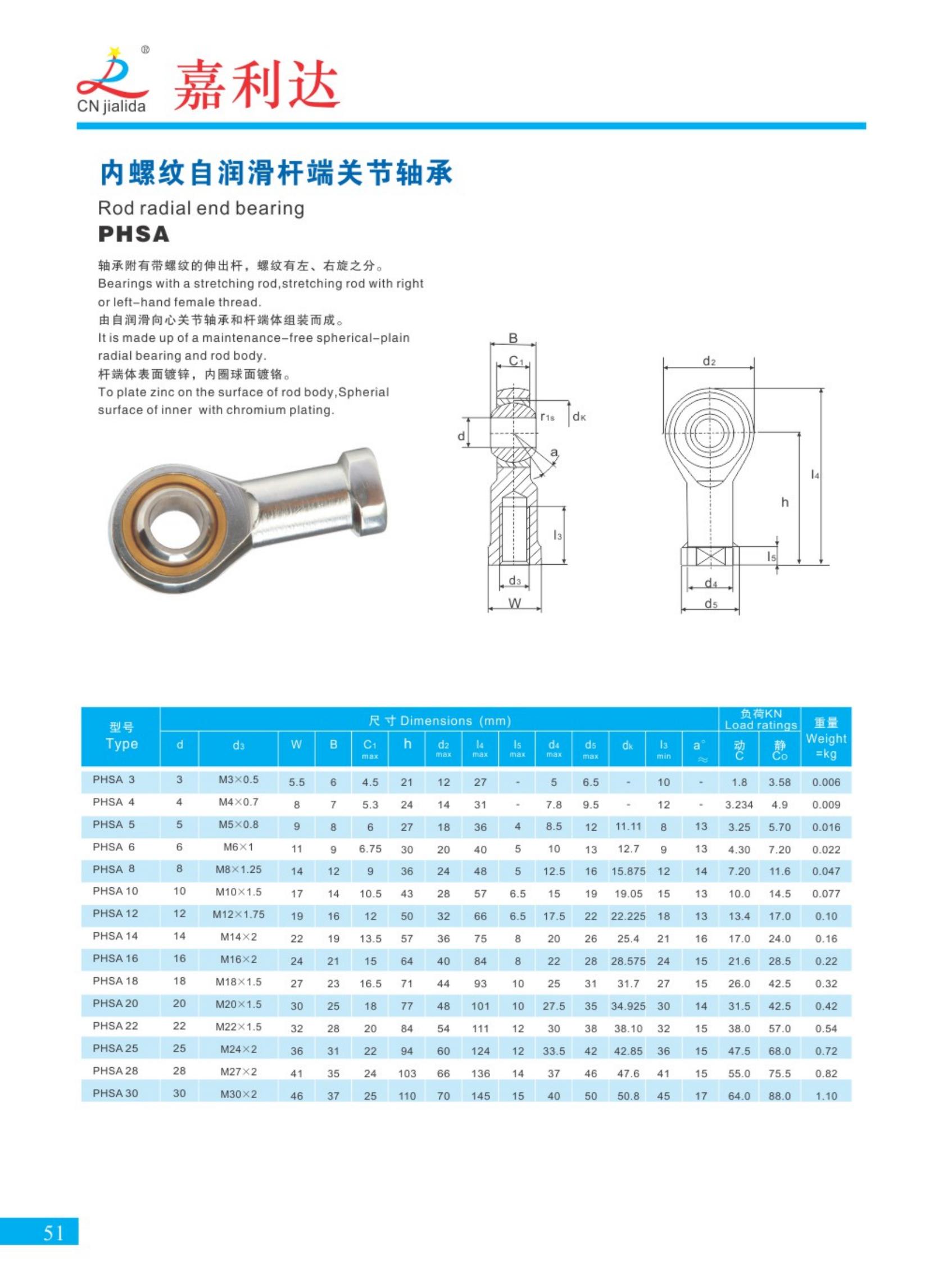

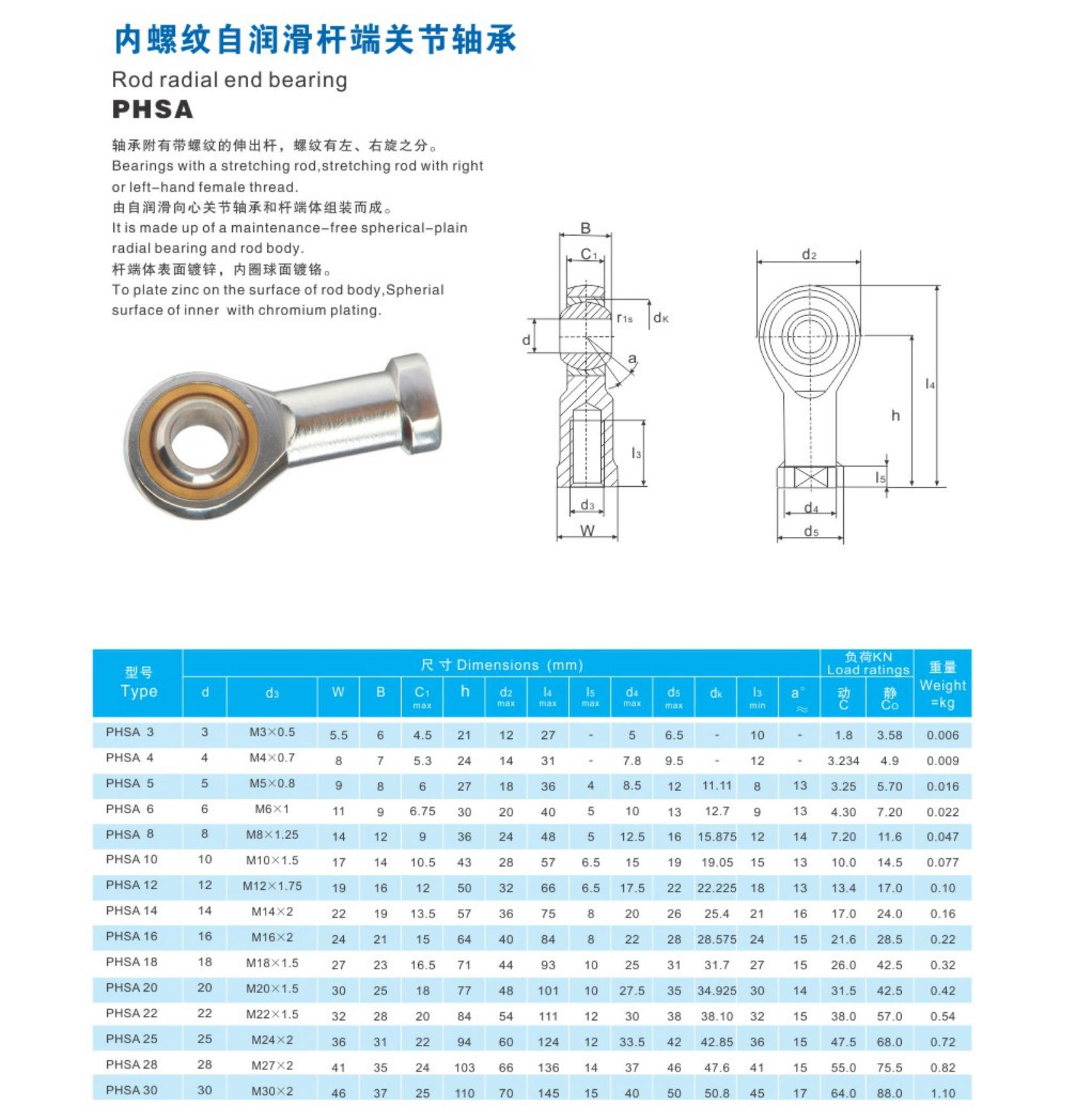

Details of Specifications and Parameters

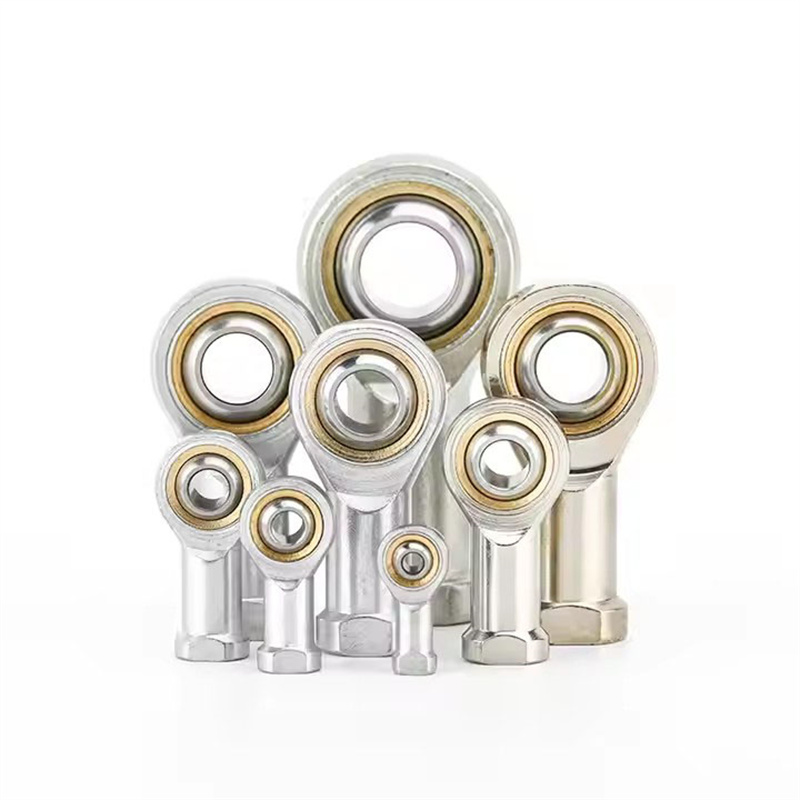

The PHS series rod end bearings cover a full range of conventional metric models, with specific parameters as follows: conventional models include PHS3 to PHS30, corresponding to a bore diameter range of 3-30mm, and thread specifications from M3×0.5 to M30×2; right-hand internal thread is adopted by default, and left-hand models are marked with the suffix "L" (e.g., PHS10L); the conventional operating temperature range is -20℃~+80℃, and special temperature models (-50℃~+150℃) can be customized according to actual needs to meet the use requirements of different working conditions.

Scope of Applicable Scenarios

As a core basic component in industrial transmission, PHS rod end bearings have a very wide range of applicable scenarios, mainly including: connecting rod mechanisms, cylinder joints and servo transmission systems in automation equipment; feed linkage and fine-tuning mechanisms in machine tools and precision machinery; reciprocating oscillation and tension control components in textile, printing and packaging machinery; suspension, steering and control tie rods in construction machinery, agricultural machinery and vehicles; joint connection and flexible transmission parts in robots, 3D printers and non-standard equipment.

Usage Notes

1. Clean the bearing surface and apply an appropriate amount of lubricating grease before installation to ensure smooth operation after installation;
2. Avoid exceeding the rated load and maximum deflection angle during operation to prevent bearing damage;
3. Under heavy-load and high-frequency operation conditions, it is recommended to regularly check and supplement lubricating grease to ensure the long-term stable operation of the bearing;
4. If special specifications such as left-hand thread, stainless steel material and self-lubrication are needed, they can be customized according to actual needs.

Summary of Product Advantages

With its precision structure, reliable performance and wide adaptability, PHS rod end bearings have become the preferred component for connecting rod and control mechanisms in industrial machinery. It has the advantages of self-alignment, resistance to compound loads, wear resistance and easy maintenance. The standardized design can realize direct interchangeability with the same model of mainstream brands, which not only reduces the cost of selection and replacement, but also effectively improves the operation stability and service life of the mechanical system, suitable for various medium-low speed and heavy-load industrial transmission scenarios.
