High Precision Durable Widely Used Linear Slide Unit

SBR UU Linear Ball Bearings: High-Load, Precision & Cost-Effective Linear Motion Solution

Product Overview

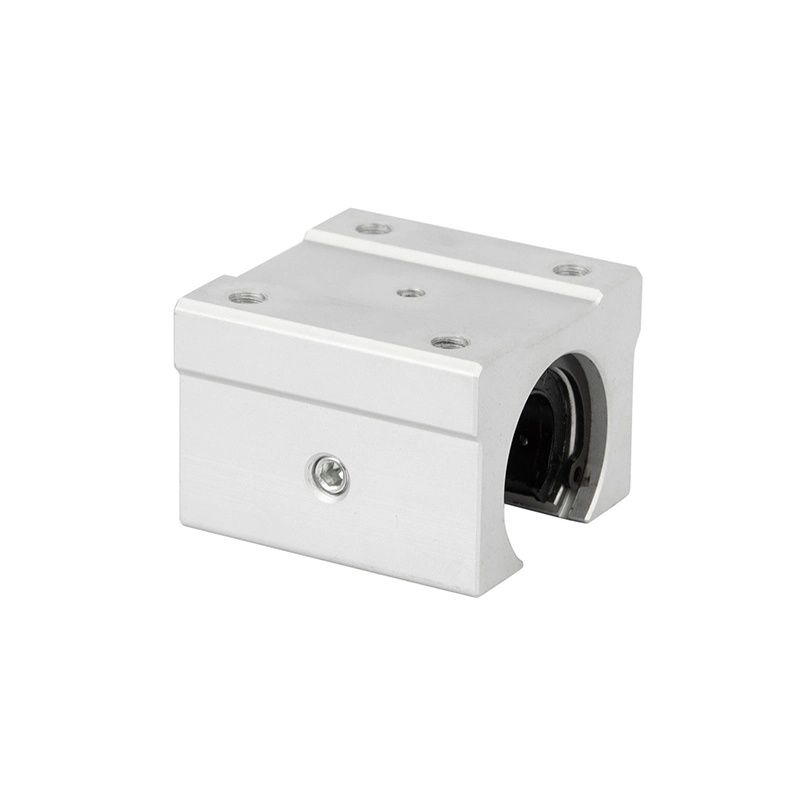

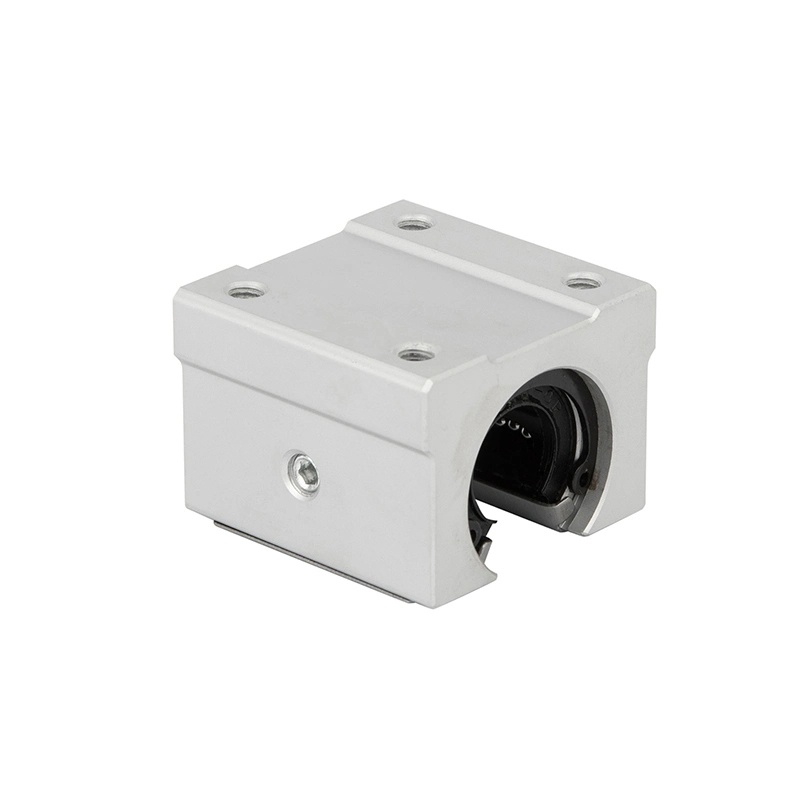

SBR UU is a standardized open-type box linear motion component, specially designed to work with SBR series linear shafts and linear guide rails. It achieves ultra-smooth linear movement through built-in rolling elements, serving as the core key part for accurate positioning and stable feeding in mechanical transmission. Widely applied in industrial automation, precision machinery and DIY equipment, it perfectly combines high economy, strong practicality and reliable performance—your ideal choice for linear motion needs.

The “UU” in the name stands for the double-sided sealing structure, which effectively blocks dust and retains lubricating grease, making it perfectly adaptable to dusty and lightly polluted working conditions, greatly extending the service life of equipment and reducing maintenance costs.

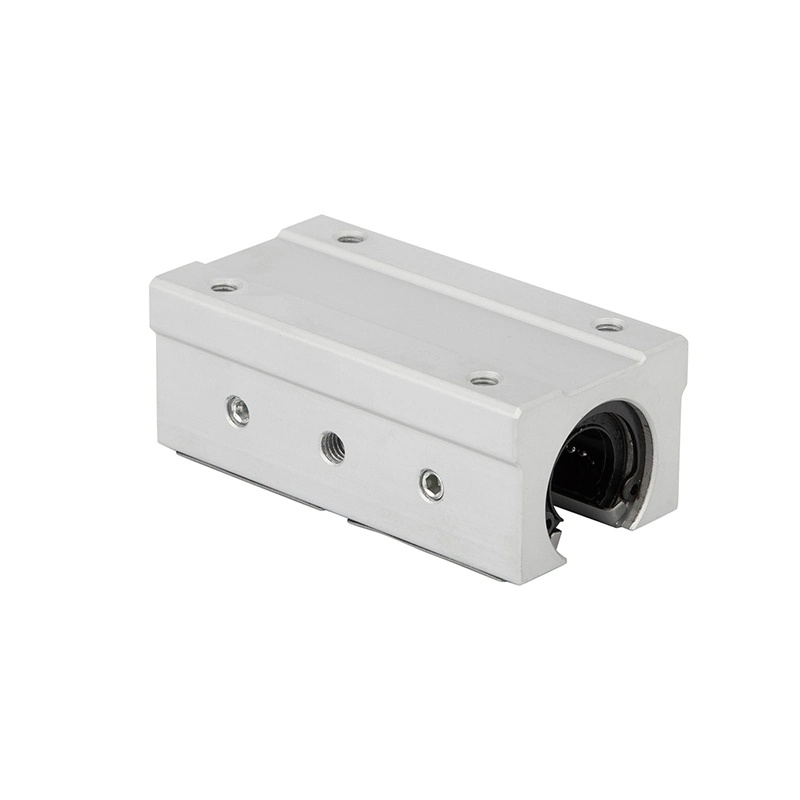

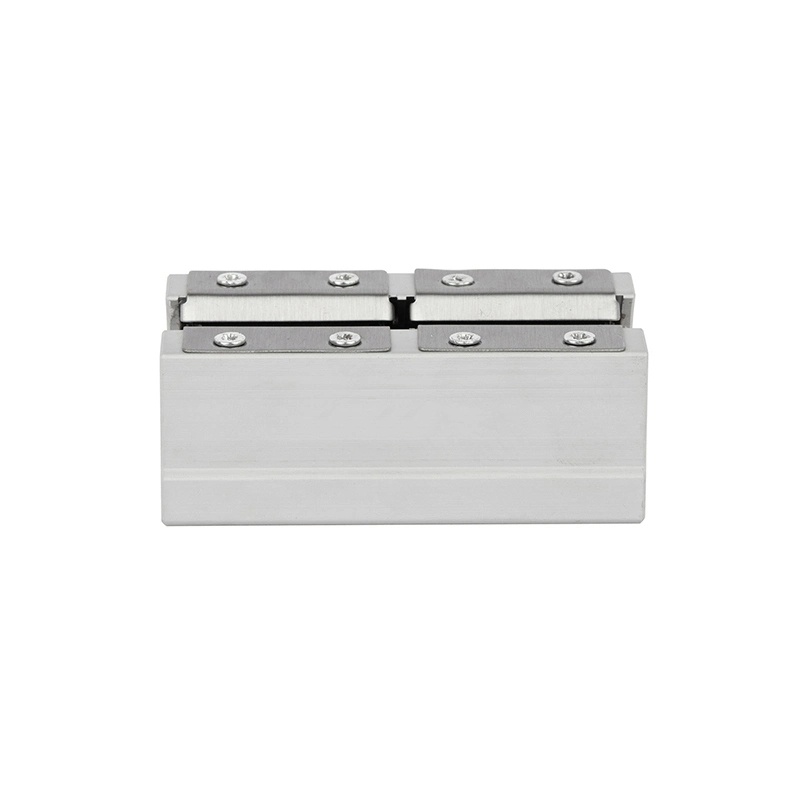

The extended version, SBR LUU series, shares the same structure and high-quality materials as the standard SBR UU, with only extended length. It boasts better load-bearing capacity and operation stability, specially tailored for long-stroke, high-rigidity application scenarios. Covering full specifications from SBR10LUU to SBR50LUU, it can perfectly match linear shafts of the same diameter as the standard type, realizing direct replacement without any adjustment.

Core Structure and Material Characteristics

(1) Structural Composition

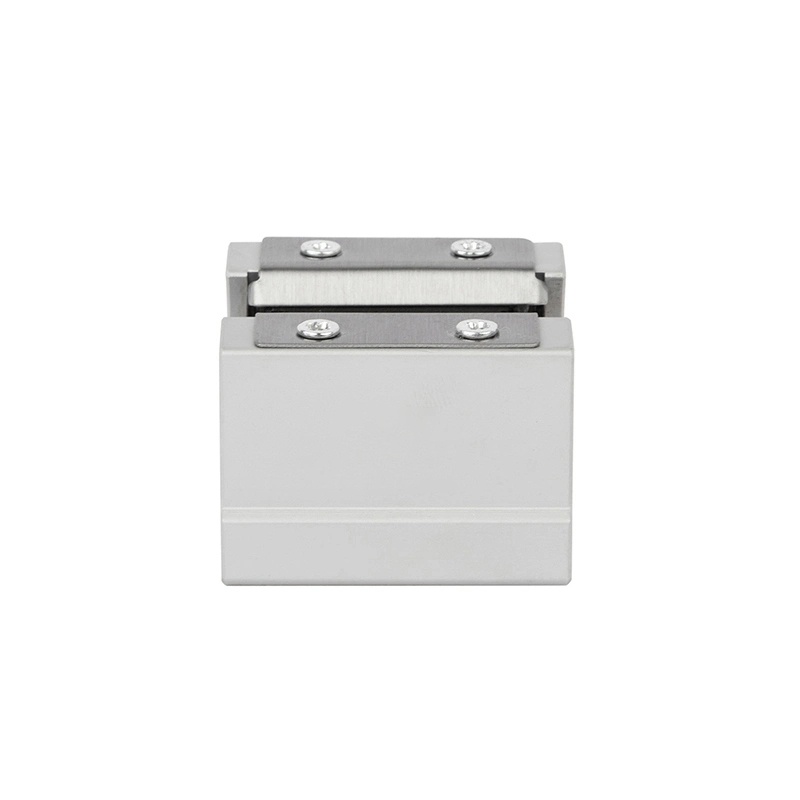

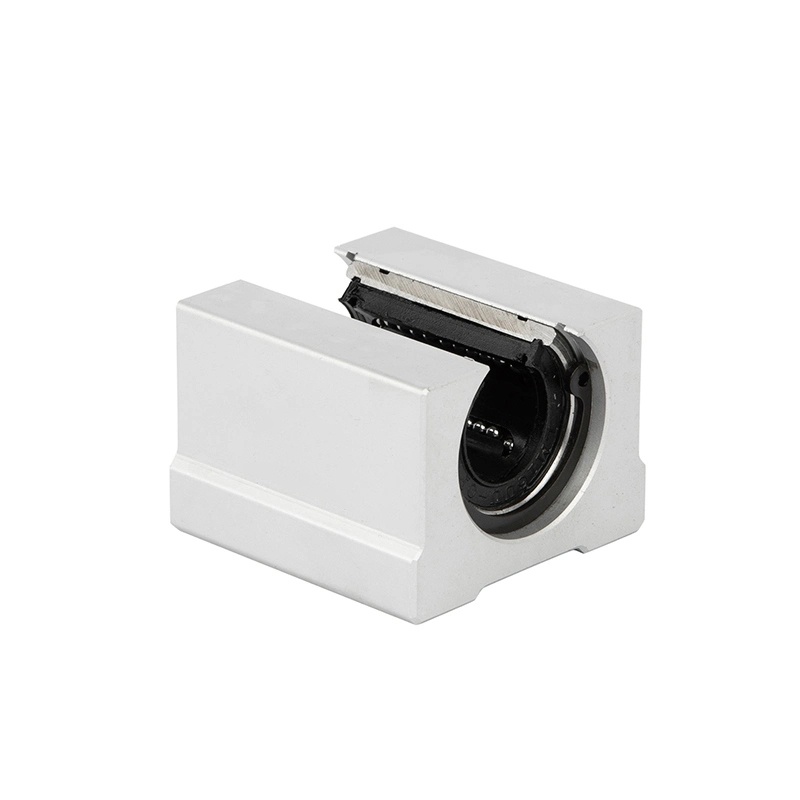

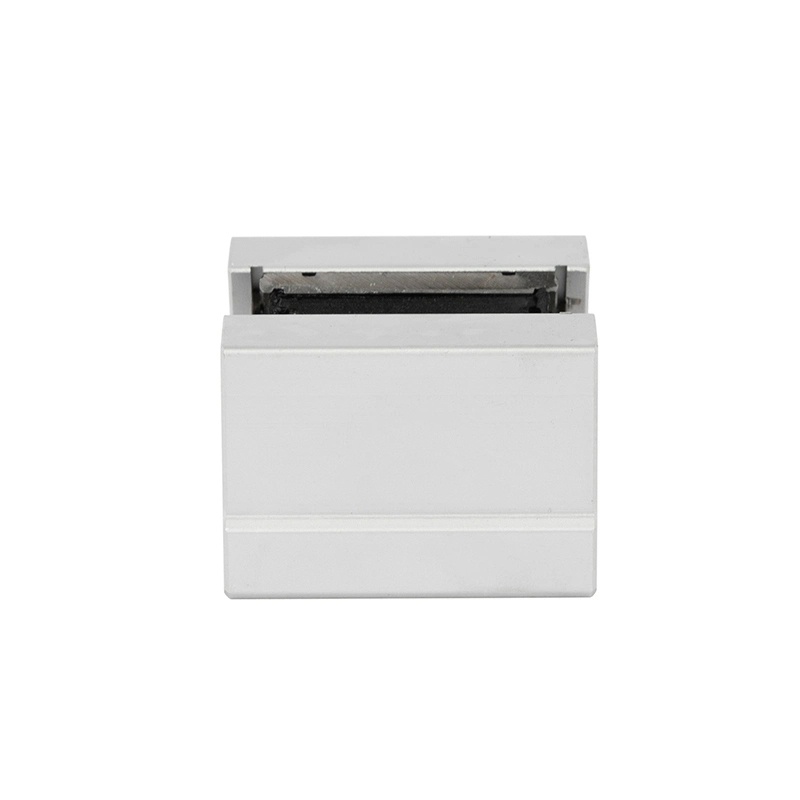

Adopting a modular design, it is composed of a bearing housing, built-in rolling elements, double-sided sealing end caps and precise mounting holes. The open-type bearing housing enables quick assembly and disassembly, improving work efficiency and reducing installation time. Multiple rows of rolling elements can evenly distribute loads, effectively reducing wear and tear, while the double-sided rubber sealing end caps fit tightly at both ends—achieving dust prevention, grease retention and smooth movement at the same time, further extending the service life of the slider.

(2) Material Selection

1. Bearing housing: Mainly made of aluminum alloy (lightweight, corrosion-resistant, suitable for medium and light loads) or steel plate (high strength, strong load-bearing capacity, suitable for heavy loads). Some products undergo professional surface treatment to enhance rust and scratch resistance, adapting to more complex working environments.

2. Rolling elements: Made of bearing steel after quenching treatment, featuring high hardness, strong wear resistance and excellent impact resistance, which can withstand sudden impact loads and ensure long-term stable operation of equipment.

3. Seals: Adopt elastic rubber material, which has good sealing performance and wear resistance, is suitable for a wide temperature range, and is not easy to age or deform, ensuring long-term effective protection.

Key Performance Advantages

(1) Strong Load Capacity, Wide Application Range

With multi-row rolling elements and high-strength bearing housing, the standard SBR UU series has a dynamic rated load of 372N-3820N and a static rated load of 549N-7940N, covering full specifications from SBR10UU to SBR50UU. It can perfectly meet the diverse needs of light-load DIY projects, medium-load general machinery and heavy-load industrial equipment. The extended SBR LUU series has the same shaft diameter as the standard type; due to its longer length and larger stress area, its load-bearing capacity is accurately increased by about 20%-30% compared with the same standard model, in line with industrial practical standards, more suitable for long-stroke and high-rigidity transmission scenarios, and fully covers all extended specifications to achieve perfect parameter matching with the standard type.

(2) Smooth Movement, Reliable Precision

The precise fit between rolling elements and linear shafts ensures low friction coefficient, no jamming, low noise during operation, and strict control of dimensional accuracy. It has excellent straightness and positioning repeatability, fully meeting the precision transmission requirements of most equipment and ensuring the stability and accuracy of product processing and equipment operation.

(3) Easy Installation and Maintenance, High Universality

Adopting a standardized design, the mounting holes are precise and accurate, perfectly compatible with corresponding SBR linear shafts, without the need for custom accessories, greatly reducing installation and replacement costs. Daily maintenance is simple and convenient—only regular lubrication and impurity cleaning are required. Its high universality makes it easy to repair and replace existing equipment, improving maintenance efficiency and reducing downtime losses.

(4) Corrosion and Wear Resistance, Long Service Life

Dual protection of surface treatment and double-sided sealing makes it adaptable to humid, dusty and other harsh working conditions. High-quality material matching slows down wear and tear; under normal maintenance, it can operate stably for a long time, effectively reducing the cost of shutdown and replacement, and improving the overall efficiency of the equipment.

(5) Self-Lubricating Version Available, Energy-Saving and Efficient

Some models are upgraded with solid polymer, featuring self-lubricating properties, eliminating the need for frequent greasing, saving maintenance costs and avoiding environmental pollution. At the same time, it reduces friction and improves transmission efficiency, making it suitable for high-speed operation scenarios and further enhancing the practical value of the product.

Main Specifications

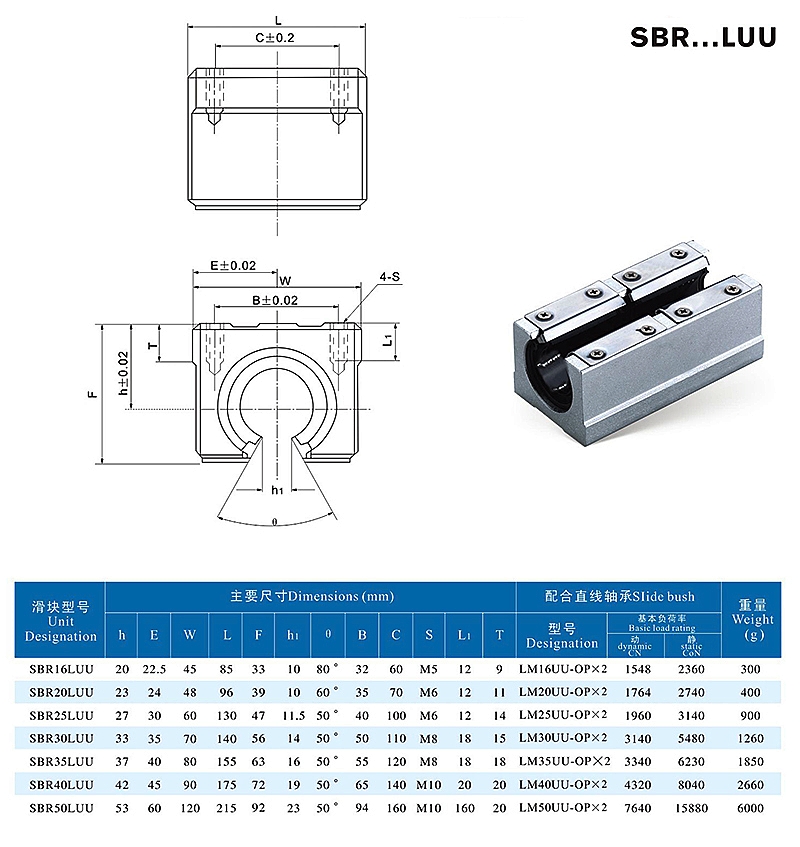

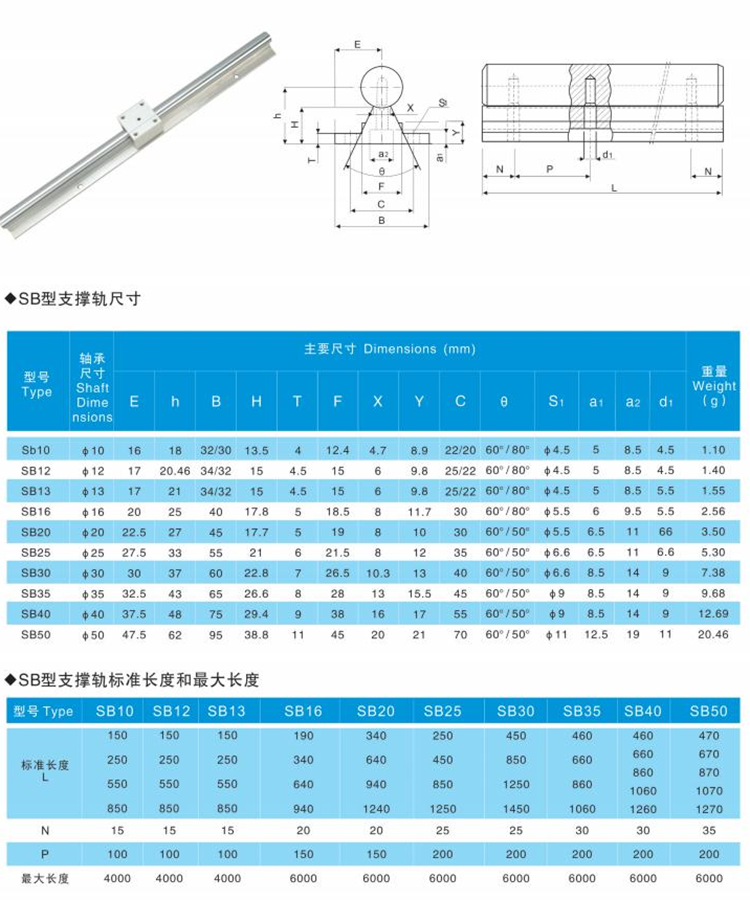

The shaft diameter ranges from 10mm to 50mm, including two major series: standard SBR UU and extended SBR LUU. The core specifications and parameters are as follows (the exact parameters are subject to the actual product):

Note: Custom special sizes are available to adapt to non-standard equipment; the extended SBR LUU series has the same mounting hole specifications as the standard SBR UU series, which can be directly replaced and used. Its load-bearing parameters are in line with industrial standards, suitable for linear shafts of the same diameter, and no adjustment to the equipment structure is required after replacement.

Application Scenarios

It is suitable for linear transmission needs in various fields, with core scenarios including:

1. Industrial Automation: CNC machine tools, laser engraving machines, automatic assembly lines, etc., to achieve accurate feeding and positioning, improving production efficiency and product quality.

2. Precision Machinery: 3D printers, small milling machines, etc., to ensure high processing precision and stable operation of equipment.

3. General Machinery: Conveying equipment, textile/printing machinery, etc., to improve operation stability and reduce equipment failure rate.

4. DIY Production: Handmade machinery, small experimental equipment, etc., to adapt to lightweight and simple application needs.

5. Others: Construction machinery, auto parts processing equipment, etc., to adapt to medium and heavy load, dusty working conditions; the extended SBR LUU series is more suitable for the transmission scenarios of heavy equipment with long stroke and high rigidity, which can make up for the adaptation shortcoming of the standard type in high rigidity scenarios, forming scenario complementarity with the standard type.

Installation and Maintenance Points

(1) Installation Points

1. Clean impurities and oil stains on the mounting surface to avoid affecting the installation accuracy;
2. Keep the slider parallel to the linear shaft to prevent uneven stress caused by inclination;
3. Tighten the bolts evenly to avoid deformation of the slider.

(2) Maintenance Points

1. Regular lubrication: Add waterproof grease every 1-3 months;
2. Cleaning and maintenance: Clean surface impurities and replace damaged sealing end caps in time;
3. Regular inspection: Check for abnormal noise, jamming and other problems, and replace worn parts in time;
4. Avoid high temperature and strong corrosion environment, and add protective measures if necessary.

Product Advantage Summary
