Smooth Running Low Noise Linear Slide Unit

TBR UU Linear Bearing Slider: Precision Guidance, Empowering Efficient Operation of Industrial Automation

In the fields of industrial automation, precision manufacturing, and CNC machining, the stability, accuracy, and efficiency of linear motion components directly determine the overall performance of equipment. As a standardized, high-performance linear guide component, the TBR UU linear bearing slider has become an indispensable core component in various mechanical systems by virtue of its flange-type structural design, excellent load-bearing capacity, and precise motion control. It is widely used in scenarios ranging from light-duty to heavy-duty loads, providing a solid guarantee for the efficient and stable operation of equipment.

Core Definition and Structural Characteristics of the Product

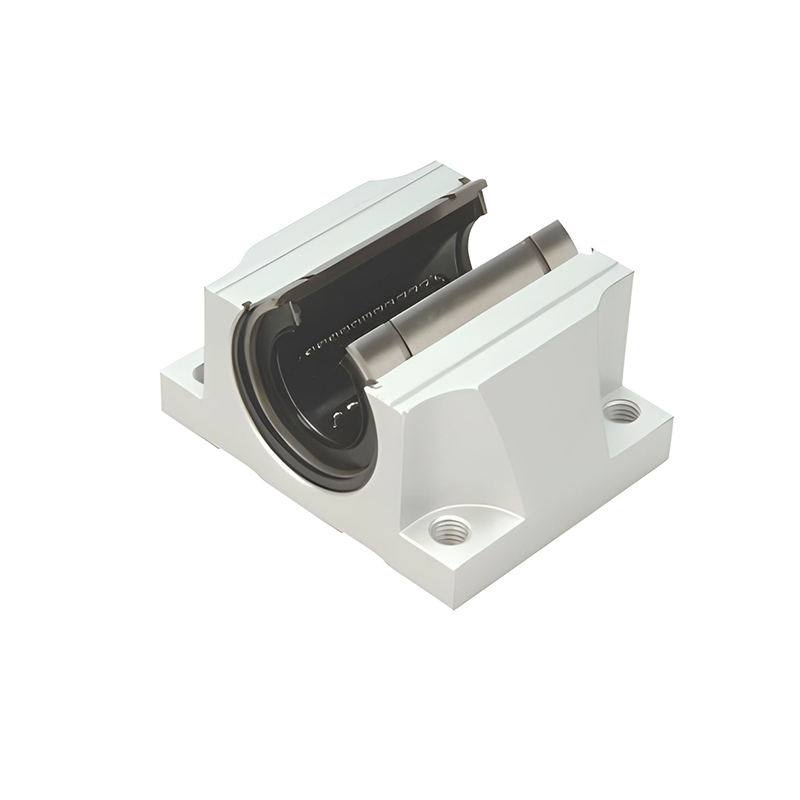

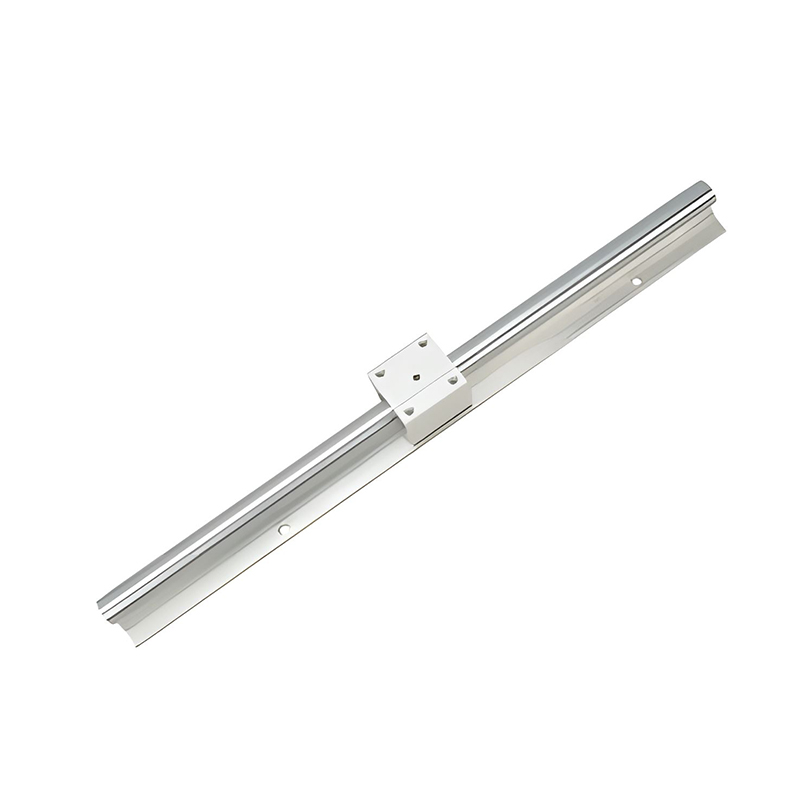

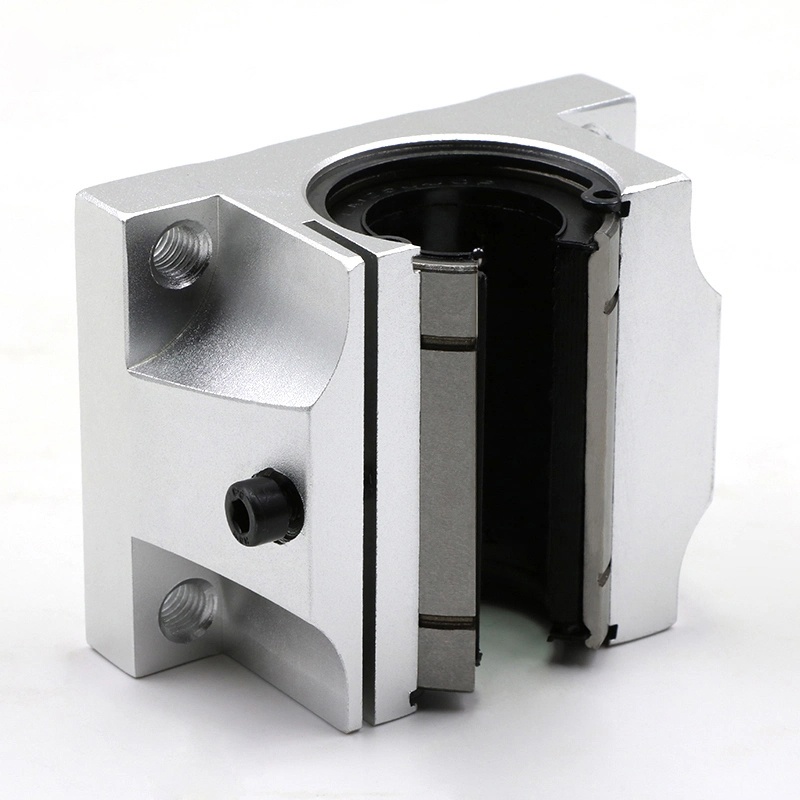

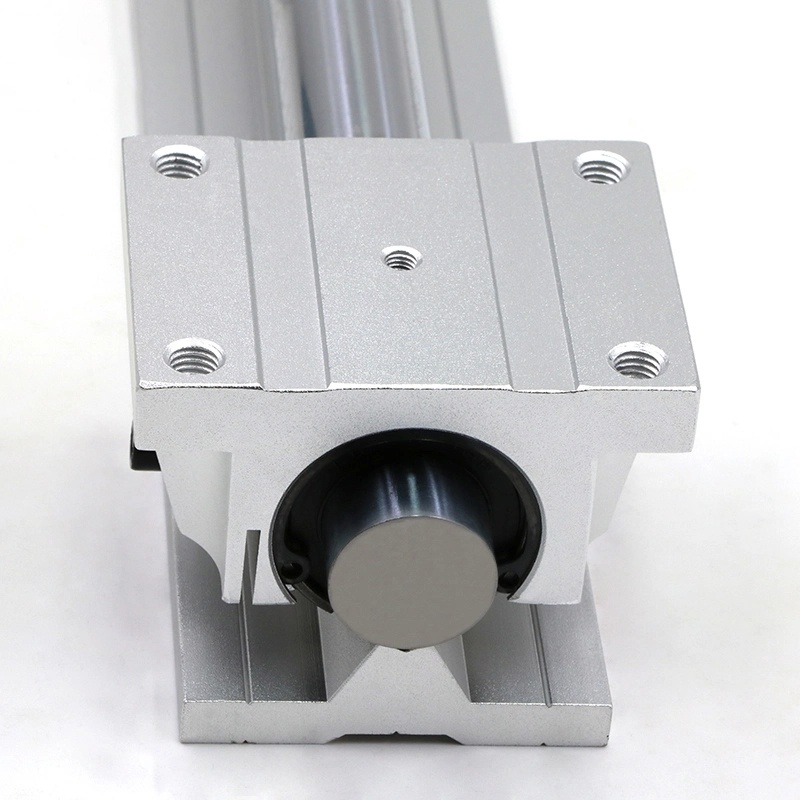

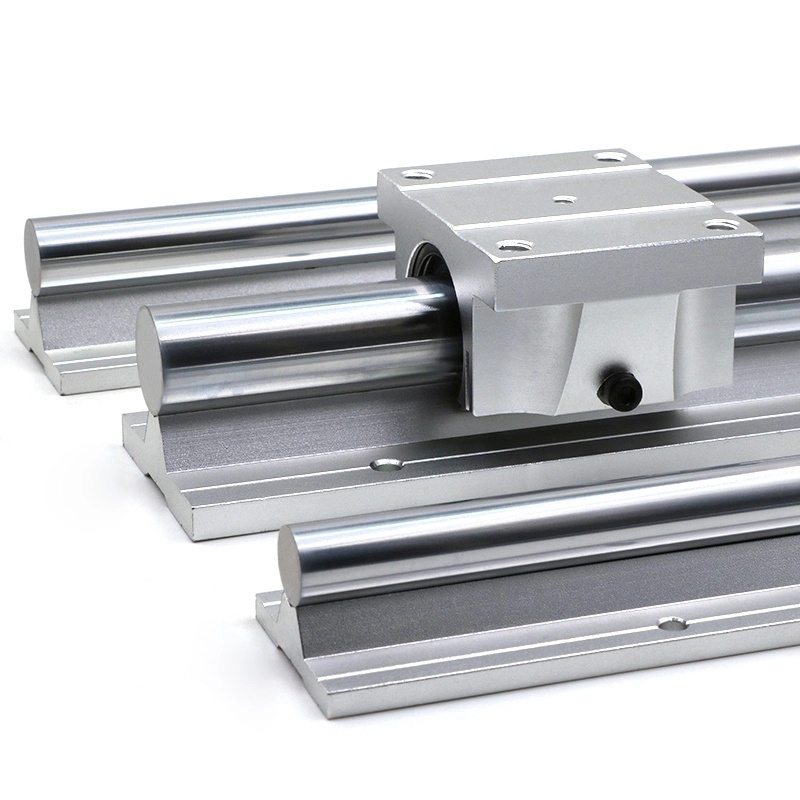

The TBR UU linear bearing slider is a rolling linear guide assembly, a standardized component that integrates a standard linear bearing into a lightweight aluminum alloy shell and cooperates with a precision optical axis to achieve linear reciprocating motion. Its core structure consists of an aluminum alloy slider shell, a built-in linear bearing, through-type mounting threaded holes, and a dust-proof structure. Compared with traditional sliding guide rails, it offers significant advantages such as a compact structure, convenient installation, and smooth movement. Meanwhile, through scientific structural design, it balances the requirements of light weight and rigidity.

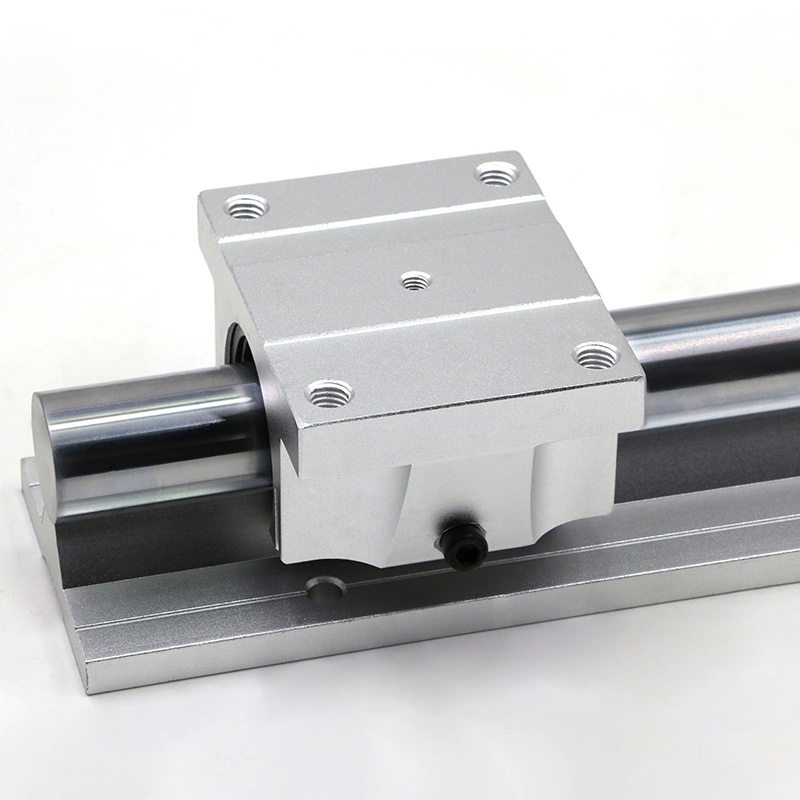

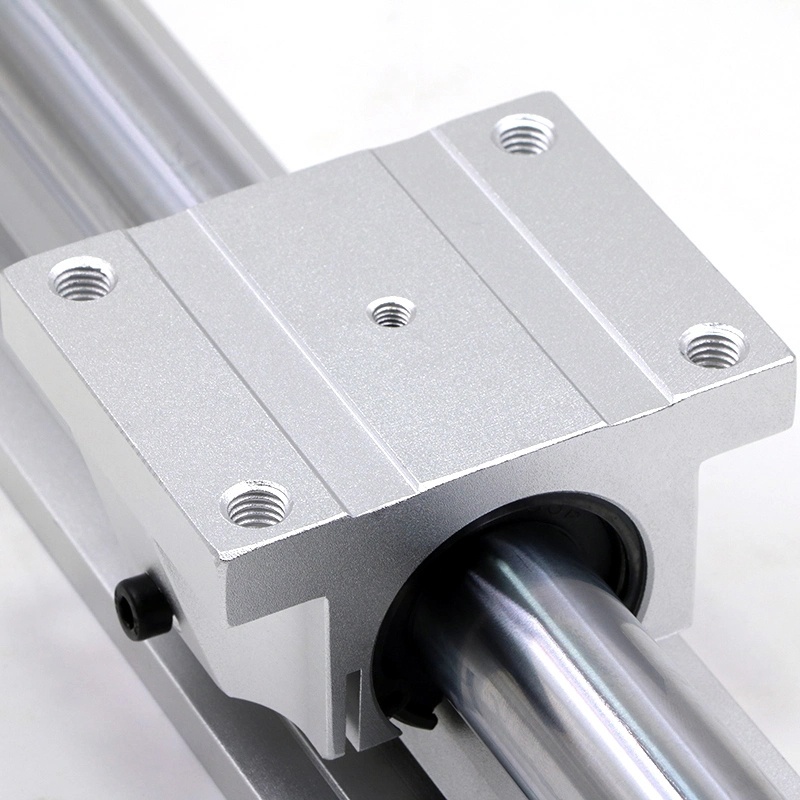

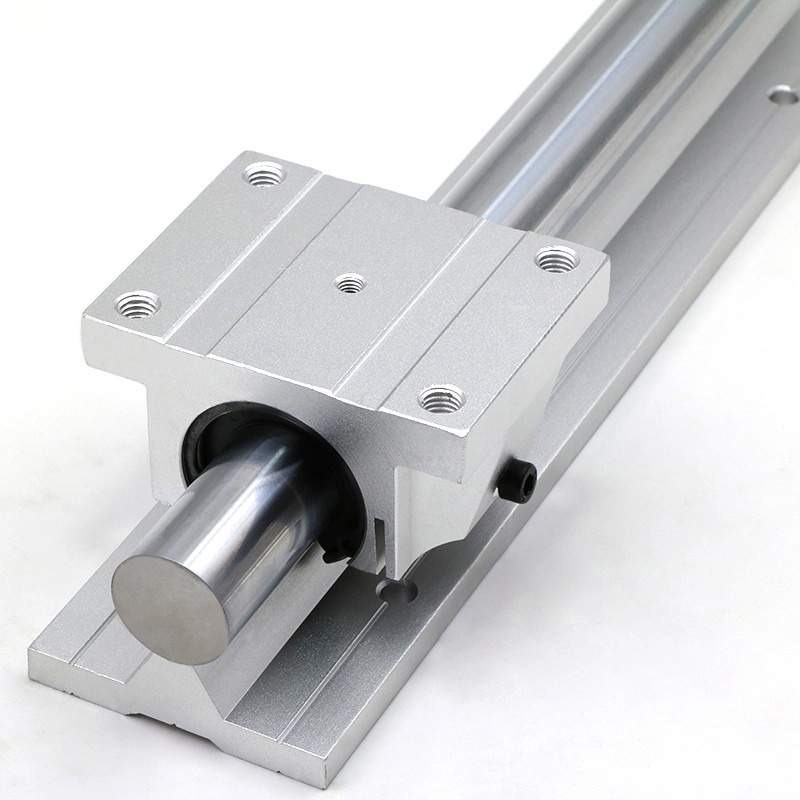

Compared with the common SBR series sliders, the TBR UU slider adopts a flange-type design, with mounting threaded holes running through the shell, making it more suitable for two-way installation (from top to bottom or bottom to top), while the SBR series is only suitable for top-to-bottom installation. This structural difference enhances the TBR UU’s installation flexibility in complex equipment layouts, enabling it to adapt to more special installation scenarios. In addition, the TBR UU’s load-bearing performance is basically the same as that of SBR series sliders, and the sliders and guide rails are freely interchangeable, greatly improving the convenience of equipment maintenance and upgrading.

The product is made of high-quality aluminum alloy for the shell and bearing steel for the built-in components. The aluminum alloy shell is lightweight and has good heat dissipation performance, while the bearing steel components undergo precision processing and heat treatment, resulting in high surface hardness and strong wear resistance. The combination of the two not only reduces the overall weight of the slider but also ensures the service life and structural rigidity of the components. Additionally, some models are equipped with dust-proof gaskets, which can effectively block the intrusion of dust, water stains, and other foreign objects, further extending the product’s service life and adapting to harsh industrial environments.

Core Performance Advantages, Laying a Solid Foundation for Equipment Operation

1. High-Precision Guidance, Accurate Positioning

The TBR UU linear bearing slider adopts a point-surface contact design, which greatly reduces motion friction resistance. Its friction coefficient is only 1/50 that of traditional sliding guide rails, enabling easy achievement of micron-level positioning accuracy and excellent repeat positioning accuracy. It can meet the requirements of scenarios with strict positioning accuracy demands, such as CNC machine tools, semiconductor equipment, and precision testing instruments. Whether for high-speed reciprocating motion or low-speed precise feeding, it can ensure the straightness of the motion trajectory, avoid jamming, offset, and other issues, and guarantee the stability and accuracy of equipment operation.

2. High Load-Bearing Capacity, Adapting to Diverse Loads

The product covers multiple specifications, including TBR16UU, TBR20UU, TBR25UU, and TBR30UU. Different specifications correspond to different rated dynamic and static loads. Among them, the TBR20UU has a rated dynamic load of up to 784N and a rated static load of 1176N, while the TBR30UU has a rated dynamic load of as high as 1764N and a rated static load of 2940N, allowing flexible selection based on equipment load requirements. The ball rolling structure of the built-in bearing ensures uniform force distribution, enabling it to bear radial, anti-radial, and lateral loads simultaneously. It can still maintain stable operation under high-load conditions, adapting to various load scenarios such as light handling and heavy processing.

3. Low Noise and High Efficiency, Energy Saving and Consumption Reduction

The optimally designed raceway and ball shape reduce impact and friction noise during movement, with an operating noise of less than 60dB, creating a quiet industrial production environment. At the same time, its low-friction characteristic greatly reduces the load on the drive motor, lowers energy consumption, achieves energy-saving effects, reduces component wear, extends the service life of the slider and the entire equipment, and reduces equipment maintenance costs.

4. Standardized Design, Strong Adaptability and Interchangeability

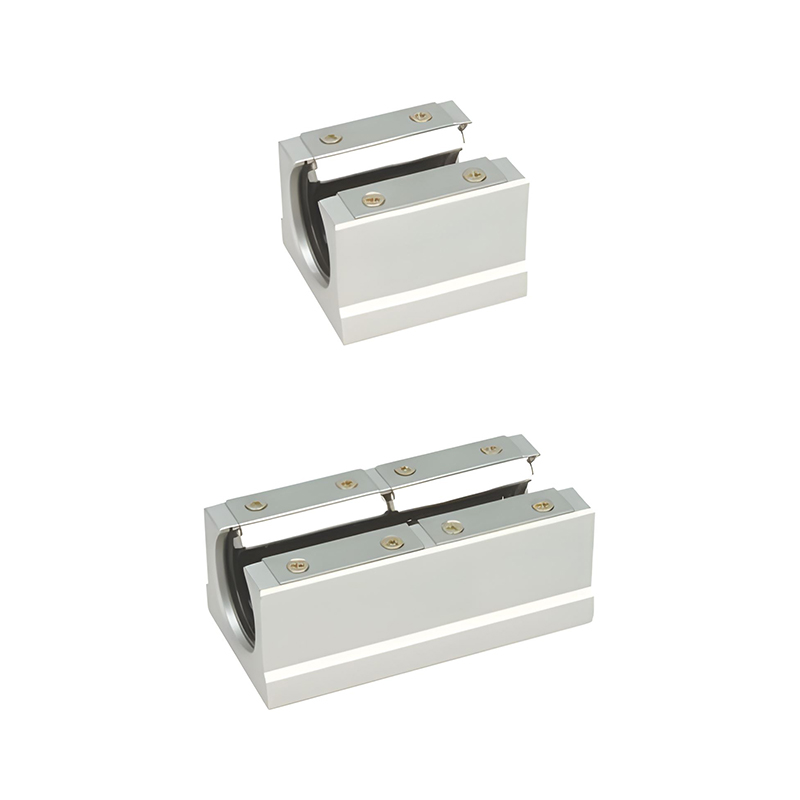

The TBR UU series sliders are produced in strict accordance with international standards, featuring a high degree of dimensional standardization. Products of the same specification from different manufacturers can be freely interchanged, facilitating equipment maintenance, repair, and upgrading. Its modular combination design allows for free matching of guide rail length and the number of sliders according to actual needs, adapting to the installation requirements of different mechanical structures and greatly improving equipment assembly and commissioning efficiency without the need for complex customized modifications. In addition, the product offers an optional extended type (LUU series), such as TBR20LUU and TBR30LUU, to meet long-stroke movement needs.

5. Strong Environmental Adaptability, Wide Application Scenarios

The product surface undergoes oxidation and rust-proof treatment, providing good corrosion resistance. Some models can be made of stainless steel, adapting to special industrial environments such as humidity and corrosion. Meanwhile, it has a wide operating temperature range, capable of normal operation in environments from -20℃ to +120℃, and can adapt to the production environment needs of different regions and industries, operating stably without additional protective measures.

Detailed Specification Parameters, Accurate Matching of Needs

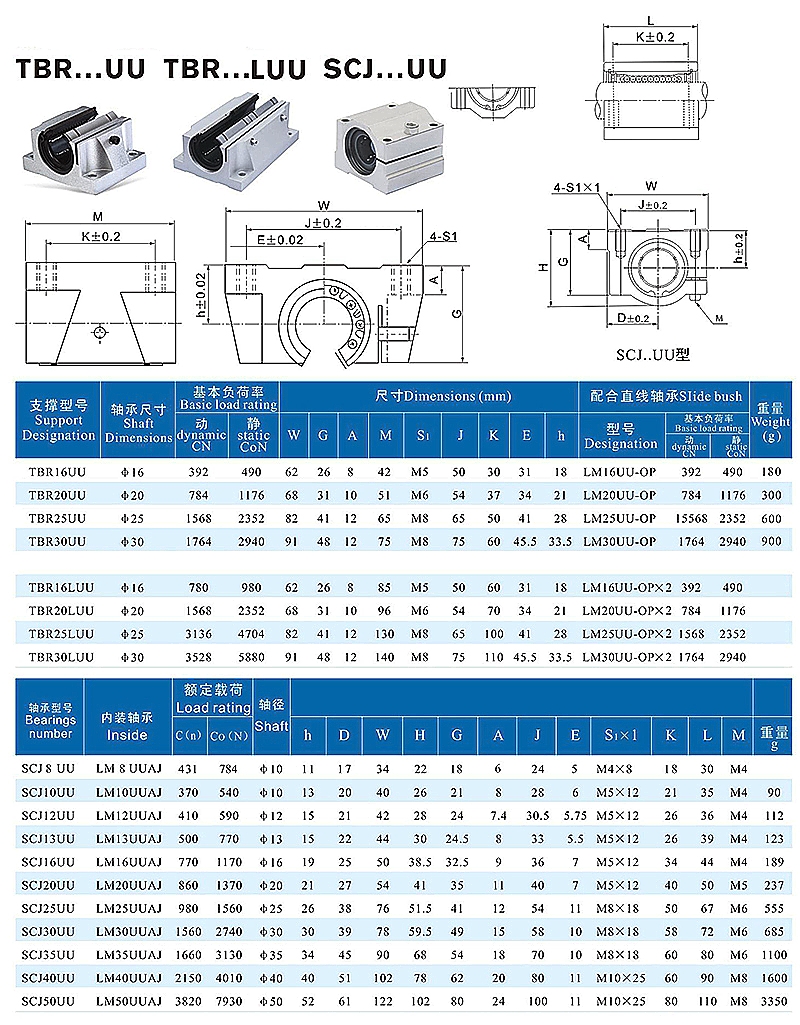

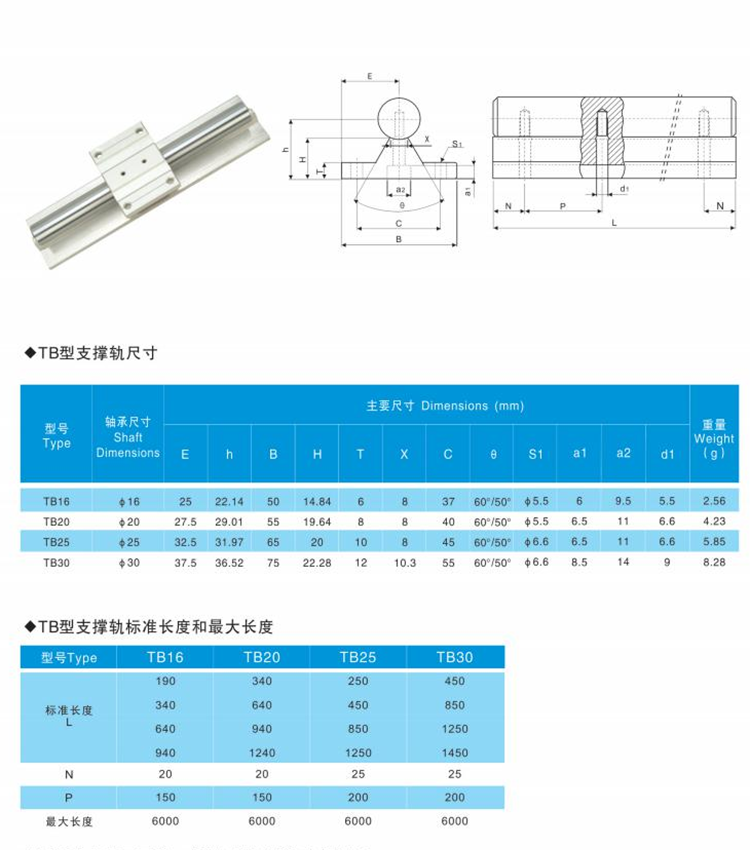

The TBR UU series sliders have complete specifications and clear core parameters, with differences in size, load-bearing capacity, and weight among different specifications. The following is a summary of core specification parameters (data refer to industry standards and measured values), facilitating users to accurately select models according to equipment needs:

Note: The dimensions of the extended type (LUU series) are the same as those of the corresponding UU series, with only the length increased, and the load-bearing capacity and weight slightly improved. For example, the TBR20LUU has a length of 96mm, and its weight and load-bearing parameters are basically the same as those of the TBR20UU, which can meet long-stroke movement needs.

Multi-Field Applications, Empowering Industrial Upgrading

With its excellent performance and flexible adaptability, the TBR UU linear bearing slider is widely used in various industrial scenarios, covering automation, precision manufacturing, medical care, logistics, and other fields, and has become a core component for promoting efficient equipment operation:

1. Industrial Automation Field

In automated production lines, robotic arms, conveying equipment, and other applications, the TBR UU slider is used for linear guidance in links such as material handling, assembly, and testing, realizing efficient and precise motion control, improving the automation level and production efficiency of the production line, and adapting to automated equipment such as electronic manufacturing, food processing, and packaging machinery.

2. Precision Manufacturing and CNC Field

In precision equipment such as CNC machine tools, CNC machining centers, 3D printers, and laser cutting equipment, the TBR UU slider is used for linear motion guidance of the X, Y, and Z axes to ensure machining accuracy and surface quality. With micron-level positioning accuracy, it meets the needs of high-precision component manufacturing and complex structure forming.

3. Medical Equipment Field

In equipment such as surgical robots, CT scanners, and medical testing instruments, the TBR UU slider enables high-precision, stable linear motion of instrument arms, scanning components, and other parts, assisting doctors in accurately completing surgical operations and testing work, and ensuring the stability and reliability of medical equipment.

4. Other Fields

In addition, the TBR UU slider is also widely used in scenarios such as logistics and warehousing equipment, fitness machinery, printing machinery, and semiconductor equipment. With its advantages of light weight, high rigidity, and low noise, it adapts to the operation needs of different equipment and provides strong support for the industrial upgrading of various industries.

Summary of Product Advantages and Selection Suggestions

The TBR UU linear bearing slider takes "precision guidance, high load-bearing, easy installation, and long service life" as its core advantages. Its flange-type structure improves installation flexibility, its standardized design enhances interchangeability, and its multiple specifications adapt to different load and stroke needs. Compared with traditional guide components, it has significant improvements in accuracy, efficiency, and maintenance costs, making it an ideal choice for industrial automation and precision manufacturing fields.

Selection suggestions: Users can select the appropriate model according to the equipment’s load requirements (refer to the rated dynamic and static loads), motion stroke (select standard or extended type), installation method (suitable for flange-type two-way installation), and environmental conditions (ordinary or corrosive environment), combined with the above specification parameter table. If special customization is required, users can communicate with the manufacturer with equipment drawings to ensure perfect adaptation between the product and the equipment.

As a linear guide component with both performance and cost-effectiveness, the TBR UU linear bearing slider always focuses on meeting the needs of efficient and precise operation of industrial equipment, continuously optimizes product structure and performance, helps various industries achieve equipment upgrading and efficiency improvement, and becomes an indispensable core component in the era of industrial automation.
