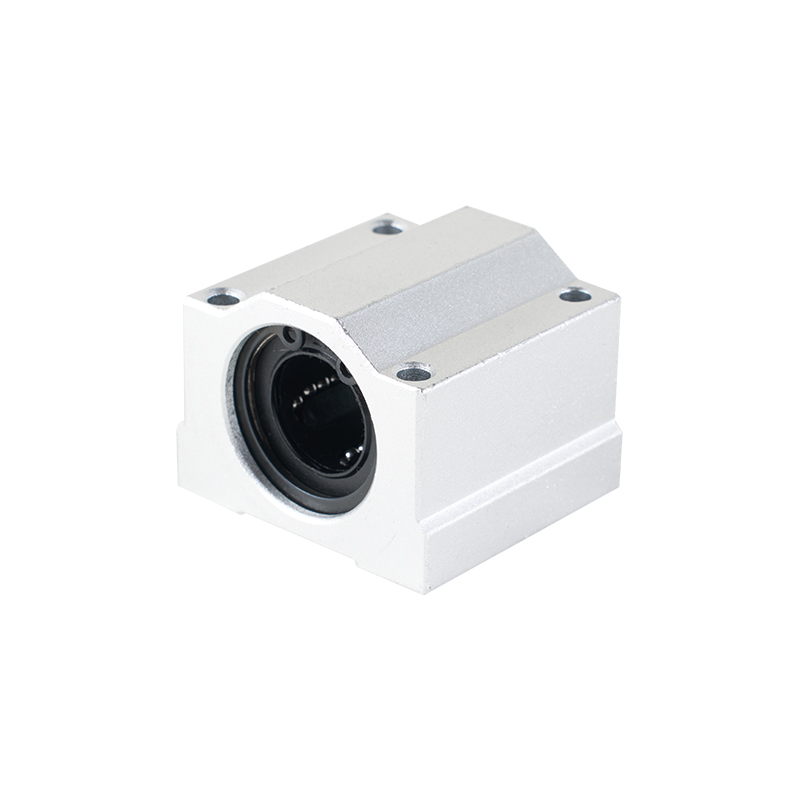

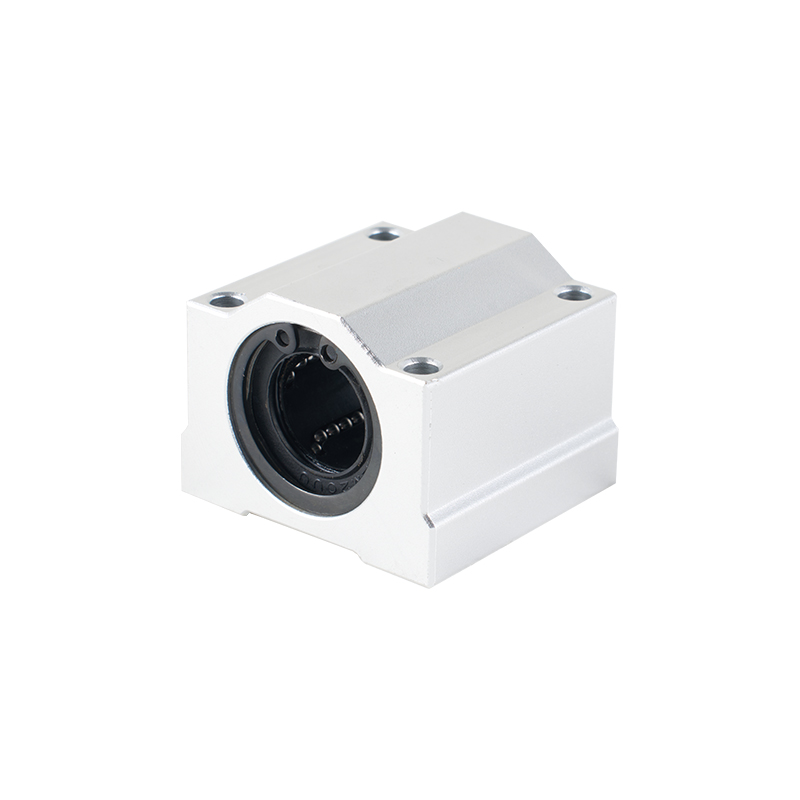

SCS Aluminium Bearing Slider

Product Features
1. Wear-resistant and durable: SCS bearing slider has high surface hardness and good wear resistance after precision machining and heat treatment, and can maintain stable motion performance for a long time.
2. High precision: The matching accuracy between the slider and the guide rail is high, which can achieve smooth and precise linear motion, and is suitable for mechanical equipment with high precision requirements.
3. Easy installation: The slider is designed with standard mounting holes and positioning grooves, which is convenient for quick connection with the guide rail and other components, reducing the difficulty and cost of installation.
4. Strong load capacity: The slider adopts a rolling bearing structure inside, which can withstand large radial and axial loads and is suitable for heavy-duty conditions.

Scope of application
SCS bearing sliders are widely used in many fields such as spraying equipment, CNC machine tools, machining centers, electronic machinery, automation machinery, textile machinery, automobile manufacturing, medical equipment, printing machinery, packaging machinery, woodworking machinery, mold opening, etc. In these fields, the slider can provide stable and reliable linear motion support to ensure the normal operation and efficient production of mechanical equipment.

Technical parameters (example)
(The following parameters may vary depending on the specific model and specifications; please refer to the actual product)
Inner diameter: determined according to the specific model (such as 20mm, 30mm, etc.)
Outer diameter: determined according to the specific model (such as 54mm, 78mm, etc.)
Height: determined according to the specific model (such as 59.5mm, etc.)
Mounting hole spacing: determined according to the specific model (such as 58mm, etc.)
Bearing model: LM series (such as LM30UU, etc.)
Dynamic load: determined according to the specific model (such as 1570N, etc.)
