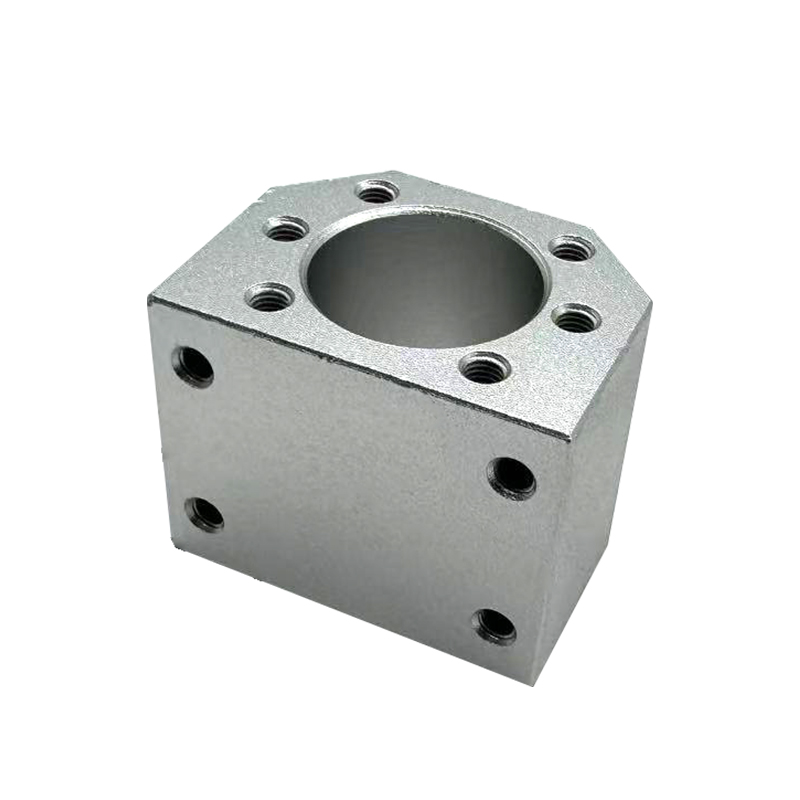

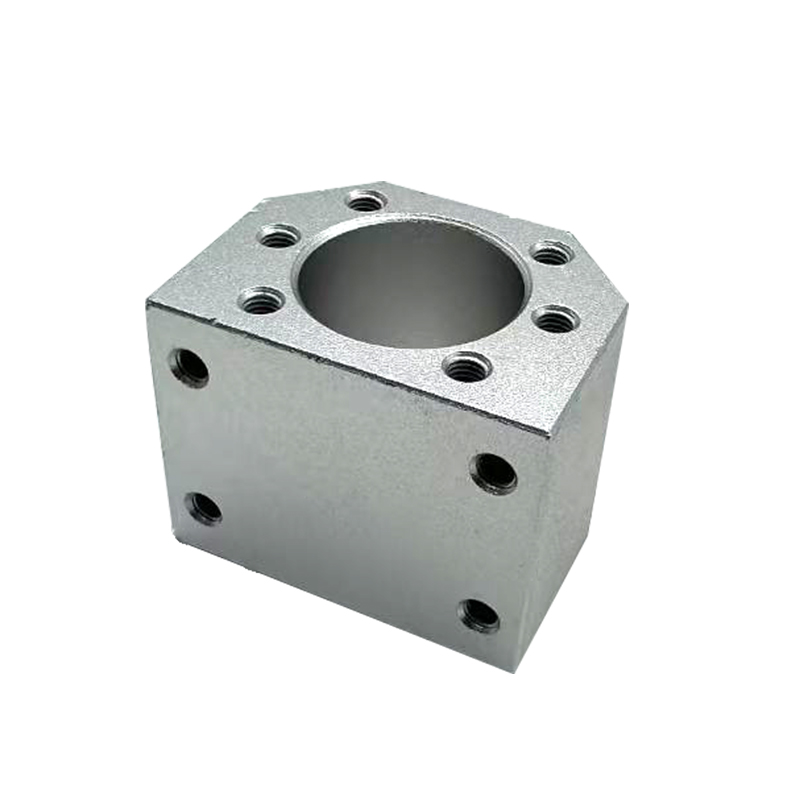

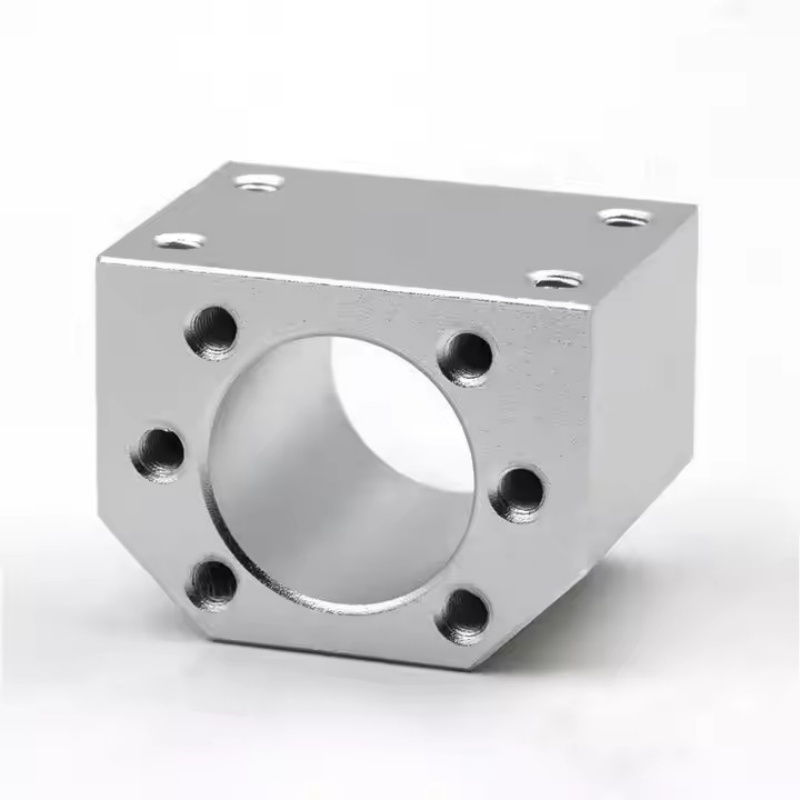

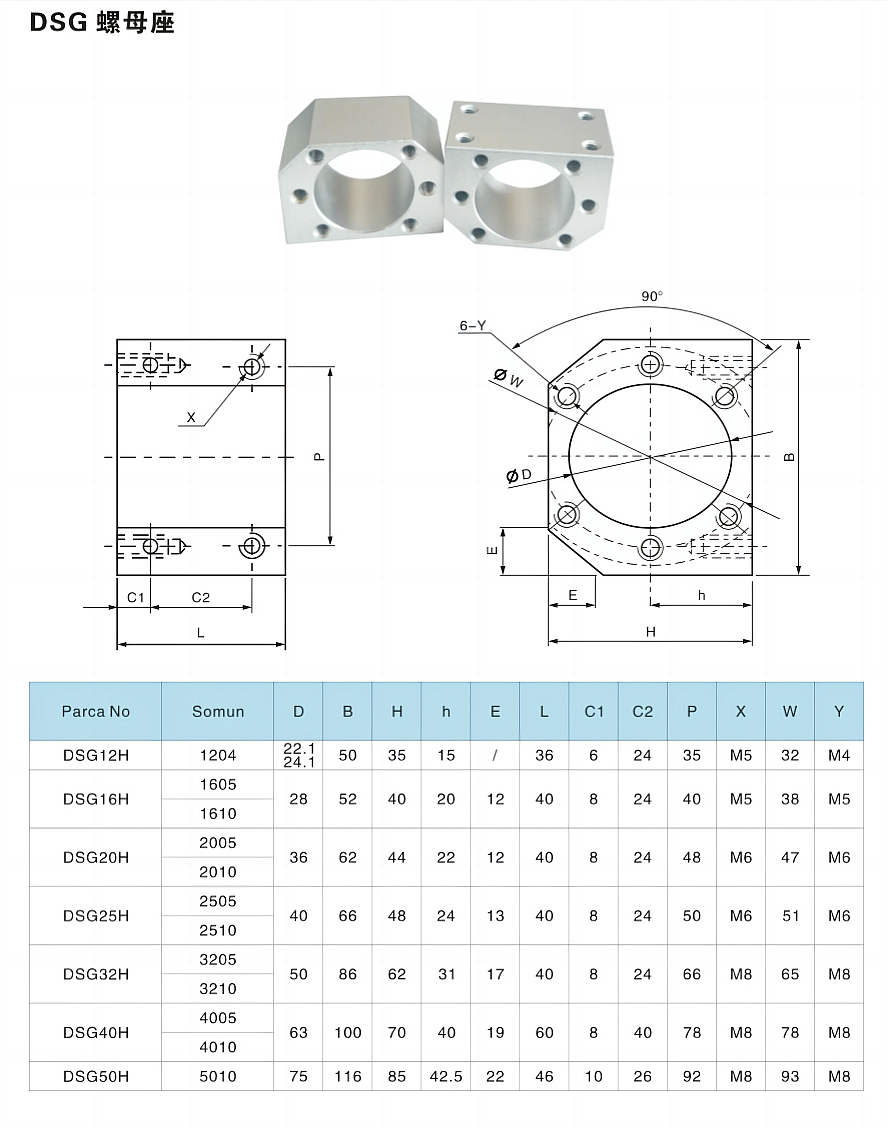

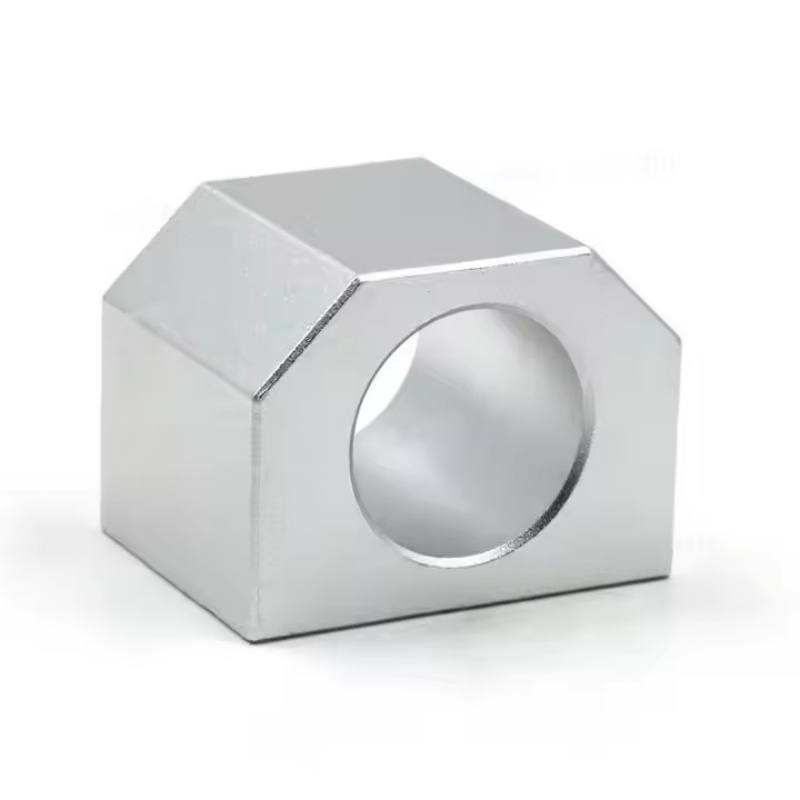

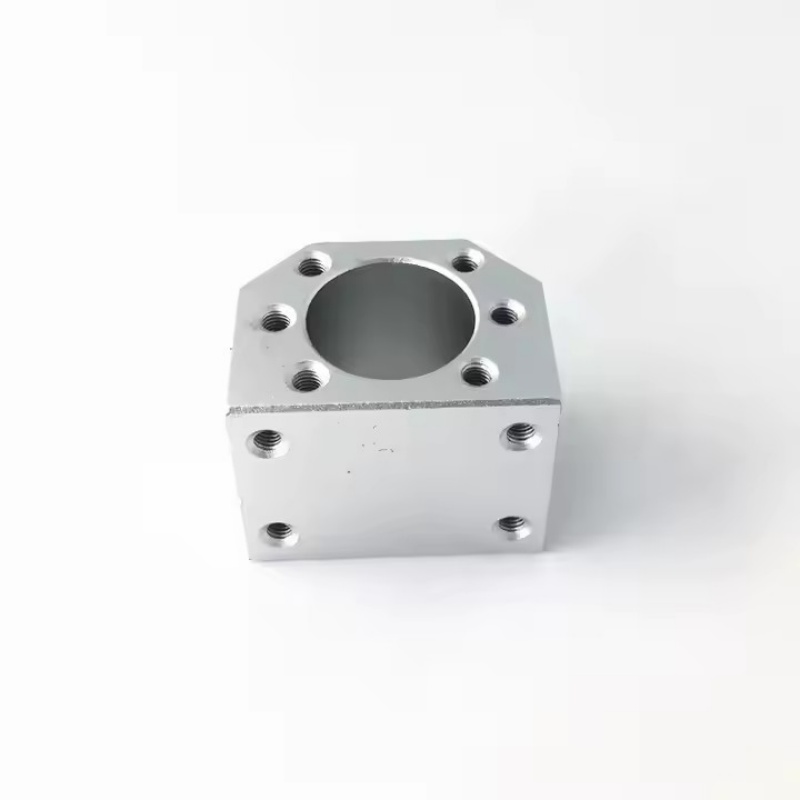

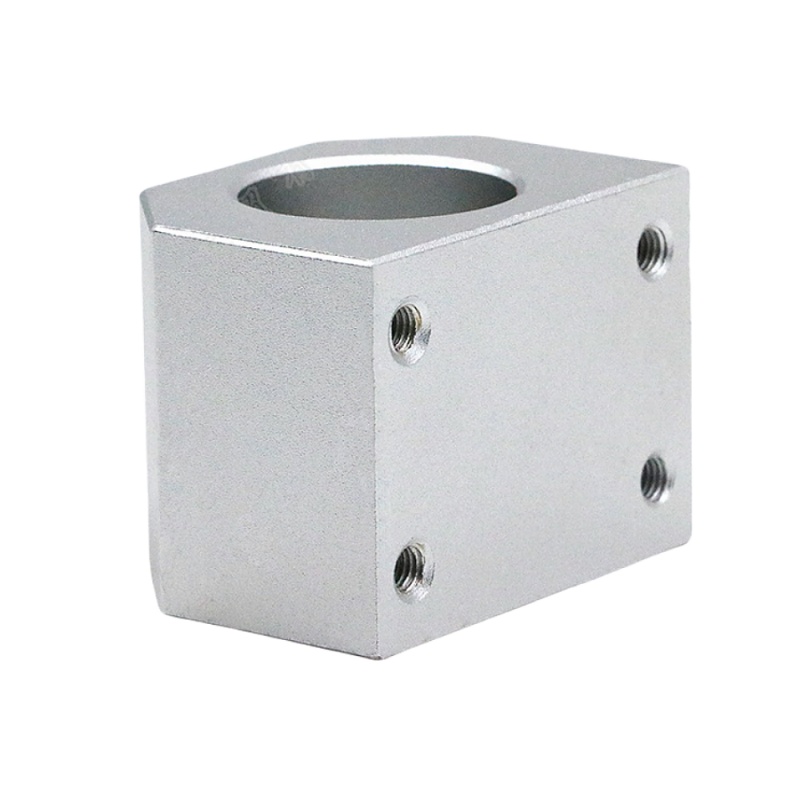

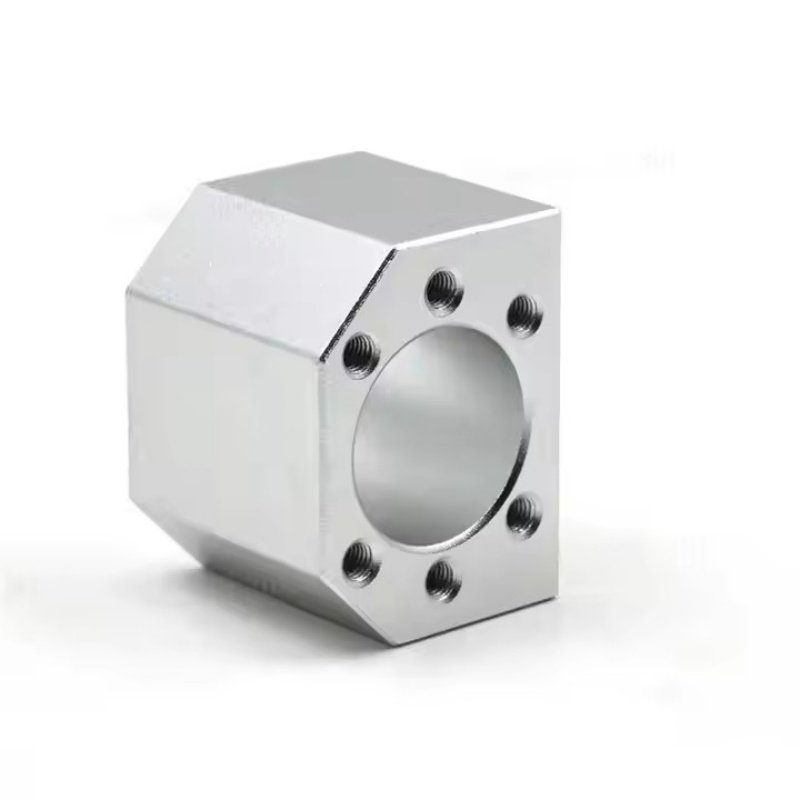

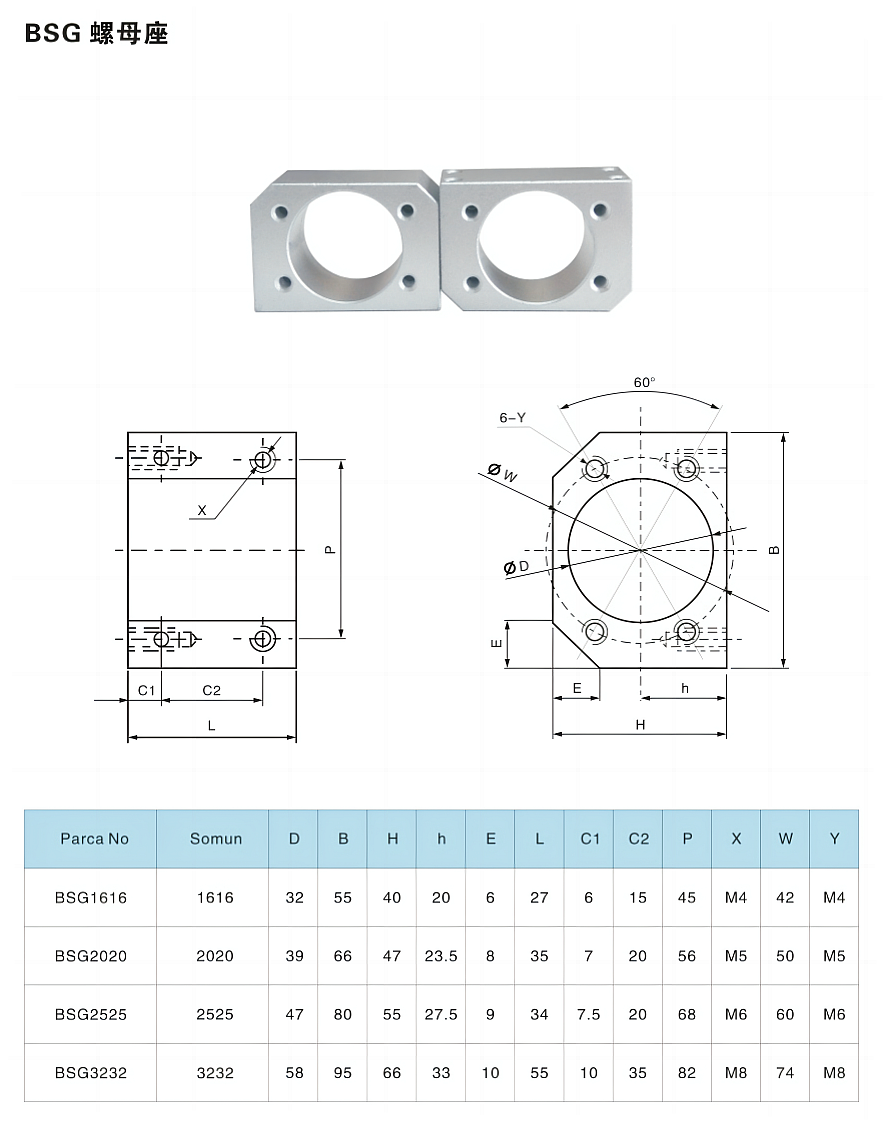

DSG Nut Support Strong Ball Screw

Comprehensive Introduction to Ball Screw Nut Housing

Core Definition of Ball Screw Nut Housing

The ball screw nut housing is a core supporting component in precision transmission systems, specifically designed to secure and support the ball screw nut. It connects the ball screw to the equipment's actuator and works collaboratively to convert rotational motion into linear motion. Its core functions include transmitting loads, distributing forces, ensuring coaxiality between the nut and the screw, preventing precision degradation caused by vibration and misalignment, and adapting to various high-precision automated equipment.

Core Structural Composition

The structure of the ball screw nut housing balances positioning accuracy and load-bearing stability, consisting of basic load-bearing components and customized auxiliary structures. Common configurations include square, flanged, and cylindrical types, each adapted to different installation spaces and load conditions.

(1) Basic Structure

● Main Load-Bearing Body: As the core load-bearing component, it is equipped with a mounting cavity precisely matched to the ball screw nut. Its design conforms to the nut's profile to avoid misalignment, and its material and dimensions are compatible with the screw's load rating to prevent deformation under stress.

● Positioning and Mounting Structure: Comprising positioning surfaces and mounting holes, it secures the nut housing and ensures its coaxiality with the actuator and the screw. Machining accuracy directly affects the transmission positioning error.

(2) Optional Auxiliary Structures

● Locking and Anti-Loosening Structure: Suitable for high-speed and vibration-prone conditions, it integrates locking screws or lock washers to enhance connection integrity, thereby preventing precision deviation and component wear.

● Protective Structure: Including protective covers and sealing grooves, it isolates contaminants to protect the internal structure of the ball screw nut, prevent rust and jamming, and extend the service life of the transmission system.

● Adjustment Structure: A core component of adjustable nut housings, it corrects coaxiality and parallelism using fine-tuning bolts, compensates for installation errors, and is ideal for ultra-high-precision applications.

● Buffer Structure: Custom-designed for heavy-load and high-frequency start-stop conditions, it absorbs impact loads, reduces vibration, protects components, and enhances operational stability.

Common Materials and Selection Basis

(1) Common Materials

Materials must balance strength, rigidity, and machining accuracy to suit different operating conditions, with three common types as follows:

● Aluminum Alloy (6061, 7075): Lightweight, corrosion-resistant, and high-precision, it is suitable for medium-light load and high-speed transmission, and is mainly used in small precision equipment.

● Carbon Steel/Alloy Steel (45# Steel, 40Cr): Boasting high strength and rigidity, its wear resistance is enhanced through quenching and tempering, making it suitable for heavy-load and high-stress applications.

● Engineering Plastics (Nylon, POM): Wear-resistant and shock-absorbent, these materials can operate stably without lubrication, making them suitable for low-speed, light-load, and corrosive environments.

(2) Selection Basis

● Load Parameters: Match the screw's rated load and select materials and dimensions with corresponding strength to prevent overload-induced deformation.

● Precision Requirements: For high-precision applications, select materials with good rigidity and high machining accuracy, combined with adjustable structures.

● Operating Conditions: Choose aluminum alloy for high-speed applications, alloy steel for heavy loads, corrosion-resistant materials for corrosive environments, and locking or buffer structures for vibration conditions.

● Installation Space: Select the appropriate configuration based on equipment dimensions and reserve sufficient space for adjustment and maintenance.

Core Functions and Advantages

(1) Core Functions

● Precise Positioning and Securing: Firmly fix the nut, ensure coaxiality between the screw and the nut, and guarantee the accuracy and consistency of transmission.

● Load Transmission and Distribution: Uniformly transmit loads to the actuator to avoid component damage caused by local stress concentration.

● Error Compensation and Adjustment: Compensate for installation errors through adjustable structures to optimize transmission accuracy.

● Protection and Shock Absorption: Isolate contaminants, absorb impact forces, and extend the service life of components.

(2) Core Advantages

● Compatibility with Precision Transmission: Precisely matches the characteristics of ball screws, meeting the high-precision positioning needs of automated equipment.

● Stable Load-Bearing Capacity: With high rigidity and good vibration resistance, it is suitable for complex working conditions such as high speed, heavy load, and high-frequency start-stop operations.

● Easy Assembly: Featuring a standardized design, its adjustable structure facilitates convenient installation and commissioning.

● High Customizability: Materials, structures, and dimensions can be customized on demand to adapt to applications across multiple industries.

Application Scenarios

Thanks to its compatibility with precision transmission, it is widely used in equipment fields requiring high positioning accuracy and stability. Core applications include:

● Machine Tool Equipment: Used in CNC machine tools, machining centers, etc., for spindle feeding and worktable movement to ensure machining accuracy.

● Automated Equipment: Applied in industrial robots, linear modules, etc., to improve the stability of joint transmission and linear feeding.

● Precision Instruments: Suitable for semiconductor and optical equipment, etc., to meet the requirements of ultra-high-precision positioning and transmission.

● Heavy-Duty Equipment: Used in heavy machine tools, conveying equipment, etc., for heavy-load transmission and stable transfer of large loads.

● Other Applications: Precision transmission scenarios in various industries, including medical equipment, aerospace supporting equipment, and electronic production lines.

Installation and Maintenance Notes

(1) Installation Notes

● Coaxiality Calibration: Use tools such as dial gauges for calibration to avoid jamming and precision degradation caused by misalignment.

● Uniform Fastening: Tighten mounting bolts evenly to prevent deformation of the nut housing due to uneven stress distribution.

● Clearance Reservation: Reserve appropriate clearance based on transmission requirements to avoid vibration or jamming.

● Clean Assembly: Remove contaminants and oil from component surfaces to prevent wear after assembly.

(2) Maintenance Notes

● Regular Inspection: Tighten loose bolts and locking structures regularly to ensure transmission stability.

● Protective Cleaning: Remove contaminants, inspect seals regularly, and replace damaged ones to prevent contamination intrusion.

● Lubrication Maintenance: Apply suitable lubricants as required; decide whether to lubricate plastic materials based on their properties.

● Troubleshooting: In case of jamming or precision degradation, inspect for deformation and misalignment, and correct or replace components promptly.
