All Plastic Multi-Purpose Linear Bearings

Introduction to LIN Engineering Plastic Super Linear Bearings (Direct Replacement for igus® Germany)

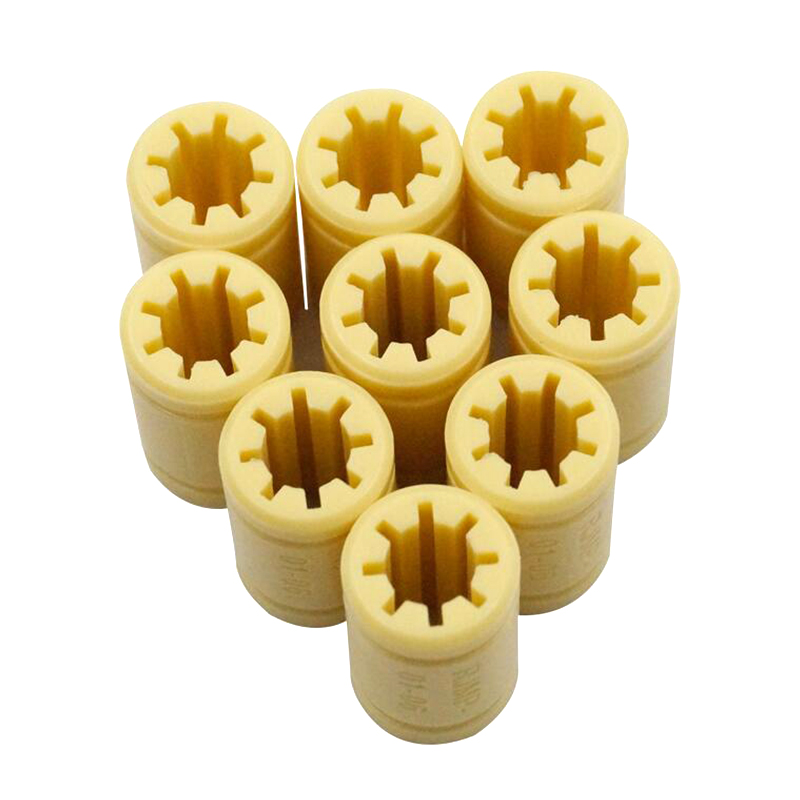

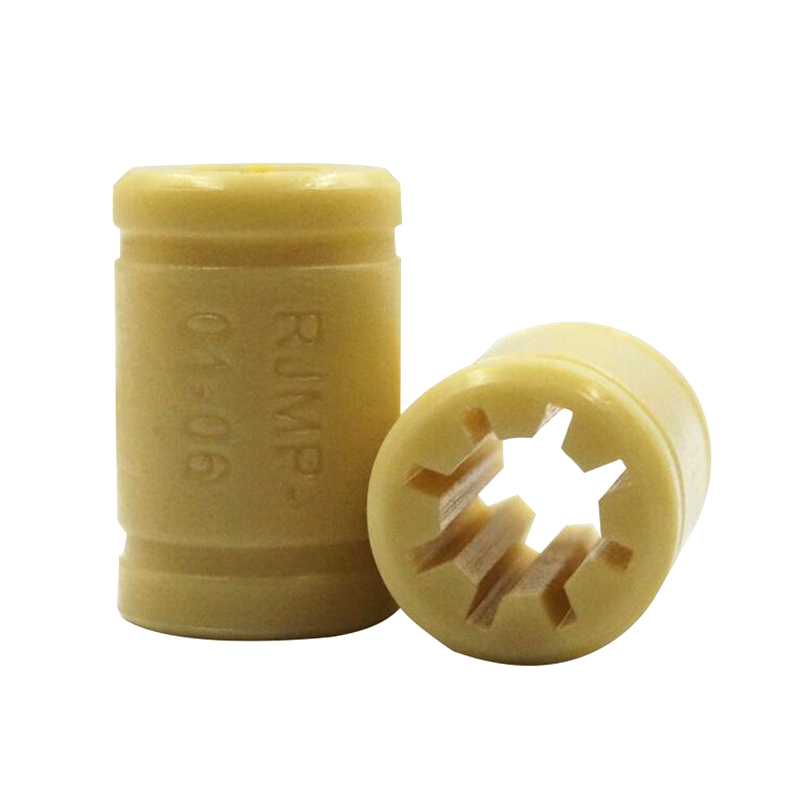

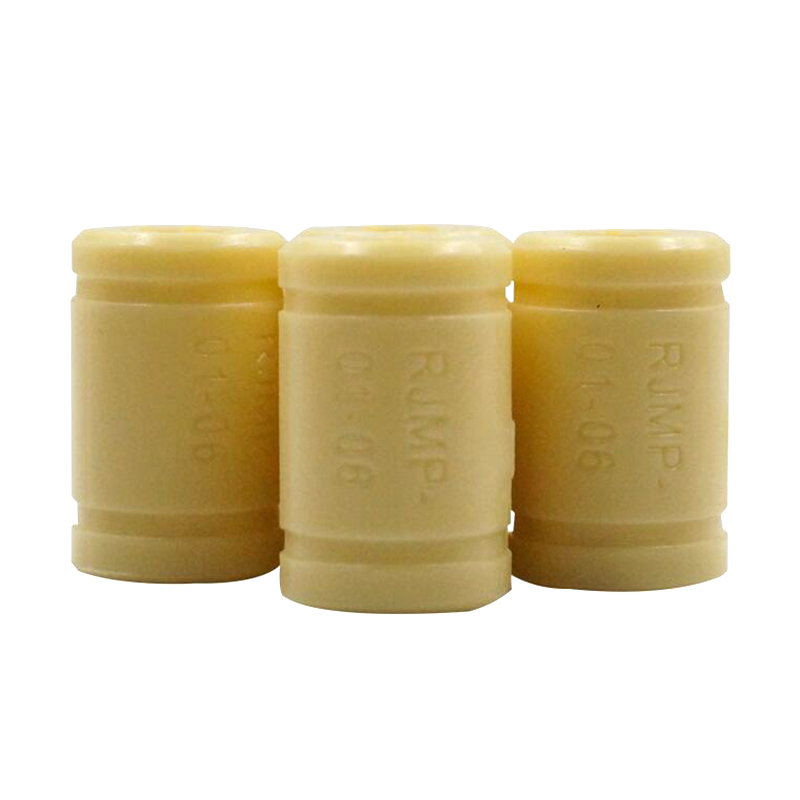

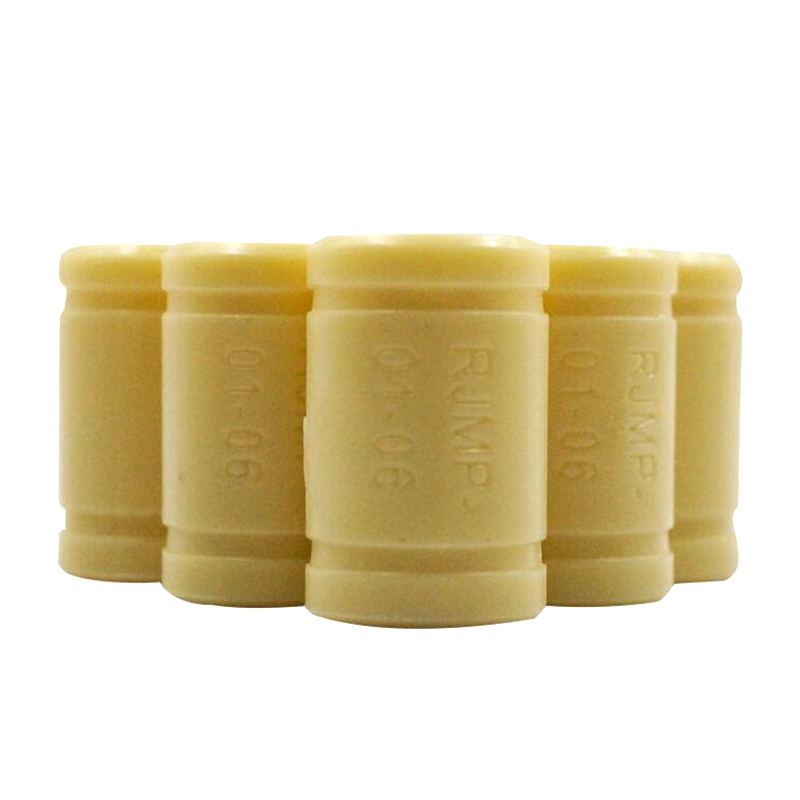

LIN Engineering Plastic Super Linear Bearings (Model: RJMP) are high-precision transmission components with high-performance polymers as the core material, suitable for harsh working conditions in multiple scenarios. Relying on innovative structural design and material modification technology, they break through the performance limitations of traditional metal bearings and ordinary plastic bearings, boasting multiple advantages including self-lubrication, contamination resistance, corrosion resistance and low noise. These bearings can directly replace similar engineering plastic linear bearings from igus® Germany (such as the iglidur® series, corresponding to the igus® LM series and other equivalent models), fully matching their original installation dimensions and operational requirements. Widely applied in industrial automation, food machinery, light-duty equipment and other fields, they provide a cost-effective alternative solution for ensuring the stability and long-term reliability of equipment transmission.

Core Material: Empowered by High-performance Polymers, Benchmarking the Material Advantages of igus®

The core of the product is precision injection-molded with EPB 13 high-performance polymer, whose performance is benchmarked against the special engineering plastics for the iglidur® series of igus® Germany (e.g., iglidur® W360, iglidur® G). Compared with ordinary engineering plastics and basic-grade igus® materials, this material has undergone special modification treatment, integrating reinforced fibers and solid lubricating particles, thus achieving a three-fold upgrade in wear resistance, load-bearing capacity and self-lubrication performance. It fundamentally avoids the pain points of metal bearings being prone to rust and ordinary plastic bearings having insufficient load-bearing capacity, while also optimizing temperature resistance and chemical stability. The material itself has excellent chemical stability, which can resist the erosion of various alkaline cleaning fluids and chemical media, and is suitable for a working temperature range of -20℃ to +60℃—better than the 0℃ to 50℃ temperature range of some similar igus® products. Even under extreme temperature differences, it can still maintain structural stability and transmission accuracy, and can adapt to complex working conditions without additional protective coatings.

Applicable shafts can be selected from AS surface-hardened aluminum shafts, CS hard chrome steel shafts and ES 304 stainless steel shafts, which can be flexibly matched according to the corrosion resistance and strength requirements of different application scenarios, with adaptability completely consistent with igus® bearings. Among them, the ES 304 stainless steel shaft is specially designed for chemical liquid environments, benchmarking the application scenarios of igus® corrosion-resistant bearings; the AS surface-hardened aluminum shaft is the optimal adaptation scheme, taking into account light weight and wear resistance; the CS hard chrome steel shaft focuses on high cost-effectiveness, which can meet diverse cost and performance requirements. Compared with imported igus® shafts, it balances performance and cost advantages.

Structural Design: Precision Adaptation, Compatible with igus® Installation Specifications, Balancing Practicality and Easy Installation

LIN Engineering Plastic Super Linear Bearings (Model: RJMP) adopt an integrated all-plastic structure (with the outer ring of some models paired with chemically treated metal aluminum), and their structural design is benchmarked against similar products from igus® Germany. Leveraging a straight-groove inner cavity design and an open sliding film structure, they not only guarantee transmission accuracy but also enhance adaptability to harsh environments, while meeting the needs of convenient installation and later maintenance. The RJMP model can directly replace corresponding igus® models without modifying the equipment installation structure.

1. Straight Groove Pollution Discharge Structure: A special straight groove is reserved in the inner cavity, which can quickly collect impurities such as dust and sand, and discharge the impurities out of the system through the continuous linear movement of the bearing. It completely solves the problem that traditional ball bearings and some igus® bearings without a pollution discharge structure are easily stuck by impurities and scratch the shaft, greatly improving the service life under dusty and impurity-rich working conditions. Compared with similar igus® products with a pollution discharge structure, it has better pollution discharge efficiency.

2. Precision Tolerance Control: It adopts E9 standard tolerance design, which is consistent with the tolerance standard of igus® bearings. The fit accuracy between the shaft and the bearing is strictly controllable, and different models correspond to precise dimensional parameters, which can realize stable linear transmission. It can effectively compensate for a parallelism error of ±3.0mm and an alignment error of ±3.5°, adapting to the transmission needs of high-precision equipment. Its precision performance is benchmarked against the high-precision igus® W360CM series bearings, and the bearing clearance control reaches the same level as similar products.

3. Convenient Installation and Maintenance: It supports interference fit press-fitting and realizes axial fixation through circlips. The installation method is completely compatible with igus® bearings, and installation can be completed without complex tools; the sliding film can be disassembled and replaced separately without replacing the entire bearing, which is consistent with the design concept of the replaceable sliding film of igus®, and the maintenance cost is lower. Some models adopt an open design, which is suitable for more installation scenarios and has better compatibility than some closed igus® models.

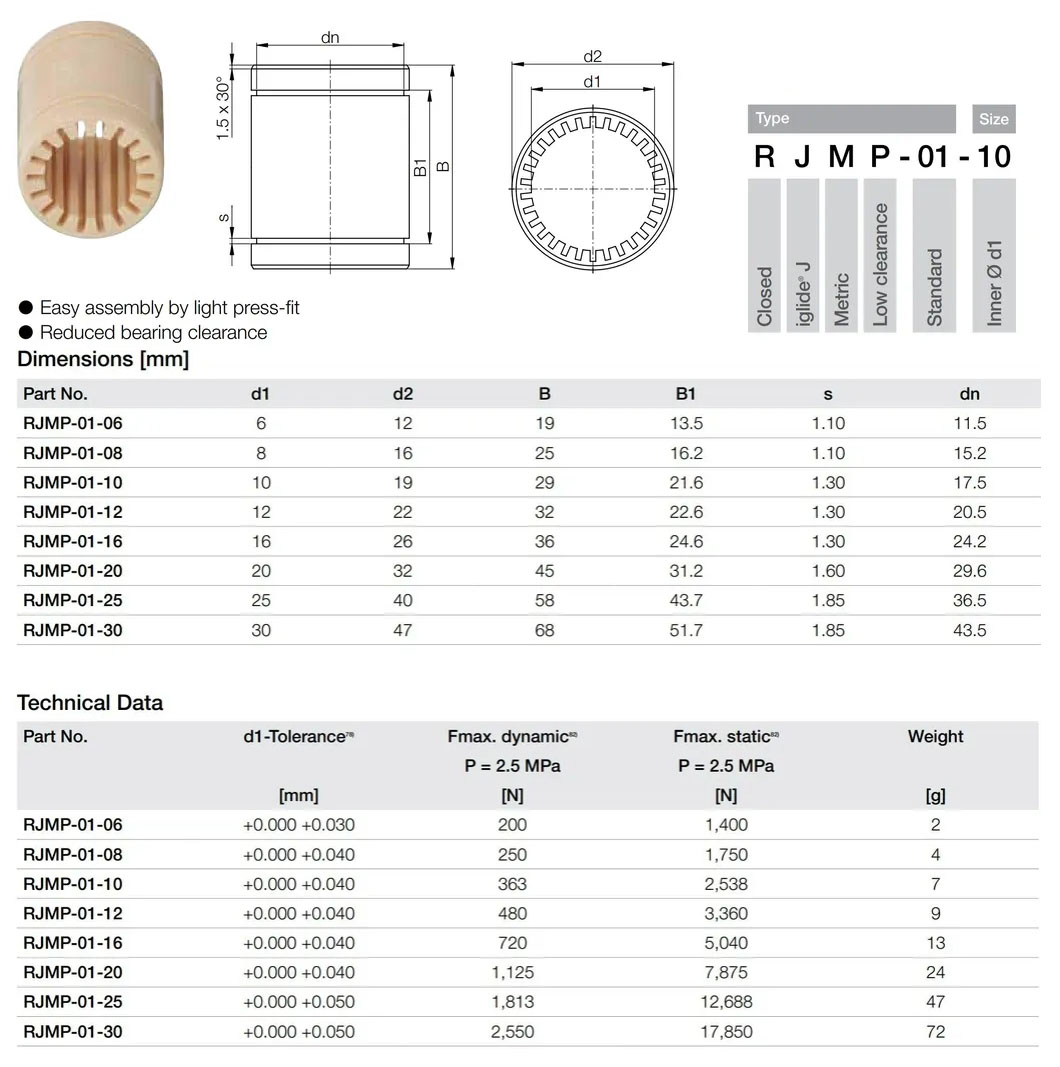

4. Full Coverage of Multiple Specifications: It covers a variety of nominal inner diameter specifications from 6mm to 30mm, corresponding to different outer diameter, length and weight parameters. Its dimensions are completely consistent with the mainstream plastic linear bearings of igus® (e.g., the GFM series), which can be directly replaced at a 1:1 ratio. The maximum dynamic load can reach 2550N, and the maximum static load can reach 17850N. Its load-bearing performance is better than that of similar medium and light-duty igus® bearings. It can be flexibly selected according to equipment load requirements, adapting to light to medium load scenarios.

Core Performance Advantages: Comprehensively Surpassing Traditional Bearings, Comparable to igus® with Higher Cost Performance

Compared with traditional metal ball bearings and ordinary plastic bearings, and benchmarked against similar engineering plastic bearings from igus® Germany, LIN Engineering Plastic Super Linear Bearings have achieved multi-dimensional performance breakthroughs. They balance practicality and economy, adapt to a wider range of working conditions, and serve as a cost-effective alternative.

1. Self-lubrication and Maintenance-free: The material itself contains solid lubricating particles, which can realize long-term dry operation without adding lubricating oil or grease—consistent with the maintenance-free characteristics of igus® bearings. It not only avoids environmental pollution caused by lubricating media, but also saves the maintenance process of frequent lubrication. It is especially suitable for industries with high cleanliness requirements such as food and medicine. It can resist the flushing of cleaning fluids, and can even operate completely immersed in liquid media, with better water resistance than some conventional igus® bearings.

2. High Load-bearing and Low Wear: It adopts a surface contact transmission design. Compared with the point and line contact of ball bearings, it has a larger contact area, so its load-bearing capacity is significantly improved, and it can bear larger static and dynamic loads. At the same time, it reduces wear during transmission, prolongs the service life of bearings and shafts, has a stable friction coefficient, lower energy loss during operation, and improves equipment transmission efficiency. Its wear life is comparable to that of the wear-resistant igus® iglidur® G series bearings, and its load-bearing performance is more advantageous.

3. Low Noise and Quiet Operation: The sliding friction structure design completely avoids the noise generated by the collision between balls and cages. The operation noise is extremely low, and the noise will not increase with the increase of operation speed. It is suitable for equipment and scenarios with strict noise control requirements, such as office equipment, precision instruments and civil machinery. Its noise reduction effect is benchmarked against the quiet igus® W360CM series bearings, meeting the noise control requirements of high-end equipment.

4. Corrosion Resistance and Aging Resistance: It has excellent corrosion resistance, which can resist the erosion of acids, alkalis, salt spray, chemical media and humid environments, and has no risk of rust. The material has outstanding anti-aging performance, is not easy to deform or crack after long-term use, and is suitable for complex working conditions such as outdoor, humid and chemical corrosion. Its service life is far longer than that of ordinary plastic bearings and uncoated metal bearings. Its corrosion resistance is benchmarked against igus® corrosion-resistant bearings, which can adapt to more harsh chemical working conditions, and there is no issue with the supply cycle of imported materials.

5. Light Weight and Low Cost: The all-plastic material (or partial metal outer ring) is significantly lighter than metal bearings, contributing to the lightweight design of equipment—consistent with the lightweight advantage of igus® plastic bearings. The overall manufacturing cost and maintenance cost are much lower than those of imported igus® bearings, with outstanding cost-effectiveness. At the same time, it reduces energy consumption during equipment operation, achieving a balance between economy and practicality. There is no need to bear import tariffs and long-distance transportation costs, and the delivery cycle is shorter.

6. Eccentric Load Adaptation: It strictly follows the 2:1 eccentric load ratio principle, enabling adaptation to a certain degree of eccentric working conditions, avoiding crawling and jamming caused by load offset. This makes it suitable for equipment scenarios prone to eccentric forces, such as handling machinery. Additionally, the eccentric adaptation range can be extended through additional lubrication. Its eccentric load capacity is superior to that of some similar igus® bearings, making it suitable for more complex load scenarios.

Application Scenarios: Covering Multiple Industries, Adapting to Harsh Working Conditions, Directly Replacing igus®

Backed by multiple core advantages, LIN Engineering Plastic Super Linear Bearings can adapt to a variety of complex working conditions and are widely used in equipment transmission systems across multiple industries. Their dimensions and performance are fully compatible with similar engineering plastic linear bearings from igus® Germany, enabling direct replacement without equipment modification—making them the preferred alternative to traditional metal bearings, ordinary plastic bearings and imported igus® bearings.

1. Food and Pharmaceutical Packaging Machinery: It is suitable for frequent cleaning scenarios, can resist the erosion of hydrogen peroxide and other cleaning fluids, has no risk of lubricating medium pollution, and ensures the cleanliness of food and pharmaceutical production. It is suitable for guiding and transmission components of equipment such as packaging machines, conveyors and sorting machines, and can directly replace igus® corrosion-resistant bearings used in food equipment, meeting food-grade cleanliness requirements.

2. Industrial Automation Equipment: It is suitable for industrial scenarios with more dust and impurities, such as mechanical trimming and concrete pipe cutting machines. It can realize precise linear transmission, and its maintenance-free feature reduces equipment downtime. It is suitable for components such as automatic production lines, manipulators and guide rail sliders, and can replace the commonly used GFM series and W360CM series bearings of igus® in automation equipment, balancing precision and durability.

3. Other Adaptation Scenarios: It can replace similar igus® bearings in humid, outdoor, chemical corrosion and other scenarios, such as control levers of agricultural machinery, pedals of construction equipment, exhaust valves of automatic grinding machines and other components. At the same time, it is suitable for scenarios with requirements on noise and precision such as office equipment, precision instruments and civil machinery. After replacement, it can reduce equipment operation and maintenance costs, shorten the delivery cycle, and improve equipment operation stability.
