Plum Blossom Coupling

Jaw Coupling Product Overview

I. Product Description

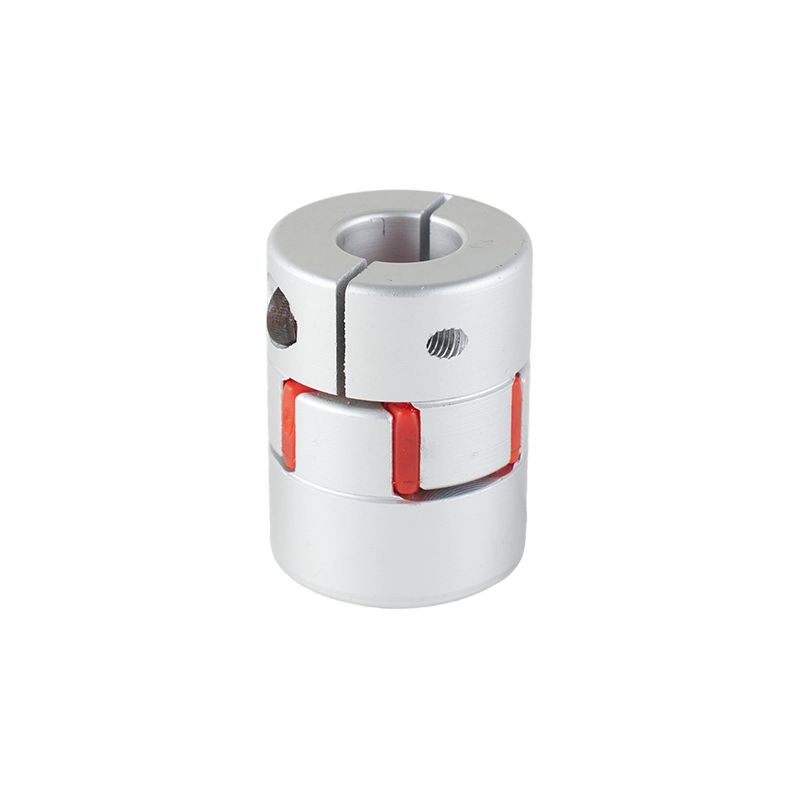

Jaw couplings—commonly known as "plum-shaped" or "spider" couplings—are simple transmission components used in industrial equipment to connect two drive shafts. They consist of two metal hubs with protruding "jaws" and an intermediate elastic "spider" insert (often plum-shaped). They transmit motor power through the compression of this insert, eliminating the need for rigid screw-based shaft locking. Unlike gear couplings, they require no periodic lubrication and do not necessitate dismantling the entire machine for installation or removal; even a novice technician can complete a replacement in just 10 minutes.

II. Specific Applications

1. Fluid Handling Equipment: Horizontal centrifugal pumps in small-to-medium European and American sewage stations and rooftop centrifugal ventilation fans; connects the motor spindle to the pump shaft, compensating for shaft misalignment caused by long-term vibration.
2. Automated Production Lines: European packaging machines and conveyor belt systems (connecting stepper motors to rollers); designed to withstand 24-hour continuous start-stop operations.
3. Precision Equipment: Small North American CNC engraving machines and food-filling servo modules; zero-backlash models prevent transmission slippage. 4. Sanitation Equipment: Overseas garden wood chippers and mobile sewage extraction units; built to withstand outdoor environments involving dust, moisture, and corrosion.

III. Purchasing Motivations & Solutions for Overseas Customers

1. Private Label Launch: Distributors of power transmission components in Europe and the Americas often lack cost-effective sources for non-standard bore sizes; this product supports custom keyways and black-oxide finishes, allowing for private labeling to round out product lines.
2. Bulk & Retail Supply: Compatible with overseas Amazon industrial stores and local hardware wholesalers; over 850,000 bore combinations cover 92% of general-purpose equipment, with short inventory turnover cycles.
3. Cost Optimization: Compared to equivalent OEM models (e.g., Lovejoy), the unit procurement cost is 22%–28% lower, and delivery lead times are reduced from four weeks to seven business days. It effectively addresses three major pain points for overseas customers: long OEM lead times, high minimum order quantities (MOQs), and expensive surcharges for non-standard bore modifications.

IV. OEM/ODM Specifications

OEM: Supports private labeling (based on customer drawings), laser marking, and custom packaging; Minimum Order Quantity (MOQ): 50 units. ODM: Allows for adjustments to the number of jaw lobes, elastomer hardness, and shaft bore tolerances; adaptable to special operating conditions such as low temperatures (-40°C) and seawater corrosion; MOQ: 500 units (core transmission structure remains unchanged).

V. Solutions to Customer Pain Points

1. Vibration and Noise: Elastomer provides 35% damping, preventing frame cracking caused by equipment resonance;
2. Eccentric Shaft Wear: Automatically compensates for axial, radial, and angular misalignments, reducing motor bearing replacement frequency by 60%;
3. Maintenance Hassle: Maintenance-free (no lubrication required); reduces routine maintenance labor hours by 90% compared to gear couplings.

VI. Target Customer Scope

We accept only B2B bulk orders and do not handle individual/consumer (C-end) orders; we do not fulfill requests for personal DIY equipment modifications, single-unit purchases for small household water pumps, or individual maintenance needs. Eligible partners are limited to four categories: overseas hardware distributors, automation equipment OEMs, production line integrators, and industrial equipment after-sales service providers.

VII. FAQ

Q1: Is it CE certified for the EU market?

A: Finished products come with CE material test reports as standard and comply with EU RoHS environmental standards;

Q2: What is the service life of the elastomer?

A: 20,000 hours under indoor ambient conditions; 12,000 hours under outdoor humid conditions;

Q3: Is mixed-cargo container shipping supported?

A: Yes, we support consolidating shipments with bearings and timing pulleys; no additional warehousing fees apply.
