Extended Round Flange Type Linear Bearings

Introduction to LMF LUU Linear Bearings

Product Overview and Basic Definition

In the fields of automated equipment, precision machinery, and numerical control devices, a stable, efficient, and accurate linear motion system is key to ensuring the operational accuracy and service life of equipment. The LMF LUU extended round flange linear bearing, with its extended structure, integrated flange design, and excellent sealing performance, has become an ideal guiding component for long-stroke, heavy-load, and high-demand working conditions, providing stable support for various mechanical transmissions.

The LMF LUU linear bearing is a round flange-type extended linear ball bearing. Its main body consists of a bearing steel outer cylinder, precision steel balls, a cage, and double dust-proof seals. When used in conjunction with a matching linear optical axis, it achieves low-friction, high-smoothness linear reciprocating motion through ball rolling. Its "LUU" structure denotes an extended bearing body with double-end seals, and "F" stands for an integrated round flange, combining convenient installation with operational stability.

Core Structure and Core Advantages

The most prominent advantage of this bearing series lies in its extended guiding structure. Compared with standard linear bearings, its longer effective stroke and guiding length significantly enhance radial load capacity and anti-overturning moment capacity, minimizing deflection and jitter during long-stroke motion and ensuring positioning accuracy under high-speed operation. It is particularly suitable for equipment with strict stability requirements, such as engraving machines, CNC machine tools, and automated manipulators.

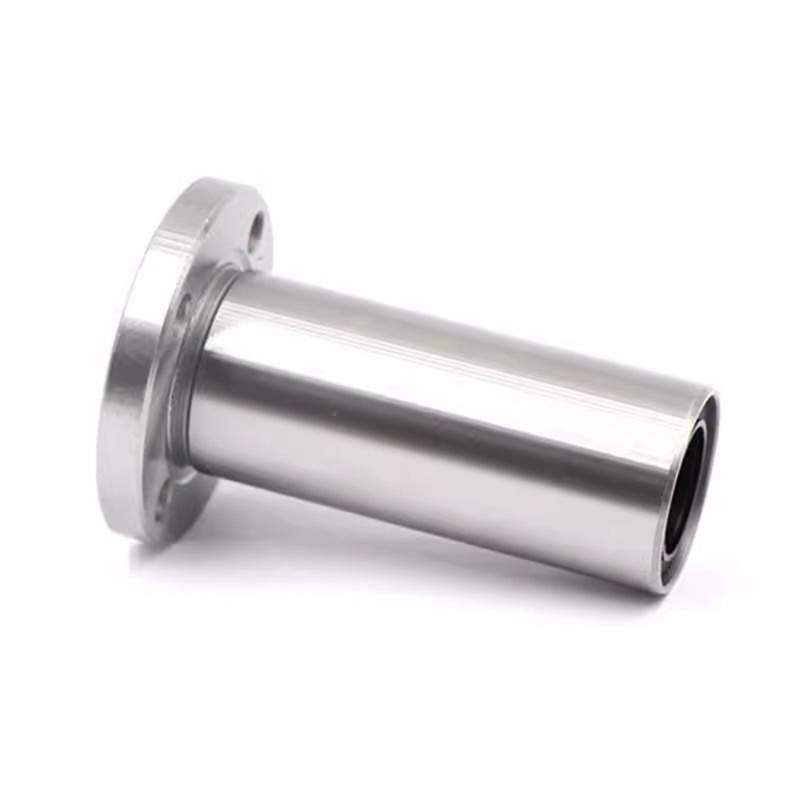

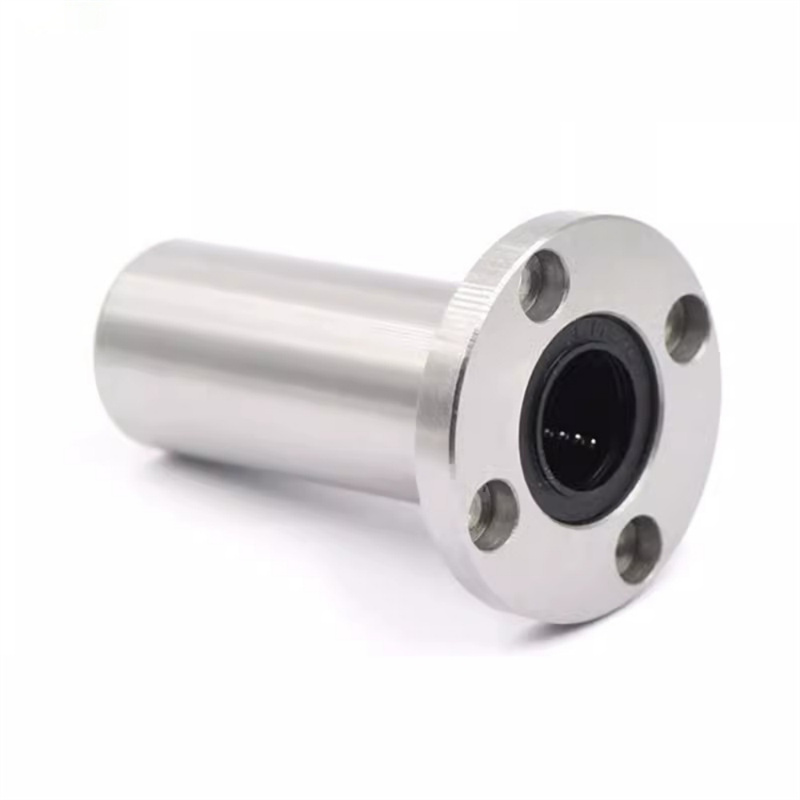

The integrated round flange design enhances installation and positioning efficiency. The flange and bearing body are integrally formed, offering higher strength and better concentricity. It can be directly fixed to the equipment frame with bolts, eliminating the need for additional bearing seats. This not only simplifies the assembly process and saves installation space but also effectively prevents bearing rotation and improves the rigidity of the overall structure.

Material Technology and Sealing Guarantee

To adapt to industrial environments with high levels of dust and debris, the LMF LUU features a double-end UU-type rubber sealing structure. This structure bidirectionally blocks dust, impurities, and cutting fluid from entering the bearing interior, maintaining the long-term cleanliness of the internal lubricating grease, reducing wear and jamming risks, significantly extending the bearing's service life, and lowering equipment maintenance frequency and costs.

Additionally, the product is crafted from high-hardness bearing steel, which undergoes precision grinding and heat treatment to achieve high surface finish and strong wear resistance. The internal precision steel balls are evenly arranged, ensuring smooth rolling and low noise, which can meet the demands of high-speed reciprocating motion. Moreover, its dimensions comply with international standards, boasting strong interchangeability and the ability to directly replace imported or domestic bearings of the same specification, with wide adaptability.

Application Scenarios and Core Value

With its stable performance and practical design, the LMF LUU extended round flange linear bearing has a wide range of application scenarios, covering various models across multiple industries and perfectly adapting to their high-precision, long-stroke, and heavy-load requirements. Specifically, it includes: CNC machine tools (such as CNC lathes, milling machines, and machining centers), 3D printers (desktop and industrial-grade high-precision models), automated production lines (belt conveyors, transfer manipulators, sorting equipment), packaging machinery (labeling machines, film sealing machines, filling machines), textile machinery (carding machines, weaving machines, winding machines), precision measuring instruments (projectors, coordinate measuring machines), medical equipment (small surgical instruments, testing instruments), as well as high-precision, long-stroke models such as engraving and milling machines, laser cutting machines, CNC bending machines, and small robot joints. It continuously provides reliable, stable, and efficient linear motion support in various harsh working scenarios.

Built on precision manufacturing and centered on stable performance, the LMF LUU linear bearing helps improve equipment operational efficiency, extend service life, and serves as a trustworthy core component in linear motion systems.
