Oval Flange Linear Bearings For CNC

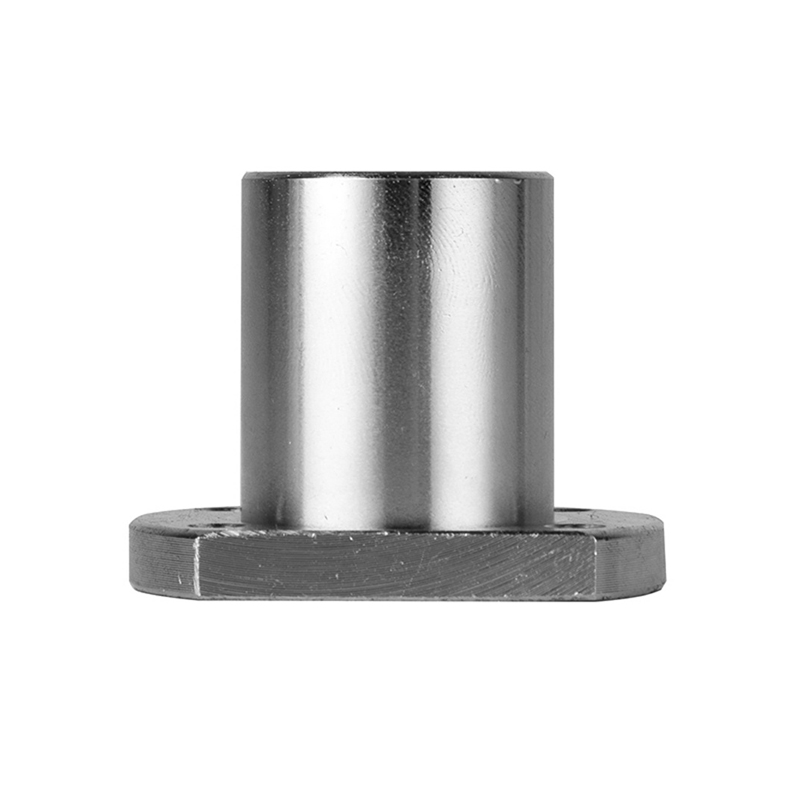

LMHUU Linear Bearing Product Introduction

The LMHUU linear bearing is an extended precision guiding component of the metric standard LM series, suitable for medium-low speed and medium-load linear motion. It features a composite flange structure as its core, combining the advantages of high rigidity, low friction, and easy installation. With standardized dimensions and strong adaptability, this bearing is widely used in automation equipment, precision machine tools, electronic instruments and other fields. It serves as a core supporting component for achieving precise linear motion, effectively improving the operational stability and positioning accuracy of equipment.

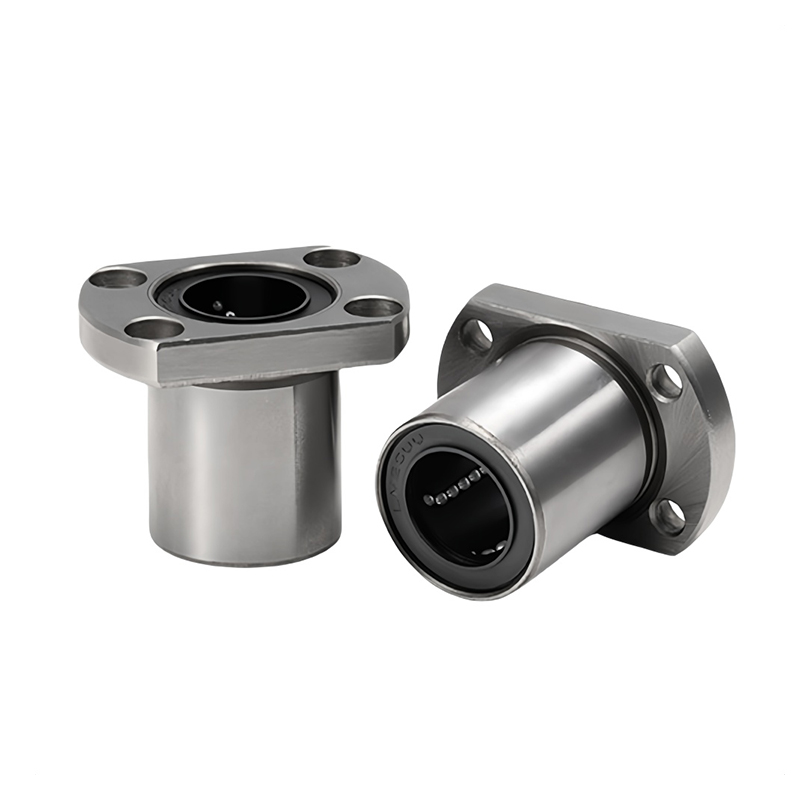

Model and Structure

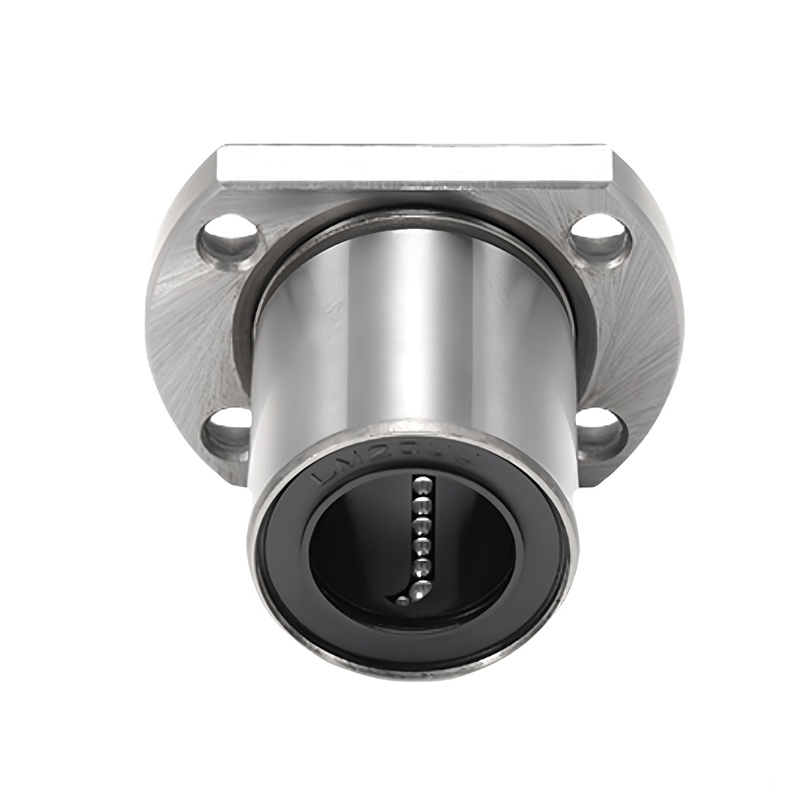

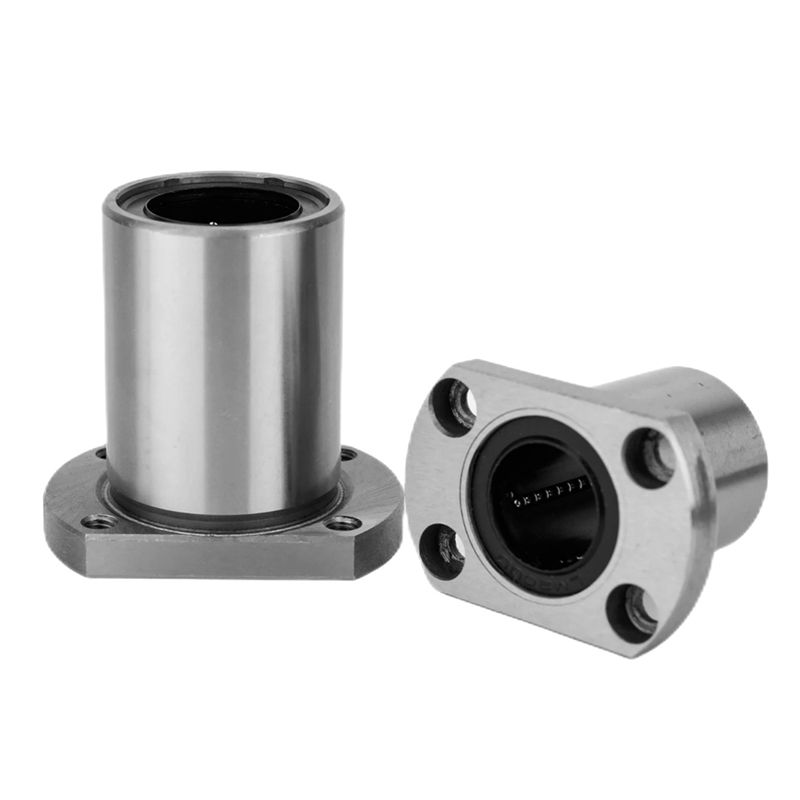

The LMHUU model has clear markings for accurate selection: "LM" represents the metric standard linear bearing series, complying with Asian general dimension specifications; "H" denotes a composite flange, which combines the high rigidity of square flanges and the easy installation of circular flanges, enabling multi-directional fixing and strong torsion and overturning resistance; "L" stands for extended design, enhancing motion stability and load distribution capacity; "UU" indicates double sealing at both ends for enhanced protection. The bearing consists of an outer cylinder, cage, steel balls, and sealed end caps. The outer cylinder is quenched from bearing steel, ensuring wear resistance and durability; the cage guides the smooth circulation of steel balls to reduce jamming; the double sealing blocks impurities and retains lubrication, ensuring long-term stable operation.

Core Performance and Advantages

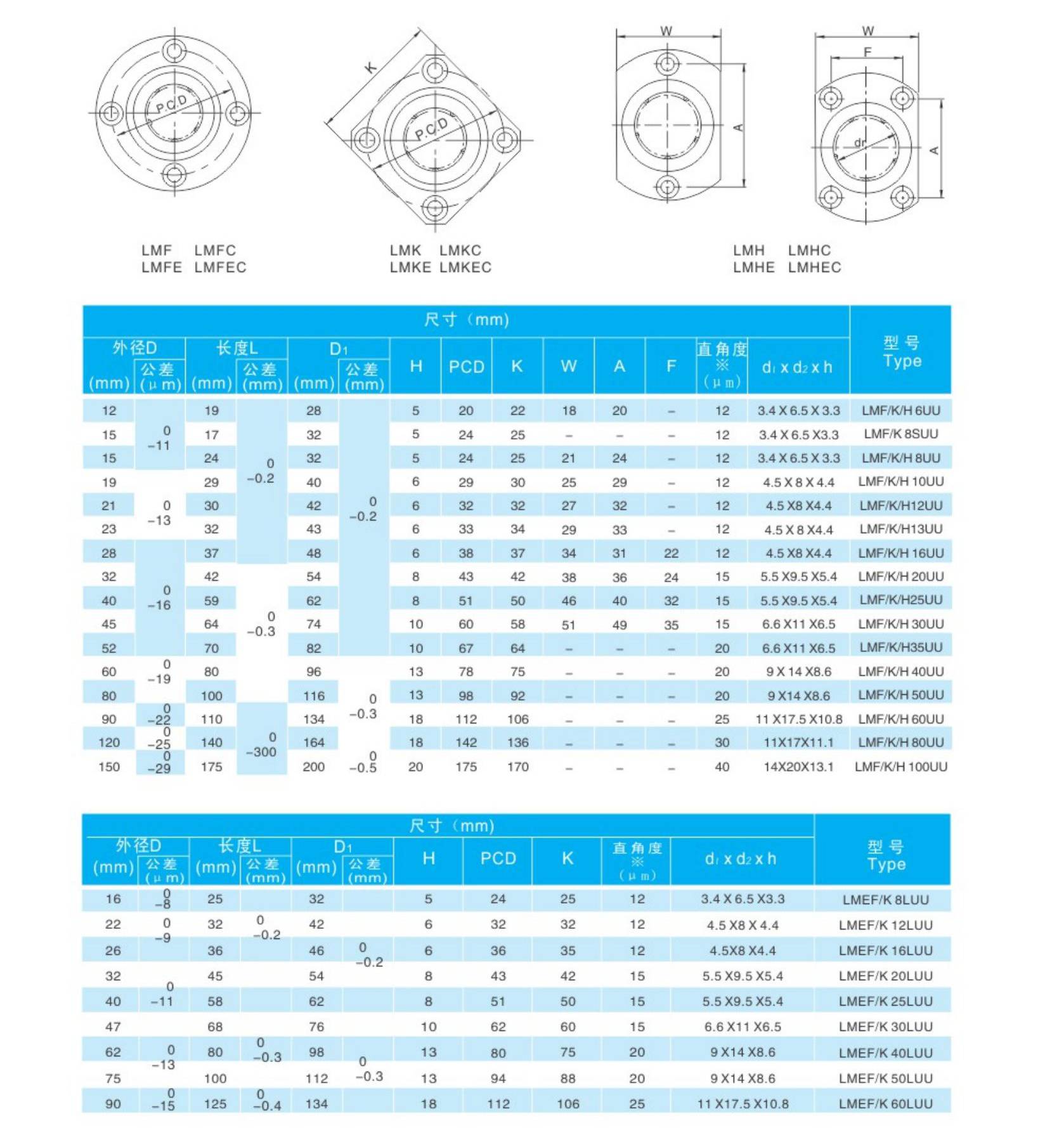

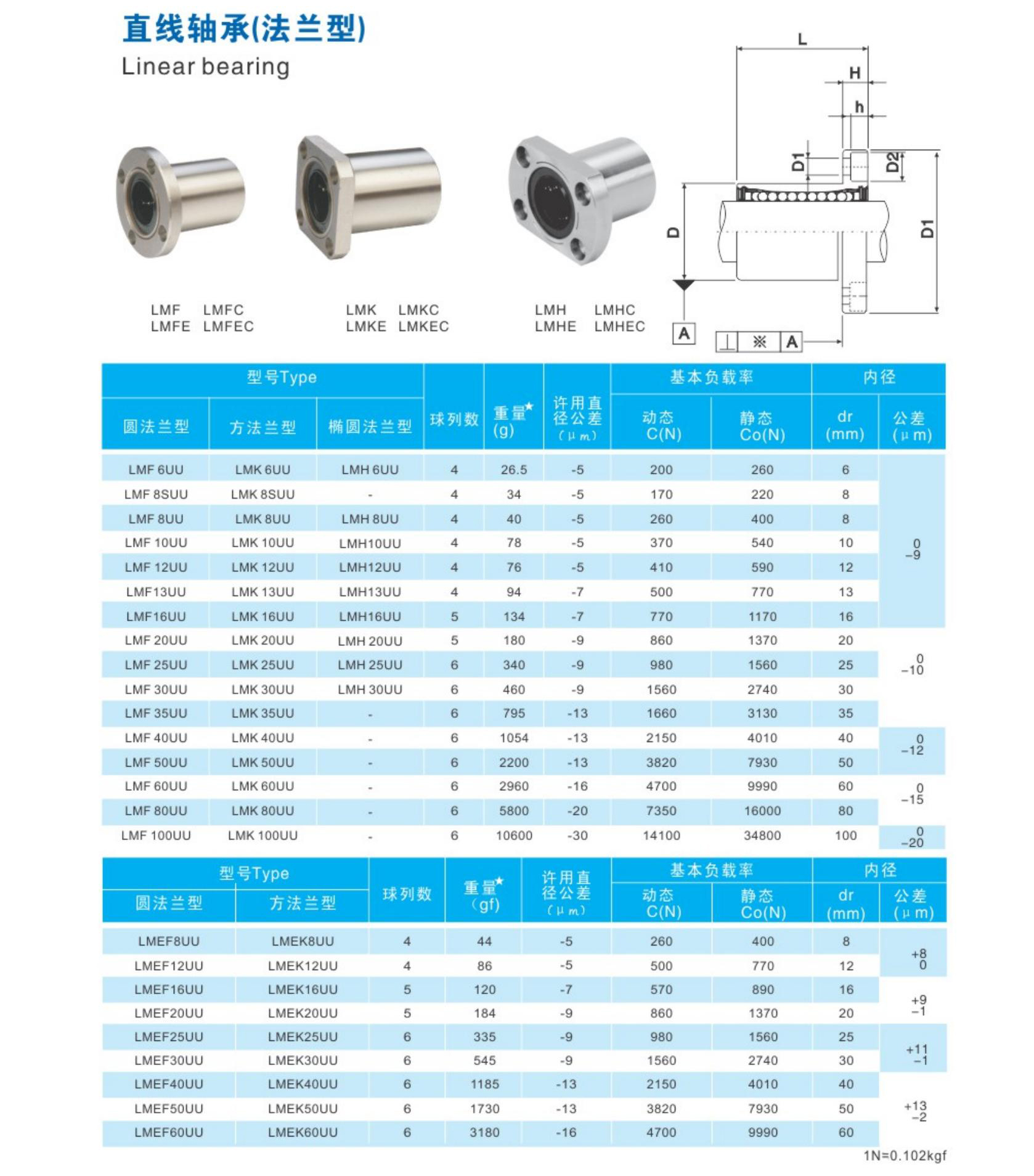

The mainstream specification LMH25UU boasts excellent performance: the basic rated dynamic load reaches 138N, and the basic rated static load is 210N, enabling stable bearing of medium-low loads; the operating temperature ranges from -20°C to 80°C, suitable for most industrial working conditions; it features precise positioning and controllable eccentricity to ensure regular motion trajectories. Its core advantages are prominent: the composite flange combined with extended design offers high rigidity, stable motion and low noise, avoiding tilting under force; rolling friction replaces sliding friction, resulting in low wear, energy saving and durability; standardized dimensions ensure good interchangeability and easy installation; double sealing protection eliminates the need for frequent lubrication, reducing maintenance costs and extending service life.

Application Scenarios

The LMHUU linear bearing has a wide range of applications, covering industrial equipment in various fields. In the automation field, it can be used for the guidance of robotic arms, the lifting and positioning of production lines, etc., to improve automation accuracy; in the precision machining field, it is suitable for multi-axis machine tools, small machining centers, providing stable support for moving components; in the electronic and DIY fields, it is applicable to compact structures such as 3D printers and micro-transmission mechanisms; it can also be adapted to equipment such as food packaging, printing, and measuring instruments, meeting the requirements for rigidity and precision.

Installation and Usage Notes

To ensure the service life and performance of the bearing, the following points should be noted during installation and use: first, match it with a quenched linear shaft to ensure the accuracy and smoothness of the shaft and avoid wear; second, install it stably, press the outer ring with special tools, and never strike the sealed end caps; third, adhere to the rated load and temperature range, prohibit overload operation, use in extreme environments and forced rotation, and only adapt to pure linear motion; fourth, regularly check the integrity of the seals, replace them in time if damaged, and supplement lubricating grease under harsh working conditions.
