Square Flange Low Friction Linear Bearings

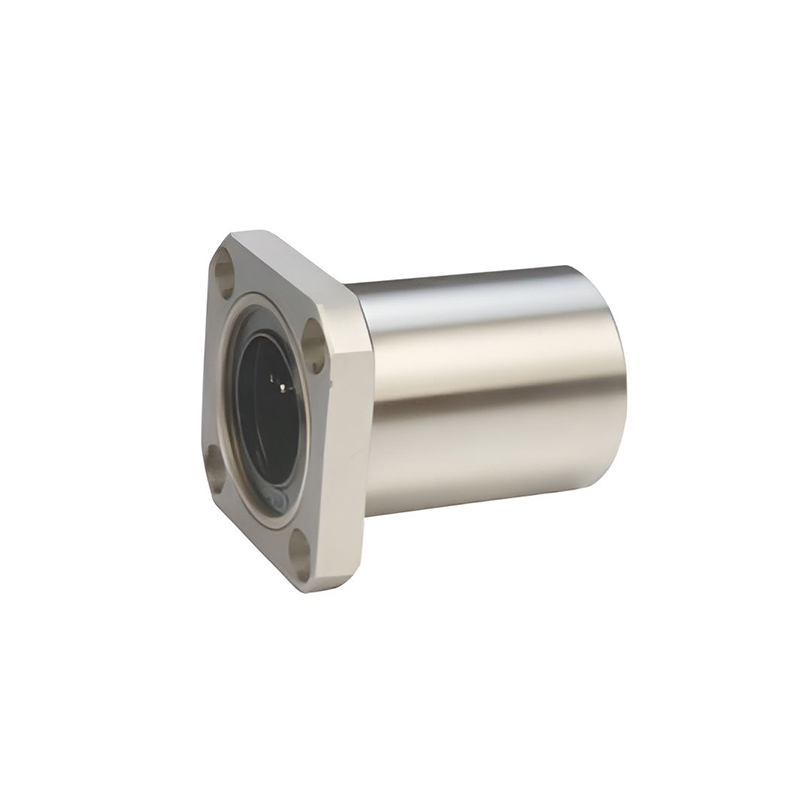

Introduction to LMKUU Linear Bearings

As a classic flanged model in the LM series, the LMKUU linear bearing is engineered for high-precision, low-friction linear motion transmission. Its square flange and double-seal structure render it widely applicable to industrial automation, precision equipment, and other scenarios, delivering an excellent balance of practicality and cost-effectiveness. The model coding is clearly defined: "LM" denotes the Asian universal basic series for linear bearings, "K" represents the square flange design, and "UU" indicates double-end seals [8].

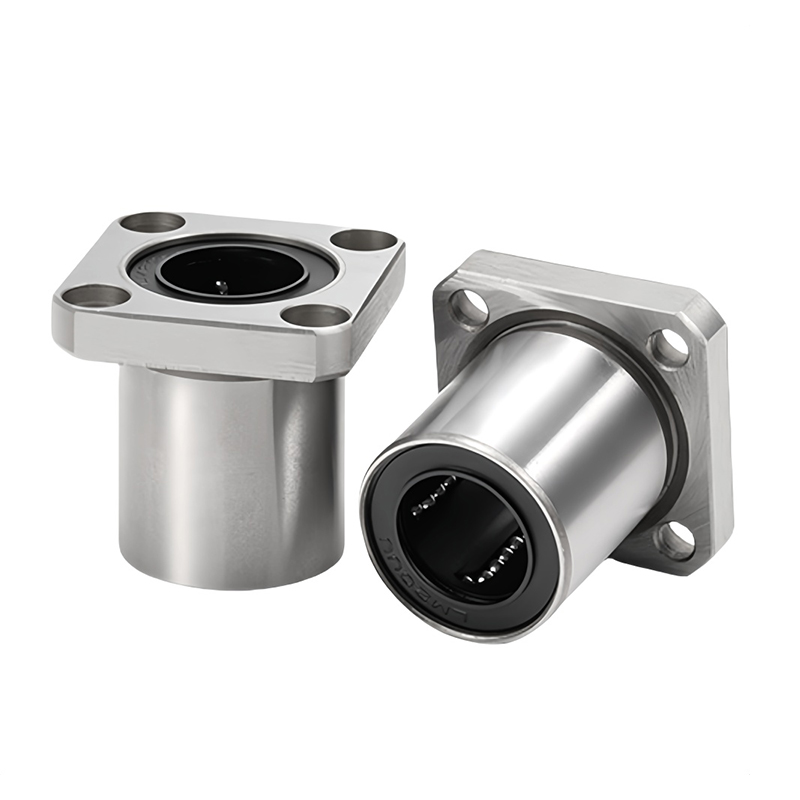

Core Structure and Material Configuration

The LMKUU adopts a standardized modular structure, with four core components working in tandem to ensure stability and durability. The selected materials are tailored to meet the load and precision requirements of industrial applications [3][5]:

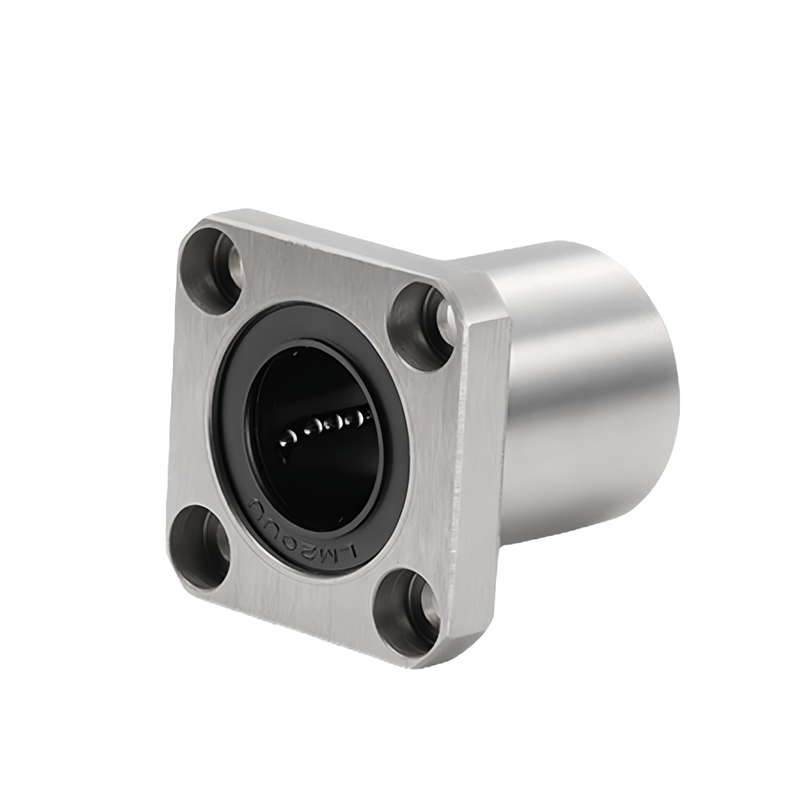

● Housing and Flange: The cylindrical housing is integrated with a square flange, featuring symmetrical mounting holes for quick and secure installation while resisting multi-directional torque. Fabricated from SUJ2-grade high-carbon bearing steel, it achieves a hardness of ≥58HRC after quenching. Some models offer nickel plating for corrosion resistance, making them suitable for humid environments [2][8].

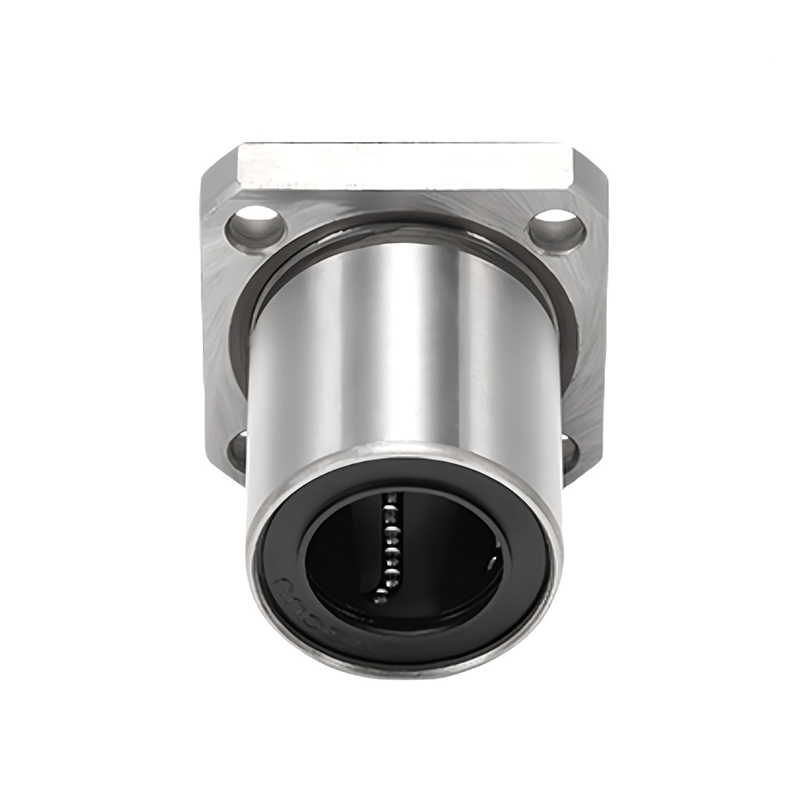

● Rolling Elements and Cage: G3-grade high-precision steel balls minimize friction, and a wear-resistant resin cage guides the cyclic movement of the balls to prevent jamming. Metal cages are available as a customization option for heavy-load applications [5][6].

● Sealing Device: Nitrile rubber double-end seals retain lubricating grease to prevent leakage and block contaminants, thereby extending service life [2][6].

● Lubrication System: Factory-preloaded with lithium soap-based grease, it reduces friction and heat buildup for high-speed operation, with lubrication requiring regular replenishment [2][7].

Key Performance Advantages

Leveraging its structural and material strengths, the LMKUU delivers superior performance across multiple dimensions, adapting to diverse transmission requirements [4][6]:

1. Low-Friction, Efficient Transmission: Utilizing rolling friction, it boasts a friction coefficient as low as 0.001-0.004, with lower energy consumption than sliding bearings. It is well-suited for high-speed and high-frequency commutation operations [4][5].

2. High-Precision Guidance: Manufactured in compliance with metric standards, it achieves micron-level motion error and repeat positioning accuracy within ±5μm, making it ideal for precision equipment [4][5].

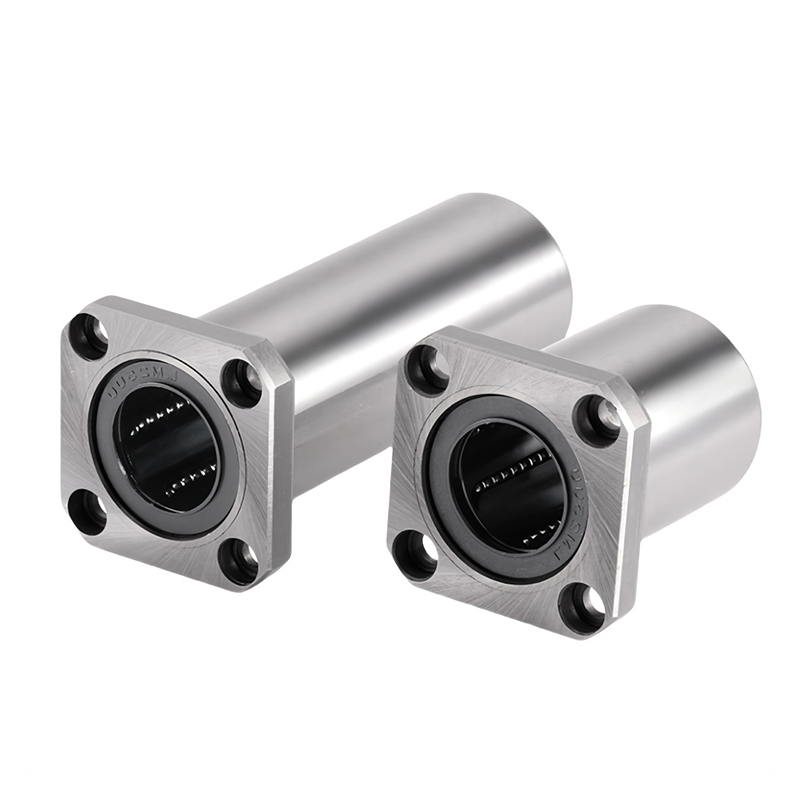

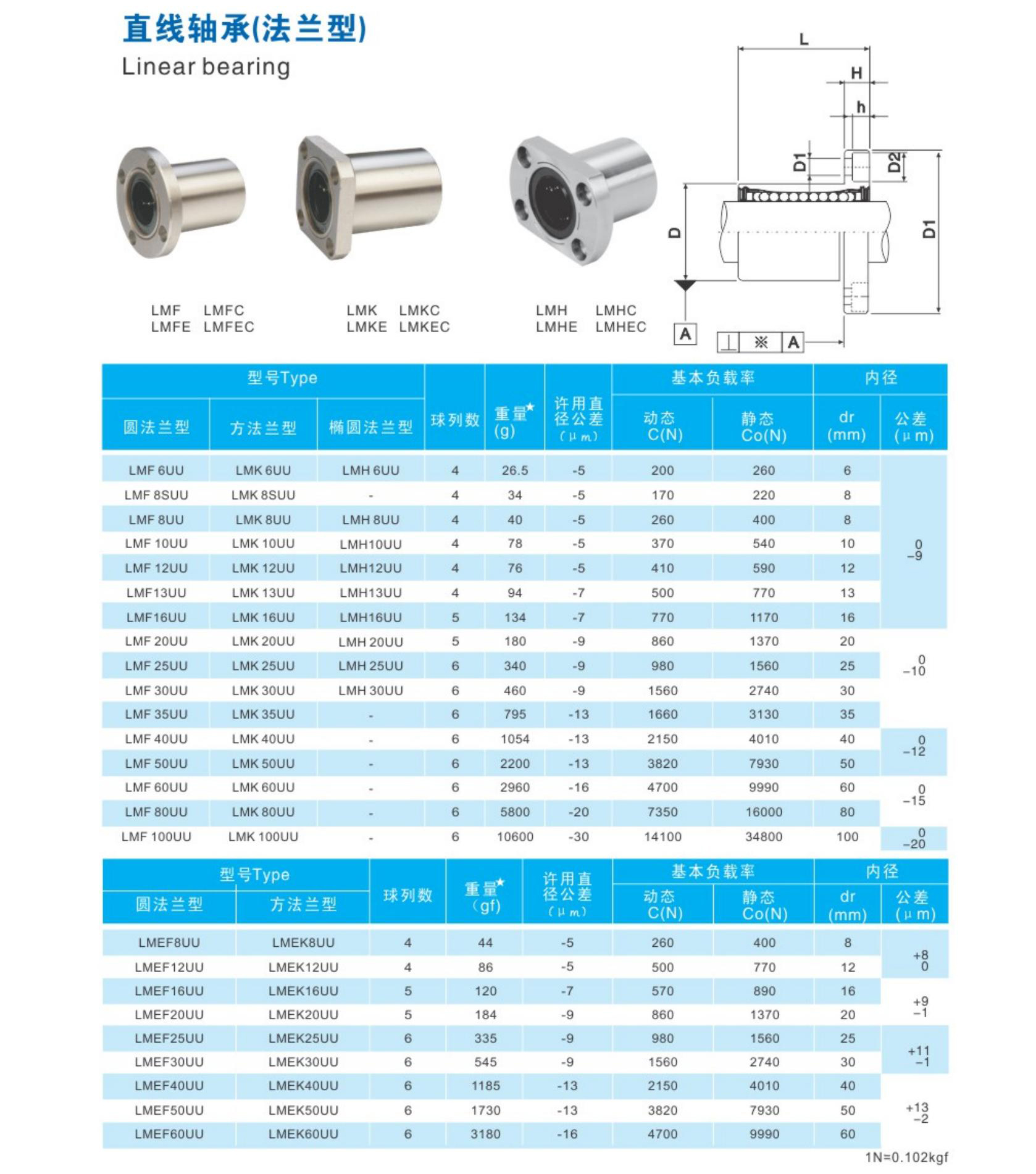

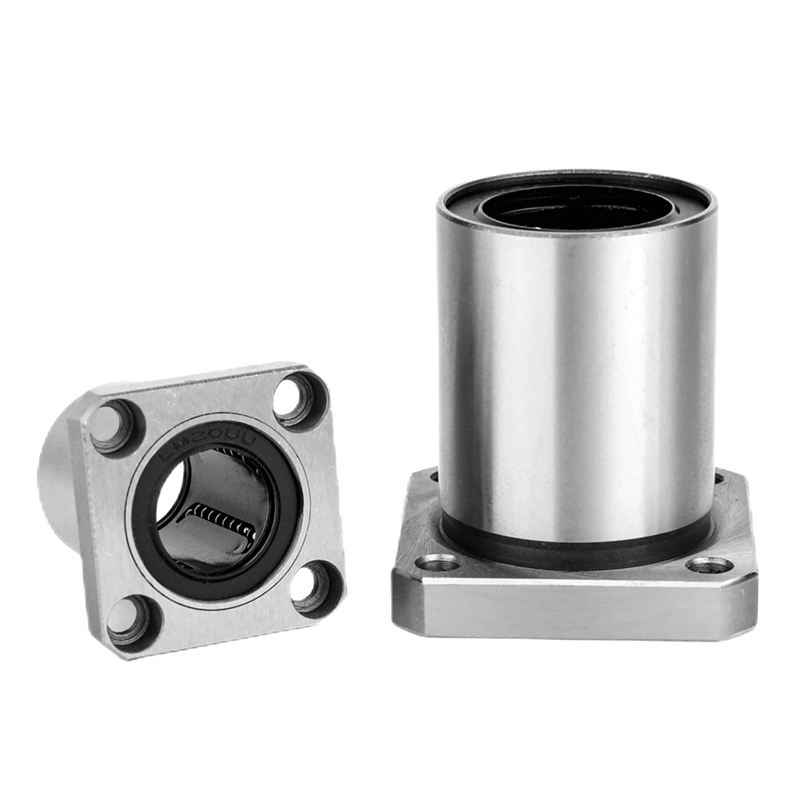

3. Strong Load Adaptability: Capable of withstanding radial loads, the double-liner type (LMK...LUU) features double rows of steel balls, providing higher load capacity and reduced runout. For eccentric load scenarios, multiple units can be used in combination [2].

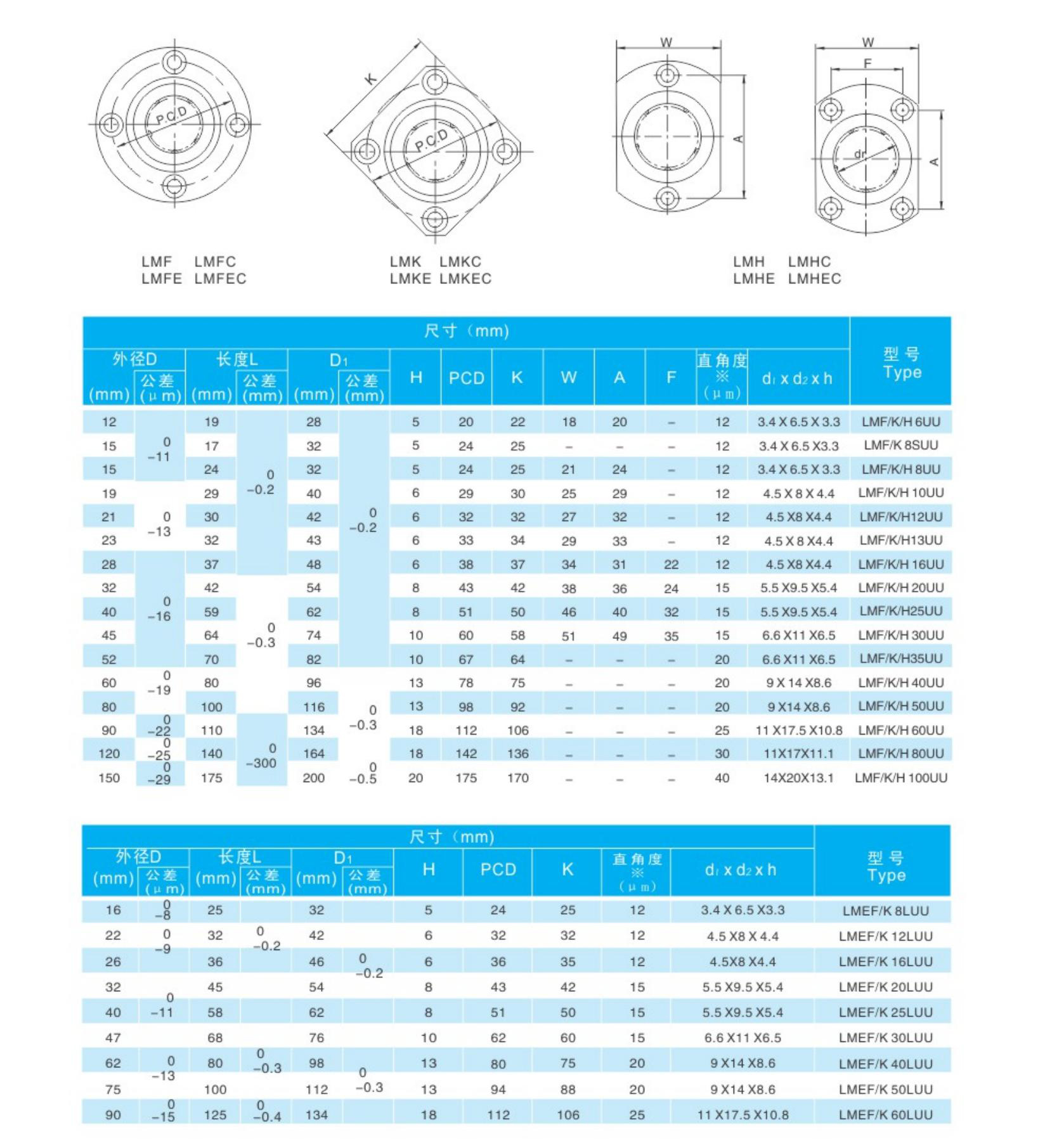

4. Easy Installation & Versatility: The square flange is optimized for compact spaces. With standardized dimensions, it is compatible with g6-tolerance guide shafts and H7-tolerance mounting blocks, enabling direct replacement of same-specification products from other brands [2][6][8].

5. Wide Temperature Adaptability: It operates reliably within a temperature range of -20℃~80℃, and the temperature range can be extended with special lubricating grease [2].

Application Scenarios

The LMKUU is ideally suited for applications requiring compact installation, high precision, and dust resistance. Typical use cases include [1][4][6]:

● Precision Machine Tools: Feed mechanisms such as CNC machine slides and milling machines, ensuring consistent machining accuracy [3][5].

● Automation Equipment: Guide mechanisms for robotic arms, SMT placement machines, and similar equipment, enhancing operational stability [4][6].

● Precision Testing Instruments: 3D industrial cameras, semiconductor manufacturing equipment, and other devices requiring high testing and machining accuracy [4].

● General Machinery: Small conveyors, printing equipment, fitness equipment, and other applications balancing economy and durability [1].

Installation and Maintenance Guidelines

(1) Installation Notes

● Thoroughly clean all components to remove oil stains and contaminants prior to installation [7].

● Insert the guide shaft slowly and align it with the center; do not strike. Ensure parallelism ≤0.01mm/100mm and coaxiality ≤0.02mm [2][7].

● Use fasteners of grade 8.8 or higher, and tighten the flange bolts incrementally in a diagonal sequence [7].

● For linear motion only; not suitable for rotational applications [2].

(2) Daily Maintenance Specifications

● Replenish lithium soap-based grease every 6 months under normal operating conditions, or every 3 months for high-speed or long-stroke applications [2].

● Install additional dust covers when used in harsh, dusty environments [2].

● Inspect operating conditions every 2000 hours, and promptly repair or replace components if abnormalities occur [7].

● Avoid repeated insertion/extraction and excessive torque loads [2].

Summary of Core Product Advantages

The LMKUU linear bearing excels in precise transmission, secure installation, and long-term durability. Its square flange provides strong torsion resistance, while the double-seal design expands its application scope. Standardized manufacturing enhances interchangeability and reduces overall costs, making it a cost-effective and practical solution for both precision micro-feeding and high-speed transmission needs [4][6][8].
