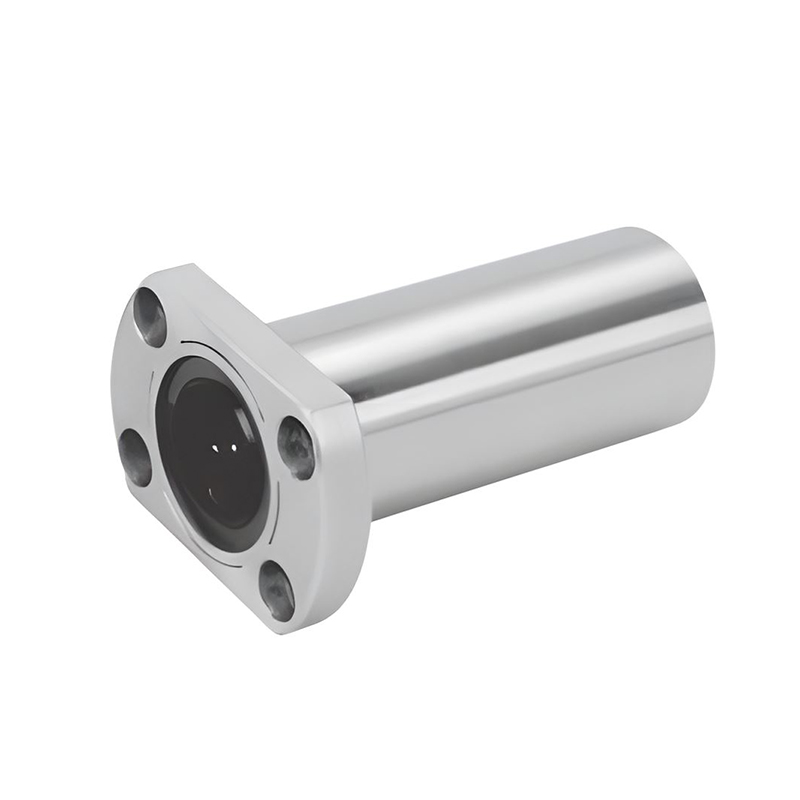

High Precision Oval Extended Linear Bearings

LMH LUU Extended Square Flange Linear Bearing | High Precision Guidance + Easy Installation + Long Durability, the First Choice for Core Components of Industrial Equipment!

Product Overview and Basic Definition

In the fields of precision machinery, automated equipment, and CNC machining, the stability and accuracy of linear motion directly affect equipment operational efficiency and product quality. As a guiding component specially designed for high-precision, long-stroke, and heavy-load scenarios, the LMH LUU extended square flange linear bearing has become the core supporting choice for many industrial equipment, relying on the unique advantages of its square flange, extended body structure, and excellent sealing performance, providing stable and reliable linear guiding support for various mechanical transmissions.

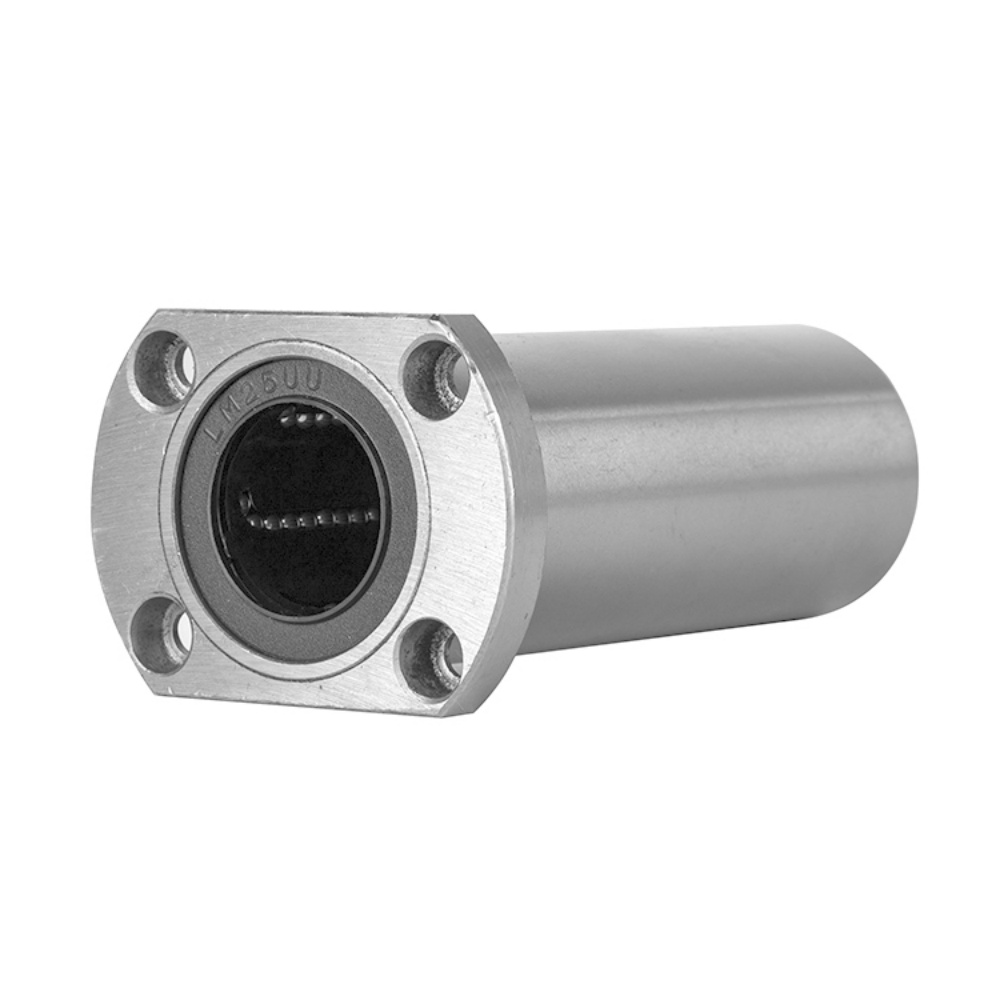

The LMH LUU linear bearing is a square flange-type extended linear ball bearing. Its core difference from the LMF series (round flange) lies in the flange shape design — in "LMH", "L" stands for linear bearing, "M" is the standard series identifier, "H" refers to the integrated square flange, and "LUU" clearly indicates its extended bearing body and double-end seal configuration. The main body of the bearing consists of a high-hardness bearing steel outer cylinder, precision steel balls, a high-strength cage, and double-end dust-proof seals. When used in conjunction with a matching quenched linear optical axis, it achieves low-friction, high-smoothness infinite-stroke linear reciprocating motion through ball point-contact rolling, combining convenient installation with operational stability.

Core Structure and Core Advantages

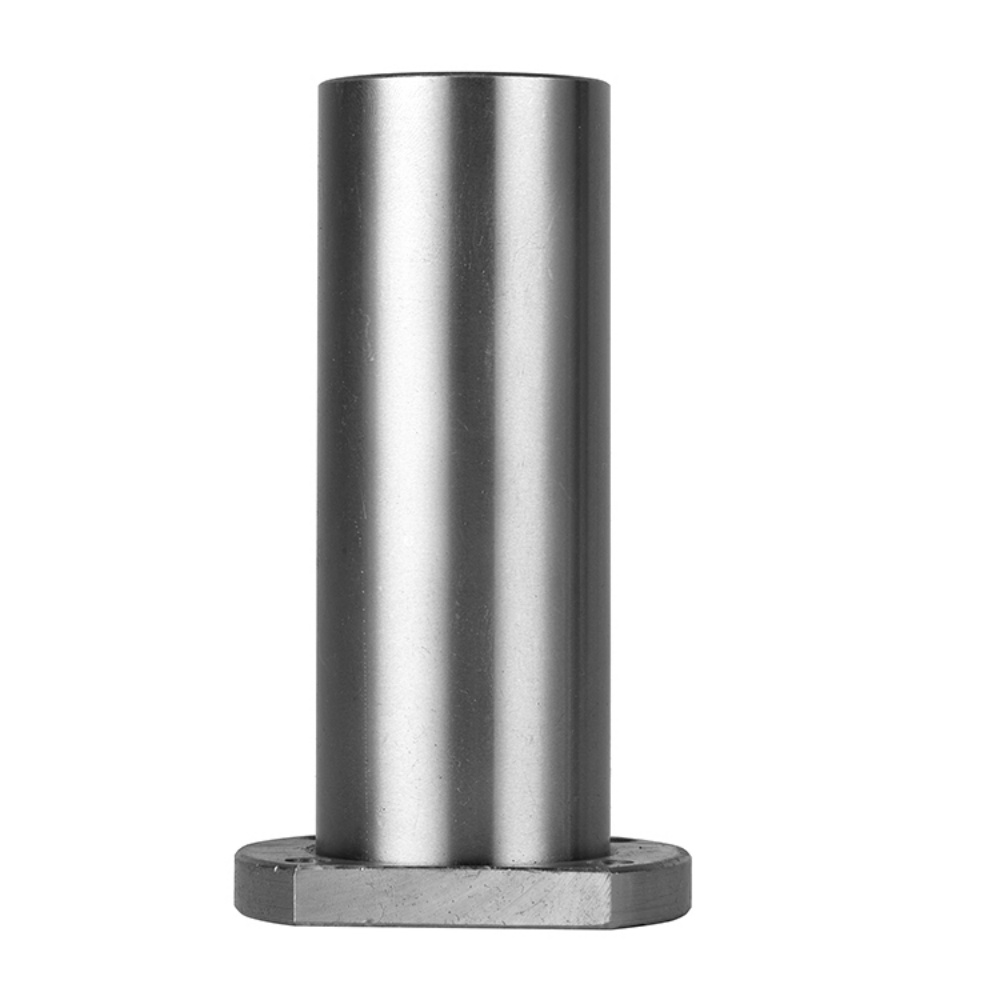

The most prominent advantages of the LMH LUU series are: first, the extended guiding structure. Compared with standard linear bearings, its effective guiding length is significantly increased, which greatly improves radial load capacity and anti-overturning moment, effectively avoiding deflection and jitter during long-stroke motion, ensuring micron-level positioning accuracy under high-speed operation, and adapting to various equipment with strict requirements on motion stability.

Second, the integrated square flange design, which is also the core difference from the LMF round flange series. The square flange fits more closely with the equipment installation surface, offering more accurate positioning, and can be fixed at multiple angles with bolts to adapt to different installation space requirements. It is especially suitable for scenarios where the installation surface is flat and high positioning accuracy is required; the flange and the bearing body are integrally formed and precision-ground, featuring high concentricity and strong structural strength. No additional bearing seat is needed, which simplifies the assembly process, effectively prevents bearing rotation, and enhances the rigidity of the overall transmission structure.

Material Technology and Sealing Guarantee

To adapt to the interference of common impurities such as dust, iron chips, and cutting fluid in industrial scenarios, the LMH LUU adopts a double-end UU-type rubber sealing structure. This structure bidirectionally and tightly blocks various impurities from entering the bearing interior, continuously maintaining the cleanliness of the internal lubricating grease, reducing wear on steel balls and raceways, lowering the risk of jamming, significantly extending the bearing’s service life, reducing equipment maintenance frequency and costs, and adapting to dusty and highly polluted industrial working conditions.

In terms of materials and technology, this series of bearings adheres to high-quality standards. The outer cylinder is made of high-carbon chromium bearing steel, processed by vacuum quenching and low-temperature tempering, with a hardness of HRC58-62 and a surface roughness controlled below 0.8μm, offering excellent wear resistance and corrosion resistance; the internal precision steel balls are evenly arranged, matched with a high-strength engineering plastic or metal cage to guide the smooth circulation of steel balls without jamming, and the operating noise is as low as 45dB, which can meet the demands of high-speed reciprocating motion. Moreover, its dimensions comply with international standards, boasting strong interchangeability and the ability to directly replace imported or domestic bearings of the same specification, with wide adaptability.

Application Scenarios and Core Value

With its stable performance and the unique advantages of the square flange, the LMH LUU extended square flange linear bearing has a wide range of application scenarios, covering various models across multiple industries and perfectly adapting to their high-precision, long-stroke, and heavy-load requirements. Specifically, it includes: CNC machine tools (CNC lathes, milling machines, machining centers, engraving and milling machines), 3D printers (industrial-grade high-precision models), automated production lines (transfer manipulators, sorting equipment, linear slides), packaging machinery (labeling machines, filling machines, sealing and cutting machines), textile machinery (carding machines, weaving machines, winding machines), precision measuring instruments (projectors, coordinate measuring machines), medical equipment (small surgical instruments, testing instruments), as well as high-precision, long-stroke models such as laser cutting machines, CNC bending machines, small robot joints, and electronic equipment assembly lines. In various harsh working scenarios, it continuously provides reliable, stable, and efficient linear motion support for equipment.

Built on precision manufacturing and centered on stable performance, the LMH LUU linear bearing leverages the accurate positioning advantage of the square flange and the stable guiding performance of the extended structure to help equipment improve operational efficiency, extend service life, and effectively reduce enterprise operation and maintenance costs. It is the preferred core component for linear motion systems that adapt to flat installation scenarios and pursue high-precision guidance.
